WHIRLPOOL HDL 534 A
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | HDL 534 A |
| Kód 12NC: | 851299601170 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Profesionální domácí čištění |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 999 WHR20051 |
C00535820
482000100616 |
Gasket resistance | Na dotaz | Zadat poptávku | |
| 999 WHR20051 |
C00535824
482000100620 |
Switch safety press 95/75 | Na dotaz | Zadat poptávku | |
| 999 WHR20051 |
C00559793 | IFU WHP | Na dotaz | Zadat poptávku | |

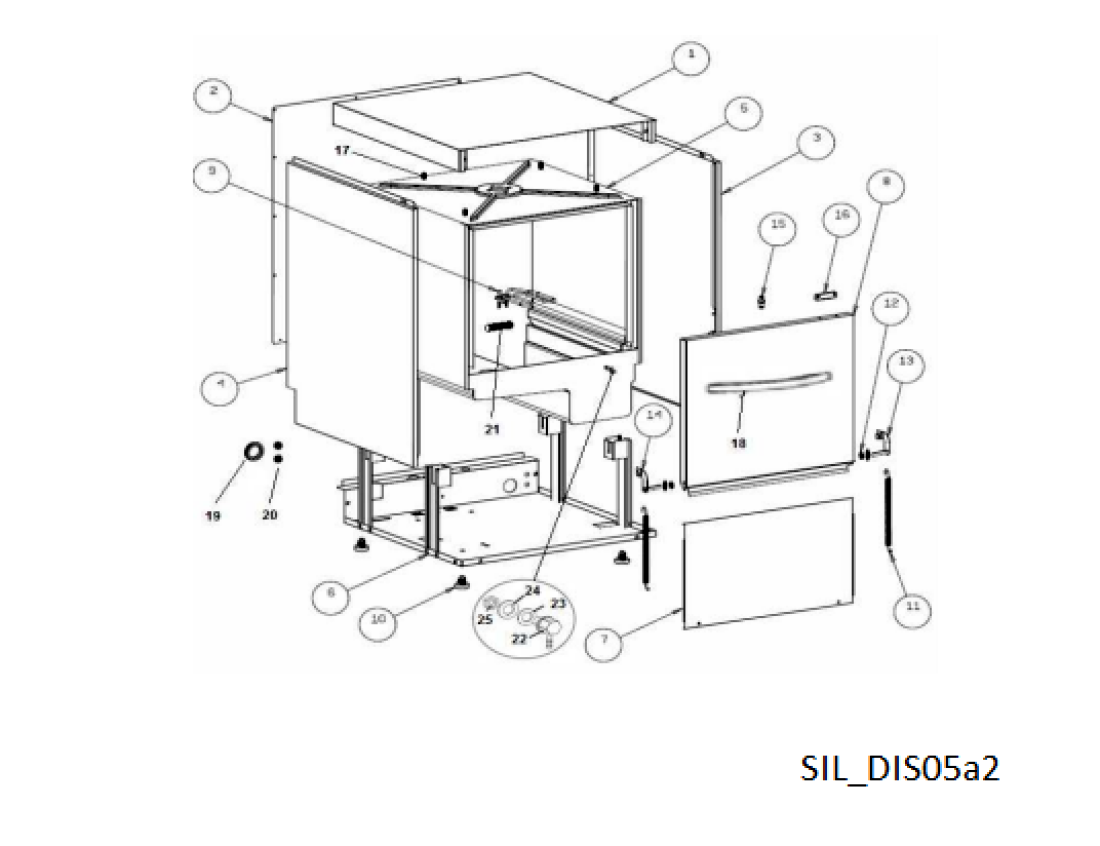

| A001 WHR20051 |
C00520033
482000098501 |
Panel N50 vert 2014 AISI | Na dotaz | Zadat poptávku | |
| A002 WHR20051 |
C00520034
482000098502 |
Panel back N50 vert 2014 | Na dotaz | Zadat poptávku | |
| A003 WHR20051 |
C00520035
482000098503 |
Panel lato N50 DX Vert | Na dotaz | Zadat poptávku | |
| A004 WHR20051 |
C00520036
482000098504 |
Panel lato N50 SX Vert | Na dotaz | Zadat poptávku | |
| A005 WHR20051 |
C00536053
482000100657 |
Tank N50B | Na dotaz | Zadat poptávku | |
| A006 WHR20051 |
C00536054
482000100658 |
Panel bottom N50 imperial | Na dotaz | Zadat poptávku | |
| A007 WHR20051 |
C00536055
482000100659 |
Panel lower N50S imperial | Na dotaz | Zadat poptávku | |
| A008 WHR20051 |
C00520037
482000098505 |
Door N50 with M.A | Na dotaz | Zadat poptávku | |
| A009 WHR20051 |
C00520038
482000098506 |
Tub resist 2kW 230W N50 | Na dotaz | Zadat poptávku | |
| A010 WHR20051 |
C00423471
483286011296 |
Fastener Rubber leg | Na dotaz | Zadat poptávku | |
| A011 WHR20051 |
C00520039
482000098507 |
Spring door N45/N50/N902010 | Na dotaz | Zadat poptávku | |
| A012 WHR20051 |
C00517753
483286008935 |
Gasket | Na dotaz | Zadat poptávku | |
| A013 WHR20051 |
C00520040
482000098508 |
Hinge door N45-N50 DXWheel | Na dotaz | Zadat poptávku | |
| A014 WHR20051 |
C00423514
483286011344 |
Hinge left | Na dotaz | Zadat poptávku | |
| A015 WHR20051 |
C00342109
483286008118 |
Door catch | Na dotaz | Zadat poptávku | |
| A016 WHR20051 |
C00338315
483286008861 |
Magnet ,cover | Na dotaz | Zadat poptávku | |
| A017 WHR20051 |
C00519764
482000098430 |
Ring upper panel fixing | Na dotaz | Zadat poptávku | |
| A018 WHR20051 |
C00519768
482000098434 |
Handle | Na dotaz | Zadat poptávku | |
| A019 WHR20051 |
C00340204
483286008919 |
Grommet | Na dotaz | Zadat poptávku | |
| A020 WHR20051 |
C00517754
483286008938 |
Grommet | Na dotaz | Zadat poptávku | |
| A021 WHR20051 |
C00519788
482000098454 |
Tank lock resist silicone | Na dotaz | Zadat poptávku | |
| A022,B029 WHR20051 |
C00413100
482000012775 |
Fitting Detergent INOX - Inlet tank | 2 784 Kč
€ 109.90 |
||
| A023,B030 WHR20051 |
C00413099
482000012774 |
Těsnění | 1 560 Kč
€ 61.60 |
||
| A024,B031 WHR20051 |
C00413098
482000012773 |
Podložka | 889 Kč
€ 35.10 |
||
| A025,B032 WHR20051 |
C00413097
482000012772 |
Nut ATB 5 | Na dotaz | Zadat poptávku | |
| B001 WHR20051 |
C00522735
482000099276 |
Boiler B 7LT 2015 | Na dotaz | Zadat poptávku | |
| B002 WHR20051 |
C00416863
482000019908 |
Safety Thermos. 110° | Na dotaz | Zadat poptávku | |
| B003 WHR20051 |
C00337971
483286008139 |
Těsnění, O kroužek topení profesionální myčky Whirlpool | 966 Kč
€ 38.10 |
||
| B004 WHR20051 |
C00339911
483286008813 |
Heating element 6kW 230V | Na dotaz | Zadat poptávku | |
| B005 WHR20051 |
C00417135
482000020371 |
Valve | Na dotaz | Zadat poptávku | |
| B006 WHR20051 |
C00501114
483286008856 |
Cap for hole | Na dotaz | Zadat poptávku | |
| B007 WHR20051 |
C00417521
482000021333 |
Lamella brass | Na dotaz | Zadat poptávku | |
| B008 WHR20051 |
C00501057
483286000485 |
Inlet ,ELBOW | Na dotaz | Zadat poptávku | |
| B009 WHR20051 |
C00416944
482000020115 |
Pump CRC-R DX | Na dotaz | Zadat poptávku | |
| B010 WHR20051 |
C00501073
483286001413 |
Valve | Na dotaz | Zadat poptávku | |
| B011 WHR20051 |
C00520056
482000098524 |
Regulator group 3.75 LT. GREY | Na dotaz | Zadat poptávku | |
| B012 WHR20051 |
C00344923
482000012771 |
Hose inlet 90° 1500mm S 800 HW | Na dotaz | Zadat poptávku | |
| B013 WHR20051 |
C00520042
482000098510 |
Ring air gap | Na dotaz | Zadat poptávku | |
| B014 WHR20051 |
C00520043
482000098511 |
Ring AIR GAP | Na dotaz | Zadat poptávku | |
| B015 WHR20051 |
C00520044
482000098512 |
Pipe air | Na dotaz | Zadat poptávku | |
| B016,B025,E014 WHR20051 |
C00339400
483286008798 |
Hose ,pressostat | Na dotaz | Zadat poptávku | |
| B017,E013 WHR20051 |
C00497215
483286001003 |
Pressostat | Na dotaz | Zadat poptávku | |
| B018 WHR20051 |
C00524371
483286001397 |
Spring | Na dotaz | Zadat poptávku | |
| B019 WHR20051 |
C00520045
482000098513 |
Cover internal air gap | Na dotaz | Zadat poptávku | |
| B020 WHR20051 |
C00522787
482000099302 |
Valve half close no return | Na dotaz | Zadat poptávku | |
| B021 WHR20051 |
C00335614
483286008166 |
T-adapter | Na dotaz | Zadat poptávku | |
| B022 WHR20051 |
C00421486
483286003391 |
Filter, weight DET./BRILL. | Na dotaz | Zadat poptávku | |
| B023 WHR20051 |
C00497100
483286000996 |
Pipe | Na dotaz | Zadat poptávku | |
| B024 WHR20051 |
C00339444
483286008155 |
TRANSPARENT HOSE 4X7 | Na dotaz | Zadat poptávku | |
| B026 WHR20051 |
C00522772
482000099287 |
Wash unit detergent dosing | Na dotaz | Zadat poptávku | |
| B027 WHR20051 |
C00522737
482000099278 |
Control unit rinse dosing w/o RE | Na dotaz | Zadat poptávku | |
| B028 WHR20051 |
C00524241
483286000997 |
Support | Na dotaz | Zadat poptávku | |
| C001 WHR20051 |
C00517763
483286008953 |
Pipe ,outlet upper | Na dotaz | Zadat poptávku | |
| C002 WHR20051 |
C00517733
483286008881 |
Pipe | Na dotaz | Zadat poptávku | |
| C003 WHR20051 |
C00373911
483286008891 |
Nátrubek myčky | 1 108 Kč
€ 43.70 |
||
| C004 WHR20051 |
C00340175
483286008807 |
Guide | Na dotaz | Zadat poptávku | |
| C005 WHR20051 |
C00500314
483286008956 |
Flange | Na dotaz | Zadat poptávku | |
| C006 WHR20051 |
C00517736
483286008887 |
Pin ,rinse | Na dotaz | Zadat poptávku | |
| C007 WHR20051 |
C00335995
483286008808 |
Stopper inferior rinse pin | Na dotaz | Zadat poptávku | |
| C008 WHR20051 |
C00417105
482000020341 |
Valve TOP 40 COMPL. | Na dotaz | Zadat poptávku | |
| C009 WHR20051 |
C00339368
483286000128 |
Hose draining d19 90° 2000 PS + CURVA | Na dotaz | Zadat poptávku | |
| C010 WHR20051 |
C00341423
483286008811 |
Pipe ,fitting | Na dotaz | Zadat poptávku | |
| C011 WHR20051 |
C00339181
483286008806 |
Hub ,washing/rinse | Na dotaz | Zadat poptávku | |
| C012 WHR20051 |
C00517760
483286008949 |
Pipe ,outlet | Na dotaz | Zadat poptávku | |
| C013 WHR20051 |
C00517756
483286008944 |
Tube bend | Na dotaz | Zadat poptávku | |
| C014 WHR20051 |
C00497222
483286008943 |
Pump | Na dotaz | Zadat poptávku | |
| C015 WHR20051 |
C00520046
482000098514 |
Pipe N45/N50/N90/E50/N650 | Na dotaz | Zadat poptávku | |
| C016 WHR20051 |
C00417121
482000020357 |
Ring packing 2013 | Na dotaz | Zadat poptávku | |
| C017 WHR20051 |
C00417122
482000020358 |
Ring packing 2013 | Na dotaz | Zadat poptávku | |
| C018 WHR20051 |
C00417103
482000020339 |
Filter N45/N50/N90 D98 | Na dotaz | Zadat poptávku | |
| C019 WHR20051 |
C00417098
482000020334 |
Metalfilter SUPERF. N45-N50 CPL. 2013 | Na dotaz | Zadat poptávku | |
| C020 WHR20051 |
C00417101
482000020337 |
Tube N45-N50-CAPOT | Na dotaz | Zadat poptávku | |
| C021 WHR20051 |
C00519642
482000097731 |
Čerpadlo vypouštěcí myčky nádobí | 3 583 Kč
€ 141.50 |
||
| C022 WHR20051 |
C00417104
482000020340 |
Pipe exhaust D19 90° 760mm PS N50 | Na dotaz | Zadat poptávku | |
| D001 WHR20051 |
C00337987
483286008323 |
Šroub ramene | 1 176 Kč
€ 46.40 |
||
| D002 WHR20051 |
C00416947
482000020118 |
Rameno oplacovací | 2 226 Kč
€ 87.90 |
||
| D002 WHR20051 |
C00413894
482000013850 |
Spray arm | Na dotaz | Zadat poptávku | |
| D003 WHR20051 |
C00413104
482000012779 |
Nátrubek oplachovacího ramene | 1 293 Kč
€ 51.00 |
||
| D004 WHR20051 |
C00337267
483286008828 |
rameno horní | 6 132 Kč
€ 242.10 |
||
| D005,D006 WHR20051 |
C00339184
483286008189 |
Nátrubek mycího ramene | 2 654 Kč
€ 104.80 |
||
| E001 WHR20051 |
C00520048
482000098516 |
Panel N50 vert evo 2013LCD | Na dotaz | Zadat poptávku | |
| E002 WHR20051 |
C00384761
483286008913 |
Terminal Board | Na dotaz | Zadat poptávku | |
| E003 WHR20051 |
C00340952
483286008841 |
Filter ,noise. | Na dotaz | Zadat poptávku | |
| E004 WHR20051 |
C00423488
483286011315 |
Terminal strip | Na dotaz | Zadat poptávku | |
| E005 WHR20051 |
C00416865
482000019910 |
Spacer | Na dotaz | Zadat poptávku | |
| E006 WHR20051 |
C00520049
482000098517 |
Card EVO BASE GICAR | Na dotaz | Zadat poptávku | |
| E007 WHR20051 |
C00520052
482000098520 |
Card front evo gicar | Na dotaz | Zadat poptávku | |
| E008 WHR20051 |
C00423483
483286011309 |
Coil,reed relay | Na dotaz | Zadat poptávku | |
| E009 WHR20051 |
C00520053
482000098521 |
Plate license | Na dotaz | Zadat poptávku | |
| E010 WHR20051 |
C00520051
482000098519 |
Card flat evo gicar 550MM | Na dotaz | Zadat poptávku | |
| E011 WHR20051 |
C00520050
482000098518 |
Bulb PROBE | Na dotaz | Zadat poptávku | |
| E012 WHR20051 |
C00520054
482000098522 |
Probe eye-probe | Na dotaz | Zadat poptávku | |
| E015 WHR20051 |
C00344556
483286008796 |
Airtrap | Na dotaz | Zadat poptávku | |
| E016 WHR20051 |
C00522790
482000099305 |
Gasket 16 CORK | Na dotaz | Zadat poptávku | |
| E017 WHR20051 |
C00406906
482000000370 |
Nut | Na dotaz | Zadat poptávku | |
| E018 WHR20051 |
C00517721
483286001706 |
Cable holder | Na dotaz | Zadat poptávku | |
| E019 WHR20051 |
C00416867
482000019912 |
Screwed joint PG16 | Na dotaz | Zadat poptávku | |
| E020 WHR20051 |
C00417129
482000020365 |
Connection cable 5x2.5X 3.5 | Na dotaz | Zadat poptávku | |
| E021 WHR20051 |
C00343469
483286001005 |
Connection, pressure switch | Na dotaz | Zadat poptávku | |
| E022 WHR20051 |
C00519777
482000098443 |
Svorka inox | Na dotaz | Zadat poptávku | |
| E023 WHR20051 |
C00520204
482000098588 |
Hub N1300_N13000S | Na dotaz | Zadat poptávku | |
| E024 WHR20051 |
C00520205
482000098589 |
Cover N1300-LP-T-N SP.2MM | Na dotaz | Zadat poptávku | |
| E025 WHR20051 |
C00522792
482000099307 |
Cap for rinse arm | Na dotaz | Zadat poptávku | |
| E026 WHR20051 |
C00536056
482000100660 |
Switch pressure 90/75 | Na dotaz | Zadat poptávku | |
| E027 WHR20051 |
C00522777
482000099292 |
User board 8 pole connector | Na dotaz | Zadat poptávku | |
| E028 WHR20051 |
C00520101
482000098542 |
Connector ELCA CARDS 7 Pole | Na dotaz | Zadat poptávku | |
| E029 WHR20051 |
C00520099
482000098540 |
Connector ELCA CARDS 3 Pole | Na dotaz | Zadat poptávku | |
| E030 WHR20051 |
C00522776
482000099291 |
User board 2 pole board connect | Na dotaz | Zadat poptávku | |
