HOT POINT HDM67V8D2CX/UK
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | HDM67V8D2CX/UK |
| Kód 12NC: | 869991593600 |
| I.C. kód: | 769991593601 |
| Značka: | HOT POINT |
| Typ produktu: | Volně stojící sporáky a trouby |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

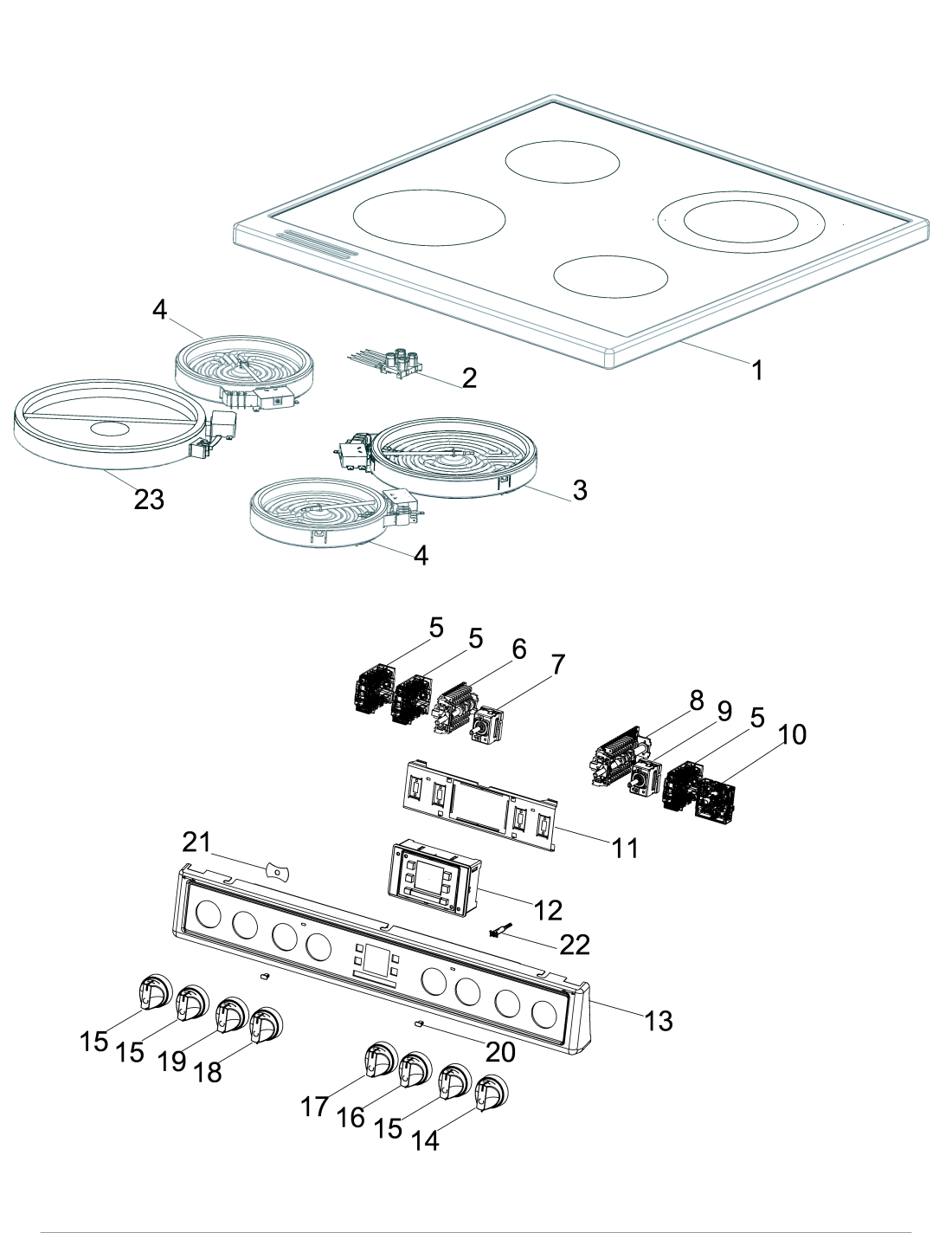

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 AMEL0103 |
C00713448
488000713448 |
GLASS,ASSY,SS COOKTOP-RAD DUAL, | Na dotaz | Zadat poptávku | |
| 002 AMEL0103 |
C00704406
488000704406 |
COOKTOP LED INDICATOR - 230V | Na dotaz | Zadat poptávku | |
| 003 AMEL0103 |
C00230445
488000230445 |
1800W DUAL ELEMENT | Na dotaz | Zadat poptávku | |
| 004 AMEL0103 |
C00081163
482000062512 |
HEATING ELEMENT 1200W/240V | Na dotaz | Zadat poptávku | |
| 005 AMEL0103 |
C00704415
488000704415 |
COOKPLATE 7 POS. SWITCH | Na dotaz | Zadat poptávku | |
| 006 AMEL0103 |
C00713451
488000713451 |
OVEN ELM SELECTOR M5 - 10 POS - AMELIA | Na dotaz | Zadat poptávku | |
| 007 AMEL0103 |
C00316750
480121102771 |
termostat | 1 195 Kč
€ 47.20 |
||
| 008 AMEL0103 |
C00713452
488000713452 |
FUNCTION SELECTOR M8, NO BB, STEAM | Na dotaz | Zadat poptávku | |
| 009 AMEL0103 |
C00310964
480121100077 |
Termostat kapilární trouby Whirlpool, Indesit, Ignis 50-278 °C | 469 Kč
€ 18.50 |
||
| 010 AMEL0103 |
C00713449
488000713449 |
ENERGY REGULATOR, DOUBLE ZONE, 240V, EGO | Na dotaz | Zadat poptávku | |
| 011 AMEL0103 |
C00713801
488000713801 |
CONSOLE BRACKET PROGRAMM - DD 4K,FSR,NAT | Na dotaz | Zadat poptávku | |
| 012 AMEL0103 |
C00713450
488000713450 |
TIMER BAGGINS MODULE 7 BTN | Na dotaz | Zadat poptávku | |
| 012 AMEL0103 |
C00730931
488000730931 |
FOIL TIMER AMELIA 7 BUTTON | Na dotaz | Zadat poptávku | |
| 013 AMEL0103 |
C00728045
488000728045 |
GASKET CONTROL PANEL 580MM | Na dotaz | Zadat poptávku | |
| 013 AMEL0103 |
C00767388
488000767388 |
CONTROL PANEL AMELIA TILTED M5/M8 DO ELE | Na dotaz | Zadat poptávku | |
| 014 AMEL0103 |
C00713797
488000713797 |
KNOB - HP-B,H DUA DO,MASS,GRA | Na dotaz | Zadat poptávku | |
| 015 AMEL0103 |
C00713539
488000713539 |
KNOB - HP-B,ELE,MASS,GRA | Na dotaz | Zadat poptávku | |
| 016 AMEL0103 |
C00707613
488000707613 |
KNOB - HP-B,FAN,MASS,GRA | Na dotaz | Zadat poptávku | |
| 017 AMEL0103 |
C00713799
488000713799 |
KNOB- HP-B FS,M8,MASS,GRA | Na dotaz | Zadat poptávku | |
| 018 AMEL0103 |
C00707614
488000707614 |
KNOB - HP-B TH,ELEM 48,MASS,GRA | Na dotaz | Zadat poptávku | |
| 019 AMEL0103 |
C00713800
488000713800 |
KNOB- HP-B FS,M5,MASS,GRA | Na dotaz | Zadat poptávku | |
| 020 AMEL0103 |
C00537621
488000537621 |
INDICATOR LENS - HP/WP/IN,FSR,CLR,7MMOD | Na dotaz | Zadat poptávku | |
| 021 AMEL0103 |
C00704416
488000704416 |
CONSOLE BARRIER - WASHER,FSR,ELE | Na dotaz | Zadat poptávku | |
| 022 AMEL0103 |
C00537803
488000537803 |
SIGNAL LED LAMP ASSY WHITE | Na dotaz | Zadat poptávku | |
| 023 AMEL0103 |
C00228861
488000228861 |
1800W ELEMENT 200MM | Na dotaz | Zadat poptávku | |
| 001 AMEL0205 |
C00704370
488000704370 |
CAVITY FLUE ASSY,GAS,ELEC,SHORT,FSR,24" | Na dotaz | Zadat poptávku | |
| 003 AMEL0205 |
C00704371
488000704371 |
CAVITY CHIMNEY FLUE-ELEC,RESTRICTOR | Na dotaz | Zadat poptávku | |
| 004,016 AMEL0205 |
C00039578
482000022614 |
PRUŽINA PŘIPEVŇOVACÍ BAŇKY TERMOSTATU | Na dotaz | Zadat poptávku | |
| 005 AMEL0205 |
C00713441
488000713441 |
CAVITY ELEC LADDER ENAM,M5 TOP,24" | Na dotaz | Zadat poptávku | |
| 006 AMEL0205 |
C00704374
488000704374 |
HEAT ELMNT - CALROD BROIL TWIN TILT | Na dotaz | Zadat poptávku | |
| 007 AMEL0205 |
C00704373
488000704373 |
HEAT ELMNT CALROD BAKE 230VAC FSR 24 | Na dotaz | Zadat poptávku | |
| 008 AMEL0205 |
C00704372
488000704372 |
BAKE-SHIELD FSR 24 | Na dotaz | Zadat poptávku | |
| 009 AMEL0205 |
C00704376
488000704376 |
CAVITY FLUE ASSY-GAS,ELEC,TALL,FSR,24" | Na dotaz | Zadat poptávku | |
| 010 AMEL0205 |
C00311049
481010552514 |
termostat | Na dotaz | Zadat poptávku | |
| 011 AMEL0205 |
C00314191
481010391431 |
Žárovka do trouby - halogen 40W G9 | Na dotaz | Zadat poptávku | |
| 011 AMEL0205 |
C00325786
481010638530 |
Osvětlení trouby komplet 40W | 443 Kč
€ 17.50 |
||
| 011 AMEL0205 |
C00325847
481010646361 |
Kryt žárovky trouby Whirlpool /Bauknecht | 188 Kč
€ 7.40 |
||
| 012 AMEL0205 |
C00316062
481212208003 |
Filtr odrušovací | 1 456 Kč
€ 57.50 |
||
| 013 AMEL0205 |
C00385322
481010868315 |
Vrtule ventilátoru | 234 Kč
€ 9.20 |
||
| 013 AMEL0205 |
C00713444
488000713444 |
MOTOR CAVITY STD MATERIA | Na dotaz | Zadat poptávku | |
| 014 AMEL0205 |
C00386497
481010781713 |
Matice | 424 Kč
€ 16.70 |
||
| 015 AMEL0205 |
C00495212
481010836652 |
Topení horkovzduchu | Na dotaz | Zadat poptávku | |
| 017 AMEL0205 |
C00713440
488000713440 |
CAVITY ASSY-ELEC MAIN LADDER FSR24 ENAM | Na dotaz | Zadat poptávku | |
| 018 AMEL0205 |
C00704383
488000704383 |
OVEN RACK SUPPORT-LADDER,FSR,24" | Na dotaz | Zadat poptávku | |
| 019 AMEL0205 |
C00704380
488000704380 |
STD OVEN RACK - FLAT,FSR,24" | Na dotaz | Zadat poptávku | |
| 020 AMEL0205 |
C00704381
488000704381 |
STD OVEN RACK-TRAY,FSR,24" | Na dotaz | Zadat poptávku | |
| 021 AMEL0205 |
C00704382
488000704382 |
OVEN RACK SUPPORT-LADDER,FSR,24" | Na dotaz | Zadat poptávku | |
| 022 AMEL0205 |
C00713442
488000713442 |
HEATHER ELEMENT OVEN GRILL MAIN | Na dotaz | Zadat poptávku | |
| 023 AMEL0205 |
C00704385
488000704385 |
OVEN RACK SUPPORT-LADDER,FSR,24" | Na dotaz | Zadat poptávku | |
| 024 AMEL0205 |
C00272630
482000031109 |
HLUBOKÝ PLECH SMALTOVANÝ ČERNÁ DOUBLE OV | Na dotaz | Zadat poptávku | |
| 025 AMEL0205 |
C00117378
482000080679 |
MŘÍŽKA PATROVÁ DO TROUBY 344X223 | Na dotaz | Zadat poptávku | |
| 026 AMEL0205 |
C00704384
488000704384 |
OVEN RACK SUPPORT-LADDER,FSR,24" | Na dotaz | Zadat poptávku | |
| 027 AMEL0205 |
C00268579
482000030899 |
DRŽADLO HL. PLECHU TROUBA | Na dotaz | Zadat poptávku | |
| 028 AMEL0205 |
C00704377
488000704377 |
CONVECT COVER-ELEC,ENML,STEEL,BLK | Na dotaz | Zadat poptávku | |
| 029 AMEL0205 |
C00704369
488000704369 |
THERMAL SWITCH, NO, 60_40 DEG | Na dotaz | Zadat poptávku | |
| 030 AMEL0205 |
C00082747
482000027569 |
THERMOSTAT 190C | Na dotaz | Zadat poptávku | |
| 031 AMEL0205 |
C00713439
488000713439 |
CAVITY SIDE WALL-ELEC MAIN RH FLAT PANEL | Na dotaz | Zadat poptávku | |
| 032 AMEL0205 |
C00713436
488000713436 |
CAVITY SIDE WALL-ELEC MAIN LH FLAT PANEL | Na dotaz | Zadat poptávku | |
| 033 AMEL0205 |
C00713437
488000713437 |
CAVITY SIDE WALL-ELEC, TOP LH FLAT PANEL | Na dotaz | Zadat poptávku | |
| 034 AMEL0205 |
C00713438
488000713438 |
CAVITY SIDE WALL-ELEC, TOP RH FLAT PANEL | Na dotaz | Zadat poptávku | |
| 039 AMEL0205 |
C00333184
481949268714 |
SPRING UPPER HEATING ELEMENT | Na dotaz | Zadat poptávku | |
| 040 AMEL0205 |
C00332178
481250518421 |
NUT M4 | Na dotaz | Zadat poptávku | |
| 041 AMEL0205 |
C00713443
488000713443 |
CONVECT,COVER-ENML,TOP STEEL,BLK | Na dotaz | Zadat poptávku | |
| 001 AMEL0301 |
C00713803
488000713803 |
DOOR GLASS-CAVITY,48L DO M5 ELM,HP | Na dotaz | Zadat poptávku | |
| 002 AMEL0301 |
C00704399
488000704399 |
HINGE ASSY-VARIABLE,PIVOT,FSR,24" | Na dotaz | Zadat poptávku | |
| 003 AMEL0301 |
C00704401
488000704401 |
DOOR FRAME-GLASS BRKT,BOT RH,FSR,24",BLK | Na dotaz | Zadat poptávku | |
| 004 AMEL0301 |
C00704402
488000704402 |
DOOR FRAME-GLASS BRKT,BOT LH,FSR,24",BLK | Na dotaz | Zadat poptávku | |
| 005 AMEL0301 |
C00704405
488000704405 |
DOOR TRIM-VENT,TOP,FSR,24" | Na dotaz | Zadat poptávku | |
| 006 AMEL0301 |
C00396397
480181500149 |
Šroub (4,2x16) k upevnění vestavné trouby Whirlpool AKP 742 IX, AKP 420 IX. | 42 Kč
€ 1.70 |
||
| 006 AMEL0301 |
C00713447
488000713447 |
HANDLE ASSY-HP INOX CORE+ SST FSR | Na dotaz | Zadat poptávku | |
| 007 AMEL0301 |
C00704396
488000704396 |
DOOR GLASS-CAVITY,75L DO,FSR,24",CTD | Na dotaz | Zadat poptávku | |
| 008 AMEL0301 |
C00704391
488000704391 |
HINGE ASSY SWING, TOP, FSR | Na dotaz | Zadat poptávku | |
| 008 AMEL0301 |
C00843949
488000843949 |
CIRCLIP MAIN DOOR HINGE (E RING) 4-5MM | Na dotaz | Zadat poptávku | |
| 009 AMEL0301 |
C00704388
488000704388 |
DOOR TRIM-LOWER,TOP,FSR,24",LH | Na dotaz | Zadat poptávku | |
| 010 AMEL0301 |
C00704395
488000704395 |
DOOR TRIM-LOWER,TOP,FSR,24",RH | Na dotaz | Zadat poptávku | |
| 011 AMEL0301 |
C00704394
488000704394 |
DOOR FRAME-GLASS BRKT,BOT LH,FSR,24",BLK | Na dotaz | Zadat poptávku | |
| 012 AMEL0301 |
C00704393
488000704393 |
HINGE ASSY-LOWER,RAIL,PIVOT,FSR,24" | Na dotaz | Zadat poptávku | |
| 013 AMEL0301 |
C00704392
488000704392 |
HINGE ASSY-LOWER,RAIL,PIVOT,FSR,24" | Na dotaz | Zadat poptávku | |
| 014 AMEL0301 |
C00704386
488000704386 |
LOWER HINGE, PIN, FSR, 24 " | Na dotaz | Zadat poptávku | |
| 015 AMEL0301 |
C00713445
488000713445 |
DOOR GLASS ASSY-HP,75L,DO,SST,FSR,24" | Na dotaz | Zadat poptávku | |
| 016 AMEL0301 |
C00713446
488000713446 |
DOOR GLASS ASSY-HP,48L,SST,FSR,24" | Na dotaz | Zadat poptávku | |
| 001 AMEL0401 |
C00704352
488000704352 |
REAR PANEL-60,DO,ELE | Na dotaz | Zadat poptávku | |
| 002 AMEL0401 |
C00301593
488000301593 |
ŠROUB 8PX8.5 TCB1/2P | Na dotaz | Zadat poptávku | |
| 002 AMEL0401 |
C00704350
488000704350 |
COVER-TERMINAL BLOCK | Na dotaz | Zadat poptávku | |
| 003 AMEL0401 |
C00704351
488000704351 |
BRACKET-TERMINAL BLOCK | Na dotaz | Zadat poptávku | |
| 004 AMEL0401 |
C00704367
488000704367 |
ASSY SIDE PANEL-90 RH DO SS | Na dotaz | Zadat poptávku | |
| 005 AMEL0401 |
C00704354
488000704354 |
FOOT FIXING BRACKET | Na dotaz | Zadat poptávku | |
| 006 AMEL0401 |
C00704353
488000704353 |
FOOT | Na dotaz | Zadat poptávku | |
| 006 AMEL0401 |
C00728277
488000728277 |
Amelia Taller Adjustable Foot | Na dotaz | Zadat poptávku | |
| 007 AMEL0401 |
C00704355
488000704355 |
BASE BRACKET | Na dotaz | Zadat poptávku | |
| 008 AMEL0401 |
C00704356
488000704356 |
PLATE-BOTTOM,DO | Na dotaz | Zadat poptávku | |
| 009 AMEL0401 |
C00704361
488000704361 |
FRONT FRAME-DO FSR | Na dotaz | Zadat poptávku | |
| 010 AMEL0401 |
C00704358
488000704358 |
DOOR GASKET - MAIN OVEN FSR 24 | Na dotaz | Zadat poptávku | |
| 011 AMEL0401 |
C00704359
488000704359 |
DOOR GASKET - TOP OVEN FSR 24 | Na dotaz | Zadat poptávku | |
| 012,013 AMEL0401 |
C00704363
488000704363 |
FRONT HINGE PILLAR RH/LH 90 U DO | Na dotaz | Zadat poptávku | |
| 014,015 AMEL0401 |
C00704366
488000704366 |
HINGE RECEIVER-VAR. PIVOT FSR 24 | Na dotaz | Zadat poptávku | |
| 016 AMEL0401 |
C00704368
488000704368 |
ASSY SIDE PANEL-90 LH DO SS | Na dotaz | Zadat poptávku | |
| 017 AMEL0401 |
C00704349
488000704349 |
VENTILATION DUCT-TOP | Na dotaz | Zadat poptávku | |
| 018 AMEL0401 |
C00265655
488000265655 |
Chladící ventilátor | 1 243 Kč
€ 49.10 |
||
| 019 AMEL0401 |
C00345145
481229068346 |
svorkovnice | 400 Kč
€ 15.80 |
||
| 019 AMEL0401 |
C00729729
488000729729 |
ASS CABLE BRACKET-REAR | Na dotaz | Zadat poptávku | |
| 020 AMEL0401 |
C00011116
482000072646 |
SCREW SELF-TAPPING VLACK 8PT | Na dotaz | Zadat poptávku | |
| 020 AMEL0401 |
C00844251
488000844251 |
DOOR LATCH TOP | Na dotaz | Zadat poptávku | |
| 021 AMEL0401 |
C00112453
482000028587 |
VITE AUT.4.2X9.5 TPRP ZN. | Na dotaz | Zadat poptávku | |
| 021 AMEL0401 |
C00844252
488000844252 |
DOOR LATCH BOTTOM | Na dotaz | Zadat poptávku | |
| 099 AMEL0401 |
C00640366
482000090886 |
CHAIN ANCHORAGE | Na dotaz | Zadat poptávku | |
| 099 AMEL0401 |
C00081585
482000027500 |
TAPTITE SCREW | Na dotaz | Zadat poptávku | |
| 099 AMEL0401 |
C00259939
482000090953 |
BACK SPACER | Na dotaz | Zadat poptávku | |
