| Komerční kód: | HPL 834 |
| Kód 12NC: | 851299601280 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Profesionální domácí čištění |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|

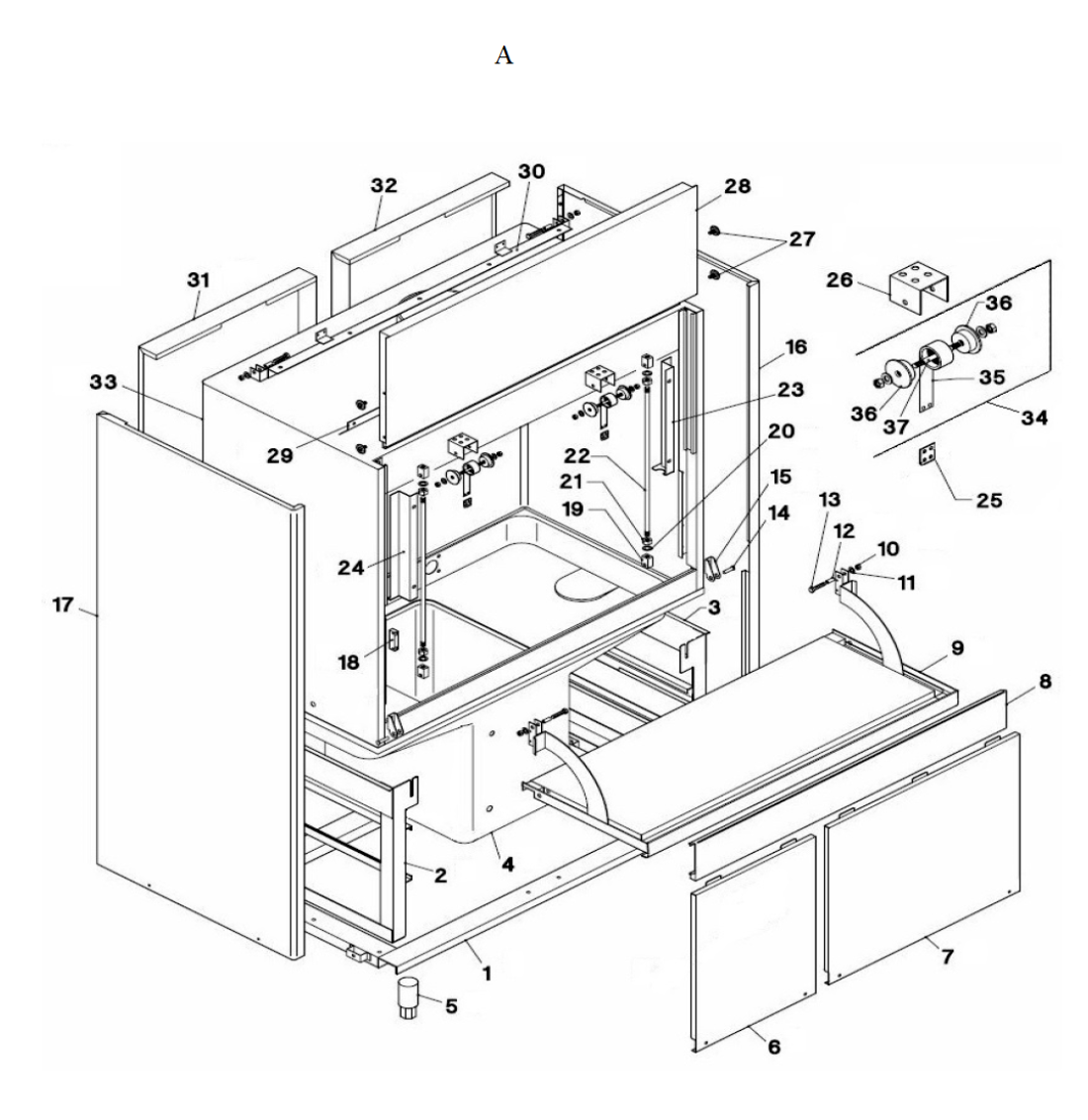

| A002 WHR39038 |
C00420554
483286002339 |
Frame | Na dotaz | Zadat poptávku | |
| A003 WHR39038 |
C00420555
483286002341 |
Support ,TANK LEFT | Na dotaz | Zadat poptávku | |
| A004 WHR39038 |
C00420556
483286002342 |
Support ,TANK RIGHT | Na dotaz | Zadat poptávku | |
| A005 WHR39038 |
C00420557
483286002343 |
Tank | Na dotaz | Zadat poptávku | |
| A006 WHR39038 |
C00421347
483286003233 |
Foot ,rubber | Na dotaz | Zadat poptávku | |
| A007 WHR39038 |
C00533413
482000099816 |
Front panel cpl. | Na dotaz | Zadat poptávku | |
| A008 WHR39038 |
C00420559
483286002345 |
Front panel | Na dotaz | Zadat poptávku | |
| A009 WHR39038 |
C00420560
483286002346 |
Panel ,UPPER | Na dotaz | Zadat poptávku | |
| A010 WHR39038 |
C00533414
482000099817 |
Door lower | Na dotaz | Zadat poptávku | |
| A011 WHR39038 |
C00420338
483286002097 |
Nut | Na dotaz | Zadat poptávku | |
| A012 WHR39038 |
C00420461
483286002234 |
Washer | Na dotaz | Zadat poptávku | |
| A013 WHR39038 |
C00420460
483286002233 |
Block ,bar | Na dotaz | Zadat poptávku | |
| A014 WHR39038 |
C00420462
483286002235 |
Screw | Na dotaz | Zadat poptávku | |
| A015 WHR39038 |
C00420463
483286002236 |
Pin ,door | Na dotaz | Zadat poptávku | |
| A016 WHR39038 |
C00420464
483286002237 |
Support ,door | Na dotaz | Zadat poptávku | |
| A017 WHR39038 |
C00533415
482000099818 |
Panel side right | Na dotaz | Zadat poptávku | |
| A018 WHR39038 |
C00533416
482000099819 |
Panel side left | Na dotaz | Zadat poptávku | |
| A019 WHR39038 |
C00338315
483286008861 |
Magnet ,cover | Na dotaz | Zadat poptávku | |
| A020 WHR39038 |
C00337241
483286008758 |
Washer | Na dotaz | Zadat poptávku | |
| A021,G011 WHR39038 |
C00338038
483286000084 |
Nut | Na dotaz | Zadat poptávku | |
| A022 WHR39038 |
C00533417
482000099820 |
Tie rod door 850mm | Na dotaz | Zadat poptávku | |
| A023 WHR39038 |
C00533418
482000099821 |
Profile right | Na dotaz | Zadat poptávku | |
| A024 WHR39038 |
C00533419
482000099822 |
Profile left | Na dotaz | Zadat poptávku | |
| A025 WHR39038 |
C00533420
482000099823 |
Small plate | Na dotaz | Zadat poptávku | |
| A026 WHR39038 |
C00420335
483286002094 |
Support ,SPRING | Na dotaz | Zadat poptávku | |
| A027 WHR39038 |
C00501112
483286008748 |
Bearing | Na dotaz | Zadat poptávku | |
| A028 WHR39038 |
C00533421
482000099824 |
Door upper | Na dotaz | Zadat poptávku | |
| A029 WHR39038 |
C00420567
483286002354 |
Guard ,SPRAY | Na dotaz | Zadat poptávku | |
| A030 WHR39038 |
C00420568
483286002355 |
Support ,SPRING | Na dotaz | Zadat poptávku | |
| A031 WHR39038 |
C00533422
482000099825 |
Rear panel left | Na dotaz | Zadat poptávku | |
| A032 WHR39038 |
C00533423
482000099826 |
Zadní panel vpravo | Na dotaz | Zadat poptávku | |
| A033 WHR39038 |
C00533424
482000099827 |
Rear panel | Na dotaz | Zadat poptávku | |
| A034 WHR39038 |
C00420573
483286002361 |
Spring ,door cpl. | Na dotaz | Zadat poptávku | |
| A035 WHR39038 |
C00420572
483286002359 |
Spring | Na dotaz | Zadat poptávku | |
| A036 WHR39038 |
C00524433
483286001528 |
Support ,spring | Na dotaz | Zadat poptávku | |
| A037 WHR39038 |
C00420339
483286002098 |
Pin | Na dotaz | Zadat poptávku | |
| B001 WHR39038 |
C00524446
483286001562 |
Plate | Na dotaz | Zadat poptávku | |
| B002 WHR39038 |
C00420578
483286002366 |
Support ,pump left | Na dotaz | Zadat poptávku | |
| B003 WHR39038 |
C00420577
483286002365 |
Support ,pump right | Na dotaz | Zadat poptávku | |
| B004 WHR39038 |
C00533425
482000099828 |
Shock absorber | Na dotaz | Zadat poptávku | |
| B005 WHR39038 |
C00501077
483286001593 |
Pump | Na dotaz | Zadat poptávku | |
| B006 WHR39038 |
C00420576
483286002364 |
Pump ,left | Na dotaz | Zadat poptávku | |
| B007 WHR39038 |
C00581752
483286001178 |
Inlet ,ELBOW | Na dotaz | Zadat poptávku | |
| B008 WHR39038 |
C00533426
482000099829 |
Hose connection | Na dotaz | Zadat poptávku | |
| B009 WHR39038 |
C00382415
483286002368 |
Pipe ,washing left | Na dotaz | Zadat poptávku | |
| B010 WHR39038 |
C00420579
483286002367 |
Pipe ,washing right | Na dotaz | Zadat poptávku | |
| B011,E020 WHR39038 |
C00524441
483286001548 |
Gasket | Na dotaz | Zadat poptávku | |
| B012 WHR39038 |
C00533427
482000099830 |
Hose connection | Na dotaz | Zadat poptávku | |
| B013 WHR39038 |
C00420499
483286002276 |
Support ,washing pipe | Na dotaz | Zadat poptávku | |
| B014 WHR39038 |
C00420500
483286002277 |
Gasket | Na dotaz | Zadat poptávku | |
| B015 WHR39038 |
C00581838
483286001551 |
Flange ,coupling | Na dotaz | Zadat poptávku | |
| B016 WHR39038 |
C00420501
483286002278 |
Pipe ,washing | Na dotaz | Zadat poptávku | |
| B017 WHR39038 |
C00524444
483286001554 |
Gasket | Na dotaz | Zadat poptávku | |
| B018,E006 WHR39038 |
C00420346
483286002106 |
Plug | Na dotaz | Zadat poptávku | |
| B019 WHR39038 |
C00501074
483286001537 |
Guide ,overflow | Na dotaz | Zadat poptávku | |
| B020 WHR39038 |
C00420481
483286002256 |
Overflow | Na dotaz | Zadat poptávku | |
| B021 WHR39038 |
C00337392
483286008787 |
Tube bend | Na dotaz | Zadat poptávku | |
| B022 WHR39038 |
C00337973
483286008173 |
O-Ring | Na dotaz | Zadat poptávku | |
| B023 WHR39038 |
C00338016
483286008172 |
Nut 1" | Na dotaz | Zadat poptávku | |
| B024 WHR39038 |
C00337393
483286000116 |
Tube bend | Na dotaz | Zadat poptávku | |
| B025 WHR39038 |
C00533409
482000099811 |
Connect.block | Na dotaz | Zadat poptávku | |
| B026 WHR39038 |
C00417114
482000020350 |
O-Ring 9/10/12/14 Kw | Na dotaz | Zadat poptávku | |
| B027 WHR39038 |
C00533408
482000099810 |
Clamp ring | Na dotaz | Zadat poptávku | |
| C001 WHR39038 |
C00420580
483286002369 |
Guard | Na dotaz | Zadat poptávku | |
| C002 WHR39038 |
C00420581
483286002371 |
Guide ,basket | Na dotaz | Zadat poptávku | |
| C003 WHR39038 |
C00420504
483286002282 |
Support ,basket | Na dotaz | Zadat poptávku | |
| C004 WHR39038 |
C00524810
483286008805 |
Filter ,drawer | Na dotaz | Zadat poptávku | |
| C005 WHR39038 |
C00420341
483286002101 |
Filter | Na dotaz | Zadat poptávku | |
| C006 WHR39038 |
C00502652
483286001644 |
Plug | Na dotaz | Zadat poptávku | |
| C007 WHR39038 |
C00420505
483286002283 |
Switch | Na dotaz | Zadat poptávku | |
| C008 WHR39038 |
C00502645
483286001352 |
Gasket | Na dotaz | Zadat poptávku | |
| C009,C013,E024 WHR39038 |
C00338013
483286008873 |
Nut 1¼'' | Na dotaz | Zadat poptávku | |
| C010 WHR39038 |
C00342725
483286008341 |
Contact inductive | Na dotaz | Zadat poptávku | |
| C011 WHR39038 |
C00420506
483286002284 |
Airtrap | Na dotaz | Zadat poptávku | |
| C012 WHR39038 |
C00340540
483286008162 |
Gasket | Na dotaz | Zadat poptávku | |
| C014 WHR39038 |
C00420507
483286002285 |
Pressostat | Na dotaz | Zadat poptávku | |
| C015,D012,G004 WHR39038 |
C00339400
483286008798 |
Hose ,pressostat | Na dotaz | Zadat poptávku | |
| C016 WHR39038 |
C00338039
483286008793 |
Nut | Na dotaz | Zadat poptávku | |
| C017 WHR39038 |
C00340543
483286008792 |
Gasket | Na dotaz | Zadat poptávku | |
| C018 WHR39038 |
C00417268
482000020910 |
Fitting 1/2" tank lowered | Na dotaz | Zadat poptávku | |
| C019 WHR39038 |
C00339911
483286008813 |
Heating element 6kW 230V | Na dotaz | Zadat poptávku | |
| C020 WHR39038 |
C00500313
483286001587 |
Cover ,heating | Na dotaz | Zadat poptávku | |
| C021 WHR39038 |
C00420513
483286002292 |
Rack ,plate | Na dotaz | Zadat poptávku | |
| C022 WHR39038 |
C00533428
482000099831 |
Wheel basket | Na dotaz | Zadat poptávku | |
| C023 WHR39038 |
C00420582
483286002372 |
Basket | Na dotaz | Zadat poptávku | |
| C024 WHR39038 |
C00423468
483286011293 |
Termostat | 1 516 Kč
€ 59.90 |
||
| C025 WHR39038 |
C00533429
482000099832 |
Small plate | Na dotaz | Zadat poptávku | |
| C026 WHR39038 |
C00533430
482000099833 |
Trim | Na dotaz | Zadat poptávku | |
| D001 WHR39038 |
C00533431
482000099834 |
Boiler | Na dotaz | Zadat poptávku | |
| D002 WHR39038 |
C00416863
482000019908 |
Safety Thermos. 110° | Na dotaz | Zadat poptávku | |
| D003 WHR39038 |
C00420574
483286002362 |
Heating element | Na dotaz | Zadat poptávku | |
| D004 WHR39038 |
C00524497
483286001705 |
Support ,PUMP | Na dotaz | Zadat poptávku | |
| D005 WHR39038 |
C00416944
482000020115 |
Pump CRC-R DX | Na dotaz | Zadat poptávku | |
| D006 WHR39038 |
C00337304
483286008141 |
1-WAY SOLENOID VALVE D10 | Na dotaz | Zadat poptávku | |
| D007 WHR39038 |
C00416945
482000020116 |
Hose inlet 90° 2000mm S 800 HW | Na dotaz | Zadat poptávku | |
| D008 WHR39038 |
C00419333
482000090470 |
Tank BE 50 | Na dotaz | Zadat poptávku | |
| D009 WHR39038 |
C00497108
483286001393 |
Gasket | Na dotaz | Zadat poptávku | |
| D010 WHR39038 |
C00419332
482000090469 |
Screwed joint 1 "1/4 exhaust | Na dotaz | Zadat poptávku | |
| D011 WHR39038 |
C00497223
483286008963 |
Switch,pushbut. | Na dotaz | Zadat poptávku | |
| D013 WHR39038 |
C00524374
483286001403 |
Guard ,spray | Na dotaz | Zadat poptávku | |
| D014 WHR39038 |
C00533432
482000099835 |
Cover | Na dotaz | Zadat poptávku | |
| D015 WHR39038 |
C00519764
482000098430 |
Ring upper panel fixing | Na dotaz | Zadat poptávku | |
| D016 WHR39038 |
C00337307
483286008154 |
Valve | Na dotaz | Zadat poptávku | |
| E001 WHR39038 |
C00420514
483286002293 |
Wash arm | Na dotaz | Zadat poptávku | |
| E002 WHR39038 |
C00420515
483286002294 |
Fitting ,Rinse arm | Na dotaz | Zadat poptávku | |
| E003 WHR39038 |
C00382487
483286001191 |
Nut | Na dotaz | Zadat poptávku | |
| E004 WHR39038 |
C00420583
483286002373 |
Wash arm | Na dotaz | Zadat poptávku | |
| E005 WHR39038 |
C00420348
483286002108 |
Gasket | Na dotaz | Zadat poptávku | |
| E007 WHR39038 |
C00382488
483286002296 |
Hub | Na dotaz | Zadat poptávku | |
| E008 WHR39038 |
C00420517
483286002297 |
Fitting ,rinse arm | Na dotaz | Zadat poptávku | |
| E009 WHR39038 |
C00420518
483286002298 |
Bush | Na dotaz | Zadat poptávku | |
| E010 WHR39038 |
C00420584
483286002374 |
Rinse arm | Na dotaz | Zadat poptávku | |
| E011 WHR39038 |
C00337974
483286008318 |
O-RING3 | 1 192 Kč
€ 47.10 |
||
| E012 WHR39038 |
C00335606
483286008322 |
Tailpiece rinse arm | Na dotaz | Zadat poptávku | |
| E013 WHR39038 |
C00337987
483286008323 |
Šroub ramene | 1 176 Kč
€ 46.40 |
||
| E014 WHR39038 |
C00420585
483286002375 |
Rinse arm ,cpl. | Na dotaz | Zadat poptávku | |
| E015 WHR39038 |
C00533433
482000099836 |
End cap | Na dotaz | Zadat poptávku | |
| E016 WHR39038 |
C00335614
483286008166 |
T-adapter | Na dotaz | Zadat poptávku | |
| E017 WHR39038 |
C00420523
483286002304 |
T-adapter | Na dotaz | Zadat poptávku | |
| E018 WHR39038 |
C00420524
483286002305 |
Pipe | Na dotaz | Zadat poptávku | |
| E019 WHR39038 |
C00503444
483286001354 |
O-Ring | Na dotaz | Zadat poptávku | |
| E021 WHR39038 |
C00524812
483286008822 |
Pipe ,fitting | Na dotaz | Zadat poptávku | |
| E022 WHR39038 |
C00501113
483286008824 |
Pipe | Na dotaz | Zadat poptávku | |
| E023 WHR39038 |
C00502655
483286008182 |
Corner piece | Na dotaz | Zadat poptávku | |
| F001 WHR39038 |
C00420526
483286002307 |
Cabinet ,track | Na dotaz | Zadat poptávku | |
| F002 WHR39038 |
C00420587
483286002377 |
Cabinet | Na dotaz | Zadat poptávku | |
| F003 WHR39038 |
C00533434
482000099837 |
Cover | Na dotaz | Zadat poptávku | |
| F004 WHR39038 |
C00533435
482000099838 |
Connectionblock 9A 230V 4Cont. | Na dotaz | Zadat poptávku | |
| F005 WHR39038 |
C00413108
482000012783 |
Connect.block 4 pol | Na dotaz | Zadat poptávku | |
| F006 WHR39038 |
C00520049
482000098517 |
Card EVO BASE GICAR | Na dotaz | Zadat poptávku | |
| F007 WHR39038 |
C00522791
482000099306 |
Spacer front board H 10MM | Na dotaz | Zadat poptávku | |
| F008 WHR39038 |
C00420529
483286002311 |
Relay | Na dotaz | Zadat poptávku | |
| F009 WHR39038 |
C00420398
483286002164 |
Relay | Na dotaz | Zadat poptávku | |
| F010 WHR39038 |
C00340952
483286008841 |
Filter ,noise. | Na dotaz | Zadat poptávku | |
| F011 WHR39038 |
C00335570
483286008837 |
Terminal strip | Na dotaz | Zadat poptávku | |
| F012 WHR39038 |
C00335572
483286008839 |
Terminal strip | Na dotaz | Zadat poptávku | |
| F013 WHR39038 |
C00420400
483286002166 |
Flange | Na dotaz | Zadat poptávku | |
| F014 WHR39038 |
C00417130
482000020366 |
Plug PG21 | Na dotaz | Zadat poptávku | |
| F015 WHR39038 |
C00524463
483286001629 |
Nut | Na dotaz | Zadat poptávku | |
| F016 WHR39038 |
C00520050
482000098518 |
Bulb PROBE | Na dotaz | Zadat poptávku | |
| F017 WHR39038 |
C00520054
482000098522 |
Probe eye-probe | Na dotaz | Zadat poptávku | |
| F018 WHR39038 |
C00533436
482000099839 |
Cable EVO2/3 1500mm | Na dotaz | Zadat poptávku | |
| F019 WHR39038 |
C00520201
482000098585 |
Plate license | Na dotaz | Zadat poptávku | |
| F020 WHR39038 |
C00520052
482000098520 |
Card front evo gicar | Na dotaz | Zadat poptávku | |
| G001 WHR39038 |
C00413095
482000012769 |
Dispencer detergent PERIST. SEKO | Na dotaz | Zadat poptávku | |
| G002 WHR39038 |
C00413933
482000013899 |
Čerpadlo | 4 771 Kč
€ 188.40 |
||
| G003 WHR39038 |
C00524241
483286000997 |
Support | Na dotaz | Zadat poptávku | |
| G005 WHR39038 |
C00339444
483286008155 |
TRANSPARENT HOSE 4X7 | Na dotaz | Zadat poptávku | |
| G006 WHR39038 |
C00497100
483286000996 |
Pipe | Na dotaz | Zadat poptávku | |
| G007 WHR39038 |
C00421486
483286003391 |
Filter, weight DET./BRILL. | Na dotaz | Zadat poptávku | |
| G008 WHR39038 |
C00341421
483286000502 |
tryska - nátrubek | 1 854 Kč
€ 73.20 |
||
| G009 WHR39038 |
C00417134
482000020370 |
Gasket | Na dotaz | Zadat poptávku | |
| G010 WHR39038 |
C00337237
483286008757 |
Washer | Na dotaz | Zadat poptávku | |
