BAUKNECHT ID 2947/3 CH REFRIGERATORS BK
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | ID 2947/3 CH REFRIGERATORS BK |
| Kód 12NC: | 855002316350 |
| Značka: | BAUKNECHT |
| Typ produktu: | Vestavné lednice s mrazákem |
Potřebujete servis? Jsme tady pro Vás

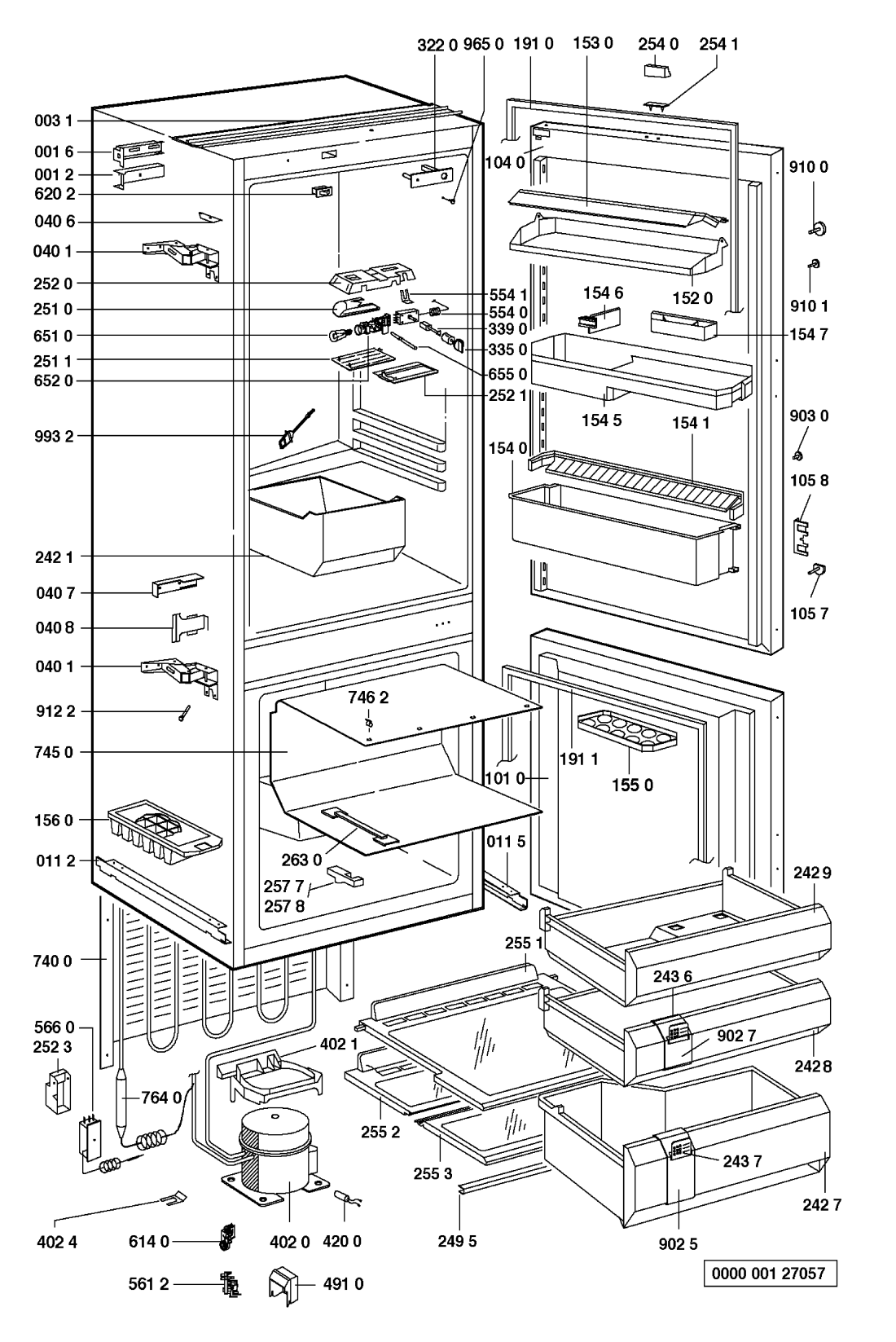

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 2 WHR60539 |
C00553724
481246278324 |
Cover f. fastener square.. | Na dotaz | Zadat poptávku | |
| 001 6 WHR60539 |
C00329697
481241718765 |
PRICHYTKA | 344 Kč
€ 13.60 |
||
| 003 1 WHR60539 |
C00585020
481246088148 |
Trim cover fixation.. | Na dotaz | Zadat poptávku | |
| 011 2 WHR60539 |
C00491936
481246278222 |
Foot trim | Na dotaz | Zadat poptávku | |
| 011 5 WHR60539 |
C00590013
481246278187 |
Foot trim, hingeside. | Na dotaz | Zadat poptávku | |
| 040 1 WHR60539 |
C00555197
481241718169 |
Hinge kit.. | Na dotaz | Zadat poptávku | |
| 040 6 WHR60539 |
C00590027
481246698021 |
COVER,HINGE. | Na dotaz | Zadat poptávku | |
| 040 7 WHR60539 |
C00590164
481946279637 |
COVER,HINGE. | Na dotaz | Zadat poptávku | |
| 040 8 WHR60539 |
C00590165
481946279638 |
Cover hinge. | Na dotaz | Zadat poptávku | |
| 101 0 WHR60539 |
C00589847
481244028587 |
Door foamed. | Na dotaz | Zadat poptávku | |
| 104 0 WHR60539 |
C00636324
481244028586 |
Door. | Na dotaz | Zadat poptávku | |
| 105 7 WHR60539 |
C00344332
481952838149 |
kolik | 80 Kč
€ 3.20 |
||
| 105 8 WHR60539 |
C00337758
481940449351 |
prichytka plech | 56 Kč
€ 2.20 |
||
| 152 0 WHR60539 |
C00494621
481941878897 |
Compartment | Na dotaz | Zadat poptávku | |
| 153 0 WHR60539 |
C00557479
481944229726 |
Lid | Na dotaz | Zadat poptávku | |
| 154 0 WHR60539 |
C00375186
481941878895 |
BOTTLE SHELF | Na dotaz | Zadat poptávku | |
| 154 1 WHR60539 |
C00557547
481946088861 |
Bottle holder | Na dotaz | Zadat poptávku | |
| 154 5 WHR60539 |
C00590124
481941879047 |
Door,dairy | Na dotaz | Zadat poptávku | |
| 154 6 WHR60539 |
C00379259
481946088667 |
SEPARATOR F. BOTTLES | Na dotaz | Zadat poptávku | |
| 154 7 WHR60539 |
C00527896
481241878005 |
Separator | Na dotaz | Zadat poptávku | |
| 155 0 WHR60539 |
C00339537
481941878898 |
drzak vajec | 287 Kč
€ 11.30 |
||
| 156 0 WHR60539 |
C00287849
481941878977 |
miska na led | 300 Kč
€ 11.80 |
||
| 191 0 WHR60539 |
C00490129
481246668246 |
Gasket, door refrigeration | Na dotaz | Zadat poptávku | |
| 191 1 WHR60539 |
C00553731
481246668406 |
GASKET, DOOR.. | Na dotaz | Zadat poptávku | |
| 242 1 WHR60539 |
C00386371
481241848335 |
CRISPER BIGbig | Na dotaz | Zadat poptávku | |
| 242 7 WHR60539 |
C00553686
481245818051 |
DRAWER LOWER.. | Na dotaz | Zadat poptávku | |
| 242 8 WHR60539 |
C00589982
481245818036 |
DRAWER. | Na dotaz | Zadat poptávku | |
| 242 9 WHR60539 |
C00529520
481245818073 |
DRAWER UPPER upper | Na dotaz | Zadat poptávku | |
| 243 6 WHR60539 |
C00493588
481246048103 |
Calendar upper + middle | Na dotaz | Zadat poptávku | |
| 243 7 WHR60539 |
C00589994
481246048098 |
Calendar lower. | Na dotaz | Zadat poptávku | |
| 249 5 WHR60539 |
C00485856
481246048099 |
Trim cover f. shelf plate glass | Na dotaz | Zadat poptávku | |
| 251 0 WHR60539 |
C00332896
481938028002 |
Reflector | Na dotaz | Zadat poptávku | |
| 251 1 WHR60539 |
C00320080
481946279556 |
kryt dif | 725 Kč
€ 28.60 |
||
| 252 0 WHR60539 |
C00316781
481940478855 |
Casing | Na dotaz | Zadat poptávku | |
| 252 1 WHR60539 |
C00318922
481946279617 |
kryt | 39 Kč
€ 1.50 |
||
| 252 3 WHR60539 |
C00590012
481246278056 |
Cover thermost.. | Na dotaz | Zadat poptávku | |
| 254 0 WHR60539 |
C00490840
481953598513 |
LIGHT LEVEL | Na dotaz | Zadat poptávku | |
| 254 1 WHR60539 |
C00339614
481240448491 |
Holder f.Lightswitch | Na dotaz | Zadat poptávku | |
| 255 1 WHR60539 |
C00529759
481246678365 |
Shelf plate glass | Na dotaz | Zadat poptávku | |
| 255 2 WHR60539 |
C00529761
481246678367 |
Shelf plate glass back | Na dotaz | Zadat poptávku | |
| 255 3 WHR60539 |
C00529760
481246678366 |
Shelf plate glass | Na dotaz | Zadat poptávku | |
| 257 7 WHR60539 |
C00491962
481246698015 |
Fixation ri.f.basket | Na dotaz | Zadat poptávku | |
| 257 8 WHR60539 |
C00379258
481246698013 |
Fixation le.f.basket | Na dotaz | Zadat poptávku | |
| 263 0 WHR60539 |
C00336947
481240448582 |
Rail | Na dotaz | Zadat poptávku | |
| 322 0 WHR60539 |
C00341930
481945298449 |
Panel f. thermostat | Na dotaz | Zadat poptávku | |
| 335 0 WHR60539 |
C00338417
481941249139 |
Knob thermostat | Na dotaz | Zadat poptávku | |
| 339 0 WHR60539 |
C00333350
481953598347 |
Shaft thermostat | Na dotaz | Zadat poptávku | |
| 402 0 WHR60539 |
C00555120
481236058155 |
Compressor NBT1116Y.. | Na dotaz | Zadat poptávku | |
| 402 1 WHR60539 |
C00327895
481241878039 |
Tray compressor | Na dotaz | Zadat poptávku | |
| 402 4 WHR60539 |
C00333135
481946689405 |
PRICHYTKA | 120 Kč
€ 4.70 |
||
| 420 0 WHR60539 |
C00584887
481212118148 |
CAPACITOR. | Na dotaz | Zadat poptávku | |
| 491 0 WHR60539 |
C00342331
481946288145 |
Cover,conn.bloc | Na dotaz | Zadat poptávku | |
| 554 0 WHR60539 |
C00481514
481227128199 |
THERMOSTAT K59-L1233 K59-L1233 | Na dotaz | Zadat poptávku | |
| 554 1 WHR60539 |
C00333185
481949268723 |
pruzina | 472 Kč
€ 18.60 |
||
| 561 2 WHR60539 |
C00316074
481929068433 |
Connectionblock | Na dotaz | Zadat poptávku | |
| 566 0 WHR60539 |
C00589722
481227128207 |
Thermostat heating. | Na dotaz | Zadat poptávku | |
| 614 0 WHR60539 |
C00320313
481269028005 |
Monoblock | Na dotaz | Zadat poptávku | |
| 620 2 WHR60539 |
C00491143
481227718008 |
SWITCH,DOUBLE | Na dotaz | Zadat poptávku | |
| 651 0 WHR60539 |
C00311277
481913488135 |
BULB LED E14 T25 - 15W - 220V | Na dotaz | Zadat poptávku | |
| 652 0 WHR60539 |
C00313941
481925518199 |
spinac osvetl.+obj. | 944 Kč
€ 37.30 |
||
| 655 0 WHR60539 |
C00344554
481953598273 |
spinac osvetl.tycka | 67 Kč
€ 2.60 |
||
| 740 0 WHR60539 |
C00590076
481251148186 |
CONDENSER. | Na dotaz | Zadat poptávku | |
| 745 0 WHR60539 |
C00590046
481251138128 |
Evaporator. | Na dotaz | Zadat poptávku | |
| 746 2 WHR60539 |
C00313479
481240448567 |
Fastener evaporator | Na dotaz | Zadat poptávku | |
| 764 0 WHR60539 |
C00311590
481952648527 |
Dryer DRS15 With 3 ways valve | Na dotaz | Zadat poptávku | |
| 902 5 WHR60539 |
C00529643
481246088188 |
HOLDER LOWER lower | Na dotaz | Zadat poptávku | |
| 902 7 WHR60539 |
C00491900
481246088189 |
Holder upper+interm. | Na dotaz | Zadat poptávku | |
| 903 0 WHR60539 |
C00336008
481946248175 |
Stopper | Na dotaz | Zadat poptávku | |
| 910 0 WHR60539 |
C00344633
481953268521 |
sroubek | 39 Kč
€ 1.50 |
||
| 910 1 WHR60539 |
C00333201
481950218219 |
VITE CP H L 8 Z M5X16X8,5 | Na dotaz | Zadat poptávku | |
| 912 2 WHR60539 |
C00345735
481250218392 |
Screw M5 X 16 | Na dotaz | Zadat poptávku | |
| 965 0 WHR60539 |
C00590169
481946698353 |
Stopper. | Na dotaz | Zadat poptávku | |
| 993 2 WHR60539 |
C00316841
481969028169 |
Čistič odtokového kanálku chladničky Whirlpool ARG 790/A+, ARG 734/A+, ARG 184701. | 155 Kč
€ 6.10 |
||
| 993 8 WHR60539 |
C00589739
481231088331 |
Mounting kit ,door (n.shown). | Na dotaz | Zadat poptávku | |
| 993 9 WHR60539 |
C00493090
481231088332 |
Set f.Mounting (n.shown) | Na dotaz | Zadat poptávku | |
| 999 WHR60539 |
C00675286 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
