BAUKNECHT IV 2547/2 CH
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | IV 2547/2 CH |
| Kód 12NC: | 855002116100 |
| I.C. kód: | 855002116101 |
| Značka: | BAUKNECHT |
| Typ produktu: | Vestavné lednice |
| Další podobné modely: | 855002116100 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

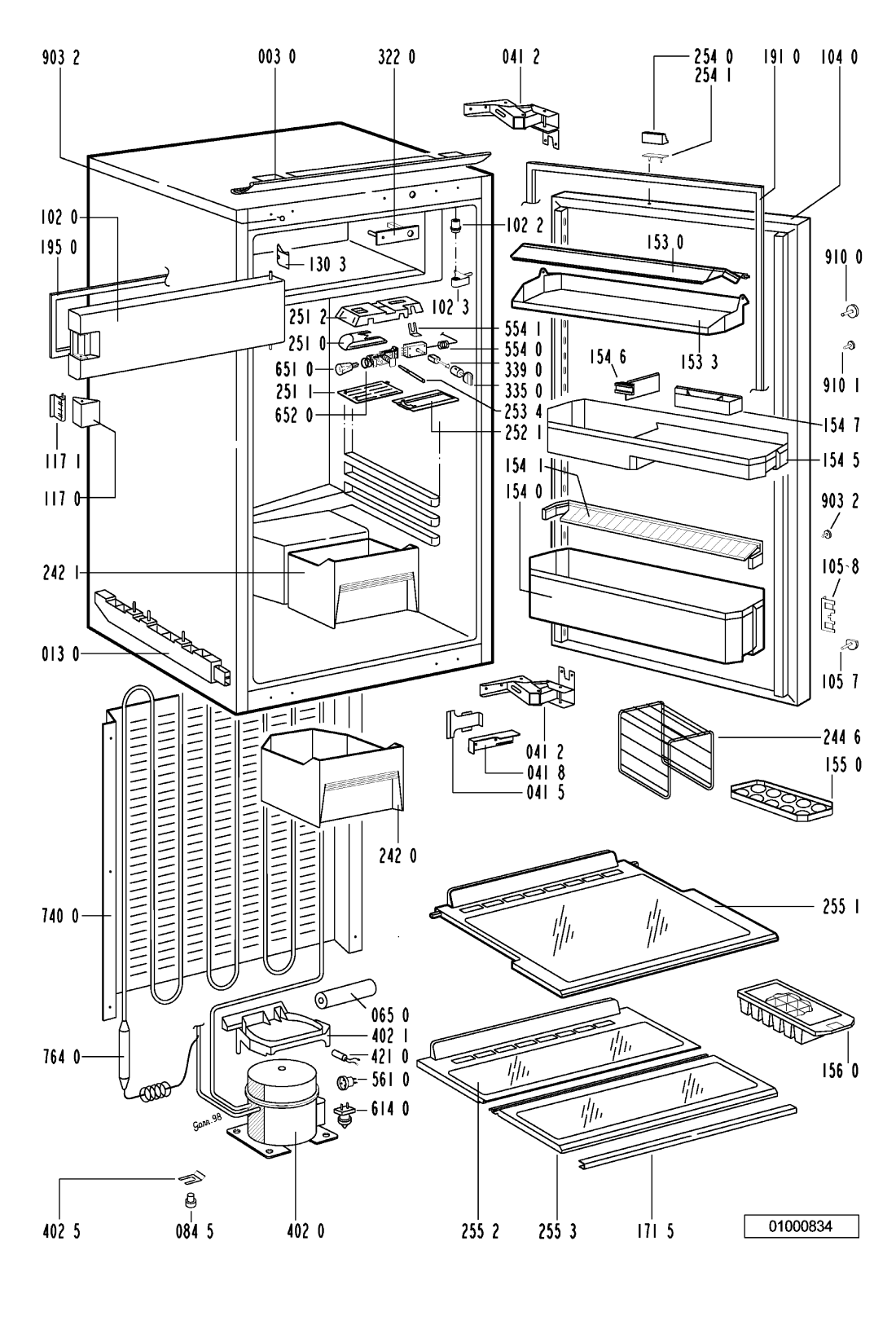

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 003 0 WHR98006 |
C00555495
481246088146 |
Trim, cover.. | Na dotaz | Zadat poptávku | |
| 013 0 WHR98006 |
C00491936
481246278222 |
Foot trim | Na dotaz | Zadat poptávku | |
| 013 0 WHR98006 |
C00590013
481246278187 |
Foot trim, hingeside. | Na dotaz | Zadat poptávku | |
| 041 2 WHR98006 |
C00555197
481241718169 |
Hinge kit.. | Na dotaz | Zadat poptávku | |
| 041 5 WHR98006 |
C00491658
481241728017 |
DRZIAK OVLADACA AWM N | Na dotaz | Zadat poptávku | |
| 041 8 WHR98006 |
C00486047
481246278199 |
Cover hinge | Na dotaz | Zadat poptávku | |
| 065 0 WHR98006 |
C00585179
481946698521 |
Insulation ,white.. | Na dotaz | Zadat poptávku | |
| 084 5 WHR98006 |
C00555629
481252918037 |
BUFFER PIECE COMPRESSO.. | Na dotaz | Zadat poptávku | |
| 102 0 WHR98006 |
C00555326
481244078253 |
Door,flap.. | Na dotaz | Zadat poptávku | |
| 102 2 WHR98006 |
C00318944
481946698901 |
Podložka distanční | 233 Kč
€ 9.20 |
||
| 102 3 WHR98006 |
C00635643
481940478482 |
NAHRADENE 481240478335 N | Na dotaz | Zadat poptávku | |
| 104 0 WHR98006 |
C00589848
481244028829 |
Door refriger.. | Na dotaz | Zadat poptávku | |
| 105 7 WHR98006 |
C00344332
481952838149 |
kolik | 80 Kč
€ 3.20 |
||
| 105 8 WHR98006 |
C00337758
481940449351 |
prichytka plech | 56 Kč
€ 2.20 |
||
| 117 0 WHR98006 |
C00340215
481949869426 |
Grip | Na dotaz | Zadat poptávku | |
| 117 1 WHR98006 |
C00621140
481949268646 |
nahradene 481249298033 | Na dotaz | Zadat poptávku | |
| 130 3 WHR98006 |
C00636261
481946698723 |
HAK PLAST N | Na dotaz | Zadat poptávku | |
| 153 0 WHR98006 |
C00557479
481944229726 |
Lid | Na dotaz | Zadat poptávku | |
| 153 3 WHR98006 |
C00494621
481941878897 |
Compartment | Na dotaz | Zadat poptávku | |
| 154 0 WHR98006 |
C00375186
481941878895 |
BOTTLE SHELF | Na dotaz | Zadat poptávku | |
| 154 1 WHR98006 |
C00557547
481946088861 |
Bottle holder | Na dotaz | Zadat poptávku | |
| 154 5 WHR98006 |
C00590124
481941879047 |
Door,dairy | Na dotaz | Zadat poptávku | |
| 154 6 WHR98006 |
C00379259
481946088667 |
SEPARATOR F. BOTTLES | Na dotaz | Zadat poptávku | |
| 154 7 WHR98006 |
C00527896
481241878005 |
Separator | Na dotaz | Zadat poptávku | |
| 155 0 WHR98006 |
C00339537
481941878898 |
drzak vajec | 287 Kč
€ 11.30 |
||
| 156 0 WHR98006 |
C00287849
481941878977 |
miska na led | 300 Kč
€ 11.80 |
||
| 171 5 WHR98006 |
C00485856
481246048099 |
Trim cover f. shelf plate glass | Na dotaz | Zadat poptávku | |
| 191 0 WHR98006 |
C00490132
481246668493 |
Gasket, door | Na dotaz | Zadat poptávku | |
| 195 0 WHR98006 |
C00495784
481246668566 |
GASKET evaporator door | Na dotaz | Zadat poptávku | |
| 242 0 WHR98006 |
C00386371
481241848335 |
CRISPER BIGbig | Na dotaz | Zadat poptávku | |
| 242 1 WHR98006 |
C00511339
481241848336 |
CRISPER SMALL | Na dotaz | Zadat poptávku | |
| 244 6 WHR98006 |
C00589986
481245818174 |
Grid. | Na dotaz | Zadat poptávku | |
| 251 0 WHR98006 |
C00332896
481938028002 |
Reflector | Na dotaz | Zadat poptávku | |
| 251 1 WHR98006 |
C00320080
481946279556 |
kryt dif | 725 Kč
€ 28.60 |
||
| 251 2 WHR98006 |
C00555241
481241848248 |
LAMPHOLDER.. | Na dotaz | Zadat poptávku | |
| 252 1 WHR98006 |
C00318922
481946279617 |
kryt | 39 Kč
€ 1.50 |
||
| 253 4 WHR98006 |
C00344554
481953598273 |
spinac osvetl.tycka | 67 Kč
€ 2.60 |
||
| 254 0 WHR98006 |
C00555142
481240448488 |
FIXATION LIGHT SWITCH.. | Na dotaz | Zadat poptávku | |
| 254 1 WHR98006 |
C00339619
481240448545 |
Holder f. light switch | Na dotaz | Zadat poptávku | |
| 255 1 WHR98006 |
C00553693
481245818339 |
Shelf plate.. | Na dotaz | Zadat poptávku | |
| 255 2 WHR98006 |
C00485817
481245818342 |
Shelf plate rear glass | Na dotaz | Zadat poptávku | |
| 255 3 WHR98006 |
C00485816
481245818341 |
Shelf plate front glass | Na dotaz | Zadat poptávku | |
| 322 0 WHR98006 |
C00341930
481945298449 |
Panel f. thermostat | Na dotaz | Zadat poptávku | |
| 335 0 WHR98006 |
C00338417
481941249139 |
Knob thermostat | Na dotaz | Zadat poptávku | |
| 339 0 WHR98006 |
C00333350
481953598347 |
Shaft thermostat | Na dotaz | Zadat poptávku | |
| 402 0 WHR98006 |
C00752833
481236038569 |
Compressor EMU 40 CLP | Na dotaz | Zadat poptávku | |
| 402 1 WHR98006 |
C00327895
481241878039 |
Tray compressor | Na dotaz | Zadat poptávku | |
| 402 5 WHR98006 |
C00333135
481946689405 |
PRICHYTKA | 120 Kč
€ 4.70 |
||
| 421 0 WHR98006 |
C00752834
481212118168 |
Capacitor cpl. EMU-KOMPRESSOR | Na dotaz | Zadat poptávku | |
| 421 1 WHR98006 |
C00509411
481240478246 |
Holder | Na dotaz | Zadat poptávku | |
| 554 0 WHR98006 |
C00481514
481227128199 |
THERMOSTAT K59-L1233 K59-L1233 | Na dotaz | Zadat poptávku | |
| 554 1 WHR98006 |
C00333185
481949268723 |
pruzina | 472 Kč
€ 18.60 |
||
| 561 0 WHR98006 |
C00584293
481928228696 |
Protect,motor | Na dotaz | Zadat poptávku | |
| 614 0 WHR98006 |
C00336871
481928068359 |
Relé rozběhové | Na dotaz | Zadat poptávku | |
| 651 0 WHR98006 |
C00311277
481913488135 |
BULB LED E14 T25 - 15W - 220V | Na dotaz | Zadat poptávku | |
| 652 0 WHR98006 |
C00313941
481925518199 |
spinac osvetl.+obj. | 944 Kč
€ 37.30 |
||
| 740 0 WHR98006 |
C00590073
481251148185 |
Condenser. | Na dotaz | Zadat poptávku | |
| 764 0 WHR98006 |
C00311590
481952648527 |
Dryer DRS15 With 3 ways valve | Na dotaz | Zadat poptávku | |
| 903 2 WHR98006 |
C00335993
481246278201 |
Stopper with point | Na dotaz | Zadat poptávku | |
| 910 0 WHR98006 |
C00344633
481953268521 |
sroubek | 39 Kč
€ 1.50 |
||
| 910 1 WHR98006 |
C00333201
481950218219 |
VITE CP H L 8 Z M5X16X8,5 | Na dotaz | Zadat poptávku | |
| 993 0 WHR98006 |
C00590085
481269028001 |
Set electrical. | Na dotaz | Zadat poptávku | |
| 999 WHR98006 |
C00768698 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
