BAUKNECHT IVU 1333/0-CH
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | IVU 1333/0-CH |
| Kód 12NC: | 855004716040 |
| I.C. kód: | 855004716042 |
| Značka: | BAUKNECHT |
| Typ produktu: | Vestavné lednice |
| Další podobné modely: | 855004716040, 855004716041 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

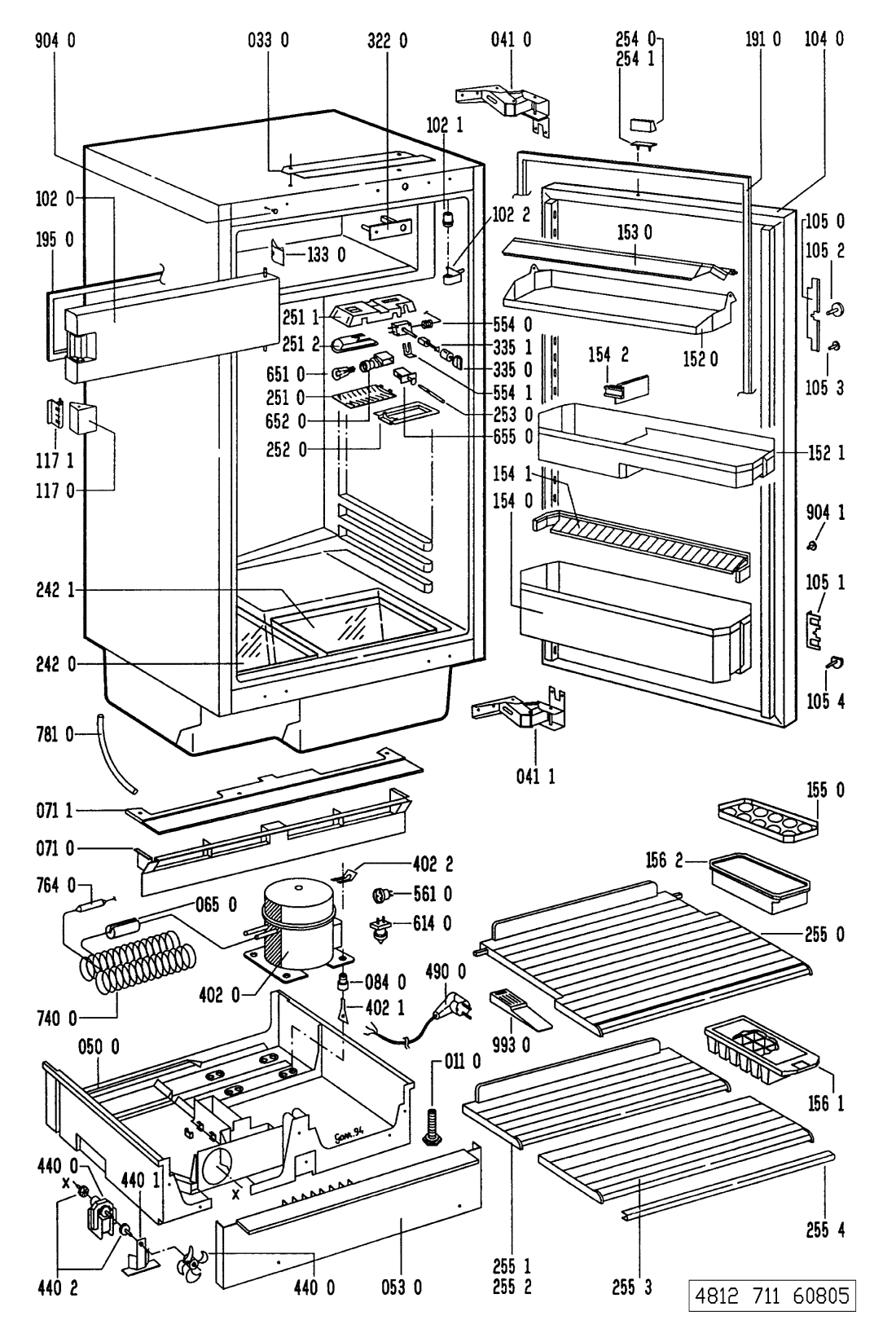

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 011 0 WHR97986 |
C00340784
481950518163 |
noha dlouha plastova | 121 Kč
€ 4.80 |
||
| 033 0 WHR97986 |
C00337466
481946049686 |
Trim, upper | Na dotaz | Zadat poptávku | |
| 041 0 WHR97986 |
C00497776
481241718769 |
P?NT CHLADNIAKY *** N | Na dotaz | Zadat poptávku | |
| 041 1 WHR97986 |
C00497775
481241718768 |
P?NT CHLADNIAKY *** N | Na dotaz | Zadat poptávku | |
| 050 0 WHR97986 |
C00341489
481946418093 |
Pedestal plinth housin | Na dotaz | Zadat poptávku | |
| 053 0 WHR97986 |
C00497955
481244028493 |
SOKEL ARG595 N | Na dotaz | Zadat poptávku | |
| 065 0 WHR97986 |
C00584913
481946669267 |
HADICA N | Na dotaz | Zadat poptávku | |
| 071 0 WHR97986 |
C00498007
481244088074 |
MRIEZKA VETRANIA ARG595 N | Na dotaz | Zadat poptávku | |
| 071 1 WHR97986 |
C00499331
481946059916 |
Cover plinth | Na dotaz | Zadat poptávku | |
| 084 0 WHR97986 |
C00585214
481953268362 |
DORAZ AMB590 N | Na dotaz | Zadat poptávku | |
| 102 0 WHR97986 |
C00752877
481244078256 |
Evapor.door | Na dotaz | Zadat poptávku | |
| 102 1 WHR97986 |
C00318944
481946698901 |
Podložka distanční | 233 Kč
€ 9.20 |
||
| 102 2 WHR97986 |
C00635643
481940478482 |
NAHRADENE 481240478335 N | Na dotaz | Zadat poptávku | |
| 104 0 WHR97986 |
C00752878
481244028442 |
Door | Na dotaz | Zadat poptávku | |
| 105 0 WHR97986 |
C00337783
481240448584 |
desticka | 95 Kč
€ 3.80 |
||
| 105 1 WHR97986 |
C00337758
481940449351 |
prichytka plech | 56 Kč
€ 2.20 |
||
| 105 2 WHR97986 |
C00344632
481950218218 |
Adjusting screw M 5 | Na dotaz | Zadat poptávku | |
| 105 3 WHR97986 |
C00333201
481950218219 |
VITE CP H L 8 Z M5X16X8,5 | Na dotaz | Zadat poptávku | |
| 105 4 WHR97986 |
C00344332
481952838149 |
kolik | 80 Kč
€ 3.20 |
||
| 117 0 WHR97986 |
C00340215
481949869426 |
Grip | Na dotaz | Zadat poptávku | |
| 117 1 WHR97986 |
C00621140
481949268646 |
nahradene 481249298033 | Na dotaz | Zadat poptávku | |
| 133 0 WHR97986 |
C00636261
481946698723 |
HAK PLAST N | Na dotaz | Zadat poptávku | |
| 152 0 WHR97986 |
C00380922
481941878904 |
COMPARTMENT | Na dotaz | Zadat poptávku | |
| 152 1 WHR97986 |
C00590791
481941879046 |
COMPARTMENT. | Na dotaz | Zadat poptávku | |
| 153 0 WHR97986 |
C00380923
481944229731 |
LID | Na dotaz | Zadat poptávku | |
| 154 0 WHR97986 |
C00374314
481941878906 |
Bottle shelf | Na dotaz | Zadat poptávku | |
| 154 1 WHR97986 |
C00380924
481946088903 |
Holder bottles | Na dotaz | Zadat poptávku | |
| 154 2 WHR97986 |
C00379259
481946088667 |
SEPARATOR F. BOTTLES | Na dotaz | Zadat poptávku | |
| 155 0 WHR97986 |
C00339537
481941878898 |
drzak vajec | 287 Kč
€ 11.30 |
||
| 156 1 WHR97986 |
C00287849
481941878977 |
miska na led | 300 Kč
€ 11.80 |
||
| 156 2 WHR97986 |
C00490640
481941878903 |
Icecube, tray | Na dotaz | Zadat poptávku | |
| 191 0 WHR97986 |
C00340407
481946669508 |
Těsnění magnetické | 2 410 Kč
€ 95.10 |
||
| 195 0 WHR97986 |
C00529751
481246668567 |
tesneni dveri vypar. | 729 Kč
€ 28.80 |
||
| 242 0 WHR97986 |
C00527874
481241848308 |
CRISPER LARGE large | Na dotaz | Zadat poptávku | |
| 242 1 WHR97986 |
C00489072
481241848307 |
CRISPER | Na dotaz | Zadat poptávku | |
| 251 0 WHR97986 |
C00320080
481946279556 |
kryt dif | 725 Kč
€ 28.60 |
||
| 251 1 WHR97986 |
C00555241
481241848248 |
LAMPHOLDER.. | Na dotaz | Zadat poptávku | |
| 251 2 WHR97986 |
C00332896
481938028002 |
Reflector | Na dotaz | Zadat poptávku | |
| 252 0 WHR97986 |
C00318922
481946279617 |
kryt | 39 Kč
€ 1.50 |
||
| 253 0 WHR97986 |
C00344554
481953598273 |
spinac osvetl.tycka | 67 Kč
€ 2.60 |
||
| 254 0 WHR97986 |
C00555142
481240448488 |
FIXATION LIGHT SWITCH.. | Na dotaz | Zadat poptávku | |
| 254 1 WHR97986 |
C00339619
481240448545 |
Holder f. light switch | Na dotaz | Zadat poptávku | |
| 255 0 WHR97986 |
C00752879
481945858438 |
Shelf plate | Na dotaz | Zadat poptávku | |
| 255 1 WHR97986 |
C00752880
481945858437 |
Shelf plate | Na dotaz | Zadat poptávku | |
| 255 2 WHR97986 |
C00555909
481940449346 |
NAHRADENE 481945819891 N | Na dotaz | Zadat poptávku | |
| 255 3 WHR97986 |
C00752881
481945858436 |
Shelf plate | Na dotaz | Zadat poptávku | |
| 255 4 WHR97986 |
C00752882
481946088898 |
Trim | Na dotaz | Zadat poptávku | |
| 322 0 WHR97986 |
C00341930
481945298449 |
Panel f. thermostat | Na dotaz | Zadat poptávku | |
| 335 0 WHR97986 |
C00338417
481941249139 |
Knob thermostat | Na dotaz | Zadat poptávku | |
| 335 1 WHR97986 |
C00333350
481953598347 |
Shaft thermostat | Na dotaz | Zadat poptávku | |
| 402 0 WHR97986 |
C00319816
481936038523 |
Compressor H12AF67 | Na dotaz | Zadat poptávku | |
| 402 1 WHR97986 |
C00499000
481940449352 |
Fastener | Na dotaz | Zadat poptávku | |
| 402 2 WHR97986 |
C00333135
481946689405 |
PRICHYTKA | 120 Kč
€ 4.70 |
||
| 440 0 WHR97986 |
C00314229
481936178144 |
motorek ventilatoru | 2 193 Kč
€ 86.60 |
||
| 440 1 WHR97986 |
C00332945
481940478859 |
drzak | 169 Kč
€ 6.70 |
||
| 440 2 WHR97986 |
C00333073
481946248211 |
gufero | 121 Kč
€ 4.80 |
||
| 490 0 WHR97986 |
C00374325
481932118091 |
Connect.cable | Na dotaz | Zadat poptávku | |
| 554 0 WHR97986 |
C00584898
481227128195 |
TERMOSTAT BIMETAL. N | Na dotaz | Zadat poptávku | |
| 554 1 WHR97986 |
C00333185
481949268723 |
pruzina | 472 Kč
€ 18.60 |
||
| 561 0 WHR97986 |
C00337118
481928228549 |
Protect motor AD24FU4 | Na dotaz | Zadat poptávku | |
| 614 0 WHR97986 |
C00336886
481928068313 |
Relay | Na dotaz | Zadat poptávku | |
| 651 0 WHR97986 |
C00311277
481913488135 |
BULB LED E14 T25 - 15W - 220V | Na dotaz | Zadat poptávku | |
| 652 0 WHR97986 |
C00313941
481925518199 |
spinac osvetl.+obj. | 944 Kč
€ 37.30 |
||
| 655 0 WHR97986 |
C00374124
481227618018 |
SPÍNAČ OSVĚTLENÍ | 1 470 Kč
€ 58.00 |
||
| 740 0 WHR97986 |
C00332223
481251148068 |
Condenser | Na dotaz | Zadat poptávku | |
| 764 0 WHR97986 |
C00311590
481952648527 |
Dryer DRS15 With 3 ways valve | Na dotaz | Zadat poptávku | |
| 781 0 WHR97986 |
C00585205
481953028514 |
Hose draining.. | Na dotaz | Zadat poptávku | |
| 904 0 WHR97986 |
C00590169
481946698353 |
Stopper. | Na dotaz | Zadat poptávku | |
| 904 1 WHR97986 |
C00335993
481246278201 |
Stopper with point | Na dotaz | Zadat poptávku | |
| 993 0 WHR97986 |
C00336349
481939578011 |
skrabka na led náhrada 481244098184 | 111 Kč
€ 4.40 |
||
| 999 WHR97986 |
C00768660 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
