KITCHENAID KBWG11NCSS
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | KBWG11NCSS |
| Kód 12NC: | 851324952070 |
| I.C. kód: | 851324952071 |
| Značka: | KITCHENAID |
| Typ produktu: | Volně stojící lednice s mrazákem |
| Další podobné modely: | 851324952070 |
Potřebujete servis? Jsme tady pro Vás

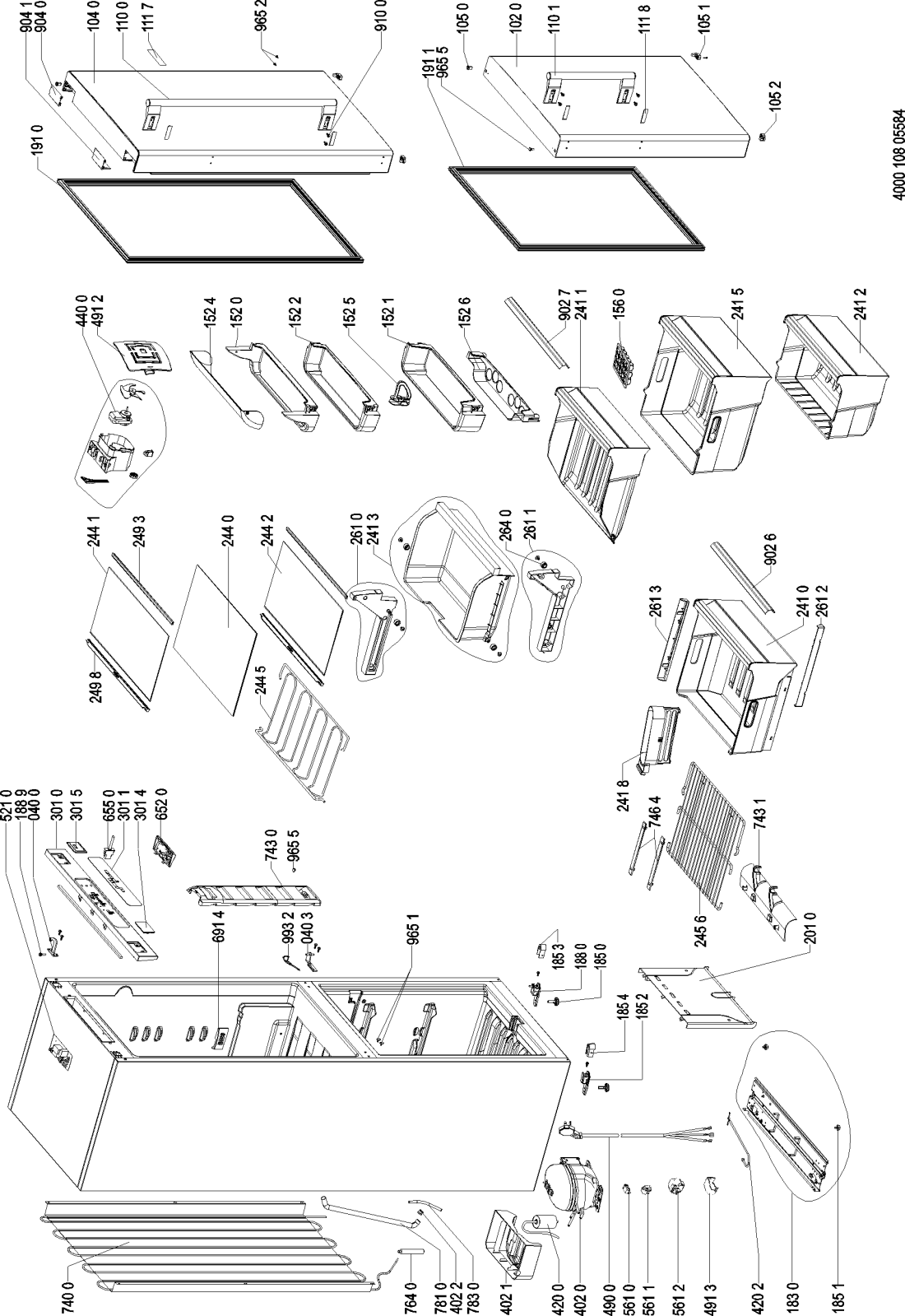

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0400 WHR19992 |
C00329779
481241719517 |
Závěs horní | 934 Kč
€ 36.90 |
||
| 0403 WHR19992 |
C00319920
481241719519 |
Závěs dveří střední | 976 Kč
€ 38.50 |
||
| 1020 WHR19992 |
C00440550
481010531287 |
Door freezer SIX | Na dotaz | Zadat poptávku | |
| 1040 WHR19992 |
C00440527
481010530389 |
Door refriger. SIX | Na dotaz | Zadat poptávku | |
| 1050 WHR19992 |
C00314330
481253288056 |
Pouzdro závěsu - kulaté | Na dotaz | Zadat poptávku | |
| 1051 WHR19992 |
C00317176
481253288104 |
Pouzdro závěsu - pravé | 654 Kč
€ 25.80 |
||
| 1052 WHR19992 |
C00320239
481253288105 |
Sleeve grey left | Na dotaz | Zadat poptávku | |
| 1100 WHR19992 |
C00377165
481010439412 |
HANDLE UNIVERSAL SILVER/ALU, 749 MM | Na dotaz | Zadat poptávku | |
| 1101 WHR19992 |
C00387093
481010439414 |
Handle un.silver/ALU, 350 mm | Na dotaz | Zadat poptávku | |
| 1117 WHR19992 |
C00435489
481010243391 |
Nameplate KITCHENAID | Na dotaz | Zadat poptávku | |
| 1118 WHR19992 |
C00387094
481010438420 |
krytka | 313 Kč
€ 12.40 |
||
| 1520 WHR19992 |
C00448360
481052384741 |
Door dairy transparent grey | Na dotaz | Zadat poptávku | |
| 1521 WHR19992 |
C00323429
480132101235 |
police | Na dotaz | Zadat poptávku | |
| 1522 WHR19992 |
C00432195
480132101234 |
police | 420 Kč
€ 16.60 |
||
| 1524 WHR19992 |
C00323303
480132100543 |
Víko police | 1 232 Kč
€ 48.60 |
||
| 1525 WHR19992 |
C00431912
480132100538 |
Separator 00137 transparent grey | Na dotaz | Zadat poptávku | |
| 1526 WHR19992 |
C00323386
480132101126 |
police | 918 Kč
€ 36.20 |
||
| 1560 WHR19992 |
C00322568
480132103428 |
Miska na led | Na dotaz | Zadat poptávku | |
| 1830 WHR19992 |
C00440018
481010515903 |
CROSSBAR COMPRESSOR + REAR FEET | Na dotaz | Zadat poptávku | |
| 1850 WHR19992 |
C00326371
481010730035 |
noha náhrada C00326371 | 32 Kč
€ 1.30 |
||
| 1851 WHR19992 |
C00522120
481010443535 |
Noha (zadní) chladničky Whirlpool | 158 Kč
€ 6.20 |
||
| 1852 WHR19992 |
C00316341
481010372681 |
závěs dolní levý | Na dotaz | Zadat poptávku | |
| 1853 WHR19992 |
C00324289
481010429047 |
Cover lower hinge,grey | Na dotaz | Zadat poptávku | |
| 1854 WHR19992 |
C00324290
481010429057 |
Cover foot bracket,grey | Na dotaz | Zadat poptávku | |
| 1880 WHR19992 |
C00320887
481010372678 |
Hinge lower | Na dotaz | Zadat poptávku | |
| 1889 WHR19992 |
C00324639
481010493638 |
Čep závěsu | 108 Kč
€ 4.30 |
||
| 1910 WHR19992 |
C00311563
481246668941 |
Magnetické těsnění dveří chladničky Whirlpool | 1 569 Kč
€ 61.90 |
||
| 1911 WHR19992 |
C00311915
481246668942 |
Magnetické těsnění dveří mrazáku chladničky Whirlpool | 1 697 Kč
€ 67.00 |
||
| 2010 WHR19992 |
C00323522
480132101591 |
kryt | 341 Kč
€ 13.50 |
||
| 2410 WHR19992 |
C00344971
481010569993 |
zásuvka na zeleninu | 1 453 Kč
€ 57.40 |
||
| 2411 WHR19992 |
C00432344
480132101644 |
Drawer upper,transparent grey | Na dotaz | Zadat poptávku | |
| 2412 WHR19992 |
C00323396
480132101145 |
Koš mrazničky - spodní | 2 755 Kč
€ 108.80 |
||
| 2413 WHR19992 |
C00440009
481010515565 |
Zásuvka chladničky | 1 569 Kč
€ 61.90 |
||
| 2415 WHR19992 |
C00441891
481010569998 |
Drawer central, transp.grey | Na dotaz | Zadat poptávku | |
| 2418 WHR19992 |
C00432863
480132102954 |
Separator crisper,transparent grey | Na dotaz | Zadat poptávku | |
| 2440 WHR19992 |
C00432170
480132101131 |
GLASS SHELF CRISPER+DARK SILVER PROFILE | Na dotaz | Zadat poptávku | |
| 2441 WHR19992 |
C00432171
480132101132 |
Glass shelf +GW & dark silv.profiles | Na dotaz | Zadat poptávku | |
| 2442 WHR19992 |
C00323435
480132101256 |
rost skleneny + lišty | 822 Kč
€ 32.50 |
||
| 2445 WHR19992 |
C00324729
481010508083 |
Rošt lahví drátěný | 1 215 Kč
€ 48.00 |
||
| 2456 WHR19992 |
C00324813
481010520927 |
Shelf wire | Na dotaz | Zadat poptávku | |
| 2493 WHR19992 |
C00432174
480132101165 |
Trim Shelf front dark silver | Na dotaz | Zadat poptávku | |
| 2498 WHR19992 |
C00320108
480132101162 |
Trim Shelf rear GW | Na dotaz | Zadat poptávku | |
| 2610 WHR19992 |
C00439751
481010506668 |
Slide right FFC drawer | Na dotaz | Zadat poptávku | |
| 2611 WHR19992 |
C00439750
481010506663 |
Slide left FFC drawer | Na dotaz | Zadat poptávku | |
| 2612 WHR19992 |
C00326289
481010704552 |
kolejnice | 669 Kč
€ 26.40 |
||
| 2613 WHR19992 |
C00326288
481010704550 |
kolejnice | 665 Kč
€ 26.30 |
||
| 2640 WHR19992 |
C00332376
481252878073 |
kolecko zasuvky | 155 Kč
€ 6.10 |
||
| 3010 WHR19992 |
C00440511
481010529907 |
Front panel grey | Na dotaz | Zadat poptávku | |
| 3011 WHR19992 |
C00442423
481010584331 |
Insert panel printed | Na dotaz | Zadat poptávku | |
| 3014 WHR19992 |
C00316198
481244029587 |
kryt | 163 Kč
€ 6.40 |
||
| 3015 WHR19992 |
C00328166
481244029586 |
Cover contr.pane.IS hinge side | Na dotaz | Zadat poptávku | |
| 4020 WHR19992 |
C00440768
481010540349 |
COMPRESSOR EM2Z 60 HLT 115-127V / 60HZ | Na dotaz | Zadat poptávku | |
| 4021 WHR19992 |
C00441254
481010553362 |
Tray drip compressor | Na dotaz | Zadat poptávku | |
| 4022 WHR19992 |
C00318606
480132101608 |
ventil | Na dotaz | Zadat poptávku | |
| 4200 WHR19992 |
C00440732
481010538494 |
Capacitor 12 mF | Na dotaz | Zadat poptávku | |
| 4202 WHR19992 |
C00439914
481010513341 |
Wire protective | Na dotaz | Zadat poptávku | |
| 4400 WHR19992 |
C00440079
481010518444 |
Fan assy 115-120V / 60Hz | Na dotaz | Zadat poptávku | |
| 4900 WHR19992 |
C00397336
481010505066 |
Cable mains CA, 1739 mm, 115V | Na dotaz | Zadat poptávku | |
| 4912 WHR19992 |
C00439748
481010506654 |
Cover fridge fan | Na dotaz | Zadat poptávku | |
| 4913 WHR19992 |
C00440775
481010540495 |
Cover conn.bloc 11.910.5261 | Na dotaz | Zadat poptávku | |
| 5210 WHR19992 |
C00440965
481010544502 |
Control board HERCULES 100-240V | Na dotaz | Zadat poptávku | |
| 5610 WHR19992 |
C00440781
481010540536 |
Protect motor 4TM319NFBYY | Na dotaz | Zadat poptávku | |
| 5611 WHR19992 |
C00440782
481010540543 |
PTC-Unit 01.365.0071 | Na dotaz | Zadat poptávku | |
| 5612 WHR19992 |
C00440779
481010540525 |
Connectionblock 21.910.1707 | Na dotaz | Zadat poptávku | |
| 6520 WHR19992 |
C00436106
481010398001 |
LED lighting assy, 120 V | Na dotaz | Zadat poptávku | |
| 6550 WHR19992 |
C00440656
481010534330 |
Switch grey | Na dotaz | Zadat poptávku | |
| 6914 WHR19992 |
C00439737
481010506496 |
Cover sensor fridge | Na dotaz | Zadat poptávku | |
| 7400 WHR19992 |
C00440013
481010515625 |
CONDENSER 585 X 1400 PIPE BEN | Na dotaz | Zadat poptávku | |
| 7430 WHR19992 |
C00439749
481010506658 |
Cover multiflow | Na dotaz | Zadat poptávku | |
| 7431 WHR19992 |
C00317574
481052822111 |
Kryt do mrazničky | Na dotaz | Zadat poptávku | |
| 7464 WHR19992 |
C00319325
481246098055 |
Podpora koše mrazničky | 191 Kč
€ 7.50 |
||
| 7640 WHR19992 |
C00494652
481948028148 |
DEHYDRATOR | Na dotaz | Zadat poptávku | |
| 7810 WHR19992 |
C00323524
480132101595 |
CONDENSATE DRAIN TUBE | Na dotaz | Zadat poptávku | |
| 7830 WHR19992 |
C00313237
481281719208 |
VALVE, 1/4 BODY+TUBE 100MM | Na dotaz | Zadat poptávku | |
| 9026 WHR19992 |
C00432176
480132101167 |
Trim crisper gun silver,L=440,5mm | Na dotaz | Zadat poptávku | |
| 9027 WHR19992 |
C00432221
480132101306 |
Trim crisper gun silver,L=423mm | Na dotaz | Zadat poptávku | |
| 9040 WHR19992 |
C00324555
481010476946 |
Cover grey, short H=10 mm | Na dotaz | Zadat poptávku | |
| 9041 WHR19992 |
C00324556
481010476949 |
Cover grey, long H=41 mm | Na dotaz | Zadat poptávku | |
| 9100 WHR19992 |
C00448280
481020100122 |
SCREW HANDLE 3,9X11 | Na dotaz | Zadat poptávku | |
| 9651 WHR19992 |
C00324951
481010600779 |
Záslepky pro volně stojící chladničky | 112 Kč
€ 4.40 |
||
| 9652 WHR19992 |
C00325036
481010529834 |
Plug grey | Na dotaz | Zadat poptávku | |
| 9655 WHR19992 |
C00325741
481010628173 |
zaslepky | 324 Kč
€ 12.80 |
||
| 9932 WHR19992 |
C00326483
481052303195 |
čistič odtoku | 219 Kč
€ 8.60 |
||
| 9938 WHR19992 |
C00495835
481010539858 |
DOOR REVERS.KIT NOT SHOWN | Na dotaz | Zadat poptávku | |
| 999 WHR19992 |
C00346536
488000346536 |
NTC/PTC Chart WHP | Na dotaz | Zadat poptávku | |
| 999 WHR19992 |
C00553125 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
