KITCHENAID KCBNR 18602
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | KCBNR 18602 |
| Kód 12NC: | 851312596000 |
| I.C. kód: | 751312596000 |
| Značka: | KITCHENAID |
| Typ produktu: | Vestavné lednice |
| Další podobné modely: | 851312596000 |
Potřebujete servis? Jsme tady pro Vás

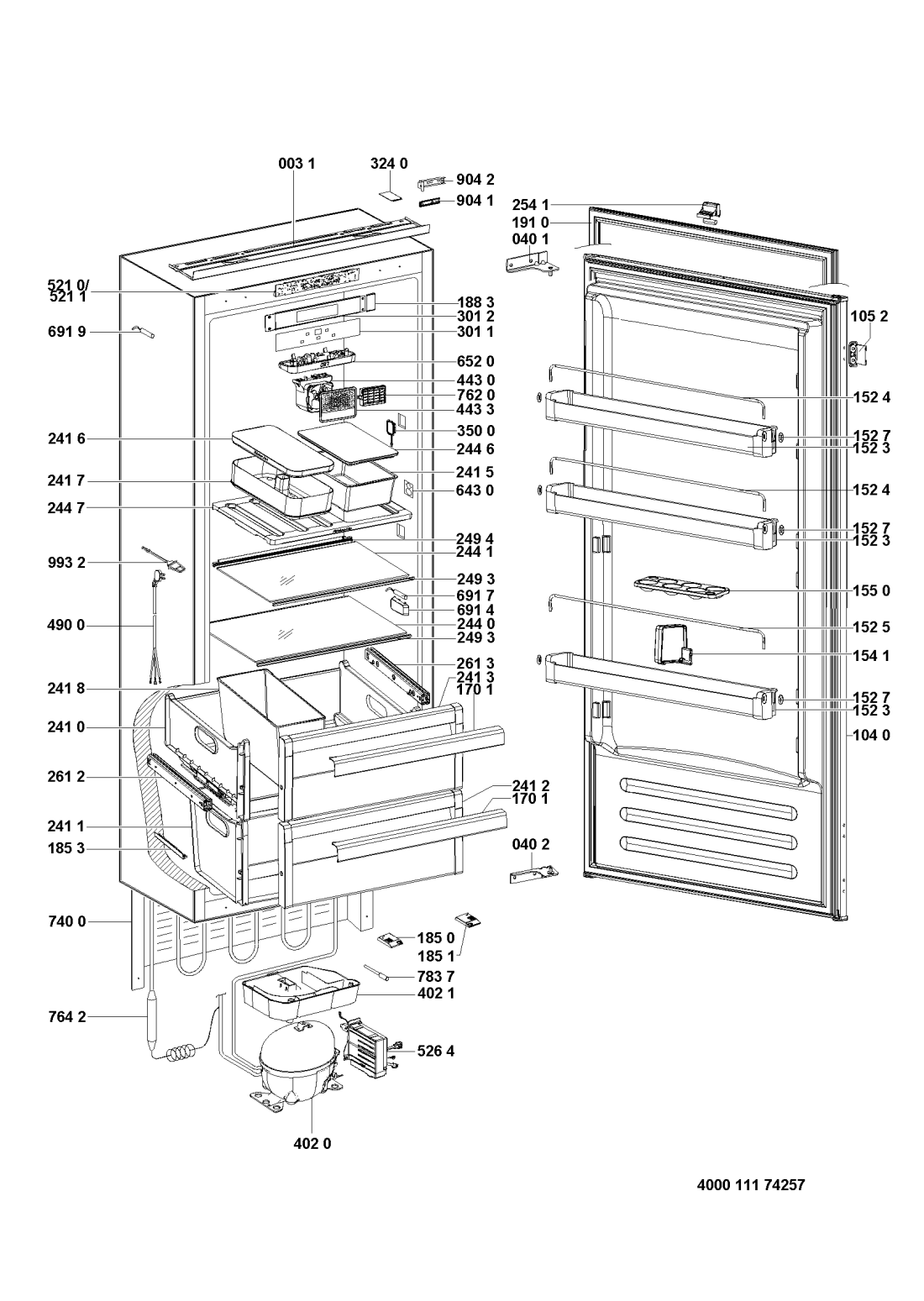

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0031 WHR08102 |
C00325131
481010544344 |
Lišta instalační | 983 Kč
€ 38.80 |
||
| 0401 WHR08102 |
C00672391
488000672391 |
Horní pant dveří pro chladničku Whirlpool / Indesit | 168 Kč
€ 6.60 |
||
| 0402 WHR08102 |
C00672390
488000672390 |
Dolní pant dveří pro chladničku Whirlpool / Indesit | 168 Kč
€ 6.60 |
||
| 1040 WHR08102 |
C00513135
481011108189 |
Door refriger. | Na dotaz | Zadat poptávku | |
| 1052 WHR08102 |
C00312150
481231019131 |
Posouvač dekoru - sada | 239 Kč
€ 9.40 |
||
| 1523 WHR08102 |
C00506797
481011043644 |
Door dairy KA | Na dotaz | Zadat poptávku | |
| 1524 WHR08102 |
C00506914
481011041074 |
Rod shelf ,L-390.7mm,H-40.0mm | Na dotaz | Zadat poptávku | |
| 1525 WHR08102 |
C00506915
481011041075 |
Rod shelf ,L-390.7mm,H-55.0mm | Na dotaz | Zadat poptávku | |
| 1527 WHR08102 |
C00445004
481010686952 |
Sticker door dairy KA | Na dotaz | Zadat poptávku | |
| 1541 WHR08102 |
C00387353
481010756468 |
Separator bottle GW | Na dotaz | Zadat poptávku | |
| 1550 WHR08102 |
C00324468
481010470963 |
Držák vajec | 246 Kč
€ 9.70 |
||
| 1701 WHR08102 |
C00497126
481010864301 |
Insert drawer ,HOT FOIL | Na dotaz | Zadat poptávku | |
| 1850 WHR08102 |
C00325809
481010642999 |
Noha levá+držák | Na dotaz | Zadat poptávku | |
| 1851 WHR08102 |
C00325808
481010642997 |
Držák | 81 Kč
€ 3.20 |
||
| 1853 WHR08102 |
C00386008
481010808043 |
Slide Drawer "WOBBLING" | Na dotaz | Zadat poptávku | |
| 1883 WHR08102 |
C00324677
481010500009 |
Cover plate f.user board DOTYK | Na dotaz | Zadat poptávku | |
| 1910 WHR08102 |
C00387703
481010881196 |
Těsnění magnetické 1666.0 x 512.0 mm white | 2 166 Kč
€ 85.50 |
||
| 2410 WHR08102 |
C00503364
481010820886 |
Crisper | Na dotaz | Zadat poptávku | |
| 2411 WHR08102 |
C00447801
481010820907 |
Drawer lower | Na dotaz | Zadat poptávku | |
| 2412 WHR08102 |
C00447803
481010820909 |
Front cover drawer,lower | Na dotaz | Zadat poptávku | |
| 2413 WHR08102 |
C00447800
481010820905 |
Čelo koše | 722 Kč
€ 28.50 |
||
| 2415 WHR08102 |
C00446082
481010736452 |
Container for wooden shelf KA | Na dotaz | Zadat poptávku | |
| 2416 WHR08102 |
C00446086
481010736594 |
Cover wooden f.crisper divider,KA | Na dotaz | Zadat poptávku | |
| 2417 WHR08102 |
C00325144
481010547465 |
nádoba | 4 856 Kč
€ 191.70 |
||
| 2418 WHR08102 |
C00448093
481010846718 |
Nádoba do zásuvky | 799 Kč
€ 31.50 |
||
| 2440 WHR08102 |
C00324412
481010463485 |
Skleněná police nad zásuvku na zeleninu vestavné chladničky Whirlpool ART 6501/A+, ART 66 | 579 Kč
€ 22.90 |
||
| 2441 WHR08102 |
C00324411
481010463484 |
Skleněná police chladničky Whirlpool ARG 10470 A+, ARG 18081, ART 9810/A+. | 1 447 Kč
€ 57.10 |
||
| 2446 WHR08102 |
C00446072
481010736395 |
Lid wooden for shelf KA | Na dotaz | Zadat poptávku | |
| 2447 WHR08102 |
C00446073
481010736424 |
Shelf wooden KA | Na dotaz | Zadat poptávku | |
| 2493 WHR08102 |
C00325761
481010633086 |
Trim Shelf front,BK Hot Foil | Na dotaz | Zadat poptávku | |
| 2494 WHR08102 |
C00324321
481010439421 |
Krycí lišta skleněné police - zadní | 217 Kč
€ 8.60 |
||
| 2541 WHR08102 |
C00330235
481245988017 |
Magnet dveří | 1 092 Kč
€ 43.10 |
||
| 2612 WHR08102 |
C00480389
481010854894 |
Rail assy left | Na dotaz | Zadat poptávku | |
| 2613 WHR08102 |
C00480388
481010854885 |
Rail assy right | Na dotaz | Zadat poptávku | |
| 3011 WHR08102 |
C00447040
481010776166 |
Insert panel CENTAUR printed,KA | Na dotaz | Zadat poptávku | |
| 3012 WHR08102 |
C00324960
481010602581 |
Plate support f.control board | Na dotaz | Zadat poptávku | |
| 3240 WHR08102 |
C00328157
481244029572 |
Záslepka | 523 Kč
€ 20.60 |
||
| 3500 WHR08102 |
C00335175
484000008437 |
Osvětlení chladničky | 6 696 Kč
€ 264.40 |
||
| 4020 WHR08102 |
C00496783
481010819919 |
KOMPRESOR VESD5C TL CP (IT) | Na dotaz | Zadat poptávku | |
| 4021 WHR08102 |
C00512402
481011111631 |
WATER TRAY COMPRESSOR VES PFC | Na dotaz | Zadat poptávku | |
| 4430 WHR08102 |
C00315602
481010595122 |
Ventilátor chladničky | 1 400 Kč
€ 55.30 |
||
| 4433 WHR08102 |
C00447033
481010776079 |
Cover blower +alu insert assy | Na dotaz | Zadat poptávku | |
| 4900 WHR08102 |
C00323592
480132101855 |
kabelaz | 982 Kč
€ 38.80 |
||
| 5210 WHR08102 |
C00502147
481010898788 |
Control board CENTAUR programmed | Na dotaz | Zadat poptávku | |
| 5211 WHR08102 |
C00447682
481010812489 |
Control board CENTAUR blank | Na dotaz | Zadat poptávku | |
| 5264 WHR08102 |
C00512399
481011109095 |
Electronic box VESD5C OB FC PFC | Na dotaz | Zadat poptávku | |
| 6430 WHR08102 |
C00322980
480131100236 |
THERMOMETER LISTERIA BUILT IN | Na dotaz | Zadat poptávku | |
| 6520 WHR08102 |
C00382989
481010781193 |
LED LIGHTING DIAMOND WITH SERIGRAPHY | Na dotaz | Zadat poptávku | |
| 6914 WHR08102 |
C00447094
481010779616 |
Cover sensor printed FRESH CONTROL | Na dotaz | Zadat poptávku | |
| 6917 WHR08102 |
C00311307
481231018846 |
Senzor teploty - sada | 1 663 Kč
€ 65.70 |
||
| 6919 WHR08102 |
C00335170
484000001092 |
Senzor chladničky | 1 781 Kč
€ 70.30 |
||
| 7400 WHR08102 |
C00386652
481010746625 |
Condenser RJ | Na dotaz | Zadat poptávku | |
| 7620 WHR08102 |
C00445628
481010707656 |
Filter Antibacterial KA | Na dotaz | Zadat poptávku | |
| 7642 WHR08102 |
C00266743
481948028144 |
Filtr chladničky - patrona | Na dotaz | Zadat poptávku | |
| 7837 WHR08102 |
C00326892
481217088015 |
TUBE 60 MM | Na dotaz | Zadat poptávku | |
| 9041 WHR08102 |
C00506466
481011035589 |
kryt závěsu | 89 Kč
€ 3.50 |
||
| 9042 WHR08102 |
C00323046
480131100568 |
kryt | 234 Kč
€ 9.20 |
||
| 9932 WHR08102 |
C00316841
481969028169 |
Čistič odtokového kanálku chladničky Whirlpool ARG 790/A+, ARG 734/A+, ARG 184701. | 155 Kč
€ 6.10 |
||
| 9938 WHR08102 |
C00513172
481010708306 |
Mounting kit not shown | Na dotaz | Zadat poptávku | |
| 999 WHR08102 |
C00346536
488000346536 |
NTC/PTC Chart WHP | Na dotaz | Zadat poptávku | |
| 999 WHR08102 |
C00358874
488000358874 |
NTC sensor WHP | Na dotaz | Zadat poptávku | |
