KITCHENAID KCQXX 18900
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | KCQXX 18900 |
| Kód 12NC: | 859991572320 |
| Značka: | KITCHENAID |
| Typ produktu: | Volně stojící lednice s mrazákem |
Potřebujete servis? Jsme tady pro Vás

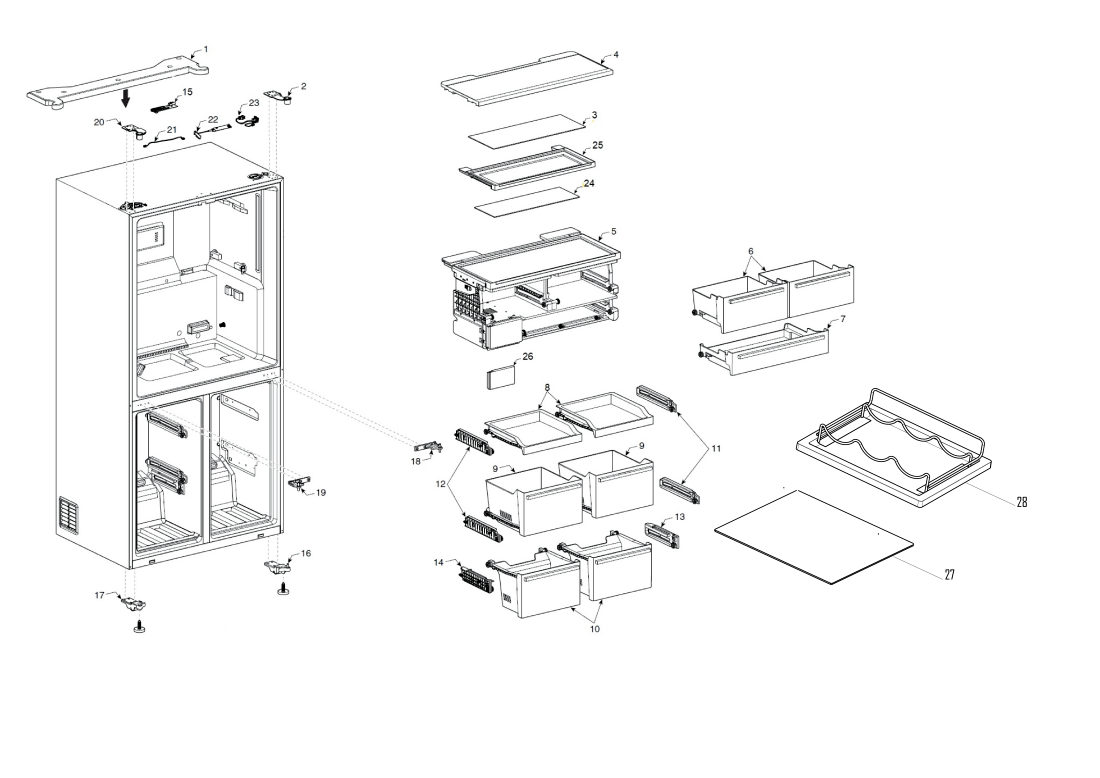

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 SAJU1A |
C00629372
488000629372 |
Top Hinge Cover | Na dotaz | Zadat poptávku | |
| 002 SAJU1A |
C00629373
488000629373 |
TOP Hinge RH | Na dotaz | Zadat poptávku | |
| 003 SAJU1A |
C00637963
488000637963 |
GLASS-PLATTER | Na dotaz | Zadat poptávku | |
| 004 SAJU1A |
C00637961
488000637961 |
FULL SHELF ASSY,KA | Na dotaz | Zadat poptávku | |
| 005 SAJU1A |
C00637693
488000637693 |
PANTRY CRISPER STRUCTURE ASSY,IDI | Na dotaz | Zadat poptávku | |
| 006 SAJU1A |
C00637967
488000637967 |
CRISPER PAN ASSY KA | Na dotaz | Zadat poptávku | |
| 007 SAJU1A |
C00637969
488000637969 |
PANTRY PAN ASSY KA | Na dotaz | Zadat poptávku | |
| 008 SAJU1A |
C00637970
488000637970 |
PULLOUT TRAY ASSY,FC,KA | Na dotaz | Zadat poptávku | |
| 009 SAJU1A |
C00637972
488000637972 |
DRAWER ASSY-MID,FC,KA | Na dotaz | Zadat poptávku | |
| 009 SAJU1A |
C00637973
488000637973 |
DRAWER ASSY,MID,CC,WHP - CONVERTIBLE SPA | Na dotaz | Zadat poptávku | |
| 010 SAJU1A |
C00637974
488000637974 |
DRAWER,BTM ASSY,FC,WHP - FAST FREEZE | Na dotaz | Zadat poptávku | |
| 010 SAJU1A |
C00637975
488000637975 |
DRAWER,BTM ASSY,CC,WHP-CONVERTIBLE SPACE | Na dotaz | Zadat poptávku | |
| 011 SAJU1A |
C00637700
488000637700 |
ADAPTOR PLATE ASSY,ROLLER,RH,FC | Na dotaz | Zadat poptávku | |
| 012 SAJU1A |
C00637701
488000637701 |
ADAPTOR PLATE ASSY,ROLLER,LH,FC | Na dotaz | Zadat poptávku | |
| 013 SAJU1A |
C00637702
488000637702 |
ADAPTOR PLATE ASSY,BTM,RH,FC | Na dotaz | Zadat poptávku | |
| 014 SAJU1A |
C00637703
488000637703 |
ADAPTOR PLATE ASSY, BTM,LH,FC | Na dotaz | Zadat poptávku | |
| 016 SAJU1A |
C00629391
488000629391 |
HINGE ASSY + FEET,BOTTOM,RH | Na dotaz | Zadat poptávku | |
| 017 SAJU1A |
C00629392
488000629392 |
HINGE ASSY + FEET,BOTTOM,LH | Na dotaz | Zadat poptávku | |
| 018 SAJU1A |
C00629393
488000629393 |
HINGE ASSY,CTR,RH | Na dotaz | Zadat poptávku | |
| 019 SAJU1A |
C00629394
488000629394 |
HINGE ASSY,CTR,LH | Na dotaz | Zadat poptávku | |
| 020 SAJU1A |
C00629395
488000629395 |
TOP Hinge LH | Na dotaz | Zadat poptávku | |
| 021 SAJU1A |
C00629396
488000629396 |
JUMPER WIRE ASSY - HING, NIDI | Na dotaz | Zadat poptávku | |
| 022 SAJU1A |
C00553006
488000553006 |
SWITCH-REED | Na dotaz | Zadat poptávku | |
| 023 SAJU1A |
C00629397
488000629397 |
SENSOR-HUMIDITY,EXTERNAL | Na dotaz | Zadat poptávku | |
| 024 SAJU1A |
C00629378
488000629378 |
GLASS-COVER CRSP,IDI | Na dotaz | Zadat poptávku | |
| 025 SAJU1A |
C00637962
488000637962 |
PLATTER ASSY | Na dotaz | Zadat poptávku | |
| 026 SAJU1A |
C00637964
488000637964 |
DOOR-FILTER | Na dotaz | Zadat poptávku | |
| 027 SAJU1A |
C00637971
488000637971 |
GLASS,PULLOUT TRAY,FC,KA | Na dotaz | Zadat poptávku | |
| 028 SAJU1A |
C00637966
488000637966 |
WINE RACK ASSY-CGM | Na dotaz | Zadat poptávku | |
| 031 SAJU1A |
C00672040
488000672040 |
HANDLE ASSEMBLY 4 PIECES | Na dotaz | Zadat poptávku | |
| 001 SAJU2 |
C00629401
488000629401 |
AIR TOWER TRIM | Na dotaz | Zadat poptávku | |
| 002 SAJU2 |
C00637980
488000637980 |
DECORATION COVER,TOWER | Na dotaz | Zadat poptávku | |
| 003 SAJU2 |
C00629403
488000629403 |
OZONIZER Assembly HP/BK/AT | Na dotaz | Zadat poptávku | |
| 006 SAJU2 |
C00637981
488000637981 |
FRONT COVER-OZONIZER HOUSING,WHP,HP,CF | Na dotaz | Zadat poptávku | |
| 007 SAJU2 |
C00637983
488000637983 |
PIVOT BLOCK-FLIPPER MULLION | Na dotaz | Zadat poptávku | |
| 008 SAJU2 |
C00630347
488000630347 |
INDIRECT LIGHTING( RC LED STRIP, CHROMED | Na dotaz | Zadat poptávku | |
| 009 SAJU2 |
C00629408
488000629408 |
FC Top ligthing (Point led) | Na dotaz | Zadat poptávku | |
| 010,020 SAJU2 |
C00629409
488000629409 |
THERMISTOR W/ CLIP, 400mm, Wire-Wire RC | Na dotaz | Zadat poptávku | |
| 011 SAJU2 |
C00629410
488000629410 |
HEATER-DEFROST,RC | Na dotaz | Zadat poptávku | |
| 012 SAJU2 |
C00629411
488000629411 |
RC EVAPORATOR | Na dotaz | Zadat poptávku | |
| 013 SAJU2 |
C00637705
488000637705 |
COVER-EVAP,RC,DGL | Na dotaz | Zadat poptávku | |
| 014 SAJU2 |
C00629414
488000629414 |
SCROLL-FAN, COVER,REAR | Na dotaz | Zadat poptávku | |
| 015 SAJU2 |
C00629415
488000629415 |
RC EVAP FAN ASSY motor + Blades +grommet | Na dotaz | Zadat poptávku | |
| 016 SAJU2 |
C00629416
488000629416 |
SCROLL-FAN, COVER,FRONT | Na dotaz | Zadat poptávku | |
| 017 SAJU2 |
C00637818
488000637818 |
COVER ASSY-EVAP,FC IDI WHITE | Na dotaz | Zadat poptávku | |
| 018 SAJU2 |
C00637819
488000637819 |
EVAP COVER ASSEMBLY, DARK GREY | Na dotaz | Zadat poptávku | |
| 019 SAJU2 |
C00632615
488000632615 |
WATER BOX ASSY-SINGLE IM | Na dotaz | Zadat poptávku | |
| 021 SAJU2 |
C00629425
488000629425 |
FAN-ICEBOX | Na dotaz | Zadat poptávku | |
| 022 SAJU2 |
C00629426
488000629426 |
BRACKET-FAN,ICE BOX | Na dotaz | Zadat poptávku | |
| 022 SAJU2 |
C00629427
488000629427 |
SCREW_fix fan_IM box | Na dotaz | Zadat poptávku | |
| 023 SAJU2 |
C00629428
488000629428 |
SEAL-ICE BOX FAN | Na dotaz | Zadat poptávku | |
| 027 SAJU2 |
C00629420
488000629420 |
Filtr na vodu | Na dotaz | Zadat poptávku | |
| 028 SAJU2 |
C00637984
488000637984 |
CAP-FILTER | Na dotaz | Zadat poptávku | |
| 029,031 SAJU2 |
C00629422
488000629422 |
DEFROST HEATER FC/CC | Na dotaz | Zadat poptávku | |
| 030 SAJU2 |
C00629423
488000629423 |
FC Evaporator | Na dotaz | Zadat poptávku | |
| 032 SAJU2 |
C00629424
488000629424 |
CC Evaporator | Na dotaz | Zadat poptávku | |
| 001 SAJU4 |
C00637986
488000637986 |
VERTICAL BAR DOOR CLOSING | Na dotaz | Zadat poptávku | |
| 002 SAJU4 |
C00638005
488000638005 |
SUB_SYS-DOOR,RCLH | Na dotaz | Zadat poptávku | |
| 003 SAJU4 |
C00638006
488000638006 |
POST FOAM ASSY-RRDR, WP | Na dotaz | Zadat poptávku | |
| 003 SAJU4 |
C00851845
488000851845 |
Metal badge KitchenAid | Na dotaz | Zadat poptávku | |
| 004 SAJU4 |
C00532055
488000532055 |
door stop | Na dotaz | Zadat poptávku | |
| 005 SAJU4 |
C00629438
488000629438 |
SPRING FINGER-DOOR,LH,NAT | Na dotaz | Zadat poptávku | |
| 006 SAJU4 |
C00629439
488000629439 |
SPRING FINGER-DOOR,RH,NAT | Na dotaz | Zadat poptávku | |
| 008 SAJU4 |
C00638008
488000638008 |
POST FOAM ASSY-FCRH, WP, ACM | Na dotaz | Zadat poptávku | |
| 009 SAJU4 |
C00638007
488000638007 |
POST FOAM ASSY-FCLH, WP, ACM | Na dotaz | Zadat poptávku | |
| 010 SAJU4 |
C00637710
488000637710 |
ICE MAKER ASSEMBLY, WHT | Na dotaz | Zadat poptávku | |
| 011 SAJU4 |
C00637711
488000637711 |
ICE MAKER ASSEMBLY, WHT | Na dotaz | Zadat poptávku | |
| 012 SAJU4 |
C00637712
488000637712 |
ICE CHUTE MTG PLATE ASSY-SGL | Na dotaz | Zadat poptávku | |
| 013 SAJU4 |
C00532443
488000532443 |
FC těsnění dveří | Na dotaz | Zadat poptávku | |
| 014 SAJU4 |
C00531967
488000531967 |
Těsnění na horní dveře lednice | 980 Kč
€ 38.70 |
||
| 015 SAJU4 |
C00637817
488000637817 |
horizontal inner door seal | Na dotaz | Zadat poptávku | |
| 016 SAJU4 |
C00637816
488000637816 |
vertikální vnitřní těsnění dveří | Na dotaz | Zadat poptávku | |
| 017 SAJU4 |
C00629443
488000629443 |
GASKET CLIP-DUCT,SUPPLY | Na dotaz | Zadat poptávku | |
| 018 SAJU4 |
C00629444
488000629444 |
GASKET CLIP-DUCT,RETURN | Na dotaz | Zadat poptávku | |
| 019 SAJU4 |
C00637722
488000637722 |
GASKET-DUCT,COOLING,WHT | Na dotaz | Zadat poptávku | |
| 020 SAJU4 |
C00637721
488000637721 |
GASKET-DUCT,SUPPLY,WHT | Na dotaz | Zadat poptávku | |
| 021 SAJU4 |
C00637991
488000637991 |
FOAM ASSY-ICE DOOR, WHT, WHP | Na dotaz | Zadat poptávku | |
| 023 SAJU4 |
C00637992
488000637992 |
BIN - DOOR, TALL, FC, LCI, NPT | Na dotaz | Zadat poptávku | |
| 024 SAJU4 |
C00637993
488000637993 |
BIN - DOOR, FC, LCI, NPT | Na dotaz | Zadat poptávku | |
| 025 SAJU4 |
C00637994
488000637994 |
BIN - DOOR, RC, LCI, NPT | Na dotaz | Zadat poptávku | |
| 025 SAJU4 |
C00637995
488000637995 |
BALCONY DIVIDER | Na dotaz | Zadat poptávku | |
| 026 SAJU4 |
C00637996
488000637996 |
BIN - MEDIUM, RC, LCI, NPT | Na dotaz | Zadat poptávku | |
| 027 SAJU4 |
C00637997
488000637997 |
TRIVET - ICE COMPARTMENT, DOOR, RC, NPT | Na dotaz | Zadat poptávku | |
| 028 SAJU4 |
C00637990
488000637990 |
TRAY-DRIP,DISP,CONT,LB | Na dotaz | Zadat poptávku | |
| 029 SAJU4 |
C00629431
488000629431 |
BRACKET ASSY - MOTOR, ICE DOOR | Na dotaz | Zadat poptávku | |
| 030 SAJU4 |
C00637989
488000637989 |
BOARD HMI JUPITER, WHR, ASM, INDIGO2 | Na dotaz | Zadat poptávku | |
| 999 SAJU4 |
C00729906
488000729906 |
COUPLING - SOCKET | Na dotaz | Zadat poptávku | |
| 001 SAJU5 |
C00637653
488000637653 |
MAIN BOARD PCA-CALLISTO ACU | Na dotaz | Zadat poptávku | |
| 002 SAJU5 |
C00531202
488000531202 |
Víko krytu PCB | Na dotaz | Zadat poptávku | |
| 003 SAJU5 |
C00629454
488000629454 |
Hadice na vodu | 823 Kč
€ 32.50 |
||
| 004 SAJU5 |
C00632831
488000632831 |
VALVE ASSY-WATER, PILOT, DC | Na dotaz | Zadat poptávku | |
| 006 SAJU5 |
C00629456
488000629456 |
GUARD-SINGLE WTR VALVE | Na dotaz | Zadat poptávku | |
| 007 SAJU5 |
C00629457
488000629457 |
TRAY-EVAPORATOR | Na dotaz | Zadat poptávku | |
| 008 SAJU5 |
C00532085
488000532085 |
kompresor | Na dotaz | Zadat poptávku | |
| 009 SAJU5 |
C00629458
488000629458 |
DRIER ASSY | Na dotaz | Zadat poptávku | |
| 010 SAJU5 |
C00629459
488000629459 |
DRAIN TUBE,FC,MC, DEF | Na dotaz | Zadat poptávku | |
| 011 SAJU5 |
C00629460
488000629460 |
VALVE ASSY-REFRIGERANT,4 WAY | Na dotaz | Zadat poptávku | |
| 013 SAJU5 |
C00532267
488000532267 |
TRUBKA | Na dotaz | Zadat poptávku | |
| 014 SAJU5 |
C00629461
488000629461 |
FAN ASSY-CONDENSER | Na dotaz | Zadat poptávku | |
| 015 SAJU5 |
C00629462
488000629462 |
CONDENSER ASM | Na dotaz | Zadat poptávku | |
| 016 SAJU5 |
C00629463
488000629463 |
BRACKET - CONDENSER FOAM | Na dotaz | Zadat poptávku | |
| 017 SAJU5 |
C00531388
488000531388 |
Kryt kola kompresoru | Na dotaz | Zadat poptávku | |
| 018 SAJU5 |
C00531268
488000531268 |
montážní deska kompresoru | Na dotaz | Zadat poptávku | |
| 019 SAJU5 |
C00629464
488000629464 |
Kryt | 518 Kč
€ 20.40 |
||
| 020 SAJU5 |
C00532757
488000532757 |
Napájecí kabel | Na dotaz | Zadat poptávku | |
