| Komerční kód: | KD OPTIMA/1 REFRIGERATORS BK |
| Kód 12NC: | 855056416010 |
| I.C. kód: | 855056416012 |
| Značka: | BAUKNECHT |
| Typ produktu: | Volně stojící lednice s mrazákem |
| Další podobné modely: | 855056401010, 855056401011, 855056401012, 855056416011 |
Potřebujete servis? Jsme tady pro Vás

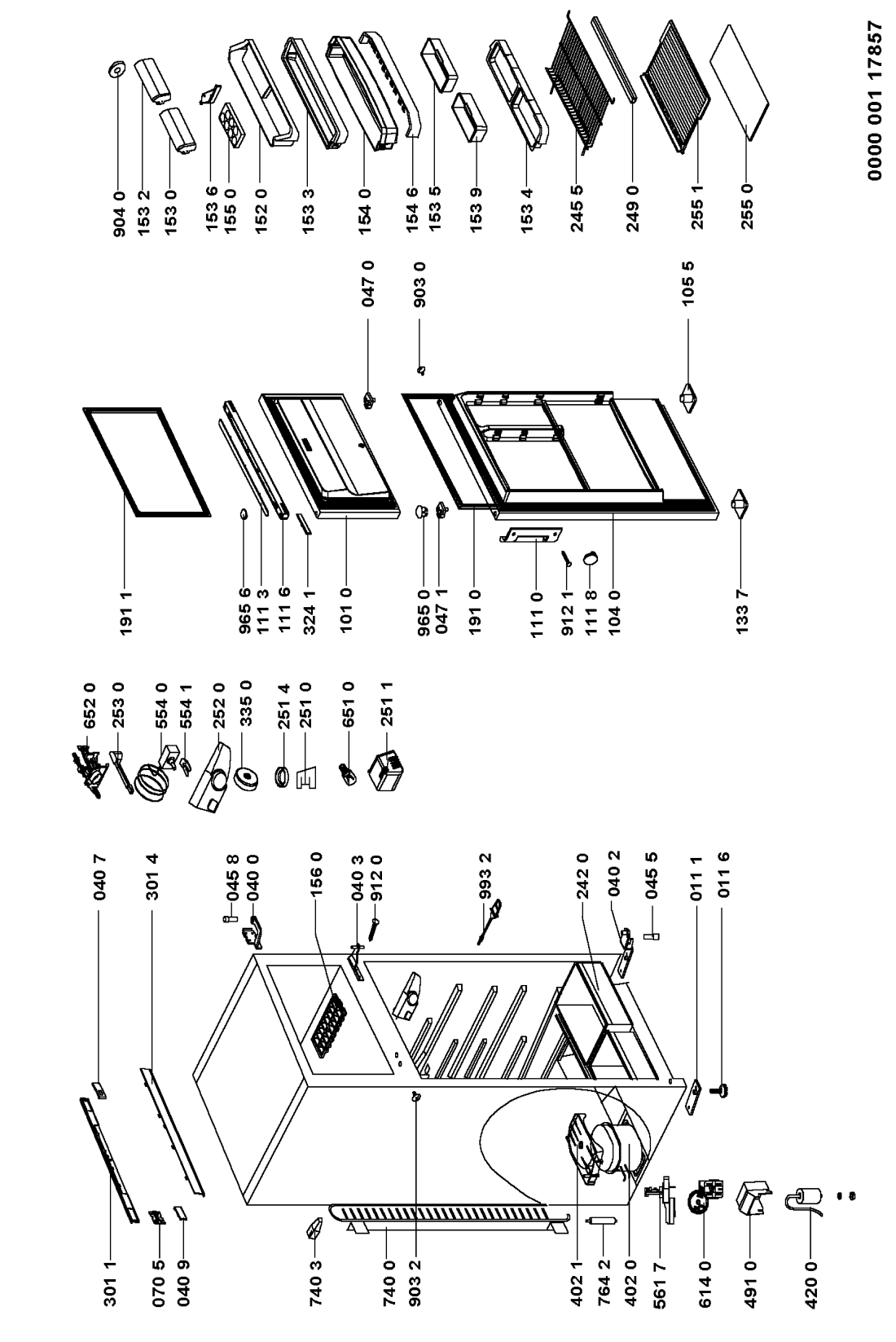

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 011 1 WHR91020 |
C00336245
481946699164 |
Small plate | Na dotaz | Zadat poptávku | |
| 011 6 WHR91020 |
C00333081
481946248513 |
noha | 144 Kč
€ 5.70 |
||
| 040 0 WHR91020 |
C00339767
481941719648 |
Hinge upper | Na dotaz | Zadat poptávku | |
| 040 2 WHR91020 |
C00339805
481941719647 |
Hinge lower | Na dotaz | Zadat poptávku | |
| 040 3 WHR91020 |
C00374089
481241718914 |
Hinge middle | Na dotaz | Zadat poptávku | |
| 040 7 WHR91020 |
C00328969
481240418415 |
Insert front panel | Na dotaz | Zadat poptávku | |
| 040 9 WHR91020 |
C00328970
481240418416 |
Insert | Na dotaz | Zadat poptávku | |
| 045 5 WHR91020 |
C00344545
481953598677 |
Axle | Na dotaz | Zadat poptávku | |
| 045 8 WHR91020 |
C00330687
481246258004 |
Pin hinge | Na dotaz | Zadat poptávku | |
| 047 0 WHR91020 |
C00328968
481240418414 |
pouzdro dveri | 167 Kč
€ 6.60 |
||
| 047 1 WHR91020 |
C00328967
481240418413 |
drazak dveri pravy | 222 Kč
€ 8.80 |
||
| 070 5 WHR91020 |
C00484476
481946689476 |
Plate | Na dotaz | Zadat poptávku | |
| 101 0 WHR91020 |
C00590616
481244269357 |
Door freezer. | Na dotaz | Zadat poptávku | |
| 104 0 WHR91020 |
C00590615
481244269356 |
Door refriger.. | Na dotaz | Zadat poptávku | |
| 105 5 WHR91020 |
C00337806
481946689479 |
Pivot left | Na dotaz | Zadat poptávku | |
| 111 0 WHR91020 |
C00374012
481246268851 |
Door handle | Na dotaz | Zadat poptávku | |
| 111 3 WHR91020 |
C00586773
481246079095 |
Insert. | Na dotaz | Zadat poptávku | |
| 111 6 WHR91020 |
C00590462
481240488068 |
Insert. | Na dotaz | Zadat poptávku | |
| 111 8 WHR91020 |
C00336030
481946258325 |
SCREW COVER HANDLE GREY | Na dotaz | Zadat poptávku | |
| 133 7 WHR91020 |
C00337805
481946689478 |
Pivot right | Na dotaz | Zadat poptávku | |
| 152 0 WHR91020 |
C00589825
481241828475 |
Door shelf printed BK. | Na dotaz | Zadat poptávku | |
| 153 0 WHR91020 |
C00527849
481241828227 |
Flap right | Na dotaz | Zadat poptávku | |
| 153 2 WHR91020 |
C00589816
481241828228 |
Flap left. | Na dotaz | Zadat poptávku | |
| 153 3 WHR91020 |
C00489016
481241828254 |
Door dairy | Na dotaz | Zadat poptávku | |
| 153 4 WHR91020 |
C00329923
481241828474 |
Door dairy support boxes | Na dotaz | Zadat poptávku | |
| 153 5 WHR91020 |
C00590531
481241828351 |
Door,dairy. | Na dotaz | Zadat poptávku | |
| 153 6 WHR91020 |
C00330267
481246049396 |
SEPARATOR WHITE GW | Na dotaz | Zadat poptávku | |
| 153 9 WHR91020 |
C00590532
481241828352 |
Door,dairy. | Na dotaz | Zadat poptávku | |
| 154 0 WHR91020 |
C00590521
481241828231 |
Bottle shelf. | Na dotaz | Zadat poptávku | |
| 154 6 WHR91020 |
C00329922
481241828473 |
drzak | 1 150 Kč
€ 45.40 |
||
| 155 0 WHR91020 |
C00329909
481241828013 |
Holder, eggs (6 pcs.) | Na dotaz | Zadat poptávku | |
| 156 0 WHR91020 |
C00489028
481241828466 |
Tray icecube | Na dotaz | Zadat poptávku | |
| 191 0 WHR91020 |
C00374350
481246818069 |
Magnetic seal, cooling, cooling | Na dotaz | Zadat poptávku | |
| 191 1 WHR91020 |
C00381247
481246818071 |
Magnetic seal ,freezinfreezing | Na dotaz | Zadat poptávku | |
| 242 0 WHR91020 |
C00590526
481241828269 |
Drawer. | Na dotaz | Zadat poptávku | |
| 245 5 WHR91020 |
C00574623
481945868289 |
rost mraznicky | 1 326 Kč
€ 52.30 |
||
| 249 0 WHR91020 |
C00485877
481246049437 |
lista rostu | 208 Kč
€ 8.20 |
||
| 251 0 WHR91020 |
C00328840
481238028018 |
Reflector | Na dotaz | Zadat poptávku | |
| 251 1 WHR91020 |
C00316270
481244078294 |
stinidlo osvetleni | 849 Kč
€ 33.50 |
||
| 251 4 WHR91020 |
C00330117
481245828001 |
Gasket lamp holder | Na dotaz | Zadat poptávku | |
| 252 0 WHR91020 |
C00315084
481246279864 |
drzak termostatu | Na dotaz | Zadat poptávku | |
| 253 0 WHR91020 |
C00332733
481253598099 |
spinac osvetleni al. | 144 Kč
€ 5.70 |
||
| 255 0 WHR91020 |
C00590632
481245088059 |
Glass shelf. | Na dotaz | Zadat poptávku | |
| 255 1 WHR91020 |
C00487606
481245088061 |
Shelf plate | Na dotaz | Zadat poptávku | |
| 301 1 WHR91020 |
C00491816
481245228445 |
panel predni | 234 Kč
€ 9.20 |
||
| 301 4 WHR91020 |
C00489764
481245228444 |
vlozka panelu | 111 Kč
€ 4.40 |
||
| 324 1 WHR91020 |
C00485157
481244098174 |
Cover | Na dotaz | Zadat poptávku | |
| 335 0 WHR91020 |
C00318429
481241359148 |
knoflik termostatu | 565 Kč
€ 22.30 |
||
| 402 0 WHR91020 |
C00555097
481236038814 |
Compressor.. | Na dotaz | Zadat poptávku | |
| 402 1 WHR91020 |
C00319510
481241878958 |
miska na kondenzat | Na dotaz | Zadat poptávku | |
| 420 0 WHR91020 |
C00326742
481212018008 |
Capacitor 4#F | Na dotaz | Zadat poptávku | |
| 491 0 WHR91020 |
C00327312
481229088075 |
Cover connection block | Na dotaz | Zadat poptávku | |
| 554 0 WHR91020 |
C00385108
481927129109 |
Thermostat A13-0521 | Na dotaz | Zadat poptávku | |
| 554 1 WHR91020 |
C00333185
481949268723 |
pruzina | 472 Kč
€ 18.60 |
||
| 561 7 WHR91020 |
C00480850
481929068431 |
KRABICKA SVORKOVNICE AFG527 N | Na dotaz | Zadat poptávku | |
| 614 0 WHR91020 |
C00527059
481228068331 |
Monoblock | Na dotaz | Zadat poptávku | |
| 651 0 WHR91020 |
C00311277
481913488135 |
BULB LED E14 T25 - 15W - 220V | Na dotaz | Zadat poptávku | |
| 652 0 WHR91020 |
C00327118
481225518203 |
objimka zarovky | 930 Kč
€ 36.70 |
||
| 740 0 WHR91020 |
C00574586
481251138208 |
Condenser | Na dotaz | Zadat poptávku | |
| 740 3 WHR91020 |
C00333148
481946699109 |
Spacer | Na dotaz | Zadat poptávku | |
| 764 2 WHR91020 |
C00266743
481948028144 |
Filtr chladničky - patrona | Na dotaz | Zadat poptávku | |
| 903 0 WHR91020 |
C00333338
481953518117 |
krytka | 20 Kč
€ 0.80 |
||
| 903 2 WHR91020 |
C00333168
481949248154 |
zaslepka | 100 Kč
€ 3.90 |
||
| 904 0 WHR91020 |
C00333158
481946818282 |
Podložka distanční | 351 Kč
€ 13.90 |
||
| 912 0 WHR91020 |
C00332066
481250218439 |
Screw M4 X17 | Na dotaz | Zadat poptávku | |
| 912 1 WHR91020 |
C00336664
481250238164 |
Screw | Na dotaz | Zadat poptávku | |
| 965 0 WHR91020 |
C00330502
481246228513 |
Stopper | Na dotaz | Zadat poptávku | |
| 965 6 WHR91020 |
C00330501
481246228511 |
drzak | 109 Kč
€ 4.30 |
||
| 993 2 WHR91020 |
C00316841
481969028169 |
Čistič odtokového kanálku chladničky Whirlpool ARG 790/A+, ARG 734/A+, ARG 184701. | 155 Kč
€ 6.10 |
||
| 993 9 WHR91020 |
C00385906
481931039844 |
Accessories not shown | Na dotaz | Zadat poptávku | |
| 999 WHR91020 |
C00734303 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
