| Komerční kód: | KDA 2460 |
| Kód 12NC: | 855083916000 |
| Značka: | BAUKNECHT |
| Typ produktu: | Volně stojící lednice s mrazákem |
| Další podobné modely: | 855083901100, 855083901000 |
Potřebujete servis? Jsme tady pro Vás

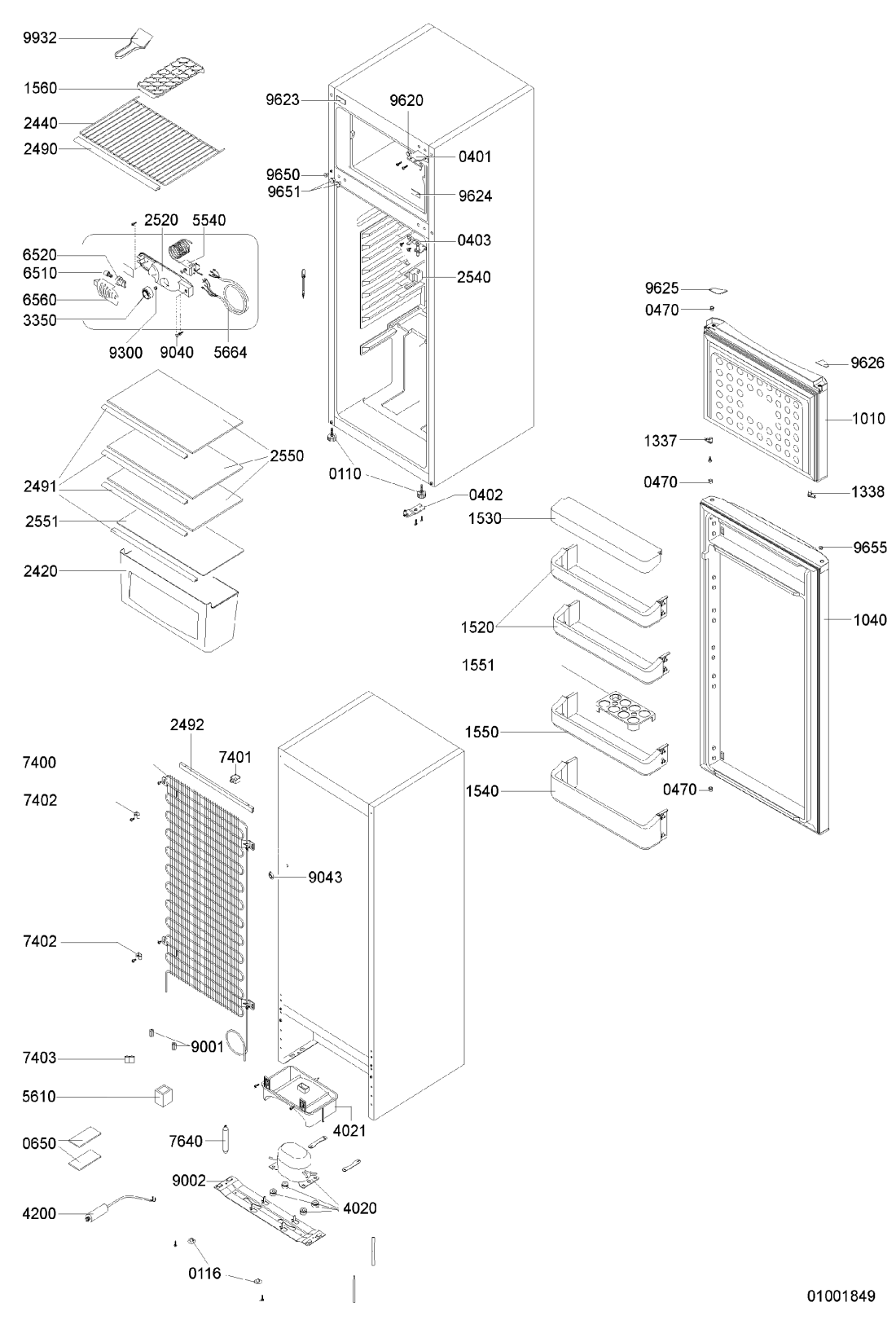

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 011 0 WHR86423 |
C00330456
481246218273 |
noha nastavitelna | 211 Kč
€ 8.30 |
||
| 011 6 WHR86423 |
C00330458
481246218283 |
Foot | Na dotaz | Zadat poptávku | |
| 040 1 WHR86423 |
C00329768
481241719476 |
Hinge top right | Na dotaz | Zadat poptávku | |
| 040 2 WHR86423 |
C00316892
481241719328 |
Hinge lower | Na dotaz | Zadat poptávku | |
| 040 3 WHR86423 |
C00329761
481241719453 |
Hinge middle | Na dotaz | Zadat poptávku | |
| 047 0 WHR86423 |
C00312732
481244688154 |
Bushing | Na dotaz | Zadat poptávku | |
| 065 0 WHR86423 |
C00330785
481246348012 |
Buffer piece | Na dotaz | Zadat poptávku | |
| 101 0 WHR86423 |
C00402616
481241610671 |
Door freezer | Na dotaz | Zadat poptávku | |
| 104 0 WHR86423 |
C00402611
481241610665 |
Door refriger. | Na dotaz | Zadat poptávku | |
| 133 7 WHR86423 |
C00329820
481241778176 |
Stop door right | Na dotaz | Zadat poptávku | |
| 133 8 WHR86423 |
C00329821
481241778177 |
Stop door left | Na dotaz | Zadat poptávku | |
| 152 0 WHR86423 |
C00402871
481241820074 |
Door dairy | Na dotaz | Zadat poptávku | |
| 153 0 WHR86423 |
C00402872
481241820075 |
Flap f. Door dairy | Na dotaz | Zadat poptávku | |
| 154 0 WHR86423 |
C00402873
481241820076 |
Bottle shelf | Na dotaz | Zadat poptávku | |
| 155 0 WHR86423 |
C00403052
481241848933 |
Door dairy | Na dotaz | Zadat poptávku | |
| 155 1 WHR86423 |
C00621636
481248868142 |
Holder eggs | Na dotaz | Zadat poptávku | |
| 156 0 WHR86423 |
C00327693
481241828769 |
Ice maker | Na dotaz | Zadat poptávku | |
| 242 0 WHR86423 |
C00403053
481241848934 |
Zásuvka na zeleninu | 1 776 Kč
€ 70.10 |
||
| 244 0 WHR86423 |
C00330075
481245819294 |
Shelf freezer | Na dotaz | Zadat poptávku | |
| 249 0 WHR86423 |
C00330308
481246049624 |
Trim Shelf | Na dotaz | Zadat poptávku | |
| 249 1 WHR86423 |
C00330299
481246049598 |
lista kryci rostu | 590 Kč
€ 23.30 |
||
| 249 2 WHR86423 |
C00330297
481246049587 |
Trim condenser | Na dotaz | Zadat poptávku | |
| 252 0 WHR86423 |
C00328332
481244079158 |
Casing thermostat | Na dotaz | Zadat poptávku | |
| 254 0 WHR86423 |
C00329453
481241279137 |
spinac | 810 Kč
€ 32.00 |
||
| 255 0 WHR86423 |
C00331225
481245088469 |
rost skleneny | 1 416 Kč
€ 55.90 |
||
| 255 1 WHR86423 |
C00403878
481245088521 |
Cover crisper | Na dotaz | Zadat poptávku | |
| 335 0 WHR86423 |
C00317787
481241458279 |
Knoflík termostatu | 206 Kč
€ 8.10 |
||
| 402 0 WHR86423 |
C00401414
481236039084 |
Compressor HKK 80 AA 220-240V | Na dotaz | Zadat poptávku | |
| 402 1 WHR86423 |
C00327879
481241870005 |
Tray compressor | Na dotaz | Zadat poptávku | |
| 420 0 WHR86423 |
C00326785
481212158149 |
Capacitor 3#F 400V/P2-M8 | Na dotaz | Zadat poptávku | |
| 554 0 WHR86423 |
C00312744
481228208657 |
termostat | 1 821 Kč
€ 71.90 |
||
| 561 0 WHR86423 |
C00399765
481212328004 |
Protect motor | Na dotaz | Zadat poptávku | |
| 566 4 WHR86423 |
C00328485
481232058171 |
Cable harness thermostat | Na dotaz | Zadat poptávku | |
| 651 0 WHR86423 |
C00313716
481213418043 |
Lamp | Na dotaz | Zadat poptávku | |
| 652 0 WHR86423 |
C00327125
481225518278 |
Holder lamp E14 | Na dotaz | Zadat poptávku | |
| 656 0 WHR86423 |
C00330535
481246228694 |
kryt | 559 Kč
€ 22.10 |
||
| 740 0 WHR86423 |
C00332247
481251148399 |
Condenser | Na dotaz | Zadat poptávku | |
| 740 1 WHR86423 |
C00329055
481240448941 |
Spacer | Na dotaz | Zadat poptávku | |
| 740 2 WHR86423 |
C00329058
481240448976 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 740 3 WHR86423 |
C00329065
481240448984 |
Bracket condenser | Na dotaz | Zadat poptávku | |
| 764 0 WHR86423 |
C00345712
481248028092 |
Dryer | Na dotaz | Zadat poptávku | |
| 900 1 WHR86423 |
C00330791
481246368025 |
Resonator | Na dotaz | Zadat poptávku | |
| 900 2 WHR86423 |
C00330298
481246049588 |
Base compressor | Na dotaz | Zadat poptávku | |
| 904 0 WHR86423 |
C00327204
481226278023 |
Cap | Na dotaz | Zadat poptávku | |
| 904 3 WHR86423 |
C00329057
481240448969 |
Clamp fixation | Na dotaz | Zadat poptávku | |
| 930 0 WHR86423 |
C00345850
481249258054 |
Knob thermostat spring | Na dotaz | Zadat poptávku | |
| 962 0 WHR86423 |
C00330532
481246228675 |
Cap | Na dotaz | Zadat poptávku | |
| 962 3 WHR86423 |
C00330571
481246228869 |
Cap for hole left | Na dotaz | Zadat poptávku | |
| 962 4 WHR86423 |
C00329759
481241719451 |
Hinge screw cap right | Na dotaz | Zadat poptávku | |
| 962 5 WHR86423 |
C00330600
481246228933 |
Cover door right | Na dotaz | Zadat poptávku | |
| 962 6 WHR86423 |
C00330601
481246228934 |
Cover door left | Na dotaz | Zadat poptávku | |
| 965 0 WHR86423 |
C00330568
481246228861 |
Cap | Na dotaz | Zadat poptávku | |
| 965 1 WHR86423 |
C00330554
481246228805 |
Cap for hole | Na dotaz | Zadat poptávku | |
| 965 5 WHR86423 |
C00327082
481222608028 |
Krytka/záslepka | 122 Kč
€ 4.80 |
||
| 993 2 WHR86423 |
C00332756
481269028036 |
Swab | Na dotaz | Zadat poptávku | |
| 999 WHR86423 |
C00724005 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
