| Komerční kód: | KDFX 6010 |
| Kód 12NC: | 851355015000 |
| Značka: | KITCHENAID |
| Typ produktu: | Myčky |
| Další podobné modely: | Q0916640000, 851355015001, Q0916640001, 851355015002, Q0916640002, 851355015003, Q0916640003, 851355015004, Q0916640004, 851355015009, Q0916640009, 851355001000, 851355001001, 851355001002, 851355001003, 851355001004, 851355001009 |
Potřebujete servis? Jsme tady pro Vás

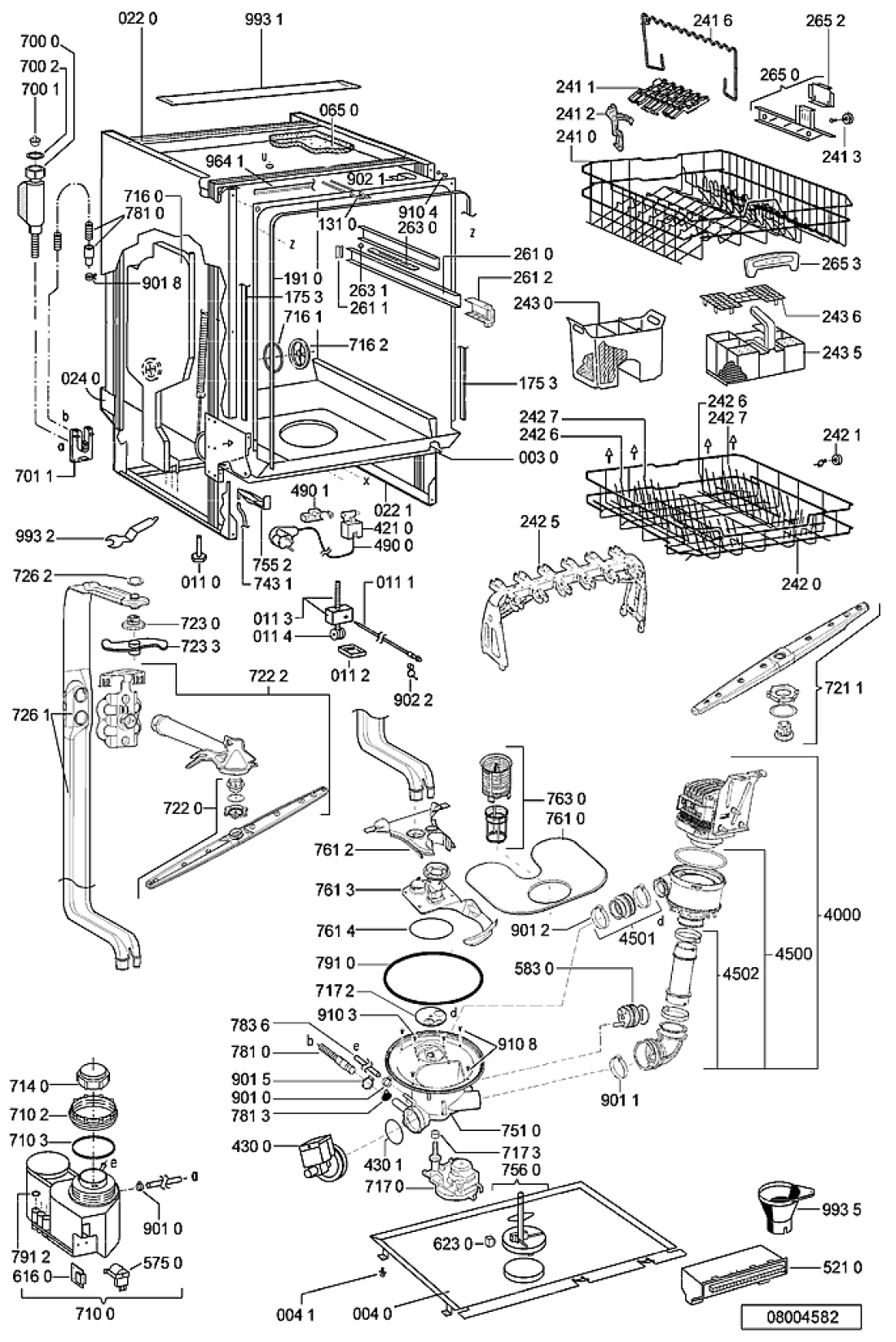

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 003 0 WHR00963 |
C00328016
481244011479 |
Crossbar | Na dotaz | Zadat poptávku | |
| 004 0 WHR00963 |
C00317159
481244011463 |
Krycí plech spodní myčky Whirlpool | 945 Kč
€ 37.30 |
||
| 004 1 WHR00963 |
C00317898
481240118402 |
drzak | Na dotaz | Zadat poptávku | |
| 011 0 WHR00963 |
C00311544
481250518418 |
noha nastavitelna uz nebude!!!!! | Na dotaz | Zadat poptávku | |
| 011 1 WHR00963 |
C00318701
481252898004 |
Tyčka nastavení | 412 Kč
€ 16.30 |
||
| 011 2 WHR00963 |
C00315501
481252878032 |
Kluzák zadní středové nohy | 594 Kč
€ 23.50 |
||
| 011 3 WHR00963 |
C00311494
481253598054 |
Gear | Na dotaz | Zadat poptávku | |
| 011 4 WHR00963 |
C00315507
481252898001 |
kolecko nohy | 754 Kč
€ 29.80 |
||
| 022 0 WHR00963 |
C00328015
481244011477 |
Side panel | Na dotaz | Zadat poptávku | |
| 022 1 WHR00963 |
C00328014
481244011476 |
Side panel right | Na dotaz | Zadat poptávku | |
| 024 0 WHR00963 |
C00328012 | Panel rear | Na dotaz | Zadat poptávku | |
| 040 1 WHR00963 |
C00327344
481231018966 |
zaves dveri L+P | 2 582 Kč
€ 101.90 |
||
| 044 0 WHR00963 |
C00317032
481249238389 |
Pružina | 796 Kč
€ 31.40 |
||
| 047 0 WHR00963 |
C00311044
481240448746 |
Brzda dveří | 100 Kč
€ 3.90 |
||
| 047 1 WHR00963 |
C00311072
481240118707 |
Páska brzdná | 135 Kč
€ 5.30 |
||
| 047 2 WHR00963 |
C00316664
481240468037 |
Háček | 121 Kč
€ 4.80 |
||
| 053 0 WHR00963 |
C00328410
481244089138 |
plech | 1 576 Kč
€ 62.20 |
||
| 065 0 WHR00963 |
C00330893
481246648051 |
izolace | Na dotaz | Zadat poptávku | |
| 103 0 WHR00963 |
C00328011
481244011465 |
dvere mycky vnejsi | 2 766 Kč
€ 109.20 |
||
| 103 1 WHR00963 |
C00327356
481231019135 |
Door IX KADF 6010/1 FD nanoxide | Na dotaz | Zadat poptávku | |
| 105 0 WHR00963 |
C00311337
481240448611 |
Držák dveří dekoru | 428 Kč
€ 16.90 |
||
| 105 2 WHR00963 |
C00317078 | Clip | Na dotaz | Zadat poptávku | |
| 105 3 WHR00963 |
C00314190
481240448633 |
prichytka drzaku | 667 Kč
€ 26.30 |
||
| 105 4 WHR00963 |
C00328469
481231058116 |
Šablona POINT,Dolphi | 151 Kč
€ 6.00 |
||
| 120 0 WHR00963 |
C00328106
481244019456 |
vnitrek dveri mycky | Na dotaz | Zadat poptávku | |
| 120 0 WHR00963 |
C00328045
481244011578 |
dveře vnitřní část | Na dotaz | Zadat poptávku | |
| 120 1 WHR00963 |
C00328007
481244011454 |
Batten | Na dotaz | Zadat poptávku | |
| 130 0 WHR00963 |
C00329791
481241758393 |
Tilt lock | Na dotaz | Zadat poptávku | |
| 131 0 WHR00963 |
C00314010
481240118416 |
pojistka zamku | 848 Kč
€ 33.50 |
||
| 175 3 WHR00963 |
C00330945
481246668867 |
Těsnění dveří boční šedé | 834 Kč
€ 32.90 |
||
| 191 0 WHR00963 |
C00311041
481246668564 |
Těsnění dveří myčky - obvodové | 588 Kč
€ 23.20 |
||
| 192 0 WHR00963 |
C00313059
481246668912 |
Těsnění dveří - spodní | 368 Kč
€ 14.50 |
||
| 192 0 WHR00963 |
C00311260
481246668467 |
Těsnění dveří - spodní | 561 Kč
€ 22.10 |
||
| 241 0 WHR00963 |
C00330061
481245819249 |
Basketupper straight sub 481245819383 | Na dotaz | Zadat poptávku | |
| 241 1 WHR00963 |
C00330060
481245819246 |
drzak | Na dotaz | Zadat poptávku | |
| 241 2 WHR00963 |
C00332728
481253578081 |
lozisko drzaku hrnku | Na dotaz | Zadat poptávku | |
| 241 3 WHR00963 |
C00312273
481252888113 |
Kolečka horn.koše - 4ks | 499 Kč
€ 19.70 |
||
| 241 6 WHR00963 |
C00330062
481245819251 |
drzak | 273 Kč
€ 10.80 |
||
| 242 0 WHR00963 |
C00330094
481245819369 |
Basket lower cpl. | Na dotaz | Zadat poptávku | |
| 242 1 WHR00963 |
C00311316
481252888112 |
Kolečko spodního koše - sada 8 ks | 947 Kč
€ 37.40 |
||
| 242 5 WHR00963 |
C00328037
481244011527 |
Holder | Na dotaz | Zadat poptávku | |
| 242 6 WHR00963 |
C00330092
481245819367 |
Support plate | Na dotaz | Zadat poptávku | |
| 242 7 WHR00963 |
C00330093
481245819368 |
Support plate | Na dotaz | Zadat poptávku | |
| 243 0 WHR00963 |
C00330072
481245819276 |
Košík na příbory | 542 Kč
€ 21.40 |
||
| 243 5 WHR00963 |
C00328431
481231039168 |
Cutlery basket KIT | Na dotaz | Zadat poptávku | |
| 243 6 WHR00963 |
C00314807
481245819296 |
Mrížka koše | 444 Kč
€ 17.50 |
||
| 261 0 WHR00963 |
C00311448
481246279831 |
Rail telescope, inner | Na dotaz | Zadat poptávku | |
| 261 1 WHR00963 |
C00311245
481246279768 |
Koncovka kolejnice - zadní | Na dotaz | Zadat poptávku | |
| 261 2 WHR00963 |
C00330782
481246279978 |
Cap swinging, rail ahead | Na dotaz | Zadat poptávku | |
| 263 0 WHR00963 |
C00311960
481952018013 |
Ball cage cpl. | Na dotaz | Zadat poptávku | |
| 263 1 WHR00963 |
C00311847
481231048026 |
kulicka plastova | 574 Kč
€ 22.70 |
||
| 265 0 WHR00963 |
C00329108
481240449785 |
Basket adjustm. cpl. | Na dotaz | Zadat poptávku | |
| 265 2 WHR00963 |
C00329109
481240449786 |
Grip basket adjustment | Na dotaz | Zadat poptávku | |
| 265 3 WHR00963 |
C00327359
481231019145 |
Grip | Na dotaz | Zadat poptávku | |
| 301 0 WHR00963 |
C00322738
480140101335 |
Control panel service part | Na dotaz | Zadat poptávku | |
| 332 5 WHR00963 |
C00312725
481241029384 |
Kryt tlačítek myčky Whirlpool | 190 Kč
€ 7.50 |
||
| 400 0 WHR00963 |
C00313976
481236158457 |
Motor sub 481236158513 | Na dotaz | Zadat poptávku | |
| 421 0 WHR00963 |
C00311350
481212118285 |
Filtr odrušovací 1 uF | Na dotaz | Zadat poptávku | |
| 430 0 WHR00963 |
C00311158
481236018558 |
Čerpadlo myčky Whirlpool, Bauknecht - vypouštěcí 481236018558 | 407 Kč
€ 16.10 |
||
| 430 1 WHR00963 |
C00317755
481246668689 |
tesneni | 739 Kč
€ 29.20 |
||
| 450 0 WHR00963 |
C00313232
481225928927 |
Heating element sub 480140102047 | Na dotaz | Zadat poptávku | |
| 450 1 WHR00963 |
C00314620
481231028357 |
Hadička k topení | 918 Kč
€ 36.20 |
||
| 450 2 WHR00963 |
C00319992
481231028358 |
Kit | 1 605 Kč
€ 63.40 |
||
| 480 0 WHR00963 |
C00315229
481232128501 |
Kabeláž | 3 810 Kč
€ 150.40 |
||
| 480 3 WHR00963 |
C00311946
481240118418 |
Protector f.wiring | Na dotaz | Zadat poptávku | |
| 490 0 WHR00963 |
C00314874
481232118049 |
Cable mains UK | Na dotaz | Zadat poptávku | |
| 490 1 WHR00963 |
C00313305
488000313305 |
Strain relief | Na dotaz | Zadat poptávku | |
| 521 0 WHR00963 |
C00318832
481221470082 |
Control board (CB) | Na dotaz | Zadat poptávku | |
| 575 0 WHR00963 |
C00317959
481228128459 |
Regen.valve | Na dotaz | Zadat poptávku | |
| 583 0 WHR00963 |
C00312670
481227128557 |
Switch diaphragm (OWI) | Na dotaz | Zadat poptávku | |
| 616 0 WHR00963 |
C00316751
481228118066 |
senzor mnozstvi soli | 1 115 Kč
€ 44.00 |
||
| 616 1 WHR00963 |
C00319599
481227158184 |
senzor lestidla | 637 Kč
€ 25.10 |
||
| 620 0 WHR00963 |
C00320259
481221838498 |
User board (UB) | Na dotaz | Zadat poptávku | |
| 621 0 WHR00963 |
C00311823
481227618493 |
Spínač síťový | Na dotaz | Zadat poptávku | |
| 623 0 WHR00963 |
C00319339
481227138489 |
mikrospinac plovaku | 1 115 Kč
€ 44.00 |
||
| 633 0 WHR00963 |
C00319289
481227138488 |
Microswitch door | Na dotaz | Zadat poptávku | |
| 680 0 WHR00963 |
C00327869
481241868406 |
Combidosage cpl.w.KSM sa/sa | Na dotaz | Zadat poptávku | |
| 680 1 WHR00963 |
C00314550
481246668495 |
Těsnění násypky | 783 Kč
€ 30.90 |
||
| 680 3 WHR00963 |
C00328065
481244011652 |
Lever,fastener combidos. | Na dotaz | Zadat poptávku | |
| 681 1 WHR00963 |
C00313952
481246668497 |
Gasket SK 5244.04.04 | Na dotaz | Zadat poptávku | |
| 681 2 WHR00963 |
C00316126
481244018975 |
klapka | 896 Kč
€ 35.40 |
||
| 682 0 WHR00963 |
C00319741
481246668496 |
tesneni nasypky | 116 Kč
€ 4.60 |
||
| 700 0 WHR00963 |
C00318851
481253029403 |
Aquastop 2m - elektrický | 1 985 Kč
€ 78.40 |
||
| 700 0 WHR00963 |
C00332467
481253029427 |
AQUASTOP 4,2m | 4 028 Kč
€ 159.00 |
||
| 700 1 WHR00963 |
C00345763
481248048095 |
filtr | 78 Kč
€ 3.10 |
||
| 700 2 WHR00963 |
C00330915
481246668628 |
Gasket | Na dotaz | Zadat poptávku | |
| 701 1 WHR00963 |
C00327323
481231018153 |
Držák hadic | 542 Kč
€ 21.40 |
||
| 710 0 WHR00963 |
C00320288
481241868367 |
Monoblock | Na dotaz | Zadat poptávku | |
| 710 2 WHR00963 |
C00316961
481231038896 |
matice k zásobníku soli pro myčku Whirlpool | 172 Kč
€ 6.80 |
||
| 710 3 WHR00963 |
C00315128
481946669562 |
Gasket set | Na dotaz | Zadat poptávku | |
| 714 0 WHR00963 |
C00313274
481246279903 |
Uzávěr zásobníku soli | 532 Kč
€ 21.00 |
||
| 716 0 WHR00963 |
C00310997
481241868368 |
Změkčovač s průtokoměrem,Labyrint do myčky Whirlpool | 1 136 Kč
€ 44.80 |
||
| 716 1 WHR00963 |
C00315959
481246668475 |
Gasket | Na dotaz | Zadat poptávku | |
| 716 2 WHR00963 |
C00311305
481246278994 |
mrizka bloku upravy vody | 300 Kč
€ 11.80 |
||
| 717 0 WHR00963 |
C00311428
481228128461 |
Motorek distribuce vody myčky (divertor) | 1 939 Kč
€ 76.50 |
||
| 717 2 WHR00963 |
C00318705
481252898011 |
Disk motorku distribuce vody myčky (divertoru) | 471 Kč
€ 18.60 |
||
| 717 3 WHR00963 |
C00313130
481253029121 |
Gufero 10x18x4mm | 29 Kč
€ 1.10 |
||
| 721 1 WHR00963 |
C00311132
481236068689 |
Spray arm lower. cpl. sa | Na dotaz | Zadat poptávku | |
| 722 0 WHR00963 |
C00311968
481236068687 |
Spray arm upper sa | Na dotaz | Zadat poptávku | |
| 722 2 WHR00963 |
C00313785
481236068688 |
Spray arm 2nd level cpl. saph | Na dotaz | Zadat poptávku | |
| 723 0 WHR00963 |
C00312540
481236068691 |
Douche ceiling | Na dotaz | Zadat poptávku | |
| 723 3 WHR00963 |
C00313456
481236068692 |
Rameno mycí horní - vrtule | 1 368 Kč
€ 54.00 |
||
| 726 1 WHR00963 |
C00313019
481253029331 |
Trubice přívodová | 640 Kč
€ 25.30 |
||
| 726 2 WHR00963 |
C00314925
481250518208 |
matice plast | 480 Kč
€ 18.90 |
||
| 743 1 WHR00963 |
C00314290
481253028102 |
Hadička | 169 Kč
€ 6.70 |
||
| 751 0 WHR00963 |
C00315536
481241818338 |
nadoba sberna | Na dotaz | Zadat poptávku | |
| 755 2 WHR00963 |
C00332503
481253048148 |
Přepadový kanál levý | 388 Kč
€ 15.30 |
||
| 756 0 WHR00963 |
C00318106
481236058479 |
plovák | Na dotaz | Zadat poptávku | |
| 761 0 WHR00963 |
C00313265
481248058122 |
sitko jemne | Na dotaz | Zadat poptávku | |
| 761 2 WHR00963 |
C00311695
481241818337 |
kryt | Na dotaz | Zadat poptávku | |
| 761 3 WHR00963 |
C00311568
481241818341 |
Cover | Na dotaz | Zadat poptávku | |
| 761 4 WHR00963 |
C00311339
481253058141 |
Spodní těsnění k přívodu vody do mycích ramen myčky Whirlpool ADG 2040 FD, 5720 IX, ADG 6 | 175 Kč
€ 6.90 |
||
| 763 0 WHR00963 |
C00313492
481248058363 |
Sieve | Na dotaz | Zadat poptávku | |
| 781 0 WHR00963 |
C00332456
481253029389 |
Hadice výtoková | 1 522 Kč
€ 60.10 |
||
| 781 3 WHR00963 |
C00317931
481228128417 |
Klapka zpětná | 803 Kč
€ 31.70 |
||
| 783 6 WHR00963 |
C00332409
481253028796 |
Hose 10x3x180+10 | Na dotaz | Zadat poptávku | |
| 791 0 WHR00963 |
C00313003
481253268099 |
Těsnění jímky (spodní nádoby) myčky nádobí Whirlpool ADG 5720 FD A+, ADG 6240 FD, ADG 772 | 701 Kč
€ 27.70 |
||
| 791 2 WHR00963 |
C00312677
481253058093 |
Gasket SK 5199 01 4 | Na dotaz | Zadat poptávku | |
| 900 1 WHR00963 |
C00327391
481231028327 |
Fastener set n.sh. | Na dotaz | Zadat poptávku | |
| 901 0 WHR00963 |
C00311521
481240118709 |
Clamp hose S10-16/9-C7W1 | Na dotaz | Zadat poptávku | |
| 901 1 WHR00963 |
C00311510
481240118708 |
SPONA | 175 Kč
€ 6.90 |
||
| 901 2 WHR00963 |
C00312178
481240118705 |
spona na hadici | 102 Kč
€ 4.00 |
||
| 901 5 WHR00963 |
C00311821
481240148588 |
SPONA 028,6 | 143 Kč
€ 5.60 |
||
| 901 8 WHR00963 |
C00328917
481240118711 |
Clamp hose 25-29 | Na dotaz | Zadat poptávku | |
| 902 1 WHR00963 |
C00330973
481246678015 |
uhelnik upevnovaci | 427 Kč
€ 16.90 |
||
| 902 2 WHR00963 |
C00329172
481240478241 |
Držák | 563 Kč
€ 22.20 |
||
| 904 4 WHR00963 |
C00319579
481246279659 |
THREADED CAP | 378 Kč
€ 14.90 |
||
| 910 1 WHR00963 |
C00311881
481250218394 |
Šroub | 152 Kč
€ 6.00 |
||
| 910 2 WHR00963 |
C00316659
481250218363 |
Šroub | 191 Kč
€ 7.50 |
||
| 910 3 WHR00963 |
C00332082
481250218527 |
Screw 4x15 T204x15 T20 | Na dotaz | Zadat poptávku | |
| 910 4 WHR00963 |
C00332116
481250218741 |
Screw M3,5x8-T15M | Na dotaz | Zadat poptávku | |
| 910 5 WHR00963 |
C00318399
481250218739 |
sroub | 342 Kč
€ 13.50 |
||
| 910 7 WHR00963 |
C00314887
481250218397 |
Screw INOX A2 M 5x14 TX20 | Na dotaz | Zadat poptávku | |
| 910 8 WHR00963 |
C00345781
481250218389 |
sroub 5x20-TORX | 156 Kč
€ 6.20 |
||
| 964 1 WHR00963 |
C00330914
481246668573 |
Těsnění skříně horní | 708 Kč
€ 28.00 |
||
| 993 1 WHR00963 |
C00319875
481246678388 |
Ochranná fólie, parní zábrana nad vestavnou myčku Whirlpool ADG 2020 FD, ADG 6240 IX, ADG | 207 Kč
€ 8.20 |
||
| 993 2 WHR00963 |
C00329037
481240448753 |
Kliž pro nastavení nohy myčky | 555 Kč
€ 21.90 |
||
| 993 5 WHR00963 |
C00335151
482253280216 |
SALT FUNNEL | Na dotaz | Zadat poptávku | |
| 999 WHR00963 |
C00352473 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR00963 |
C00352475 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR00963 |
C00352476 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR00963 |
C00352478 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR00963 |
C00352479 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR00963 |
C00352480 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR00963 |
C00352481 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR00963 |
C00352482 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR00963 |
C00352483 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR00963 |
C00352484 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR00963 |
C00352485 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR00963 |
C00352486 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR00963 |
C00352487 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR00963 |
C00352488 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR00963 |
C00352489 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR00963 |
C00352490 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR00963 |
C00352491 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR00963 |
C00352492 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR00963 |
C00352493 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
