Komerční kód: | KDI 1912/A REFRIGERATORS BK |
Kód 12NC: | 855082722010 |
Značka: | BAUKNECHT |
Typ produktu: | Vestavné lednice s mrazákem |
Další podobné modely: | 855082722011 |
Potřebujete servis? Jsme tady pro Vás

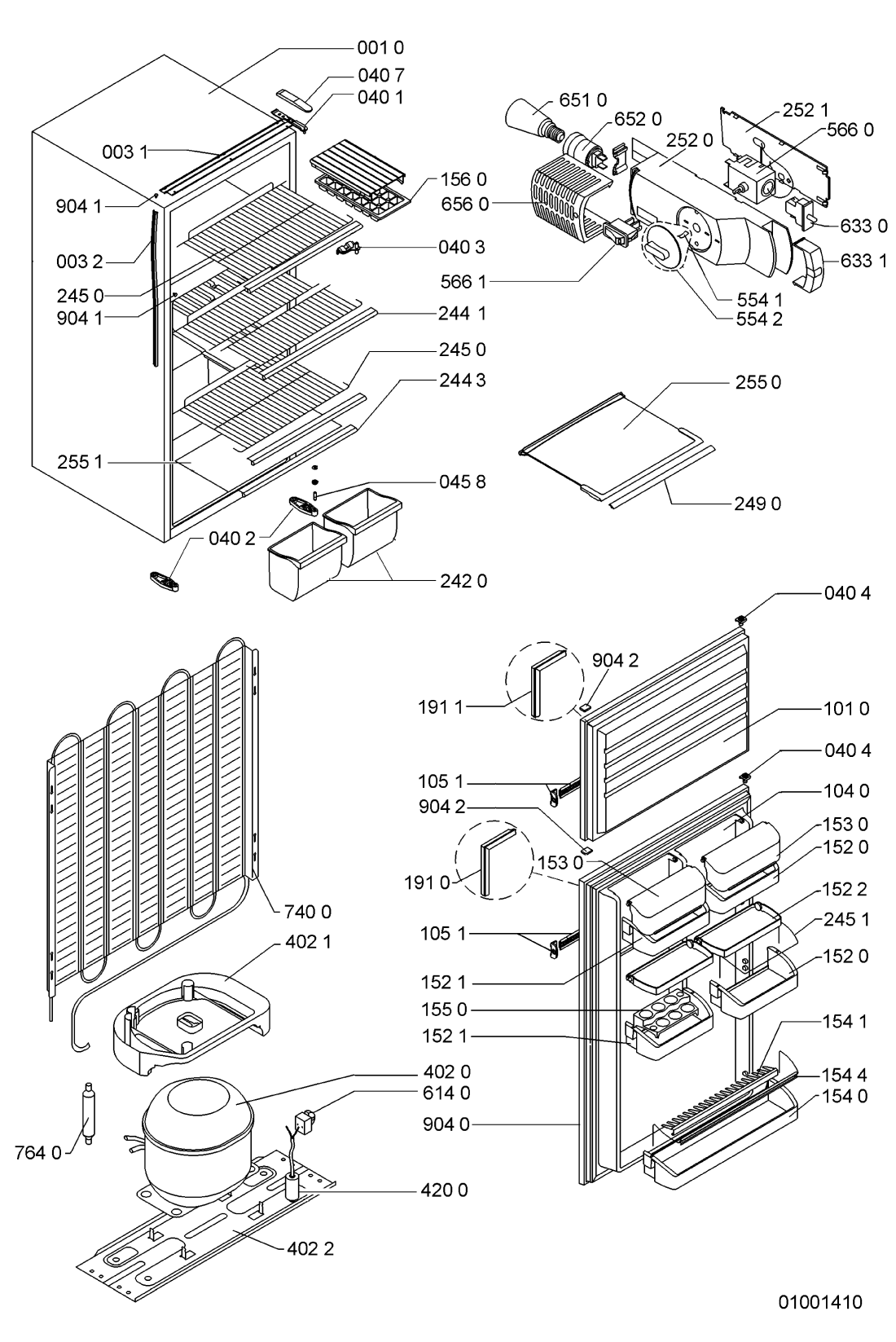

Nabídka náhradních dílů
Číslo | Kód | Název | Cena | ||
---|---|---|---|---|---|
0010 WHR47144 |
C00574839
481244011028 |
Cabinet. | Na dotaz | Zadat poptávku | |
0031 WHR47144 |
C00500877
481246049503 |
Trim | Na dotaz | Zadat poptávku | |
0032 WHR47144 |
C00486982
481991100019 |
Trim | Na dotaz | Zadat poptávku | |
0401 WHR47144 |
C00214999
481991100005 |
Hinge upper | Na dotaz | Zadat poptávku | |
0402 WHR47144 |
C00490897
481991100016 |
Hinge lower | Na dotaz | Zadat poptávku | |
0403 WHR47144 |
C00215444
481991100064 |
Hinge middle | Na dotaz | Zadat poptávku | |
0404 WHR47144 |
C00215159
481246228335 |
Bushing | Na dotaz | Zadat poptávku | |
0407 WHR47144 |
C00486981
481991100004 |
Cover hinge | Na dotaz | Zadat poptávku | |
0458 WHR47144 |
C00215001
481991100006 |
Pivot | Na dotaz | Zadat poptávku | |
1010 WHR47144 |
C00486983
481991100029 |
Door freezer | Na dotaz | Zadat poptávku | |
1040 WHR47144 |
C00622727
481991100027 |
Door refriger. | Na dotaz | Zadat poptávku | |
1051 WHR47144 |
C00493050
481231018749 |
Friction plate ,KIT | Na dotaz | Zadat poptávku | |
1520 WHR47144 |
C00489061
481241838078 |
Door dairy upper | Na dotaz | Zadat poptávku | |
1521 WHR47144 |
C00489042
481241828674 |
Door dairy | Na dotaz | Zadat poptávku | |
1522 WHR47144 |
C00489043
481241828675 |
Door dairy | Na dotaz | Zadat poptávku | |
1530 WHR47144 |
C00215023
481241889024 |
Cover crisper | Na dotaz | Zadat poptávku | |
1540 WHR47144 |
C00621731
481991100021 |
Bottle shelf | Na dotaz | Zadat poptávku | |
1541 WHR47144 |
C00215014
481991100009 |
Bottle holder | Na dotaz | Zadat poptávku | |
1544 WHR47144 |
C00584350
481991100053 |
Rod. | Na dotaz | Zadat poptávku | |
1550 WHR47144 |
C00492854
481991100008 |
Holder eggs | Na dotaz | Zadat poptávku | |
1560 WHR47144 |
C00215423
481991100041 |
Tray icecube | Na dotaz | Zadat poptávku | |
1910 WHR47144 |
C00381027
481246688799 |
Těsnění lednice | 2 043 Kč
€ 80.70 |
||
1911 WHR47144 |
C00564949
482000100714 |
Seal magnetic freezing | Na dotaz | Zadat poptávku | |
2420 WHR47144 |
C00484970
481241828677 |
Drawer vegetable | Na dotaz | Zadat poptávku | |
2441 WHR47144 |
C00484770
481240448849 |
Trim Grid | Na dotaz | Zadat poptávku | |
2443 WHR47144 |
C00501030
481991100052 |
Trim Glass shelf | Na dotaz | Zadat poptávku | |
2450 WHR47144 |
C00488365
481991100013 |
Grid | Na dotaz | Zadat poptávku | |
2451 WHR47144 |
C00492855
481991100054 |
Rod | Na dotaz | Zadat poptávku | |
2520 WHR47144 |
C00484031
481246228587 |
Casing | Na dotaz | Zadat poptávku | |
2521 WHR47144 |
C00486985
481991100038 |
Cover thermost. | Na dotaz | Zadat poptávku | |
2550 WHR47144 |
C00485994
481246228466 |
Sklo roštu | 1 411 Kč
€ 55.70 |
||
2551 WHR47144 |
C00486986
481991100061 |
Crisper cover | Na dotaz | Zadat poptávku | |
4020 WHR47144 |
C00591000
481236038894 |
Compressor TLX8.7KK.3 | Na dotaz | Zadat poptávku | |
4021 WHR47144 |
C00216223
481241879777 |
Tray compressor | Na dotaz | Zadat poptávku | |
4022 WHR47144 |
C00500793
481240448902 |
Support compressor | Na dotaz | Zadat poptávku | |
4200 WHR47144 |
C00482190
481212108238 |
Capacitor | Na dotaz | Zadat poptávku | |
5541 WHR47144 |
C00492003
481249268196 |
Spring THERMOSTAT | Na dotaz | Zadat poptávku | |
5542 WHR47144 |
C00500811
481241278859 |
Knob thermostat | Na dotaz | Zadat poptávku | |
5660 WHR47144 |
C00215198
481991100046 |
Thermostat 077B 6549 | Na dotaz | Zadat poptávku | |
5661 WHR47144 |
C00215410
481227618464 |
SWITCH FAST FREEZE | Na dotaz | Zadat poptávku | |
6140 WHR47144 |
C00215384
481212158146 |
Relay | Na dotaz | Zadat poptávku | |
6330 WHR47144 |
C00417525
482000021338 |
Switch light | Na dotaz | Zadat poptávku | |
6330 WHR47144 |
C00494990
481991100043 |
Kit Thermostat, lamp + lamp switch | Na dotaz | Zadat poptávku | |
6331 WHR47144 |
C00216227
481991100044 |
BUTTON LIGHT SWITCH | Na dotaz | Zadat poptávku | |
6510 WHR47144 |
C00488454
481213488044 |
Lamp | Na dotaz | Zadat poptávku | |
6520 WHR47144 |
C00215030
481225518265 |
Holder lamp | Na dotaz | Zadat poptávku | |
6560 WHR47144 |
C00485953
481246098056 |
Cover f. lamp | Na dotaz | Zadat poptávku | |
7400 WHR47144 |
C00548560
481991100069 |
Condenser. | Na dotaz | Zadat poptávku | |
7640 WHR47144 |
C00574980
481252648116 |
Dryer. | Na dotaz | Zadat poptávku | |
9040 WHR47144 |
C00215557
481253598093 |
Stopper | Na dotaz | Zadat poptávku | |
9041 WHR47144 |
C00490982
481226318005 |
Pivot | Na dotaz | Zadat poptávku | |
9042 WHR47144 |
C00215160
481246228336 |
Bushing | Na dotaz | Zadat poptávku |
