BAUKNECHT KGA 285 Optima/AL REFRIGERATORS
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | KGA 285 Optima/AL REFRIGERATORS |
| Kód 12NC: | 855020811230 |
| I.C. kód: | 855020811234 |
| Značka: | BAUKNECHT |
| Typ produktu: | Volně stojící lednice s mrazákem |
| Další podobné modely: | 855020811230 |
Potřebujete servis? Jsme tady pro Vás

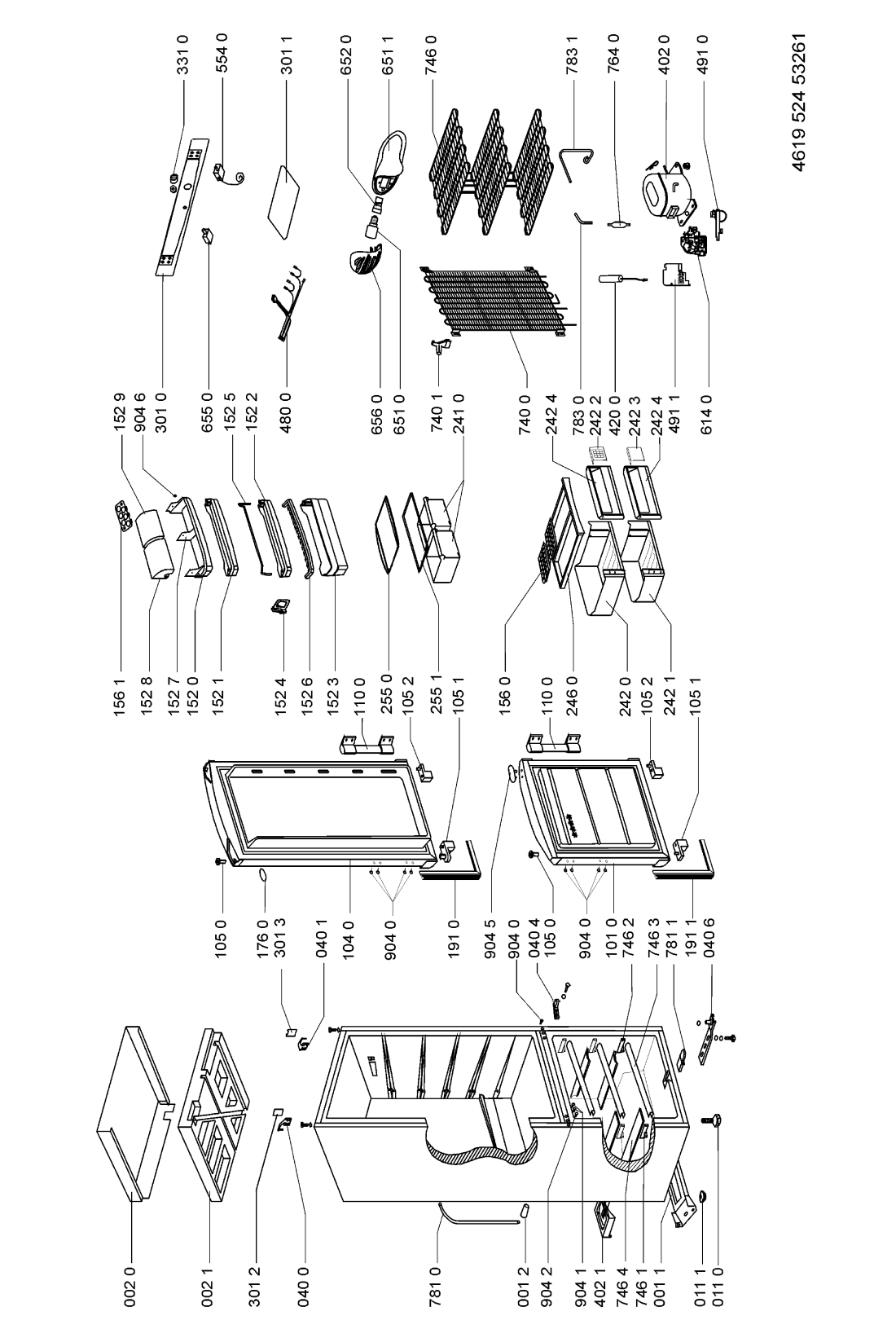

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 1 WHR80467 |
C00330813
481246418199 |
CROSSBAR COMPRESSOR | Na dotaz | Zadat poptávku | |
| 001 2 WHR80467 |
C00498593
481252518014 |
Guide | Na dotaz | Zadat poptávku | |
| 002 0 WHR80467 |
C00342568
481246418148 |
Cover AL | Na dotaz | Zadat poptávku | |
| 002 1 WHR80467 |
C00326888
481215748001 |
VLOZKA PLAST | 453 Kč
€ 17.90 |
||
| 011 0 WHR80467 |
C00330455
481246218263 |
noha lednice | 138 Kč
€ 5.40 |
||
| 011 1 WHR80467 |
C00330452
481246218254 |
noha | 161 Kč
€ 6.40 |
||
| 040 0 WHR80467 |
C00329716
481241719231 |
Hinge upper left | Na dotaz | Zadat poptávku | |
| 040 1 WHR80467 |
C00315502
481241719232 |
Hinge upper right | Na dotaz | Zadat poptávku | |
| 040 4 WHR80467 |
C00319930
481231028329 |
Hinge,middle | Na dotaz | Zadat poptávku | |
| 040 6 WHR80467 |
C00329743
481241719394 |
Hinge,lower | Na dotaz | Zadat poptávku | |
| 101 0 WHR80467 |
C00457990
481241610013 |
Door freezer ,AL | Na dotaz | Zadat poptávku | |
| 104 0 WHR80467 |
C00458514
481241619894 |
Door refriger. AL | Na dotaz | Zadat poptávku | |
| 105 0 WHR80467 |
C00314330
481253288056 |
Pouzdro závěsu - kulaté | Na dotaz | Zadat poptávku | |
| 105 1 WHR80467 |
C00332700
481253288075 |
Pouzdro závěsu - pravé | Na dotaz | Zadat poptávku | |
| 105 2 WHR80467 |
C00320229
481253288073 |
Pouzdro závěsu levé | Na dotaz | Zadat poptávku | |
| 110 0 WHR80467 |
C00464624
481249848024 |
rukojet dveri chladnicky Whirlpool | 1 898 Kč
€ 74.90 |
||
| 152 0 WHR80467 |
C00589825
481241828475 |
Door shelf printed BK. | Na dotaz | Zadat poptávku | |
| 152 1 WHR80467 |
C00458742
481241828917 |
Door dairy printed | Na dotaz | Zadat poptávku | |
| 152 2 WHR80467 |
C00458741
481241828916 |
Door dairy rod printed | Na dotaz | Zadat poptávku | |
| 152 3 WHR80467 |
C00381033
481241828918 |
bottle shelf printed | Na dotaz | Zadat poptávku | |
| 152 4 WHR80467 |
C00458739
481241828914 |
Separator | Na dotaz | Zadat poptávku | |
| 152 5 WHR80467 |
C00464821
481252648221 |
Rod shelf | Na dotaz | Zadat poptávku | |
| 152 6 WHR80467 |
C00329922
481241828473 |
drzak | 1 150 Kč
€ 45.40 |
||
| 152 7 WHR80467 |
C00330267
481246049396 |
SEPARATOR WHITE GW | Na dotaz | Zadat poptávku | |
| 152 8 WHR80467 |
C00458737
481241828912 |
Flap door dairy | Na dotaz | Zadat poptávku | |
| 152 9 WHR80467 |
C00458738
481241828913 |
Flap door dairy | Na dotaz | Zadat poptávku | |
| 156 0 WHR80467 |
C00574816
481241828637 |
Icecube tray. | Na dotaz | Zadat poptávku | |
| 156 1 WHR80467 |
C00458740
481241828915 |
Rack egg | Na dotaz | Zadat poptávku | |
| 176 0 WHR80467 |
C00463938
481245918267 |
Nameplate | Na dotaz | Zadat poptávku | |
| 191 0 WHR80467 |
C00314804
481246668822 |
Těsnění - magnetické - chladnička | 1 679 Kč
€ 66.30 |
||
| 191 1 WHR80467 |
C00464455
481246668854 |
Těsnění magnetické | 2 173 Kč
€ 85.80 |
||
| 241 0 WHR80467 |
C00458968
481241870017 |
Crisper | Na dotaz | Zadat poptávku | |
| 242 0 WHR80467 |
C00312692
481241868301 |
kos mraznicky bez čela uz nebude !!!!!! | Na dotaz | Zadat poptávku | |
| 242 1 WHR80467 |
C00315606
481241868299 |
kos mraznicky maly | Na dotaz | Zadat poptávku | |
| 242 2 WHR80467 |
C00458866
481241848825 |
Basket insert printed | Na dotaz | Zadat poptávku | |
| 242 3 WHR80467 |
C00458867
481241848826 |
Basket insert | Na dotaz | Zadat poptávku | |
| 242 4 WHR80467 |
C00374064
481241848827 |
Čelo koše mrazáku | 1 369 Kč
€ 54.00 |
||
| 246 0 WHR80467 |
C00458868
481241848828 |
Tray | Na dotaz | Zadat poptávku | |
| 255 0 WHR80467 |
C00379147
481245088305 |
ODKLAD.PLOCHA SKLO | Na dotaz | Zadat poptávku | |
| 255 1 WHR80467 |
C00340338
481245088304 |
Glass shelf bottom | Na dotaz | Zadat poptávku | |
| 301 0 WHR80467 |
C00464280
481246469181 |
Control panel AL printed | Na dotaz | Zadat poptávku | |
| 301 1 WHR80467 |
C00328422
481244098137 |
kryt | 152 Kč
€ 6.00 |
||
| 301 2 WHR80467 |
C00342905
481246228589 |
Cover AL | Na dotaz | Zadat poptávku | |
| 301 3 WHR80467 |
C00342906
481246228591 |
Cover AL | Na dotaz | Zadat poptávku | |
| 331 0 WHR80467 |
C00574744
481241218036 |
Knoflík termostatu | 134 Kč
€ 5.30 |
||
| 402 0 WHR80467 |
C00328611
481236058487 |
Compressor NBM 1114 Y | Na dotaz | Zadat poptávku | |
| 402 1 WHR80467 |
C00327837
481241848824 |
miska na kondenzat | Na dotaz | Zadat poptávku | |
| 420 0 WHR80467 |
C00326749
481212028022 |
Capacitor 4mf | Na dotaz | Zadat poptávku | |
| 480 0 WHR80467 |
C00328531
481232178251 |
Cable harness | Na dotaz | Zadat poptávku | |
| 491 0 WHR80467 |
C00330476
481246228261 |
pruchodka | 189 Kč
€ 7.50 |
||
| 491 1 WHR80467 |
C00267000
481229088084 |
KRYT PLAST | Na dotaz | Zadat poptávku | |
| 554 0 WHR80467 |
C00312004
481228238212 |
Thermostat A130643 | Na dotaz | Zadat poptávku | |
| 614 0 WHR80467 |
C00341713
481228038051 |
elektroinstalace MK | Na dotaz | Zadat poptávku | |
| 651 0 WHR80467 |
C00311277
481913488135 |
BULB LED E14 T25 - 15W - 220V | Na dotaz | Zadat poptávku | |
| 651 1 WHR80467 |
C00317259
481244098245 |
Housing lamp | Na dotaz | Zadat poptávku | |
| 652 0 WHR80467 |
C00313006
481225518292 |
objimka zarovky | 238 Kč
€ 9.40 |
||
| 655 0 WHR80467 |
C00345194
481227618496 |
Spínač světla | 174 Kč
€ 6.90 |
||
| 656 0 WHR80467 |
C00312883
481246098066 |
Stínidlo světla | 735 Kč
€ 29.00 |
||
| 740 0 WHR80467 |
C00332236
481251148314 |
Condenser | Na dotaz | Zadat poptávku | |
| 740 1 WHR80467 |
C00330494
481246228448 |
Holder | Na dotaz | Zadat poptávku | |
| 746 0 WHR80467 |
C00464748
481251138306 |
VYPARNIK | 2 865 Kč
€ 113.10 |
||
| 746 1 WHR80467 |
C00319703
481246628139 |
drzak vyparniku l | 154 Kč
€ 6.10 |
||
| 746 2 WHR80467 |
C00319357
481246228447 |
drzak vyparniku p | 148 Kč
€ 5.80 |
||
| 746 3 WHR80467 |
C00319331
481246098081 |
lista kryci vyparnik | 196 Kč
€ 7.70 |
||
| 746 4 WHR80467 |
C00319325
481246098055 |
Podpora koše mrazničky | 191 Kč
€ 7.50 |
||
| 764 0 WHR80467 |
C00311590
481952648527 |
Dryer DRS15 With 3 ways valve | Na dotaz | Zadat poptávku | |
| 781 0 WHR80467 |
C00326893
481217158001 |
Hadice na kondenzát | Na dotaz | Zadat poptávku | |
| 781 1 WHR80467 |
C00319432
481217158005 |
Odtokový kanál - odmražení | 231 Kč
€ 9.10 |
||
| 783 0 WHR80467 |
C00318198
481952643046 |
SPOJKA | 306 Kč
€ 12.10 |
||
| 783 1 WHR80467 |
C00332442
481253029298 |
Pipe | Na dotaz | Zadat poptávku | |
| 904 0 WHR80467 |
C00327083
481222608031 |
zaslepka | 285 Kč
€ 11.30 |
||
| 904 1 WHR80467 |
C00327077
481222608012 |
zaslepka | 178 Kč
€ 7.00 |
||
| 904 2 WHR80467 |
C00327076
481222608011 |
zaslepka | 75 Kč
€ 3.00 |
||
| 904 5 WHR80467 |
C00586796
481246818339 |
Plug AL. | Na dotaz | Zadat poptávku | |
| 904 6 WHR80467 |
C00333158
481946818282 |
Podložka distanční | 351 Kč
€ 13.90 |
||
| 999 WHR80467 |
C00710731 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
