| Komerční kód: | KGA 3001/1 REFRIGERATEURS BK |
| Kód 12NC: | 855083201010 |
| I.C. kód: | 855083201016 |
| Značka: | BAUKNECHT |
| Typ produktu: | Volně stojící lednice s mrazákem |
| Další podobné modely: | 855083201010, 855083201015, 855083201011, 855083201014, 855083201017, 855083201018 |
Potřebujete servis? Jsme tady pro Vás

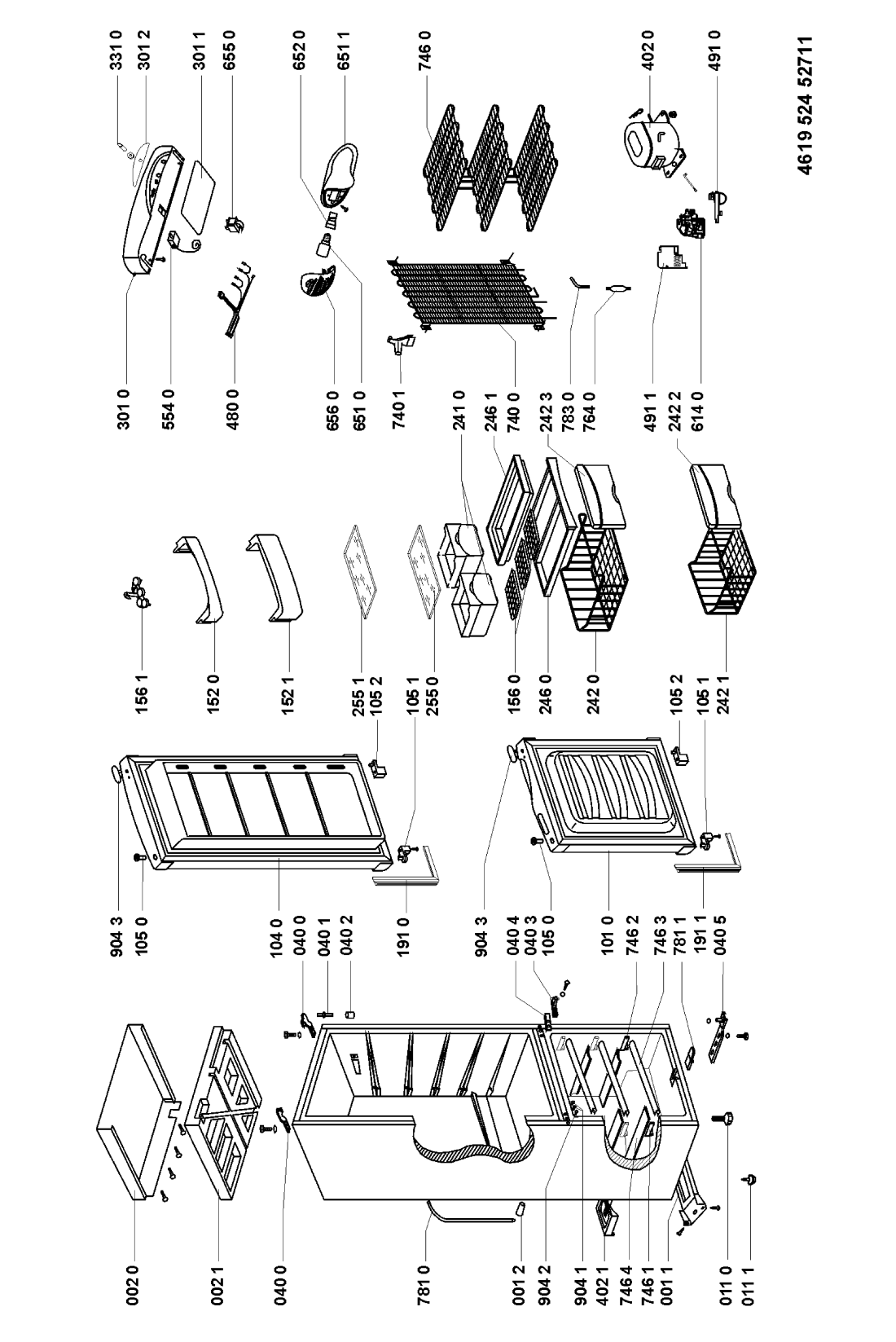

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 1 WHR73742 |
C00330804
481246418121 |
Crossbar | Na dotaz | Zadat poptávku | |
| 001 2 WHR73742 |
C00498593
481252518014 |
Guide | Na dotaz | Zadat poptávku | |
| 002 0 WHR73742 |
C00330806
481246418141 |
deska horni-kryt | 1 635 Kč
€ 64.50 |
||
| 002 1 WHR73742 |
C00326888
481215748001 |
VLOZKA PLAST | 453 Kč
€ 17.90 |
||
| 011 0 WHR73742 |
C00330455
481246218263 |
noha lednice | 138 Kč
€ 5.40 |
||
| 011 1 WHR73742 |
C00330452
481246218254 |
noha | 161 Kč
€ 6.30 |
||
| 040 0 WHR73742 |
C00574437
481241719228 |
Hinge,upper | Na dotaz | Zadat poptávku | |
| 040 1 WHR73742 |
C00327075
481222608004 |
Pin hinge | Na dotaz | Zadat poptávku | |
| 040 2 WHR73742 |
C00336279
481247838002 |
Sleeve | Na dotaz | Zadat poptávku | |
| 040 3 WHR73742 |
C00480826
481241719273 |
NAHRADENE 481231028318 | Na dotaz | Zadat poptávku | |
| 040 4 WHR73742 |
C00480844
481252648142 |
STRIEKACIE RAMENO UMYVACKY | Na dotaz | Zadat poptávku | |
| 040 5 WHR73742 |
C00329708
481241719115 |
Hinge,lower | Na dotaz | Zadat poptávku | |
| 101 0 WHR73742 |
C00484950
481241818504 |
DVEŘE MRAZNIČKY, BÍLÁ GW | Na dotaz | Zadat poptávku | |
| 104 0 WHR73742 |
C00484974
481241828712 |
DVERE CHLADNICKY | Na dotaz | Zadat poptávku | |
| 105 0 WHR73742 |
C00314960
481253288064 |
BUSHING WHITE GW | Na dotaz | Zadat poptávku | |
| 105 1 WHR73742 |
C00320223
481253288062 |
Sleeve | Na dotaz | Zadat poptávku | |
| 105 2 WHR73742 |
C00320225
481253288063 |
Sleeveleft | Na dotaz | Zadat poptávku | |
| 152 0 WHR73742 |
C00498382
481246228495 |
Door dairy | Na dotaz | Zadat poptávku | |
| 152 1 WHR73742 |
C00498383
481246228496 |
Bottle shelf | Na dotaz | Zadat poptávku | |
| 156 0 WHR73742 |
C00339162
481241828416 |
Icecube tray | Na dotaz | Zadat poptávku | |
| 156 1 WHR73742 |
C00339625
481241828448 |
drzak vajec | 208 Kč
€ 8.20 |
||
| 191 0 WHR73742 |
C00311938
481246668817 |
Těsnění magnetické - mrazák | 1 649 Kč
€ 65.00 |
||
| 191 1 WHR73742 |
C00330940
481246668853 |
Těsnění magnetické - mraznička | 2 386 Kč
€ 94.10 |
||
| 241 0 WHR73742 |
C00342299
481241879806 |
Crisper | Na dotaz | Zadat poptávku | |
| 242 0 WHR73742 |
C00344510
481241838091 |
kos mraznicky | 1 269 Kč
€ 50.00 |
||
| 242 1 WHR73742 |
C00344511
481241838092 |
Koš mrazničky drátěný - malý | 1 003 Kč
€ 39.60 |
||
| 242 2 WHR73742 |
C00548194
481241858047 |
KRYT KOSA PLAST | Na dotaz | Zadat poptávku | |
| 242 3 WHR73742 |
C00586669
481241848716 |
Cover basket | Na dotaz | Zadat poptávku | |
| 246 0 WHR73742 |
C00335343
481246228616 |
Šuplík mrazáku horní na misky na led a zásobník | 1 279 Kč
€ 50.40 |
||
| 246 1 WHR73742 |
C00335361
481246228453 |
Tray | Na dotaz | Zadat poptávku | |
| 255 0 WHR73742 |
C00340353
481245088253 |
Glass shelf | Na dotaz | Zadat poptávku | |
| 255 1 WHR73742 |
C00574865
481245088254 |
POLICKA SKLENENA | Na dotaz | Zadat poptávku | |
| 301 0 WHR73742 |
C00486098
481246469068 |
Control panel | Na dotaz | Zadat poptávku | |
| 301 1 WHR73742 |
C00328422
481244098137 |
kryt | 152 Kč
€ 6.00 |
||
| 301 2 WHR73742 |
C00485631
481245310275 |
Decor trim set | Na dotaz | Zadat poptávku | |
| 331 0 WHR73742 |
C00338426
481241218039 |
Knoflík termostatu | 100 Kč
€ 3.90 |
||
| 402 0 WHR73742 |
C00328574
481236038968 |
COMPRESSOR HSR 115 AA | Na dotaz | Zadat poptávku | |
| 402 1 WHR73742 |
C00327897
481241878971 |
Miska na kondezát | 232 Kč
€ 9.20 |
||
| 480 0 WHR73742 |
C00574289
481201978827 |
Cable harness | Na dotaz | Zadat poptávku | |
| 491 0 WHR73742 |
C00330476
481246228261 |
pruchodka | 189 Kč
€ 7.50 |
||
| 491 1 WHR73742 |
C00267000
481229088084 |
KRYT PLAST | Na dotaz | Zadat poptávku | |
| 554 0 WHR73742 |
C00314287
481228238134 |
Thermostat | Na dotaz | Zadat poptávku | |
| 614 0 WHR73742 |
C00327456
481228038049 |
ptc jednotka | Na dotaz | Zadat poptávku | |
| 651 0 WHR73742 |
C00311277
481913488135 |
BULB LED E14 T25 - 15W - 220V | Na dotaz | Zadat poptávku | |
| 651 1 WHR73742 |
C00317259
481244098245 |
Housing lamp | Na dotaz | Zadat poptávku | |
| 652 0 WHR73742 |
C00320404
481225528015 |
Holder lamp | Na dotaz | Zadat poptávku | |
| 655 0 WHR73742 |
C00491045
481227148013 |
spinac osvetleni | 143 Kč
€ 5.60 |
||
| 656 0 WHR73742 |
C00312883
481246098066 |
Stínidlo světla | 735 Kč
€ 29.00 |
||
| 740 0 WHR73742 |
C00332242
481251148365 |
Condenser | Na dotaz | Zadat poptávku | |
| 740 1 WHR73742 |
C00330494
481246228448 |
Holder | Na dotaz | Zadat poptávku | |
| 746 0 WHR73742 |
C00464747
481251138301 |
Evaporator | Na dotaz | Zadat poptávku | |
| 746 1 WHR73742 |
C00319703
481246628139 |
drzak vyparniku l | 154 Kč
€ 6.10 |
||
| 746 2 WHR73742 |
C00319357
481246228447 |
drzak vyparniku p | 148 Kč
€ 5.80 |
||
| 746 3 WHR73742 |
C00319331
481246098081 |
lista kryci vyparnik | 196 Kč
€ 7.70 |
||
| 746 4 WHR73742 |
C00319325
481246098055 |
Podpora koše mrazničky | 191 Kč
€ 7.50 |
||
| 764 0 WHR73742 |
C00311590
481952648527 |
Dryer DRS15 With 3 ways valve | Na dotaz | Zadat poptávku | |
| 781 0 WHR73742 |
C00326893
481217158001 |
Hadice na kondenzát | Na dotaz | Zadat poptávku | |
| 781 1 WHR73742 |
C00319432
481217158005 |
Odtokový kanál - odmražení | 231 Kč
€ 9.10 |
||
| 783 0 WHR73742 |
C00318198
481952643046 |
SPOJKA | 306 Kč
€ 12.10 |
||
| 904 1 WHR73742 |
C00332688
481253288029 |
zaslepka 480132102378 | 186 Kč
€ 7.30 |
||
| 904 2 WHR73742 |
C00316993
481222608003 |
zaslepka | 303 Kč
€ 12.00 |
||
| 904 3 WHR73742 |
C00332698
481253288061 |
Cover | Na dotaz | Zadat poptávku | |
| 999 WHR73742 |
C00697208 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
