BAUKNECHT KGA SYMPHONY 320
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | KGA SYMPHONY 320 |
| Kód 12NC: | 855057601010 |
| Značka: | BAUKNECHT |
| Typ produktu: | Volně stojící lednice s mrazákem |
Potřebujete servis? Jsme tady pro Vás

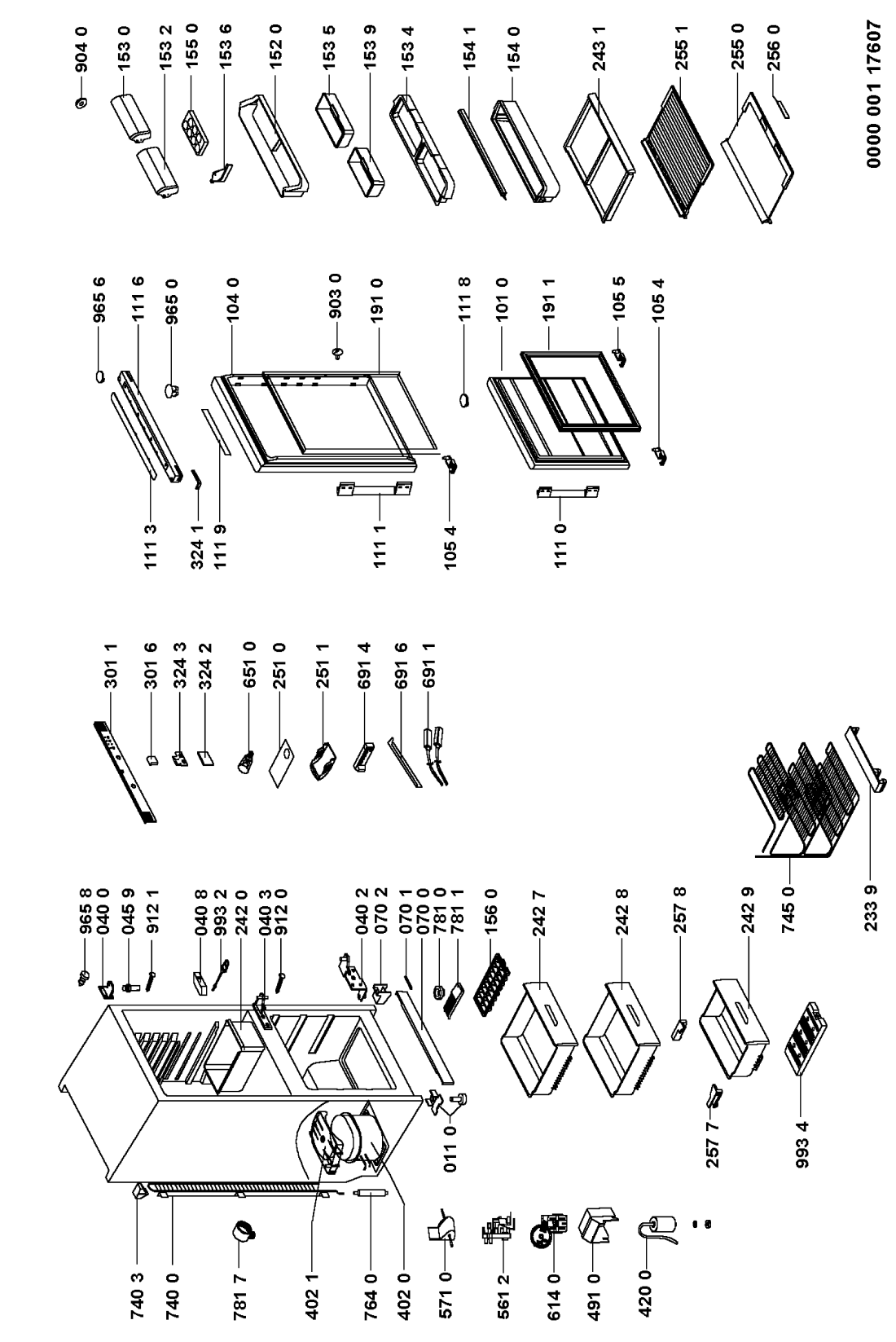

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 011 0 WHR98207 |
C00333244
481950518335 |
Foot | Na dotaz | Zadat poptávku | |
| 040 0 WHR98207 |
C00339875
481241719015 |
Hinge | Na dotaz | Zadat poptávku | |
| 040 2 WHR98207 |
C00499104
481941719411 |
Z?VES SPODN# ART836 KOV N | Na dotaz | Zadat poptávku | |
| 040 3 WHR98207 |
C00340397
481941719409 |
ge,middle | Na dotaz | Zadat poptávku | |
| 040 8 WHR98207 |
C00343024
481246258034 |
Cover | Na dotaz | Zadat poptávku | |
| 045 9 WHR98207 |
C00337808
481953598666 |
Pivot | Na dotaz | Zadat poptávku | |
| 070 0 WHR98207 |
C00337725
481944268227 |
sokl | 206 Kč
€ 8.10 |
||
| 070 1 WHR98207 |
C00499332
481946078196 |
KRYT SOKLU ART N | Na dotaz | Zadat poptávku | |
| 070 2 WHR98207 |
C00332946
481940478921 |
drzak soklu | 151 Kč
€ 6.00 |
||
| 101 0 WHR98207 |
C00553445
481241618394 |
Door,freezer | Na dotaz | Zadat poptávku | |
| 104 0 WHR98207 |
C00590472
481241618395 |
DOOR,REFRIGER.. | Na dotaz | Zadat poptávku | |
| 105 4 WHR98207 |
C00341796
481240478366 |
Latch ,lower/right | Na dotaz | Zadat poptávku | |
| 105 5 WHR98207 |
C00341795
481946689471 |
Latch left | Na dotaz | Zadat poptávku | |
| 111 0 WHR98207 |
C00590730
481246268066 |
Door handle. | Na dotaz | Zadat poptávku | |
| 111 1 WHR98207 |
C00590720
481246228269 |
Door handle. | Na dotaz | Zadat poptávku | |
| 111 3 WHR98207 |
C00338900
481246048919 |
vlozka panelu plast | 372 Kč
€ 14.70 |
||
| 111 6 WHR98207 |
C00753715
481245228215 |
Control panel | Na dotaz | Zadat poptávku | |
| 111 8 WHR98207 |
C00336007
481946279466 |
Stopper | Na dotaz | Zadat poptávku | |
| 111 9 WHR98207 |
C00590721
481246228271 |
Insert. | Na dotaz | Zadat poptávku | |
| 152 0 WHR98207 |
C00343592
481941879737 |
Compartment | Na dotaz | Zadat poptávku | |
| 153 0 WHR98207 |
C00527849
481241828227 |
Flap right | Na dotaz | Zadat poptávku | |
| 153 2 WHR98207 |
C00589816
481241828228 |
Flap left. | Na dotaz | Zadat poptávku | |
| 153 4 WHR98207 |
C00590520
481241828226 |
Door,dairy. | Na dotaz | Zadat poptávku | |
| 153 5 WHR98207 |
C00590519
481241828224 |
Door dairy. | Na dotaz | Zadat poptávku | |
| 153 6 WHR98207 |
C00557514
481944278094 |
Separator.. | Na dotaz | Zadat poptávku | |
| 153 9 WHR98207 |
C00489014
481241828225 |
Tray leak | Na dotaz | Zadat poptávku | |
| 154 0 WHR98207 |
C00590521
481241828231 |
Bottle shelf. | Na dotaz | Zadat poptávku | |
| 154 1 WHR98207 |
C00553520
481241828229 |
Bottle holder | Na dotaz | Zadat poptávku | |
| 155 0 WHR98207 |
C00329909
481241828013 |
Holder, eggs (6 pcs.) | Na dotaz | Zadat poptávku | |
| 156 0 WHR98207 |
C00287849
481941878977 |
miska na led | 300 Kč
€ 11.80 |
||
| 191 0 WHR98207 |
C00314537
481246818072 |
tesneni magneticke | 2 046 Kč
€ 80.70 |
||
| 191 1 WHR98207 |
C00312786
481246818065 |
Těsnění magnetické - mraznička | 1 920 Kč
€ 75.70 |
||
| 233 9 WHR98207 |
C00335837
481946699082 |
Support evaporator | Na dotaz | Zadat poptávku | |
| 242 0 WHR98207 |
C00590517
481241828222 |
Drawer. | Na dotaz | Zadat poptávku | |
| 242 7 WHR98207 |
C00590518
481241828223 |
Drawer. | Na dotaz | Zadat poptávku | |
| 242 8 WHR98207 |
C00557448
481941879203 |
Drawer.. | Na dotaz | Zadat poptávku | |
| 242 9 WHR98207 |
C00636185
481941879142 |
KOS plast N | Na dotaz | Zadat poptávku | |
| 243 1 WHR98207 |
C00382214
481941879212 |
Drawer f.ice batteryf.ice battery | Na dotaz | Zadat poptávku | |
| 251 0 WHR98207 |
C00333062
481946078198 |
Reflector foil | Na dotaz | Zadat poptávku | |
| 251 1 WHR98207 |
C00342451
481946279771 |
kryt svetla | 365 Kč
€ 14.40 |
||
| 255 0 WHR98207 |
C00500362
481245088052 |
Shelf | Na dotaz | Zadat poptávku | |
| 255 1 WHR98207 |
C00499808
481245088053 |
Shelf | Na dotaz | Zadat poptávku | |
| 256 0 WHR98207 |
C00590841
481945838042 |
Air regulator. | Na dotaz | Zadat poptávku | |
| 257 7 WHR98207 |
C00314855
481946699151 |
Držák výparníku pravý | 314 Kč
€ 12.40 |
||
| 257 8 WHR98207 |
C00314857
481946699152 |
Držák výparníku levý | 319 Kč
€ 12.60 |
||
| 301 1 WHR98207 |
C00483419
481245228216 |
Control panel | Na dotaz | Zadat poptávku | |
| 301 6 WHR98207 |
C00333101
481946279953 |
zaslepka | 203 Kč
€ 8.00 |
||
| 324 1 WHR98207 |
C00338898
481946078239 |
krytka | 145 Kč
€ 5.70 |
||
| 324 2 WHR98207 |
C00499405
481946279767 |
krytka | 122 Kč
€ 4.80 |
||
| 324 3 WHR98207 |
C00336239
481946689233 |
krytka | 134 Kč
€ 5.30 |
||
| 402 0 WHR98207 |
C00555078
481236038719 |
NAHRADENE 481236058114 N | Na dotaz | Zadat poptávku | |
| 402 1 WHR98207 |
C00319510
481241878958 |
miska na kondenzat | Na dotaz | Zadat poptávku | |
| 420 0 WHR98207 |
C00342794
481212118202 |
Capacitor 4#F - 450V - 6#m dielectric | Na dotaz | Zadat poptávku | |
| 491 0 WHR98207 |
C00327312
481229088075 |
Cover connection block | Na dotaz | Zadat poptávku | |
| 561 2 WHR98207 |
C00319768
481929068432 |
Connect.block | Na dotaz | Zadat poptávku | |
| 571 0 WHR98207 |
C00337286
481928128272 |
ventil elektromagn. | 2 744 Kč
€ 108.20 |
||
| 614 0 WHR98207 |
C00492144
481269028009 |
MONOBLOK N | Na dotaz | Zadat poptávku | |
| 651 0 WHR98207 |
C00313818
481913488178 |
Žárovka Tclick E14 15W | Na dotaz | Zadat poptávku | |
| 691 1 WHR98207 |
C00380404
481221058009 |
senzor teploty | 1 336 Kč
€ 52.70 |
||
| 691 4 WHR98207 |
C00342929
481246228116 |
Cover , sensor | Na dotaz | Zadat poptávku | |
| 691 6 WHR98207 |
C00499408
481946279847 |
kryt desky ovladani | 134 Kč
€ 5.30 |
||
| 740 0 WHR98207 |
C00499546
481951148664 |
KONDENZATOR RJ N | Na dotaz | Zadat poptávku | |
| 740 3 WHR98207 |
C00333139
481946698434 |
Spacer | Na dotaz | Zadat poptávku | |
| 745 0 WHR98207 |
C00555607
481251138105 |
Evaporator.. | Na dotaz | Zadat poptávku | |
| 764 0 WHR98207 |
C00494652
481948028148 |
DEHYDRATOR | Na dotaz | Zadat poptávku | |
| 781 0 WHR98207 |
C00342193
481953228145 |
Defroster plug | Na dotaz | Zadat poptávku | |
| 781 1 WHR98207 |
C00342192
481941878208 |
kanal odtokovy | 189 Kč
€ 7.50 |
||
| 781 7 WHR98207 |
C00333270
481952648307 |
priruba hadice | 265 Kč
€ 10.50 |
||
| 903 0 WHR98207 |
C00333338
481953518117 |
krytka | 20 Kč
€ 0.80 |
||
| 904 0 WHR98207 |
C00333158
481946818282 |
Podložka distanční | 351 Kč
€ 13.80 |
||
| 912 0 WHR98207 |
C00332066
481250218439 |
Screw M4 X17 | Na dotaz | Zadat poptávku | |
| 965 0 WHR98207 |
C00336022
481946278448 |
Stopper | Na dotaz | Zadat poptávku | |
| 965 6 WHR98207 |
C00336023
481946278909 |
Stopper | Na dotaz | Zadat poptávku | |
| 965 8 WHR98207 |
C00498322
481246048943 |
KRYTKA N | Na dotaz | Zadat poptávku | |
| 993 2 WHR98207 |
C00316841
481969028169 |
Čistič odtokového kanálku chladničky Whirlpool ARG 790/A+, ARG 734/A+, ARG 184701. | 155 Kč
€ 6.10 |
||
| 993 4 WHR98207 |
C00486595
481944278082 |
Ice pack | Na dotaz | Zadat poptávku | |
| 993 9 WHR98207 |
C00590444
481231018743 |
Door revers.Kit ,not shown. | Na dotaz | Zadat poptávku | |
| 999 WHR98207 |
C00769065 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
