BAUKNECHT KGE 3382 A2+ FRESH WS
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | KGE 3382 A2+ FRESH WS |
| Kód 12NC: | 855024601400 |
| Značka: | BAUKNECHT |
| Typ produktu: | Volně stojící lednice s mrazákem |
| Další podobné modely: | 855024601401, 855024601402 |
Potřebujete servis? Jsme tady pro Vás

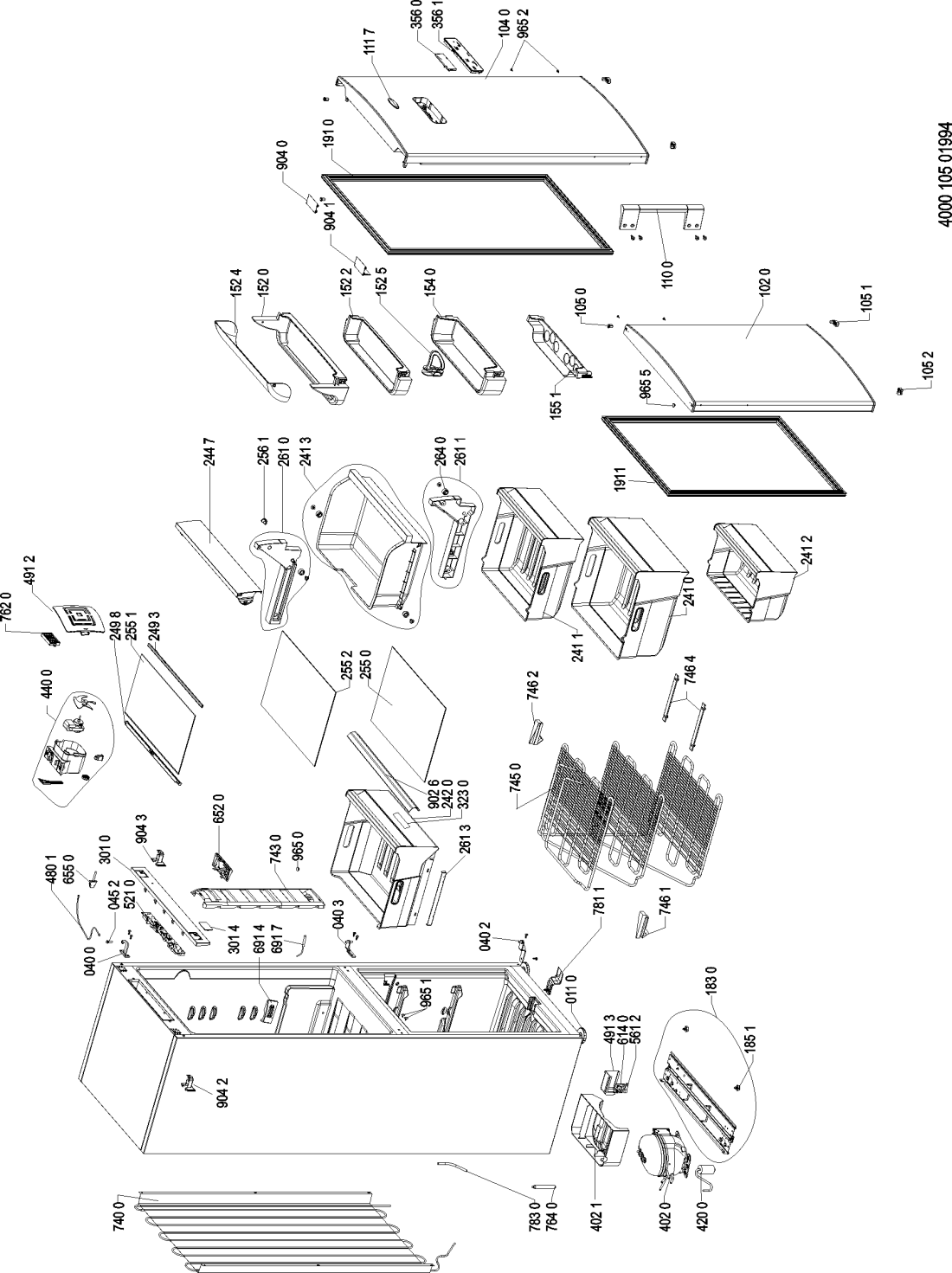

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0110 WHR26201 |
C00330455
481246218263 |
noha lednice | 138 Kč
€ 5.40 |
||
| 0400 WHR26201 |
C00329779
481241719517 |
Závěs horní | 934 Kč
€ 36.80 |
||
| 0402 WHR26201 |
C00329780
481241719518 |
Závěs spodní | 976 Kč
€ 38.50 |
||
| 0403 WHR26201 |
C00319920
481241719519 |
Závěs dveří střední | 976 Kč
€ 38.50 |
||
| 0452 WHR26201 |
C00316600
481222608025 |
cep | 413 Kč
€ 16.30 |
||
| 1020 WHR26201 |
C00458410
481241610782 |
Door freezer GW 779x588 mm | Na dotaz | Zadat poptávku | |
| 1040 WHR26201 |
C00438063
481010450498 |
Door refriger. GW 1043,5x588 mm | Na dotaz | Zadat poptávku | |
| 1050 WHR26201 |
C00314960
481253288064 |
BUSHING WHITE GW | Na dotaz | Zadat poptávku | |
| 1051 WHR26201 |
C00332709
481253288102 |
SLEEVE DOOR AUTO-LOCKING RIGHT WHITE GW | Na dotaz | Zadat poptávku | |
| 1052 WHR26201 |
C00332710
481253288103 |
SLEEVE DOOR AUTO-LOCKING LEFT WHITE GW | Na dotaz | Zadat poptávku | |
| 1100 WHR26201 |
C00377841
481249848053 |
Handle ALLUM.+ ALU | Na dotaz | Zadat poptávku | |
| 1117 WHR26201 |
C00330204
481245918279 |
Nameplate BAUKNECHT | Na dotaz | Zadat poptávku | |
| 1520 WHR26201 |
C00432327
480132101588 |
Door dairy upper,printed BK | Na dotaz | Zadat poptávku | |
| 1522 WHR26201 |
C00432195
480132101234 |
police | 420 Kč
€ 16.60 |
||
| 1524 WHR26201 |
C00323303
480132100543 |
Víko police | 1 232 Kč
€ 48.60 |
||
| 1525 WHR26201 |
C00431912
480132100538 |
Separator 00137 transparent grey | Na dotaz | Zadat poptávku | |
| 1540 WHR26201 |
C00323429
480132101235 |
police | Na dotaz | Zadat poptávku | |
| 1551 WHR26201 |
C00323386
480132101126 |
police | 918 Kč
€ 36.20 |
||
| 1830 WHR26201 |
C00324399
481010461412 |
Držák kompresoru | 415 Kč
€ 16.40 |
||
| 1851 WHR26201 |
C00522120
481010443535 |
Noha (zadní) chladničky Whirlpool | 158 Kč
€ 6.20 |
||
| 1910 WHR26201 |
C00311635
481246668938 |
Těsnění magnetické - chladničky | 1 665 Kč
€ 65.70 |
||
| 1911 WHR26201 |
C00311941
481246668939 |
Magnetické těsnění dveří mrazáku | 1 697 Kč
€ 66.90 |
||
| 2410 WHR26201 |
C00376931
480132101149 |
Drawer central,transparent grey | Na dotaz | Zadat poptávku | |
| 2411 WHR26201 |
C00379100
480132101142 |
Koš mrazničky | 2 997 Kč
€ 118.20 |
||
| 2412 WHR26201 |
C00323396
480132101145 |
Koš mrazničky - spodní | 2 755 Kč
€ 108.70 |
||
| 2413 WHR26201 |
C00432354
480132101657 |
Drawer FFC,transparent grey | Na dotaz | Zadat poptávku | |
| 2420 WHR26201 |
C00432167
480132101118 |
Crisper transparent grey+sticker | Na dotaz | Zadat poptávku | |
| 2447 WHR26201 |
C00432406
480132101745 |
Flap f. FFC printed,transp.gray | Na dotaz | Zadat poptávku | |
| 2493 WHR26201 |
C00432174
480132101165 |
Trim Shelf front dark silver | Na dotaz | Zadat poptávku | |
| 2498 WHR26201 |
C00320108
480132101162 |
Trim Shelf rear GW | Na dotaz | Zadat poptávku | |
| 2550 WHR26201 |
C00432170
480132101131 |
GLASS SHELF CRISPER+DARK SILVER PROFILE | Na dotaz | Zadat poptávku | |
| 2551 WHR26201 |
C00432171
480132101132 |
Glass shelf +GW & dark silv.profiles | Na dotaz | Zadat poptávku | |
| 2552 WHR26201 |
C00432228
480132101317 |
Glass shelf FFC+GW & dark SI profiles | Na dotaz | Zadat poptávku | |
| 2561 WHR26201 |
C00319228
480132101654 |
cep vika police | 427 Kč
€ 16.80 |
||
| 2610 WHR26201 |
C00432352
480132101655 |
Slide GW right FFC drawer | Na dotaz | Zadat poptávku | |
| 2611 WHR26201 |
C00432353
480132101656 |
Slide GW left FFC drawer | Na dotaz | Zadat poptávku | |
| 2613 WHR26201 |
C00316805
480132101137 |
pojezd | 750 Kč
€ 29.60 |
||
| 2640 WHR26201 |
C00332376
481252878073 |
kolecko zasuvky | 155 Kč
€ 6.10 |
||
| 3010 WHR26201 |
C00438062
481010450494 |
Front panel GW+hole | Na dotaz | Zadat poptávku | |
| 3014 WHR26201 |
C00328160
481244029575 |
kryt | 189 Kč
€ 7.50 |
||
| 3230 WHR26201 |
C00432175
480132101166 |
Sticker HIGIENE3 FRESH BOX | Na dotaz | Zadat poptávku | |
| 3560 WHR26201 |
C00314958
481010426517 |
jednotka displejová | 3 752 Kč
€ 148.00 |
||
| 3561 WHR26201 |
C00438920
481010478915 |
Control panel DOTYK A++,DC,BK | Na dotaz | Zadat poptávku | |
| 4020 WHR26201 |
C00318190
480132101215 |
Kompresor HXK 95 AA | 4 062 Kč
€ 160.20 |
||
| 4021 WHR26201 |
C00327837
481241848824 |
miska na kondenzat | Na dotaz | Zadat poptávku | |
| 4200 WHR26201 |
C00278650
481212018029 |
Kondenzátor 4uF | Na dotaz | Zadat poptávku | |
| 4400 WHR26201 |
C00316811
480132101184 |
Fan box GW cpl. VELA with switch | Na dotaz | Zadat poptávku | |
| 4801 WHR26201 |
C00320449
481010438899 |
Kabel dveří chladničky | 783 Kč
€ 30.90 |
||
| 4912 WHR26201 |
C00323438
480132101293 |
Kryt filtru | 232 Kč
€ 9.20 |
||
| 4913 WHR26201 |
C00267000
481229088084 |
KRYT PLAST | Na dotaz | Zadat poptávku | |
| 5210 WHR26201 |
C00397251
481010469047 |
Control board CENTAUR L60,DC,noEV A++ | Na dotaz | Zadat poptávku | |
| 5612 WHR26201 |
C00267004
481229088112 |
konektor | 175 Kč
€ 6.90 |
||
| 6140 WHR26201 |
C00323421
480132101216 |
Monoblock ZXF5 | 721 Kč
€ 28.40 |
||
| 6520 WHR26201 |
C00324231
481010413561 |
displej-signalky led | 1 481 Kč
€ 58.40 |
||
| 6550 WHR26201 |
C00319786
480132100727 |
spinac svetla | 251 Kč
€ 9.90 |
||
| 6914 WHR26201 |
C00387098
480132103044 |
Cover sensor print.PROFRESH SENSOR | Na dotaz | Zadat poptávku | |
| 6917 WHR26201 |
C00314452
481231019153 |
senzor | 1 225 Kč
€ 48.30 |
||
| 7400 WHR26201 |
C00323624
480132102076 |
kondenzator | 927 Kč
€ 36.60 |
||
| 7430 WHR26201 |
C00439233
481010490656 |
Cover MF,BK 1.87m, printed | Na dotaz | Zadat poptávku | |
| 7450 WHR26201 |
C00437485
481010427186 |
Evaporator A++ CB09 less wires | Na dotaz | Zadat poptávku | |
| 7461 WHR26201 |
C00319388
480132102069 |
drzak vyparniku levy | 114 Kč
€ 4.50 |
||
| 7462 WHR26201 |
C00320174
480132102068 |
drzak vyparniku pravy | 148 Kč
€ 5.80 |
||
| 7464 WHR26201 |
C00319325
481246098055 |
Podpora koše mrazničky | 191 Kč
€ 7.50 |
||
| 7620 WHR26201 |
C00345845
481248048173 |
Filtr antibakteriální - BAUKNECHT | Na dotaz | Zadat poptávku | |
| 7640 WHR26201 |
C00266743
481948028144 |
Filtr chladničky - patrona | Na dotaz | Zadat poptávku | |
| 7811 WHR26201 |
C00319432
481217158005 |
Odtokový kanál - odmražení | 231 Kč
€ 9.10 |
||
| 7830 WHR26201 |
C00313237
481281719208 |
VALVE, 1/4 BODY+TUBE 100MM | Na dotaz | Zadat poptávku | |
| 9026 WHR26201 |
C00432176
480132101167 |
Trim crisper gun silver,L=440,5mm | Na dotaz | Zadat poptávku | |
| 9040 WHR26201 |
C00433031
480132103308 |
cover hinge GW left | Na dotaz | Zadat poptávku | |
| 9041 WHR26201 |
C00433032
480132103309 |
Cover hinge GW right | Na dotaz | Zadat poptávku | |
| 9042 WHR26201 |
C00377364
481052819701 |
Kryt závěsu levý | 389 Kč
€ 15.30 |
||
| 9043 WHR26201 |
C00448369
481052819691 |
kryt horního závěsu pravý | 336 Kč
€ 13.30 |
||
| 9650 WHR26201 |
C00327078
481222608017 |
zaslepka | 146 Kč
€ 5.80 |
||
| 9651 WHR26201 |
C00323643
480132102378 |
zaslepka | 879 Kč
€ 34.70 |
||
| 9652 WHR26201 |
C00316614
481222608029 |
zaslepka | 298 Kč
€ 11.80 |
||
| 9655 WHR26201 |
C00324304
481010435822 |
Stopper square white | Na dotaz | Zadat poptávku | |
| 999 WHR26201 |
C00346536
488000346536 |
NTC/PTC Chart WHP | Na dotaz | Zadat poptávku | |
| 999 WHR26201 |
C00540622 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
