BAUKNECHT KGEA 3609/1
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | KGEA 3609/1 |
| Kód 12NC: | 855058461010 |
| Značka: | BAUKNECHT |
| Typ produktu: |
Potřebujete servis? Jsme tady pro Vás

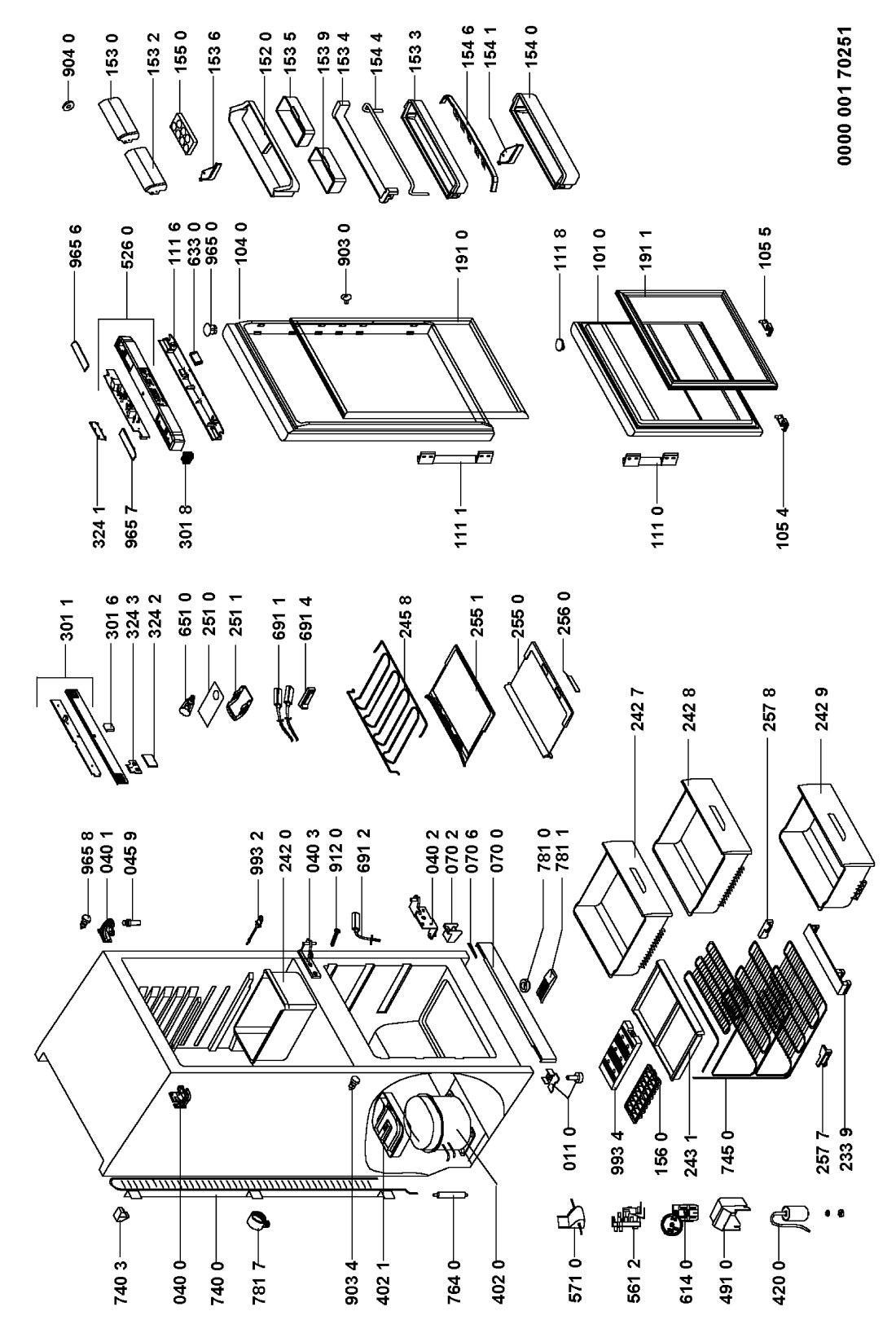

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 011 0 WHR109576 |
C00333244
481950518335 |
Foot | Na dotaz | Zadat poptávku | |
| 040 0 WHR109576 |
C00488945
481241719024 |
Hinge ,left | Na dotaz | Zadat poptávku | |
| 040 1 WHR109576 |
C00488946
481241719025 |
Hinge ,right | Na dotaz | Zadat poptávku | |
| 040 2 WHR109576 |
C00490600
481941719556 |
ZAVES SPODNY N | Na dotaz | Zadat poptávku | |
| 040 3 WHR109576 |
C00488965
481241719136 |
ZAVES STREDNY KOVOVY N | Na dotaz | Zadat poptávku | |
| 045 9 WHR109576 |
C00337808
481953598666 |
Pivot | Na dotaz | Zadat poptávku | |
| 070 0 WHR109576 |
C00337648
481270448014 |
PLINTHE | Na dotaz | Zadat poptávku | |
| 070 2 WHR109576 |
C00332946
481940478921 |
drzak soklu | 151 Kč
€ 6.00 |
||
| 070 6 WHR109576 |
C00338742
481246079085 |
VLOZKA PANELU PLAST | 134 Kč
€ 5.30 |
||
| 101 0 WHR109576 |
C00574754
481241618804 |
Door freezer. | Na dotaz | Zadat poptávku | |
| 104 0 WHR109576 |
C00590484
481241618805 |
Door refriger.. | Na dotaz | Zadat poptávku | |
| 105 4 WHR109576 |
C00497591
481240448789 |
drzak dveri pravy | 145 Kč
€ 5.70 |
||
| 105 5 WHR109576 |
C00341798
481240448791 |
Latch | Na dotaz | Zadat poptávku | |
| 111 0 WHR109576 |
C00487724
481246268073 |
Door handle | Na dotaz | Zadat poptávku | |
| 111 1 WHR109576 |
C00487710
481246248093 |
Door handle | Na dotaz | Zadat poptávku | |
| 111 6 WHR109576 |
C00483431
481245228423 |
Panel control | Na dotaz | Zadat poptávku | |
| 111 8 WHR109576 |
C00336030
481946258325 |
SCREW COVER HANDLE GREY | Na dotaz | Zadat poptávku | |
| 152 0 WHR109576 |
C00589825
481241828475 |
Door shelf printed BK. | Na dotaz | Zadat poptávku | |
| 153 0 WHR109576 |
C00527849
481241828227 |
Flap right | Na dotaz | Zadat poptávku | |
| 153 2 WHR109576 |
C00589816
481241828228 |
Flap left. | Na dotaz | Zadat poptávku | |
| 153 3 WHR109576 |
C00489031
481241828507 |
Door dairy | Na dotaz | Zadat poptávku | |
| 153 4 WHR109576 |
C00329923
481241828474 |
Door dairy support boxes | Na dotaz | Zadat poptávku | |
| 153 5 WHR109576 |
C00590531
481241828351 |
Door,dairy. | Na dotaz | Zadat poptávku | |
| 153 6 WHR109576 |
C00330267
481246049396 |
SEPARATOR WHITE GW | Na dotaz | Zadat poptávku | |
| 153 9 WHR109576 |
C00590532
481241828352 |
Door,dairy. | Na dotaz | Zadat poptávku | |
| 154 0 WHR109576 |
C00590521
481241828231 |
Bottle shelf. | Na dotaz | Zadat poptávku | |
| 154 1 WHR109576 |
C00490057
481246049395 |
Separator | Na dotaz | Zadat poptávku | |
| 154 4 WHR109576 |
C00345111
481241828346 |
Holder bottles | Na dotaz | Zadat poptávku | |
| 154 6 WHR109576 |
C00329922
481241828473 |
drzak | 1 150 Kč
€ 45.40 |
||
| 155 0 WHR109576 |
C00329909
481241828013 |
Holder, eggs (6 pcs.) | Na dotaz | Zadat poptávku | |
| 156 0 WHR109576 |
C00287849
481941878977 |
miska na led | 300 Kč
€ 11.80 |
||
| 191 0 WHR109576 |
C00319927
481246688704 |
tesneni magneticke | 1 929 Kč
€ 76.10 |
||
| 191 1 WHR109576 |
C00312786
481246818065 |
Těsnění magnetické - mraznička | 1 920 Kč
€ 75.70 |
||
| 233 9 WHR109576 |
C00335837
481946699082 |
Support evaporator | Na dotaz | Zadat poptávku | |
| 242 0 WHR109576 |
C00590517
481241828222 |
Drawer. | Na dotaz | Zadat poptávku | |
| 242 7 WHR109576 |
C00590549
481241848621 |
Drawer. | Na dotaz | Zadat poptávku | |
| 242 8 WHR109576 |
C00590550
481241848622 |
Drawer. | Na dotaz | Zadat poptávku | |
| 242 9 WHR109576 |
C00317045
481241848617 |
Drawer | Na dotaz | Zadat poptávku | |
| 243 1 WHR109576 |
C00377690
481241848608 |
Shelf | Na dotaz | Zadat poptávku | |
| 245 8 WHR109576 |
C00340253
481245819151 |
rost lahvi | 1 269 Kč
€ 50.00 |
||
| 251 0 WHR109576 |
C00333062
481946078198 |
Reflector foil | Na dotaz | Zadat poptávku | |
| 251 1 WHR109576 |
C00342451
481946279771 |
kryt svetla | 365 Kč
€ 14.40 |
||
| 255 0 WHR109576 |
C00590638
481245088089 |
Glass shelf. | Na dotaz | Zadat poptávku | |
| 255 1 WHR109576 |
C00345014
481245088158 |
Glass shelf. | Na dotaz | Zadat poptávku | |
| 256 0 WHR109576 |
C00500876
481246049398 |
Air regulator | Na dotaz | Zadat poptávku | |
| 257 7 WHR109576 |
C00314855
481946699151 |
Držák výparníku pravý | 314 Kč
€ 12.40 |
||
| 257 8 WHR109576 |
C00314857
481946699152 |
Držák výparníku levý | 319 Kč
€ 12.60 |
||
| 301 1 WHR109576 |
C00590674
481245228594 |
Control panel. | Na dotaz | Zadat poptávku | |
| 301 6 WHR109576 |
C00333101
481946279953 |
zaslepka | 203 Kč
€ 8.00 |
||
| 301 8 WHR109576 |
C00498324
481246048954 |
Insert | Na dotaz | Zadat poptávku | |
| 324 1 WHR109576 |
C00590702
481246049399 |
Insert. | Na dotaz | Zadat poptávku | |
| 324 2 WHR109576 |
C00499405
481946279767 |
krytka | 122 Kč
€ 4.80 |
||
| 324 3 WHR109576 |
C00336239
481946689233 |
krytka | 134 Kč
€ 5.30 |
||
| 402 0 WHR109576 |
C00320271
481236038651 |
Kompresor | 3 887 Kč
€ 153.30 |
||
| 402 1 WHR109576 |
C00319510
481241878958 |
miska na kondenzat | Na dotaz | Zadat poptávku | |
| 420 0 WHR109576 |
C00326742
481212018008 |
Capacitor 4#F | Na dotaz | Zadat poptávku | |
| 491 0 WHR109576 |
C00327312
481229088075 |
Cover connection block | Na dotaz | Zadat poptávku | |
| 526 0 WHR109576 |
C00499751
481221778139 |
Unit electrical | Na dotaz | Zadat poptávku | |
| 561 2 WHR109576 |
C00319768
481929068432 |
Connect.block | Na dotaz | Zadat poptávku | |
| 571 0 WHR109576 |
C00337286
481928128272 |
ventil elektromagn. | 2 744 Kč
€ 108.20 |
||
| 614 0 WHR109576 |
C00320313
481269028005 |
Monoblock | Na dotaz | Zadat poptávku | |
| 633 0 WHR109576 |
C00620359
481227788001 |
Magnet. | Na dotaz | Zadat poptávku | |
| 651 0 WHR109576 |
C00313818
481913488178 |
Žárovka Tclick E14 15W | Na dotaz | Zadat poptávku | |
| 691 1 WHR109576 |
C00340976
481223708003 |
Feeler | Na dotaz | Zadat poptávku | |
| 691 2 WHR109576 |
C00336529
481223708017 |
senzor teploty | 504 Kč
€ 19.90 |
||
| 691 4 WHR109576 |
C00590425
481221058017 |
DRZIAK SENZORU PLAST ND | Na dotaz | Zadat poptávku | |
| 740 0 WHR109576 |
C00499546
481951148664 |
KONDENZATOR RJ N | Na dotaz | Zadat poptávku | |
| 740 3 WHR109576 |
C00333148
481946699109 |
Spacer | Na dotaz | Zadat poptávku | |
| 745 0 WHR109576 |
C00498579
481251138201 |
Evaporator | Na dotaz | Zadat poptávku | |
| 764 0 WHR109576 |
C00341169
481248028058 |
Dryer | Na dotaz | Zadat poptávku | |
| 781 0 WHR109576 |
C00331410
481245298259 |
Defroster plug | Na dotaz | Zadat poptávku | |
| 781 1 WHR109576 |
C00327909
481241889008 |
kanal odtokovy | 143 Kč
€ 5.60 |
||
| 781 7 WHR109576 |
C00333270
481952648307 |
priruba hadice | 265 Kč
€ 10.50 |
||
| 903 0 WHR109576 |
C00333338
481953518117 |
krytka | 20 Kč
€ 0.80 |
||
| 903 4 WHR109576 |
C00333168
481949248154 |
zaslepka | 100 Kč
€ 3.90 |
||
| 904 0 WHR109576 |
C00333158
481946818282 |
Podložka distanční | 351 Kč
€ 13.80 |
||
| 912 0 WHR109576 |
C00336672
481950218525 |
Screw | Na dotaz | Zadat poptávku | |
| 965 0 WHR109576 |
C00330502
481246228513 |
Stopper | Na dotaz | Zadat poptávku | |
| 965 6 WHR109576 |
C00490094
481246228303 |
Insert | Na dotaz | Zadat poptávku | |
| 965 7 WHR109576 |
C00490095
481246228305 |
Insert | Na dotaz | Zadat poptávku | |
| 965 8 WHR109576 |
C00498323
481246048944 |
Cover | Na dotaz | Zadat poptávku | |
| 993 2 WHR109576 |
C00316841
481969028169 |
Čistič odtokového kanálku chladničky Whirlpool ARG 790/A+, ARG 734/A+, ARG 184701. | 155 Kč
€ 6.10 |
||
| 993 4 WHR109576 |
C00486595
481944278082 |
Ice pack | Na dotaz | Zadat poptávku | |
| 993 9 WHR109576 |
C00574695
481231018762 |
Door revers.Kit ,not shown. | Na dotaz | Zadat poptávku | |
| 999 WHR109576 |
C00789791 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
