BAUKNECHT KGI 3155/2 REFRIGERATORS BK
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | KGI 3155/2 REFRIGERATORS BK |
| Kód 12NC: | 855069101000 |
| Značka: | BAUKNECHT |
| Typ produktu: | Volně stojící lednice s mrazákem |
| Další podobné modely: | 855069101001 |
Potřebujete servis? Jsme tady pro Vás

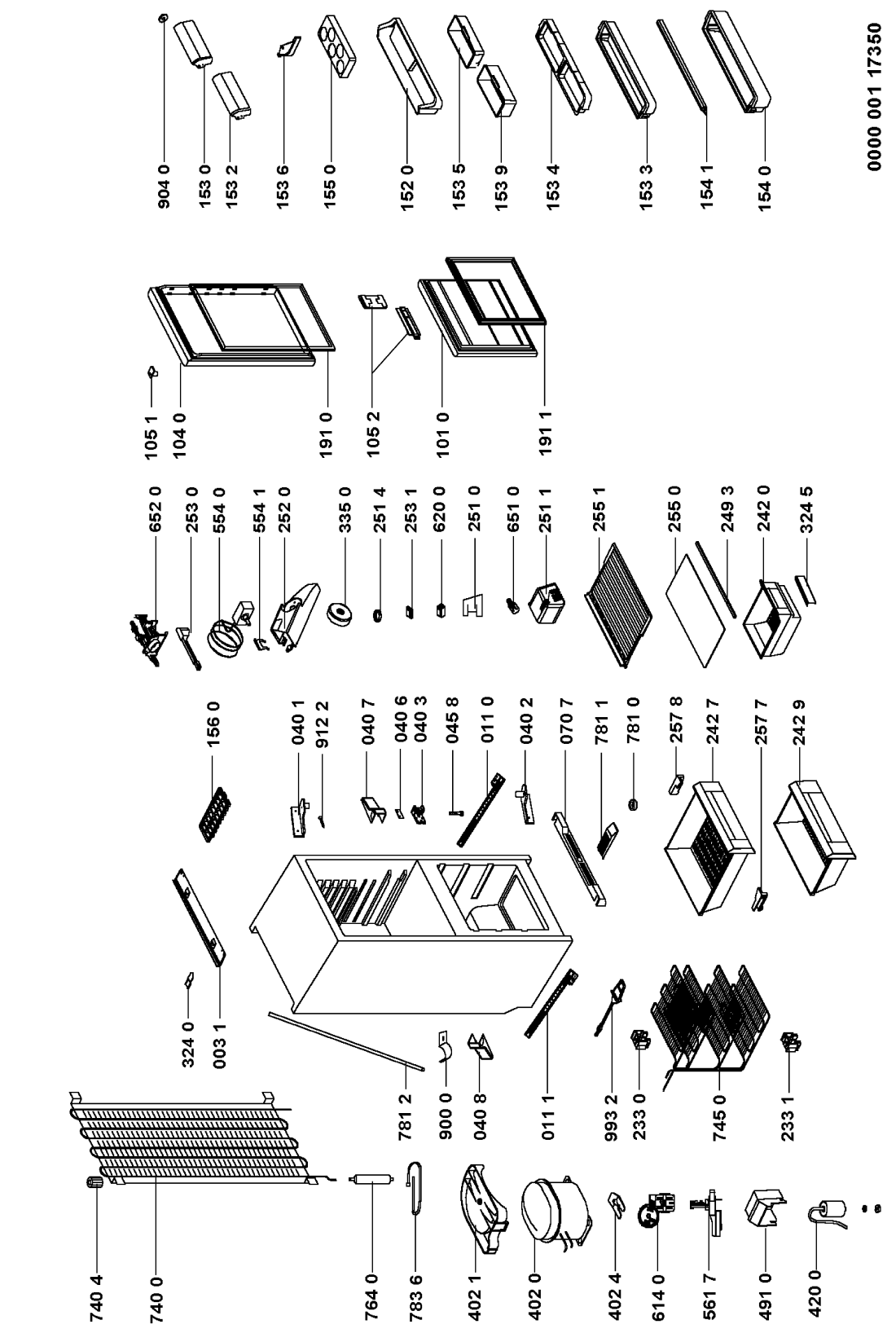

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 003 1 WHR80611 |
C00340983
481246058312 |
Fastener upper | Na dotaz | Zadat poptávku | |
| 011 0 WHR80611 |
C00319497
481246248064 |
noha vest.chladnicky | 554 Kč
€ 21.90 |
||
| 011 1 WHR80611 |
C00319499
481246248065 |
noha vest.chladnicky | 533 Kč
€ 21.00 |
||
| 040 1 WHR80611 |
C00339753
481241718791 |
Hinge upper right | Na dotaz | Zadat poptávku | |
| 040 2 WHR80611 |
C00339796
481241718792 |
Hinge lower right | Na dotaz | Zadat poptávku | |
| 040 3 WHR80611 |
C00311902
481941719541 |
zaves dveri stredni | 989 Kč
€ 39.00 |
||
| 040 6 WHR80611 |
C00332927
481940118819 |
Bracket | Na dotaz | Zadat poptávku | |
| 040 7 WHR80611 |
C00342321
481946258357 |
Cover,hinge | Na dotaz | Zadat poptávku | |
| 040 8 WHR80611 |
C00342322
481946258358 |
Cover,hinge | Na dotaz | Zadat poptávku | |
| 045 8 WHR80611 |
C00311311
481953598188 |
Osa závěsu dveří vestavné lednice Whirlpool | 287 Kč
€ 11.30 |
||
| 070 7 WHR80611 |
C00340263
481244088105 |
sokl | 220 Kč
€ 8.70 |
||
| 101 0 WHR80611 |
C00341331
481944269002 |
Door,freezer | Na dotaz | Zadat poptávku | |
| 104 0 WHR80611 |
C00317535
481944269378 |
Door,refriger. | Na dotaz | Zadat poptávku | |
| 105 1 WHR80611 |
C00312022
481953268815 |
Pouzdro závěsu | 526 Kč
€ 20.80 |
||
| 105 2 WHR80611 |
C00315571
481931039838 |
posouvac-sada | Na dotaz | Zadat poptávku | |
| 152 0 WHR80611 |
C00557459
481941879617 |
Door,dairy upper.. | Na dotaz | Zadat poptávku | |
| 153 0 WHR80611 |
C00557518
481944278319 |
Door,flap right.. | Na dotaz | Zadat poptávku | |
| 153 2 WHR80611 |
C00557519
481944278321 |
Door,flap left.. | Na dotaz | Zadat poptávku | |
| 153 3 WHR80611 |
C00590544
481241848413 |
NAHRADA 481241848662 | Na dotaz | Zadat poptávku | |
| 153 4 WHR80611 |
C00557457
481941879582 |
Door,dairy f. containe.. | Na dotaz | Zadat poptávku | |
| 153 5 WHR80611 |
C00374312
481941879286 |
Tray | Na dotaz | Zadat poptávku | |
| 153 6 WHR80611 |
C00490729
481944278145 |
Separator | Na dotaz | Zadat poptávku | |
| 153 9 WHR80611 |
C00374311
481941879287 |
Tray | Na dotaz | Zadat poptávku | |
| 154 0 WHR80611 |
C00553532
481241848469 |
Bottle shelf WH.. | Na dotaz | Zadat poptávku | |
| 154 1 WHR80611 |
C00374294
481946078835 |
Držák na lahve do dveří lednice Bauknecht | 1 150 Kč
€ 45.40 |
||
| 155 0 WHR80611 |
C00329909
481241828013 |
Holder, eggs (6 pcs.) | Na dotaz | Zadat poptávku | |
| 156 0 WHR80611 |
C00333002
481941848116 |
NÁDOBKA NA LED | Na dotaz | Zadat poptávku | |
| 191 0 WHR80611 |
C00315639
481946818321 |
Těsnění magnetické na chladničku Whirlpool | 1 632 Kč
€ 64.40 |
||
| 191 1 WHR80611 |
C00314263
481946818317 |
Těsnění magnetické dveří mrazáku Whirlpool | 1 390 Kč
€ 54.90 |
||
| 233 0 WHR80611 |
C00317306
481940479432 |
prichytka vyparniku | 782 Kč
€ 30.90 |
||
| 233 1 WHR80611 |
C00316783
481940479552 |
Držák výparníku | 58 Kč
€ 2.30 |
||
| 242 0 WHR80611 |
C00590802
481941879749 |
DRAWER. | Na dotaz | Zadat poptávku | |
| 242 7 WHR80611 |
C00557470
481941879815 |
DRAWER.. | Na dotaz | Zadat poptávku | |
| 242 9 WHR80611 |
C00496426
481941879814 |
DRAWER | Na dotaz | Zadat poptávku | |
| 249 3 WHR80611 |
C00316803
481946089247 |
Trim | Na dotaz | Zadat poptávku | |
| 251 0 WHR80611 |
C00328840
481238028018 |
Reflector | Na dotaz | Zadat poptávku | |
| 251 1 WHR80611 |
C00316270
481244078294 |
stinidlo osvetleni | 849 Kč
€ 33.50 |
||
| 251 4 WHR80611 |
C00330117
481245828001 |
Gasket lamp holder | Na dotaz | Zadat poptávku | |
| 252 0 WHR80611 |
C00342770
481246279652 |
Casing | Na dotaz | Zadat poptávku | |
| 253 0 WHR80611 |
C00344553
481253598053 |
ovladac spinace osv. | 34 Kč
€ 1.30 |
||
| 253 1 WHR80611 |
C00330745
481246279645 |
Cover switch | Na dotaz | Zadat poptávku | |
| 255 0 WHR80611 |
C00314253
481946678415 |
Skleněná police nad zásuvku ovoce/zelenina | 905 Kč
€ 35.70 |
||
| 255 1 WHR80611 |
C00553736
481246678364 |
Shelf plate glass 3.2.. | Na dotaz | Zadat poptávku | |
| 257 7 WHR80611 |
C00314855
481946699151 |
Držák výparníku pravý | 314 Kč
€ 12.40 |
||
| 257 8 WHR80611 |
C00314857
481946699152 |
Držák výparníku levý | 319 Kč
€ 12.60 |
||
| 324 0 WHR80611 |
C00342500
481244028856 |
krytka | 89 Kč
€ 3.50 |
||
| 324 5 WHR80611 |
C00556139
481946078703 |
INSERT.. | Na dotaz | Zadat poptávku | |
| 335 0 WHR80611 |
C00338427
481241358891 |
Knob thermostat | Na dotaz | Zadat poptávku | |
| 402 0 WHR80611 |
C00320283
481236038664 |
Compressor NBT1116Y | Na dotaz | Zadat poptávku | |
| 402 1 WHR80611 |
C00329910
481241828025 |
miska na kondenzat | 152 Kč
€ 6.00 |
||
| 402 4 WHR80611 |
C00333135
481946689405 |
PRICHYTKA | 120 Kč
€ 4.70 |
||
| 420 0 WHR80611 |
C00342794
481212118202 |
Capacitor 4#F - 450V - 6#m dielectric | Na dotaz | Zadat poptávku | |
| 491 0 WHR80611 |
C00342331
481946288145 |
Cover,conn.bloc | Na dotaz | Zadat poptávku | |
| 554 0 WHR80611 |
C00311608
481927129054 |
Thermostat A13-0447-33 | Na dotaz | Zadat poptávku | |
| 554 1 WHR80611 |
C00333185
481949268723 |
pruzina | 472 Kč
€ 18.60 |
||
| 561 7 WHR80611 |
C00480850
481929068431 |
KRABICKA SVORKOVNICE AFG527 N | Na dotaz | Zadat poptávku | |
| 614 0 WHR80611 |
C00320902
481228068327 |
Monoblock ,AD55BU10AD55BU10 | Na dotaz | Zadat poptávku | |
| 620 0 WHR80611 |
C00316468
481927618259 |
tlacitko zlute-topen | 951 Kč
€ 37.50 |
||
| 651 0 WHR80611 |
C00311277
481913488135 |
BULB LED E14 T25 - 15W - 220V | Na dotaz | Zadat poptávku | |
| 652 0 WHR80611 |
C00327118
481225518203 |
objimka zarovky | 930 Kč
€ 36.70 |
||
| 740 0 WHR80611 |
C00343536
481951148644 |
Condenser | Na dotaz | Zadat poptávku | |
| 740 4 WHR80611 |
C00328255
481244048012 |
Holder condenser | Na dotaz | Zadat poptávku | |
| 745 0 WHR80611 |
C00341094
481951138704 |
Evaporator | Na dotaz | Zadat poptávku | |
| 764 0 WHR80611 |
C00266743
481948028144 |
Filtr chladničky - patrona | Na dotaz | Zadat poptávku | |
| 781 0 WHR80611 |
C00342193
481953228145 |
Defroster plug | Na dotaz | Zadat poptávku | |
| 781 1 WHR80611 |
C00342192
481941878208 |
kanal odtokovy | 189 Kč
€ 7.50 |
||
| 781 2 WHR80611 |
C00333294
481953029042 |
Tube | Na dotaz | Zadat poptávku | |
| 783 6 WHR80611 |
C00333293
481953029022 |
COPPER / ALUMINUM JOINT PIPE | Na dotaz | Zadat poptávku | |
| 900 0 WHR80611 |
C00333149
481946699138 |
Clamp hose | Na dotaz | Zadat poptávku | |
| 904 0 WHR80611 |
C00333158
481946818282 |
Podložka distanční | 351 Kč
€ 13.90 |
||
| 912 2 WHR80611 |
C00345735
481250218392 |
Screw M5 X 16 | Na dotaz | Zadat poptávku | |
| 993 2 WHR80611 |
C00316841
481969028169 |
Čistič odtokového kanálku chladničky Whirlpool ARG 790/A+, ARG 734/A+, ARG 184701. | 155 Kč
€ 6.10 |
||
| 993 9 WHR80611 |
C00317280
481931039545 |
balicek montazni | 744 Kč
€ 29.40 |
||
| 999 WHR80611 |
C00711032 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
