| Komerční kód: | KGIF 3200/A REFRIGERATORS BK |
| Kód 12NC: | 855067901000 |
| Značka: | BAUKNECHT |
| Typ produktu: | Vestavné lednice s mrazákem |
| Další podobné modely: | 855067901001 |
Potřebujete servis? Jsme tady pro Vás

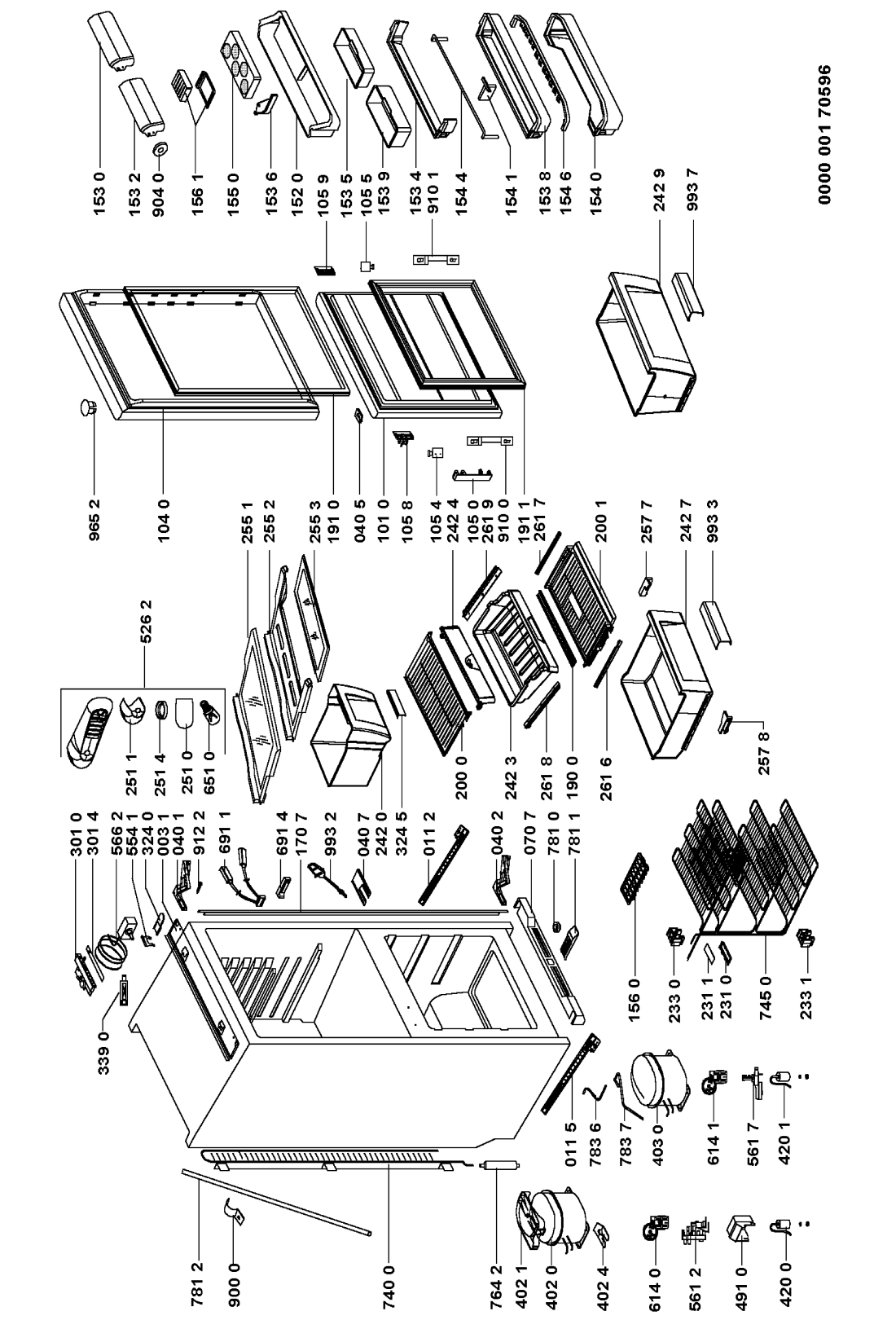

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 003 1 WHR86389 |
C00330365
481246058388 |
Fastener | Na dotaz | Zadat poptávku | |
| 011 2 WHR86389 |
C00319497
481246248064 |
noha vest.chladnicky | 554 Kč
€ 21.90 |
||
| 011 5 WHR86389 |
C00319499
481246248065 |
noha vest.chladnicky | 533 Kč
€ 21.00 |
||
| 040 1 WHR86389 |
C00329735
481241719341 |
Hinge - HETTICH | Na dotaz | Zadat poptávku | |
| 040 2 WHR86389 |
C00329736
481241719342 |
Hinge - HETTICH | Na dotaz | Zadat poptávku | |
| 040 5 WHR86389 |
C00329177
481240478334 |
Spacer Decorplate | Na dotaz | Zadat poptávku | |
| 040 7 WHR86389 |
C00327816
481241848473 |
Záslepka | 278 Kč
€ 11.00 |
||
| 070 7 WHR86389 |
C00328392
481244089054 |
Lišta větrací | 988 Kč
€ 39.00 |
||
| 101 0 WHR86389 |
C00486581
481944269016 |
DVERE MRAZNICKA N | Na dotaz | Zadat poptávku | |
| 104 0 WHR86389 |
C00590587
481244069254 |
Door refriger. | Na dotaz | Zadat poptávku | |
| 105 0 WHR86389 |
C00328127
481244029414 |
Kryt | 415 Kč
€ 16.40 |
||
| 105 4 WHR86389 |
C00332368
481252838057 |
Držák pravý | 427 Kč
€ 16.90 |
||
| 105 5 WHR86389 |
C00332367
481252838056 |
Držák levý | 1 202 Kč
€ 47.50 |
||
| 105 8 WHR86389 |
C00329033
481240448619 |
Držák pravý | 1 048 Kč
€ 41.40 |
||
| 105 9 WHR86389 |
C00329032
481240448618 |
Držák levý | 1 202 Kč
€ 47.50 |
||
| 152 0 WHR86389 |
C00513853
481241828295 |
Door dairy. | Na dotaz | Zadat poptávku | |
| 153 0 WHR86389 |
C00458756
481241829688 |
Flap door dairy | Na dotaz | Zadat poptávku | |
| 153 2 WHR86389 |
C00376389
481241829689 |
Flap door dairy | Na dotaz | Zadat poptávku | |
| 153 4 WHR86389 |
C00318440
481241828136 |
Door,dairy | 1 349 Kč
€ 53.30 |
||
| 153 5 WHR86389 |
C00458743
481241828919 |
Door dairy | Na dotaz | Zadat poptávku | |
| 153 6 WHR86389 |
C00490729
481944278145 |
Separator | Na dotaz | Zadat poptávku | |
| 153 8 WHR86389 |
C00458759
481241829693 |
Door dairy | Na dotaz | Zadat poptávku | |
| 153 9 WHR86389 |
C00458760
481241829694 |
Door dairy | Na dotaz | Zadat poptávku | |
| 154 0 WHR86389 |
C00374074
481241829687 |
Bottle shelf | Na dotaz | Zadat poptávku | |
| 154 1 WHR86389 |
C00458758
481241829692 |
Separator | Na dotaz | Zadat poptávku | |
| 154 4 WHR86389 |
C00458757
481241829691 |
Holder bottles | Na dotaz | Zadat poptávku | |
| 154 6 WHR86389 |
C00374294
481946078835 |
Držák na lahve do dveří lednice Bauknecht | 1 150 Kč
€ 45.40 |
||
| 155 0 WHR86389 |
C00458740
481241828915 |
Rack egg | Na dotaz | Zadat poptávku | |
| 156 0 WHR86389 |
C00333002
481941848116 |
NÁDOBKA NA LED | Na dotaz | Zadat poptávku | |
| 156 1 WHR86389 |
C00585138
481941879108 |
nadoba na maslo | 317 Kč
€ 12.50 |
||
| 170 7 WHR86389 |
C00590711
481246079084 |
TRIM. | Na dotaz | Zadat poptávku | |
| 190 0 WHR86389 |
C00485905
481246058386 |
Trim | Na dotaz | Zadat poptávku | |
| 191 0 WHR86389 |
C00315639
481946818321 |
Těsnění magnetické na chladničku Whirlpool | 1 632 Kč
€ 64.40 |
||
| 191 1 WHR86389 |
C00314263
481946818317 |
Těsnění magnetické dveří mrazáku Whirlpool | 1 390 Kč
€ 54.90 |
||
| 200 0 WHR86389 |
C00377691
481241848625 |
rošt plastovy | 1 261 Kč
€ 49.80 |
||
| 200 1 WHR86389 |
C00380417
481241828479 |
Police komplet-plast | 1 312 Kč
€ 51.80 |
||
| 231 0 WHR86389 |
C00333130
481946689227 |
BRACKET THERMOSTAT SENSOR CPL. | Na dotaz | Zadat poptávku | |
| 231 1 WHR86389 |
C00333126
481946688956 |
PLATE THERMOSTAT SENSOR | Na dotaz | Zadat poptávku | |
| 233 0 WHR86389 |
C00317306
481940479432 |
prichytka vyparniku | 782 Kč
€ 30.90 |
||
| 233 1 WHR86389 |
C00316783
481940479552 |
Držák výparníku | 58 Kč
€ 2.30 |
||
| 242 0 WHR86389 |
C00379577
481241848832 |
Drawer | Na dotaz | Zadat poptávku | |
| 242 3 WHR86389 |
C00380419
481241848623 |
Zásuvka | 2 309 Kč
€ 91.20 |
||
| 242 4 WHR86389 |
C00458890
481241848867 |
Flap front | Na dotaz | Zadat poptávku | |
| 242 7 WHR86389 |
C00458869
481241848829 |
Drawer | Na dotaz | Zadat poptávku | |
| 242 9 WHR86389 |
C00458894
481241848872 |
Drawer | Na dotaz | Zadat poptávku | |
| 251 0 WHR86389 |
C00544998
481244098057 |
Reflector | Na dotaz | Zadat poptávku | |
| 251 1 WHR86389 |
C00485153
481244098058 |
Lid, lamp | Na dotaz | Zadat poptávku | |
| 251 4 WHR86389 |
C00330117
481245828001 |
Gasket lamp holder | Na dotaz | Zadat poptávku | |
| 255 1 WHR86389 |
C00314156
481245088134 |
Rošt skleněný | 776 Kč
€ 30.60 |
||
| 255 2 WHR86389 |
C00331181
481245088035 |
GLASS SHELF | Na dotaz | Zadat poptávku | |
| 255 3 WHR86389 |
C00331191
481245088139 |
Shelf | Na dotaz | Zadat poptávku | |
| 257 7 WHR86389 |
C00314855
481946699151 |
Držák výparníku pravý | 314 Kč
€ 12.40 |
||
| 257 8 WHR86389 |
C00314857
481946699152 |
Držák výparníku levý | 319 Kč
€ 12.60 |
||
| 261 6 WHR86389 |
C00484038
481246238167 |
Slide | Na dotaz | Zadat poptávku | |
| 261 7 WHR86389 |
C00484037
481246238166 |
Pojezd | 490 Kč
€ 19.30 |
||
| 261 8 WHR86389 |
C00377800
481246238169 |
Držák -levý | 465 Kč
€ 18.40 |
||
| 261 9 WHR86389 |
C00377799
481246238168 |
Slide replaced by drawer cpl | Na dotaz | Zadat poptávku | |
| 301 0 WHR86389 |
C00462434
481245299017 |
Control panel | Na dotaz | Zadat poptávku | |
| 301 4 WHR86389 |
C00489763
481245228309 |
Insert control panel | Na dotaz | Zadat poptávku | |
| 324 0 WHR86389 |
C00328126
481244029413 |
zaslepka | 389 Kč
€ 15.40 |
||
| 324 5 WHR86389 |
C00318052
481245298254 |
rukojet | 196 Kč
€ 7.70 |
||
| 339 0 WHR86389 |
C00332731
481253598051 |
tycka termostatu | 277 Kč
€ 10.90 |
||
| 402 0 WHR86389 |
C00328579
481236039014 |
COMPRESSOR EMY26CLC CP 220/50 | Na dotaz | Zadat poptávku | |
| 402 1 WHR86389 |
C00317573
481241818379 |
Miska odkapní | 408 Kč
€ 16.10 |
||
| 402 4 WHR86389 |
C00333135
481946689405 |
PRICHYTKA | 120 Kč
€ 4.70 |
||
| 403 0 WHR86389 |
C00497500
481236038584 |
KOMPRESOR EMT40CLP N | Na dotaz | Zadat poptávku | |
| 420 0 WHR86389 |
C00326742
481212018008 |
Capacitor 4#F | Na dotaz | Zadat poptávku | |
| 420 1 WHR86389 |
C00326746
481212028017 |
Capacitor 2.5 MF | Na dotaz | Zadat poptávku | |
| 491 0 WHR86389 |
C00267000
481229088084 |
KRYT PLAST | Na dotaz | Zadat poptávku | |
| 526 2 WHR86389 |
C00403087
481241870021 |
Thermostathous. | Na dotaz | Zadat poptávku | |
| 554 1 WHR86389 |
C00333185
481949268723 |
pruzina | 472 Kč
€ 18.60 |
||
| 561 2 WHR86389 |
C00319768
481929068432 |
Connect.block | Na dotaz | Zadat poptávku | |
| 561 7 WHR86389 |
C00480850
481929068431 |
KRABICKA SVORKOVNICE AFG527 N | Na dotaz | Zadat poptávku | |
| 566 2 WHR86389 |
C00377551
481228238191 |
Thermostat A04 0359-U1398 | Na dotaz | Zadat poptávku | |
| 614 0 WHR86389 |
C00491178
481228068362 |
Monoblock | Na dotaz | Zadat poptávku | |
| 614 1 WHR86389 |
C00333353
481969028192 |
Monoblock | Na dotaz | Zadat poptávku | |
| 651 0 WHR86389 |
C00311277
481913488135 |
BULB LED E14 T25 - 15W - 220V | Na dotaz | Zadat poptávku | |
| 691 1 WHR86389 |
C00620350
481223708004 |
sonda | 1 396 Kč
€ 55.10 |
||
| 691 4 WHR86389 |
C00328123
481244029395 |
Cover | Na dotaz | Zadat poptávku | |
| 740 0 WHR86389 |
C00486277
481251148266 |
CHLADIC N | Na dotaz | Zadat poptávku | |
| 745 0 WHR86389 |
C00481060
481951138699 |
vyparnik | 2 633 Kč
€ 103.90 |
||
| 764 2 WHR86389 |
C00266743
481948028144 |
Filtr chladničky - patrona | Na dotaz | Zadat poptávku | |
| 781 0 WHR86389 |
C00331410
481245298259 |
Defroster plug | Na dotaz | Zadat poptávku | |
| 781 1 WHR86389 |
C00327909
481241889008 |
kanal odtokovy | 143 Kč
€ 5.60 |
||
| 781 2 WHR86389 |
C00333294
481953029042 |
Tube | Na dotaz | Zadat poptávku | |
| 783 6 WHR86389 |
C00494761
481953048839 |
TRUBICKA ART480 | 435 Kč
€ 17.20 |
||
| 783 7 WHR86389 |
C00494762
481953048841 |
HADICKA ART480 N | Na dotaz | Zadat poptávku | |
| 900 0 WHR86389 |
C00333149
481946699138 |
Clamp hose | Na dotaz | Zadat poptávku | |
| 904 0 WHR86389 |
C00333158
481946818282 |
Podložka distanční | 351 Kč
€ 13.90 |
||
| 910 0 WHR86389 |
C00329031
481240448617 |
Držák pravý | 129 Kč
€ 5.10 |
||
| 910 1 WHR86389 |
C00329034
481240448622 |
Držák levý | 226 Kč
€ 8.90 |
||
| 912 2 WHR86389 |
C00345735
481250218392 |
Screw M5 X 16 | Na dotaz | Zadat poptávku | |
| 965 2 WHR86389 |
C00545039
481246228509 |
Stopper. | Na dotaz | Zadat poptávku | |
| 993 2 WHR86389 |
C00316841
481969028169 |
Čistič odtokového kanálku chladničky Whirlpool ARG 790/A+, ARG 734/A+, ARG 184701. | 155 Kč
€ 6.10 |
||
| 993 3 WHR86389 |
C00319243
481246049729 |
Rukojeť koše | 242 Kč
€ 9.60 |
||
| 993 7 WHR86389 |
C00330313
481246049731 |
rukojet kose | 208 Kč
€ 8.20 |
||
| 993 9 WHR86389 |
C00456994
481231028279 |
Door revers.Kit | Na dotaz | Zadat poptávku | |
| 999 WHR86389 |
C00723932 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
