BAUKNECHT KGN 5282 A3+ FRESH PT
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | KGN 5282 A3+ FRESH PT |
| Kód 12NC: | 855025211160 |
| Značka: | BAUKNECHT |
| Typ produktu: | Volně stojící lednice s mrazákem |
| Další podobné modely: | 855025211161, 855025211162, 855025211163 |
Potřebujete servis? Jsme tady pro Vás

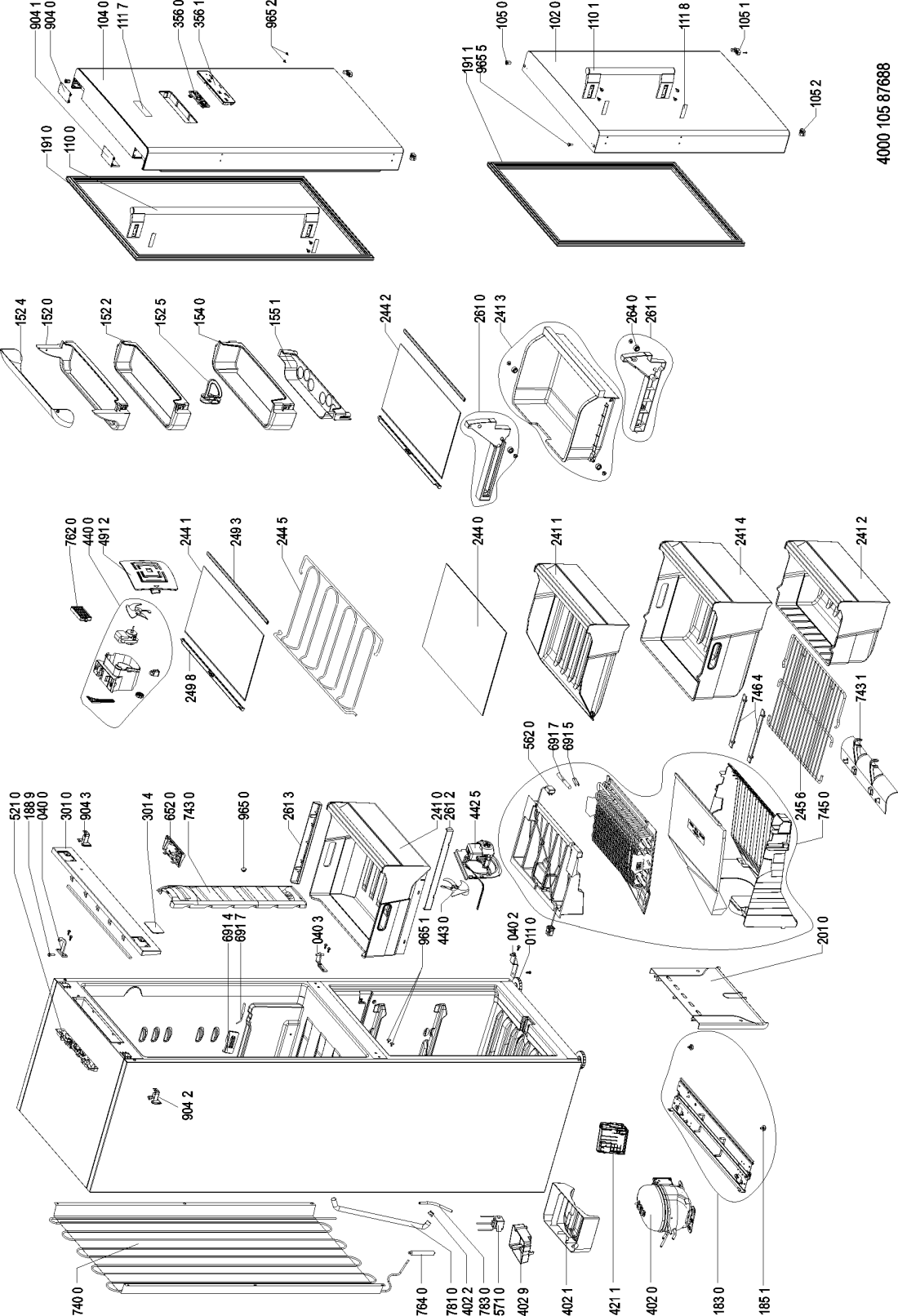

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0110 WHR26253 |
C00330455
481246218263 |
noha lednice | 138 Kč
€ 5.40 |
||
| 0400 WHR26253 |
C00329779
481241719517 |
Závěs horní | 934 Kč
€ 36.90 |
||
| 0402 WHR26253 |
C00329780
481241719518 |
Závěs spodní | 976 Kč
€ 38.50 |
||
| 0403 WHR26253 |
C00319920
481241719519 |
Závěs dveří střední | 976 Kč
€ 38.50 |
||
| 1020 WHR26253 |
C00437976
481010443968 |
Door freezer SIX 778,5x585 mm | Na dotaz | Zadat poptávku | |
| 1040 WHR26253 |
C00437979
481010443977 |
Dveře lednice | Na dotaz | Zadat poptávku | |
| 1050 WHR26253 |
C00314330
481253288056 |
Pouzdro závěsu - kulaté | Na dotaz | Zadat poptávku | |
| 1051 WHR26253 |
C00317176
481253288104 |
Pouzdro závěsu - pravé | 654 Kč
€ 25.80 |
||
| 1052 WHR26253 |
C00320239
481253288105 |
Sleeve grey left | Na dotaz | Zadat poptávku | |
| 1100 WHR26253 |
C00377165
481010439412 |
HANDLE UNIVERSAL SILVER/ALU, 749 MM | Na dotaz | Zadat poptávku | |
| 1101 WHR26253 |
C00387093
481010439414 |
Handle un.silver/ALU, 350 mm | Na dotaz | Zadat poptávku | |
| 1117 WHR26253 |
C00330204
481245918279 |
Nameplate BAUKNECHT | Na dotaz | Zadat poptávku | |
| 1118 WHR26253 |
C00387094
481010438420 |
krytka | 313 Kč
€ 12.40 |
||
| 1520 WHR26253 |
C00432327
480132101588 |
Door dairy upper,printed BK | Na dotaz | Zadat poptávku | |
| 1522 WHR26253 |
C00431911
480132100537 |
Door dairy transp.grey printed | Na dotaz | Zadat poptávku | |
| 1524 WHR26253 |
C00323303
480132100543 |
Víko police | 1 232 Kč
€ 48.60 |
||
| 1525 WHR26253 |
C00431912
480132100538 |
Separator 00137 transparent grey | Na dotaz | Zadat poptávku | |
| 1540 WHR26253 |
C00376923
480132100541 |
Bottle shelf transp.grey printed | Na dotaz | Zadat poptávku | |
| 1551 WHR26253 |
C00323386
480132101126 |
police | 918 Kč
€ 36.20 |
||
| 1830 WHR26253 |
C00324400
481010461413 |
CROSSBAR COMPRESSOR + FEET | Na dotaz | Zadat poptávku | |
| 1851 WHR26253 |
C00522120
481010443535 |
Noha (zadní) chladničky Whirlpool | 158 Kč
€ 6.20 |
||
| 1889 WHR26253 |
C00324639
481010493638 |
Čep závěsu | 108 Kč
€ 4.30 |
||
| 1910 WHR26253 |
C00311563
481246668941 |
Magnetické těsnění dveří chladničky Whirlpool | 1 569 Kč
€ 61.90 |
||
| 1911 WHR26253 |
C00311915
481246668942 |
Magnetické těsnění dveří mrazáku chladničky Whirlpool | 1 697 Kč
€ 67.00 |
||
| 2010 WHR26253 |
C00323522
480132101591 |
kryt | 341 Kč
€ 13.50 |
||
| 2410 WHR26253 |
C00344971
481010569993 |
zásuvka na zeleninu | 1 453 Kč
€ 57.40 |
||
| 2411 WHR26253 |
C00432344
480132101644 |
Drawer upper,transparent grey | Na dotaz | Zadat poptávku | |
| 2412 WHR26253 |
C00323396
480132101145 |
Koš mrazničky - spodní | 2 755 Kč
€ 108.80 |
||
| 2413 WHR26253 |
C00432928
480132103045 |
Drawer FFC,grey transp. FRESH FOOD | Na dotaz | Zadat poptávku | |
| 2414 WHR26253 |
C00441891
481010569998 |
Drawer central, transp.grey | Na dotaz | Zadat poptávku | |
| 2440 WHR26253 |
C00432170
480132101131 |
GLASS SHELF CRISPER+DARK SILVER PROFILE | Na dotaz | Zadat poptávku | |
| 2441 WHR26253 |
C00432171
480132101132 |
Glass shelf +GW & dark silv.profiles | Na dotaz | Zadat poptávku | |
| 2442 WHR26253 |
C00432228
480132101317 |
Glass shelf FFC+GW & dark SI profiles | Na dotaz | Zadat poptávku | |
| 2445 WHR26253 |
C00324729
481010508083 |
Rošt lahví drátěný | 1 215 Kč
€ 48.00 |
||
| 2456 WHR26253 |
C00324813
481010520927 |
Shelf wire | Na dotaz | Zadat poptávku | |
| 2493 WHR26253 |
C00432174
480132101165 |
Trim Shelf front dark silver | Na dotaz | Zadat poptávku | |
| 2498 WHR26253 |
C00326513
481052822691 |
Krycí lišta skleněné police chladničky - zadní | 279 Kč
€ 11.00 |
||
| 2610 WHR26253 |
C00432352
480132101655 |
Slide GW right FFC drawer | Na dotaz | Zadat poptávku | |
| 2611 WHR26253 |
C00432353
480132101656 |
Slide GW left FFC drawer | Na dotaz | Zadat poptávku | |
| 2612 WHR26253 |
C00323442
480132101314 |
Kolejnice koše levá | 400 Kč
€ 15.80 |
||
| 2613 WHR26253 |
C00323443
480132101315 |
kolejnice zasuvky | 640 Kč
€ 25.30 |
||
| 2640 WHR26253 |
C00332376
481252878073 |
kolecko zasuvky | 155 Kč
€ 6.10 |
||
| 3010 WHR26253 |
C00438161
481010453070 |
FRONT PANEL GREY | Na dotaz | Zadat poptávku | |
| 3014 WHR26253 |
C00316198
481244029587 |
kryt | 163 Kč
€ 6.40 |
||
| 3560 WHR26253 |
C00315283
481010426518 |
User board DOTYK touch control | Na dotaz | Zadat poptávku | |
| 3561 WHR26253 |
C00387096
481010479078 |
Control panel BK, A+++ HYB | Na dotaz | Zadat poptávku | |
| 4020 WHR26253 |
C00438869
481010476649 |
COMPRESSOR VEMC7C TL CP | Na dotaz | Zadat poptávku | |
| 4021 WHR26253 |
C00323231
480132100281 |
miska na kondenzat | 106 Kč
€ 4.20 |
||
| 4022 WHR26253 |
C00318606
480132101608 |
ventil | Na dotaz | Zadat poptávku | |
| 4029 WHR26253 |
C00323623
480132102058 |
Tray drip | Na dotaz | Zadat poptávku | |
| 4211 WHR26253 |
C00438912
481010478411 |
Electronic box VEMC 7 C OB DI | Na dotaz | Zadat poptávku | |
| 4400 WHR26253 |
C00316811
480132101184 |
Fan box GW cpl. VELA with switch | Na dotaz | Zadat poptávku | |
| 4425 WHR26253 |
C00312874
480132101615 |
Motor ventilatoru chladničky | 2 984 Kč
€ 117.80 |
||
| 4430 WHR26253 |
C00312783
481951538001 |
vrtule ventilatoru | 480 Kč
€ 18.90 |
||
| 4912 WHR26253 |
C00323438
480132101293 |
Kryt filtru | 232 Kč
€ 9.20 |
||
| 5210 WHR26253 |
C00397493
481010555567 |
Control board CENTAUR L60 VBL,HY,EV A+++ | Na dotaz | Zadat poptávku | |
| 5620 WHR26253 |
C00314313
481010371493 |
Thermofuse+bimetal LCNF with plug 9 pins | Na dotaz | Zadat poptávku | |
| 5710 WHR26253 |
C00324378
481010455651 |
ventil | 2 536 Kč
€ 100.10 |
||
| 6520 WHR26253 |
C00315544
481010555027 |
led osvetleni | 1 354 Kč
€ 53.50 |
||
| 6914 WHR26253 |
C00387098
480132103044 |
Cover sensor print.PROFRESH SENSOR | Na dotaz | Zadat poptávku | |
| 6915 WHR26253 |
C00323525
480132101611 |
kryt senzoru | 199 Kč
€ 7.90 |
||
| 6917 WHR26253 |
C00314452
481231019153 |
senzor | 1 225 Kč
€ 48.40 |
||
| 7400 WHR26253 |
C00326497
481052818041 |
CONDENSER | Na dotaz | Zadat poptávku | |
| 7430 WHR26253 |
C00387099
481010551495 |
Cover MF GREEN INTEL. | Na dotaz | Zadat poptávku | |
| 7431 WHR26253 |
C00317574
481052822111 |
Kryt do mrazničky | Na dotaz | Zadat poptávku | |
| 7450 WHR26253 |
C00325060
481010534111 |
Evaporator kit N-LCNF+fuse+heater | Na dotaz | Zadat poptávku | |
| 7464 WHR26253 |
C00319325
481246098055 |
Podpora koše mrazničky | 191 Kč
€ 7.50 |
||
| 7620 WHR26253 |
C00345845
481248048173 |
Filtr antibakteriální - BAUKNECHT | Na dotaz | Zadat poptávku | |
| 7640 WHR26253 |
C00326487
481052346842 |
FILTRDEHYDRÁTOR | Na dotaz | Zadat poptávku | |
| 7810 WHR26253 |
C00323524
480132101595 |
CONDENSATE DRAIN TUBE | Na dotaz | Zadat poptávku | |
| 7830 WHR26253 |
C00313237
481281719208 |
VALVE, 1/4 BODY+TUBE 100MM | Na dotaz | Zadat poptávku | |
| 9040 WHR26253 |
C00325159
481010550051 |
Cover grey, short H=10 mm. | Na dotaz | Zadat poptávku | |
| 9041 WHR26253 |
C00325160
481010550052 |
Cover grey, long H=41 mm | Na dotaz | Zadat poptávku | |
| 9042 WHR26253 |
C00325150
481010548126 |
kryt závěsu levý | 468 Kč
€ 18.50 |
||
| 9043 WHR26253 |
C00325149
481010548125 |
Cover hinge grey right | Na dotaz | Zadat poptávku | |
| 9650 WHR26253 |
C00324304
481010435822 |
Stopper square white | Na dotaz | Zadat poptávku | |
| 9651 WHR26253 |
C00323643
480132102378 |
zaslepka | 879 Kč
€ 34.70 |
||
| 9652 WHR26253 |
C00324539
481010473999 |
Stopper dark grey | Na dotaz | Zadat poptávku | |
| 9655 WHR26253 |
C00325161
481010550057 |
STOPPER SQUARE GREY | Na dotaz | Zadat poptávku | |
| 999 WHR26253 |
C00346536
488000346536 |
NTC/PTC Chart WHP | Na dotaz | Zadat poptávku | |
| 999 WHR26253 |
C00541771 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
