BAUKNECHT KGN360 PROFRESH A++ IN
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | KGN360 PROFRESH A++ IN |
| Kód 12NC: | 855024301240 |
| I.C. kód: | 855024301242 |
| Značka: | BAUKNECHT |
| Typ produktu: | Volně stojící lednice s mrazákem |
| Další podobné modely: | 855024301240 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

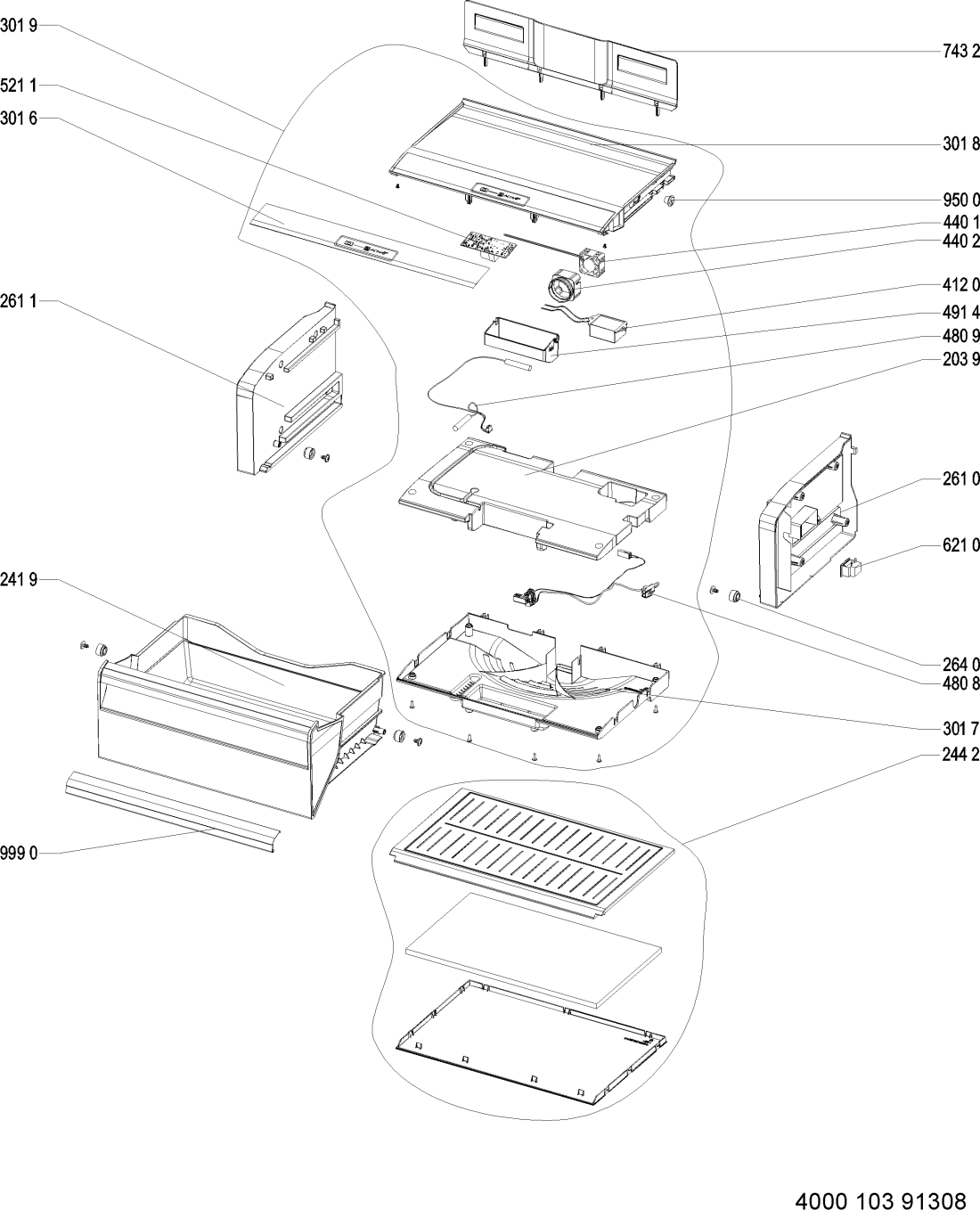

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0110 WHR10479 |
C00330455
481246218263 |
noha lednice | 138 Kč
€ 5.40 |
||
| 0400 WHR10479 |
C00329779
481241719517 |
Závěs horní | 934 Kč
€ 36.90 |
||
| 0402 WHR10479 |
C00329780
481241719518 |
Závěs spodní | 976 Kč
€ 38.50 |
||
| 0403 WHR10479 |
C00319920
481241719519 |
Závěs dveří střední | 976 Kč
€ 38.50 |
||
| 0407 WHR10479 |
C00431859
480132100392 |
Cover hinge IO right | Na dotaz | Zadat poptávku | |
| 0408 WHR10479 |
C00431918
480132100547 |
Cover hinge IO left | Na dotaz | Zadat poptávku | |
| 0452 WHR10479 |
C00316600
481222608025 |
cep | 413 Kč
€ 16.30 |
||
| 1010 WHR10479 |
C00458438
481241610829 |
DVEŘE MRAZNIČKY IX | Na dotaz | Zadat poptávku | |
| 1040 WHR10479 |
C00377137
481010402115 |
Door refriger. | Na dotaz | Zadat poptávku | |
| 1050 WHR10479 |
C00314330
481253288056 |
Pouzdro závěsu - kulaté | Na dotaz | Zadat poptávku | |
| 1051 WHR10479 |
C00317176
481253288104 |
Pouzdro závěsu - pravé | 654 Kč
€ 25.80 |
||
| 1052 WHR10479 |
C00320239
481253288105 |
Sleeve grey left | Na dotaz | Zadat poptávku | |
| 1100 WHR10479 |
C00377842
481249848061 |
Door handle AL+IO fridge cpl. | Na dotaz | Zadat poptávku | |
| 1101 WHR10479 |
C00377650
481241610832 |
Door handle AL+IO freezer cpl. | Na dotaz | Zadat poptávku | |
| 1117 WHR10479 |
C00330204
481245918279 |
Nameplate BAUKNECHT | Na dotaz | Zadat poptávku | |
| 1520 WHR10479 |
C00458717
481241820177 |
Door dairy upper printed BAUKNECHT | Na dotaz | Zadat poptávku | |
| 1522 WHR10479 |
C00432862
480132102953 |
Door dairy printed | Na dotaz | Zadat poptávku | |
| 1524 WHR10479 |
C00458719
481241820179 |
Flap left | Na dotaz | Zadat poptávku | |
| 1530 WHR10479 |
C00458720
481241820181 |
Flap right | Na dotaz | Zadat poptávku | |
| 1534 WHR10479 |
C00459013
481241889108 |
Bottle holder mega balcony | Na dotaz | Zadat poptávku | |
| 1536 WHR10479 |
C00459014
481241889109 |
Separator upper door dairy | Na dotaz | Zadat poptávku | |
| 1538 WHR10479 |
C00459015
481241889111 |
Door dairy freezer,pizza,printed | Na dotaz | Zadat poptávku | |
| 1540 WHR10479 |
C00458721
481241820182 |
Door dairy lower,printed | Na dotaz | Zadat poptávku | |
| 1545 WHR10479 |
C00332366
481252648285 |
police | 384 Kč
€ 15.20 |
||
| 1549 WHR10479 |
C00458722
481241820183 |
Bottle shelf mega balcony printed | Na dotaz | Zadat poptávku | |
| 1560 WHR10479 |
C00322568
480132103428 |
Miska na led | Na dotaz | Zadat poptávku | |
| 1830 WHR10479 |
C00324400
481010461413 |
CROSSBAR COMPRESSOR + FEET | Na dotaz | Zadat poptávku | |
| 1851 WHR10479 |
C00522120
481010443535 |
Noha (zadní) chladničky Whirlpool | 158 Kč
€ 6.20 |
||
| 1910 WHR10479 |
C00319160
480132101539 |
Těsnění magnetické - chladnička | Na dotaz | Zadat poptávku | |
| 1911 WHR10479 |
C00311915
481246668942 |
Magnetické těsnění dveří mrazáku chladničky Whirlpool | 1 697 Kč
€ 67.00 |
||
| 2010 WHR10479 |
C00323522
480132101591 |
kryt | 341 Kč
€ 13.50 |
||
| 2039 WHR10479 |
C00326506
481052822451 |
Insulation 0 degree comp. | Na dotaz | Zadat poptávku | |
| 2410 WHR10479 |
C00376931
480132101149 |
Drawer central,transparent grey | Na dotaz | Zadat poptávku | |
| 2411 WHR10479 |
C00432344
480132101644 |
Drawer upper,transparent grey | Na dotaz | Zadat poptávku | |
| 2412 WHR10479 |
C00323396
480132101145 |
Koš mrazničky - spodní | 2 755 Kč
€ 108.80 |
||
| 2418 WHR10479 |
C00432863
480132102954 |
Separator crisper,transparent grey | Na dotaz | Zadat poptávku | |
| 2419 WHR10479 |
C00448376
481052822361 |
Zásuvka nulová | 919 Kč
€ 36.30 |
||
| 2420 WHR10479 |
C00432167
480132101118 |
Crisper transparent grey+sticker | Na dotaz | Zadat poptávku | |
| 2442 WHR10479 |
C00326507
481052822471 |
Cover lower assy 0 degree comp. | Na dotaz | Zadat poptávku | |
| 2456 WHR10479 |
C00323526
480132101613 |
police | 380 Kč
€ 15.00 |
||
| 2493 WHR10479 |
C00432174
480132101165 |
Trim Shelf front dark silver | Na dotaz | Zadat poptávku | |
| 2498 WHR10479 |
C00320108
480132101162 |
Trim Shelf rear GW | Na dotaz | Zadat poptávku | |
| 2550 WHR10479 |
C00432170
480132101131 |
GLASS SHELF CRISPER+DARK SILVER PROFILE | Na dotaz | Zadat poptávku | |
| 2551 WHR10479 |
C00432227
480132101316 |
Glass shelf +GW & dark silv.profiles | Na dotaz | Zadat poptávku | |
| 2610 WHR10479 |
C00326510
481052822511 |
Slide right, 0 degree comp | Na dotaz | Zadat poptávku | |
| 2611 WHR10479 |
C00326503
481052822421 |
Slide left, 0 degree comp. | Na dotaz | Zadat poptávku | |
| 2612 WHR10479 |
C00323442
480132101314 |
Kolejnice koše levá | 400 Kč
€ 15.80 |
||
| 2613 WHR10479 |
C00323443
480132101315 |
kolejnice zasuvky | 640 Kč
€ 25.30 |
||
| 2640 WHR10479 |
C00332376
481252878073 |
kolecko zasuvky | 155 Kč
€ 6.10 |
||
| 3010 WHR10479 |
C00436078
481010396686 |
Control panel printed A++ | Na dotaz | Zadat poptávku | |
| 3014 WHR10479 |
C00328165
481244029585 |
Cover IO control panel | Na dotaz | Zadat poptávku | |
| 3016 WHR10479 |
C00326509
481052822491 |
Insert drawer printed 0 degree | Na dotaz | Zadat poptávku | |
| 3017 WHR10479 |
C00326508
481052822481 |
Cover lower multiflow 0 degree | Na dotaz | Zadat poptávku | |
| 3018 WHR10479 |
C00326504
481052822431 |
PLATE UPPER FOR COVER 0 DEGREE | Na dotaz | Zadat poptávku | |
| 3019 WHR10479 |
C00326511
481052822651 |
kryt | 4 133 Kč
€ 163.20 |
||
| 3230 WHR10479 |
C00432175
480132101166 |
Sticker HIGIENE3 FRESH BOX | Na dotaz | Zadat poptávku | |
| 3560 WHR10479 |
C00323717
480132102888 |
User board LCD PEGASUS 2010 | Na dotaz | Zadat poptávku | |
| 3561 WHR10479 |
C00432220
480132101305 |
FRAME COVER IO PEGASUS 09 | Na dotaz | Zadat poptávku | |
| 3562 WHR10479 |
C00376950
480132102955 |
Keyboard BK LCD 2010 printed | Na dotaz | Zadat poptávku | |
| 4020 WHR10479 |
C00432558
480132102296 |
Kompresor VEMY7C chladničky Whirlpool, Bauknecht | 3 208 Kč
€ 126.60 |
||
| 4021 WHR10479 |
C00323231
480132100281 |
miska na kondenzat | 106 Kč
€ 4.20 |
||
| 4022 WHR10479 |
C00318606
480132101608 |
ventil | Na dotaz | Zadat poptávku | |
| 4029 WHR10479 |
C00323623
480132102058 |
Tray drip | Na dotaz | Zadat poptávku | |
| 4120 WHR10479 |
C00323521
480132101566 |
transformátor 230 V AC/ 24 V DC | 1 434 Kč
€ 56.60 |
||
| 4211 WHR10479 |
C00376935
480132102297 |
modul | 8 257 Kč
€ 326.00 |
||
| 4400 WHR10479 |
C00316811
480132101184 |
Fan box GW cpl. VELA with switch | Na dotaz | Zadat poptávku | |
| 4401 WHR10479 |
C00324036
481010379203 |
Ventilátor chladničky (24 V DC) | 1 049 Kč
€ 41.40 |
||
| 4402 WHR10479 |
C00326409
481050263152 |
FAN BOX | Na dotaz | Zadat poptávku | |
| 4425 WHR10479 |
C00326500
481052822191 |
ventilator mrazaku | 2 586 Kč
€ 102.10 |
||
| 4430 WHR10479 |
C00317570
481052820911 |
FAN BLADE D100 | Na dotaz | Zadat poptávku | |
| 4800 WHR10479 |
C00323257
480132100355 |
kabelaz panel/lcd | 963 Kč
€ 38.00 |
||
| 4808 WHR10479 |
C00323953
481010354163 |
Cable harness | Na dotaz | Zadat poptávku | |
| 4809 WHR10479 |
C00323952
481010352898 |
Cable harness + NTC sensors | Na dotaz | Zadat poptávku | |
| 4912 WHR10479 |
C00323438
480132101293 |
Kryt filtru | 232 Kč
€ 9.20 |
||
| 4914 WHR10479 |
C00326505
481052822441 |
Cover control board | Na dotaz | Zadat poptávku | |
| 5210 WHR10479 |
C00376951
480132103019 |
modul chl. | Na dotaz | Zadat poptávku | |
| 5211 WHR10479 |
C00324328
481010441220 |
jednotka | 3 752 Kč
€ 148.10 |
||
| 5620 WHR10479 |
C00314313
481010371493 |
Thermofuse+bimetal LCNF with plug 9 pins | Na dotaz | Zadat poptávku | |
| 5720 WHR10479 |
C00317869
481282128041 |
ventil | 1 846 Kč
€ 72.90 |
||
| 6160 WHR10479 |
C00345018
481010410188 |
senzor | 1 351 Kč
€ 53.30 |
||
| 6210 WHR10479 |
C00323930
481010344804 |
Switch, mechanical 0°C | Na dotaz | Zadat poptávku | |
| 6520 WHR10479 |
C00323973
481010361416 |
LeD lighting assy | Na dotaz | Zadat poptávku | |
| 6914 WHR10479 |
C00387098
480132103044 |
Cover sensor print.PROFRESH SENSOR | Na dotaz | Zadat poptávku | |
| 6917 WHR10479 |
C00314452
481231019153 |
senzor | 1 225 Kč
€ 48.40 |
||
| 7111 WHR10479 |
C00459016
481241889112 |
Separator cans | Na dotaz | Zadat poptávku | |
| 7400 WHR10479 |
C00326497
481052818041 |
CONDENSER | Na dotaz | Zadat poptávku | |
| 7430 WHR10479 |
C00435934
481010391672 |
Cover multiflow printed | Na dotaz | Zadat poptávku | |
| 7431 WHR10479 |
C00317574
481052822111 |
Kryt do mrazničky | Na dotaz | Zadat poptávku | |
| 7432 WHR10479 |
C00326512
481052822681 |
Cover rear 0 degree comp. | Na dotaz | Zadat poptávku | |
| 7450 WHR10479 |
C00319350
481010369508 |
Evaporator kit LCNF+bimetal+fuse+heater | Na dotaz | Zadat poptávku | |
| 7464 WHR10479 |
C00319325
481246098055 |
Podpora koše mrazničky | 191 Kč
€ 7.50 |
||
| 7620 WHR10479 |
C00345845
481248048173 |
Filtr antibakteriální - BAUKNECHT | Na dotaz | Zadat poptávku | |
| 7640 WHR10479 |
C00326487
481052346842 |
FILTRDEHYDRÁTOR | Na dotaz | Zadat poptávku | |
| 7810 WHR10479 |
C00323524
480132101595 |
CONDENSATE DRAIN TUBE | Na dotaz | Zadat poptávku | |
| 7830 WHR10479 |
C00313237
481281719208 |
VALVE, 1/4 BODY+TUBE 100MM | Na dotaz | Zadat poptávku | |
| 9026 WHR10479 |
C00432176
480132101167 |
Trim crisper gun silver,L=440,5mm | Na dotaz | Zadat poptávku | |
| 9027 WHR10479 |
C00432221
480132101306 |
Trim crisper gun silver,L=423mm | Na dotaz | Zadat poptávku | |
| 9500 WHR10479 |
C00326514
481053021082 |
Rubber | Na dotaz | Zadat poptávku | |
| 9650 WHR10479 |
C00327090
481222608055 |
zaslepka | 266 Kč
€ 10.50 |
||
| 9651 WHR10479 |
C00323643
480132102378 |
zaslepka | 879 Kč
€ 34.70 |
||
| 9652 WHR10479 |
C00324539
481010473999 |
Stopper dark grey | Na dotaz | Zadat poptávku | |
| 9654 WHR10479 |
C00327078
481222608017 |
zaslepka | 146 Kč
€ 5.80 |
||
| 9658 WHR10479 |
C00376913
480132100169 |
Cover ,hinge right side silver | Na dotaz | Zadat poptávku | |
| 9659 WHR10479 |
C00431764
480132100171 |
Cover ,hinge left side silver | Na dotaz | Zadat poptávku | |
| 9930 WHR10479 |
C00345064
481241889113 |
Door dairy freezer,ice cream,printed | Na dotaz | Zadat poptávku | |
| 9934 WHR10479 |
C00328318
481244079083 |
Ice pack | 674 Kč
€ 26.60 |
||
| 9936 WHR10479 |
C00323078
480131100784 |
Rubber hinge cover Grey right | Na dotaz | Zadat poptávku | |
| 9937 WHR10479 |
C00323079
480131100785 |
zaslepka | 373 Kč
€ 14.70 |
||
| 999 WHR10479 |
C00346098 | NTC/PTC Chart WHP | Na dotaz | Zadat poptávku | |
| 999 WHR10479 |
C00347271 | Testprogram WHP | Na dotaz | Zadat poptávku | |
| 999 WHR10479 |
C00346891 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
| 9990 WHR10479 |
C00377224
481010511783 |
Insert drawer 0 degree comp.BK | Na dotaz | Zadat poptávku | |
