BAUKNECHT KGNA 305 WS RE REFRIGERATORS BK
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | KGNA 305 WS RE REFRIGERATORS BK |
| Kód 12NC: | 855020916200 |
| I.C. kód: | 855020916204 |
| Značka: | BAUKNECHT |
| Typ produktu: | Volně stojící lednice s mrazákem |
| Další podobné modely: | 855020916206, 855020916200, 855020916205 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

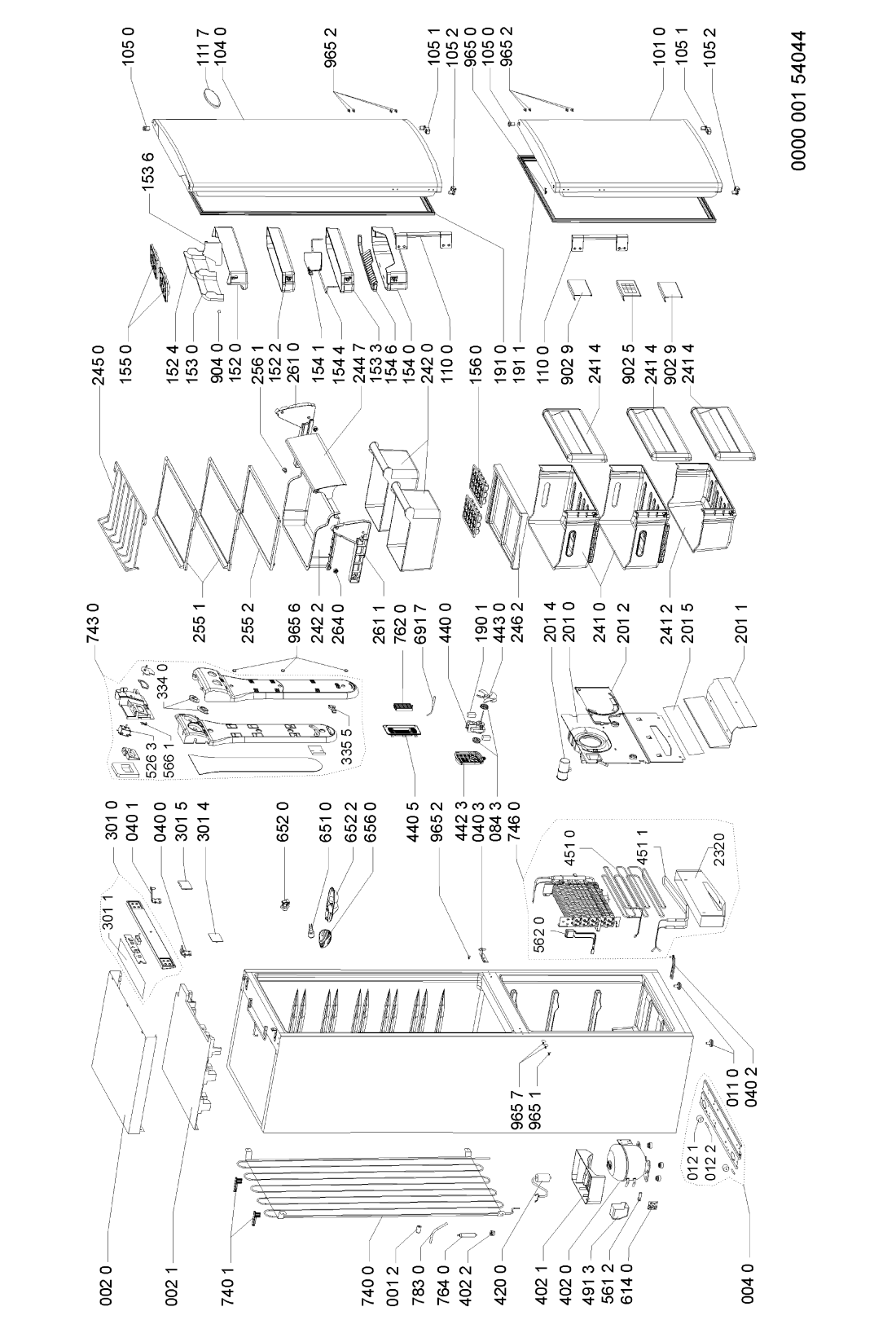

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 2 WHR80474 |
C00498593
481252518014 |
Guide | Na dotaz | Zadat poptávku | |
| 002 0 WHR80474 |
C00330806
481246418141 |
deska horni-kryt | 1 635 Kč
€ 64.50 |
||
| 002 1 WHR80474 |
C00326888
481215748001 |
VLOZKA PLAST | 453 Kč
€ 17.90 |
||
| 004 0 WHR80474 |
C00330828
481246428054 |
drzak kompr.a kolec | 925 Kč
€ 36.50 |
||
| 011 0 WHR80474 |
C00330455
481246218263 |
noha lednice | 138 Kč
€ 5.40 |
||
| 012 1 WHR80474 |
C00332373
481252878062 |
kolecko lednice | 530 Kč
€ 20.90 |
||
| 012 2 WHR80474 |
C00332726
481253578074 |
osa kolecka lednice | 430 Kč
€ 17.00 |
||
| 040 0 WHR80474 |
C00329716
481241719231 |
Hinge upper left | Na dotaz | Zadat poptávku | |
| 040 1 WHR80474 |
C00315502
481241719232 |
Hinge upper right | Na dotaz | Zadat poptávku | |
| 040 2 WHR80474 |
C00329743
481241719394 |
Hinge,lower | Na dotaz | Zadat poptávku | |
| 040 3 WHR80474 |
C00319930
481231028329 |
Hinge,middle | Na dotaz | Zadat poptávku | |
| 084 3 WHR80474 |
C00333280
481952918093 |
tlumic ventilatoru | 587 Kč
€ 23.20 |
||
| 101 0 WHR80474 |
C00458505
481241619884 |
DVEŘE MRAZNIČKY | Na dotaz | Zadat poptávku | |
| 104 0 WHR80474 |
C00458507
481241619886 |
Door refriger. | Na dotaz | Zadat poptávku | |
| 105 0 WHR80474 |
C00314960
481253288064 |
BUSHING WHITE GW | Na dotaz | Zadat poptávku | |
| 105 1 WHR80474 |
C00311490
481253288076 |
Pouzdro závěsu pravé | Na dotaz | Zadat poptávku | |
| 105 2 WHR80474 |
C00313005
481253288077 |
Pouzdro závěsu levé | 798 Kč
€ 31.50 |
||
| 110 0 WHR80474 |
C00464624
481249848024 |
rukojet dveri chladnicky Whirlpool | 1 898 Kč
€ 74.90 |
||
| 111 7 WHR80474 |
C00463938
481245918267 |
Nameplate | Na dotaz | Zadat poptávku | |
| 152 0 WHR80474 |
C00589825
481241828475 |
Door shelf printed BK. | Na dotaz | Zadat poptávku | |
| 152 2 WHR80474 |
C00458742
481241828917 |
Door dairy printed | Na dotaz | Zadat poptávku | |
| 152 4 WHR80474 |
C00458737
481241828912 |
Flap door dairy | Na dotaz | Zadat poptávku | |
| 153 0 WHR80474 |
C00458738
481241828913 |
Flap door dairy | Na dotaz | Zadat poptávku | |
| 153 3 WHR80474 |
C00458741
481241828916 |
Door dairy rod printed | Na dotaz | Zadat poptávku | |
| 153 6 WHR80474 |
C00330267
481246049396 |
SEPARATOR WHITE GW | Na dotaz | Zadat poptávku | |
| 154 0 WHR80474 |
C00381033
481241828918 |
bottle shelf printed | Na dotaz | Zadat poptávku | |
| 154 1 WHR80474 |
C00458739
481241828914 |
Separator | Na dotaz | Zadat poptávku | |
| 154 4 WHR80474 |
C00464821
481252648221 |
Rod shelf | Na dotaz | Zadat poptávku | |
| 154 6 WHR80474 |
C00329922
481241828473 |
drzak | 1 150 Kč
€ 45.40 |
||
| 155 0 WHR80474 |
C00458740
481241828915 |
Rack egg | Na dotaz | Zadat poptávku | |
| 156 0 WHR80474 |
C00574816
481241828637 |
Icecube tray. | Na dotaz | Zadat poptávku | |
| 190 1 WHR80474 |
C00333144
481946698957 |
Gasket | Na dotaz | Zadat poptávku | |
| 191 0 WHR80474 |
C00312531
481246668818 |
Těsnění magnetické Whirlpool - chladnička | 1 460 Kč
€ 57.60 |
||
| 191 1 WHR80474 |
C00311938
481246668817 |
Těsnění magnetické - mrazák | 1 649 Kč
€ 65.10 |
||
| 201 0 WHR80474 |
C00342325
481246228817 |
Cover,front | Na dotaz | Zadat poptávku | |
| 201 1 WHR80474 |
C00331047
481244229286 |
Air conveyor complete | Na dotaz | Zadat poptávku | |
| 201 2 WHR80474 |
C00480838
481246228691 |
Cover | Na dotaz | Zadat poptávku | |
| 201 4 WHR80474 |
C00333098
481946279776 |
Cover wires | Na dotaz | Zadat poptávku | |
| 201 5 WHR80474 |
C00333063
481946078208 |
Foil alum.adhesive | Na dotaz | Zadat poptávku | |
| 232 0 WHR80474 |
C00458777
481241829735 |
Cup thaw water with round hole | Na dotaz | Zadat poptávku | |
| 241 0 WHR80474 |
C00317077
481241868334 |
kos mraznicky | 3 995 Kč
€ 157.70 |
||
| 241 2 WHR80474 |
C00315606
481241868299 |
kos mraznicky maly | Na dotaz | Zadat poptávku | |
| 241 4 WHR80474 |
C00374064
481241848827 |
Čelo koše mrazáku | 1 369 Kč
€ 54.00 |
||
| 242 0 WHR80474 |
C00458968
481241870017 |
Crisper | Na dotaz | Zadat poptávku | |
| 242 2 WHR80474 |
C00458939
481241868362 |
Drawer | Na dotaz | Zadat poptávku | |
| 244 7 WHR80474 |
C00458752
481241828929 |
Flap FCC printed | Na dotaz | Zadat poptávku | |
| 245 0 WHR80474 |
C00339645
481245819187 |
Holder bottles | Na dotaz | Zadat poptávku | |
| 246 2 WHR80474 |
C00458903
481241848891 |
Tray ice cubes Bauknecht | Na dotaz | Zadat poptávku | |
| 255 1 WHR80474 |
C00379147
481245088305 |
ODKLAD.PLOCHA SKLO | Na dotaz | Zadat poptávku | |
| 255 2 WHR80474 |
C00460192
481245088336 |
Glass shelf FFC | Na dotaz | Zadat poptávku | |
| 256 1 WHR80474 |
C00330655
481246238232 |
kolik | 474 Kč
€ 18.70 |
||
| 261 0 WHR80474 |
C00464522
481246818363 |
Rail for basket right | Na dotaz | Zadat poptávku | |
| 261 1 WHR80474 |
C00345161
481246818364 |
Rail for basket left | Na dotaz | Zadat poptávku | |
| 264 0 WHR80474 |
C00332376
481252878073 |
kolecko zasuvky | 155 Kč
€ 6.10 |
||
| 301 0 WHR80474 |
C00464311
481246469223 |
Control panel printed | Na dotaz | Zadat poptávku | |
| 301 1 WHR80474 |
C00328422
481244098137 |
kryt | 152 Kč
€ 6.00 |
||
| 301 4 WHR80474 |
C00330515
481246228615 |
Cover | Na dotaz | Zadat poptávku | |
| 301 5 WHR80474 |
C00319387
481246228614 |
kryt zavesu horniho | 940 Kč
€ 37.10 |
||
| 334 0 WHR80474 |
C00374101
481241218033 |
Knob | Na dotaz | Zadat poptávku | |
| 335 5 WHR80474 |
C00327070
481222318433 |
Regulator | 147 Kč
€ 5.80 |
||
| 402 0 WHR80474 |
C00313753
481236058114 |
COMPRESSOR | Na dotaz | Zadat poptávku | |
| 402 1 WHR80474 |
C00335353
481241870016 |
miska na kondenzat | Na dotaz | Zadat poptávku | |
| 402 2 WHR80474 |
C00195454
481936048014 |
VENTIL | Na dotaz | Zadat poptávku | |
| 420 0 WHR80474 |
C00326752
481212028035 |
Capacitor | Na dotaz | Zadat poptávku | |
| 440 0 WHR80474 |
C00312313
481936118428 |
motor ventilatoru | 2 953 Kč
€ 116.60 |
||
| 440 5 WHR80474 |
C00340262
481945858558 |
Grid air | Na dotaz | Zadat poptávku | |
| 442 3 WHR80474 |
C00333097
481946279775 |
Cover | Na dotaz | Zadat poptávku | |
| 443 0 WHR80474 |
C00313351
481951548034 |
vrtule ventilatoru | 430 Kč
€ 17.00 |
||
| 451 0 WHR80474 |
C00314276
481225948194 |
topeni | 3 474 Kč
€ 137.20 |
||
| 451 1 WHR80474 |
C00319364
481225948205 |
topeni | 1 718 Kč
€ 67.80 |
||
| 491 3 WHR80474 |
C00267000
481229088084 |
KRYT PLAST | Na dotaz | Zadat poptávku | |
| 526 3 WHR80474 |
C00315770
481244079239 |
prepinac otocny | 1 759 Kč
€ 69.40 |
||
| 561 2 WHR80474 |
C00330476
481246228261 |
pruchodka | 189 Kč
€ 7.50 |
||
| 562 0 WHR80474 |
C00312889
481228228281 |
termostat | 1 889 Kč
€ 74.60 |
||
| 566 1 WHR80474 |
C00333185
481949268723 |
pruzina | 472 Kč
€ 18.60 |
||
| 614 0 WHR80474 |
C00327503
481228068373 |
Monoblock | Na dotaz | Zadat poptávku | |
| 651 0 WHR80474 |
C00313818
481913488178 |
Žárovka Tclick E14 15W | Na dotaz | Zadat poptávku | |
| 652 0 WHR80474 |
C00315045
481225528026 |
Holder lamp | Na dotaz | Zadat poptávku | |
| 652 2 WHR80474 |
C00317259
481244098245 |
Housing lamp | Na dotaz | Zadat poptávku | |
| 656 0 WHR80474 |
C00312883
481246098066 |
Stínidlo světla | 735 Kč
€ 29.00 |
||
| 691 7 WHR80474 |
C00311307
481231018846 |
Senzor teploty - sada | 1 663 Kč
€ 65.70 |
||
| 740 0 WHR80474 |
C00332244
481251148382 |
Condenser | Na dotaz | Zadat poptávku | |
| 740 1 WHR80474 |
C00330494
481246228448 |
Holder | Na dotaz | Zadat poptávku | |
| 743 0 WHR80474 |
C00482954
481244079162 |
Air diffuser multiflow cpl.+ chart | Na dotaz | Zadat poptávku | |
| 746 0 WHR80474 |
C00341084
481251138328 |
Evaporator set with round hole | Na dotaz | Zadat poptávku | |
| 762 0 WHR80474 |
C00464529
481248048163 |
Filter | Na dotaz | Zadat poptávku | |
| 764 0 WHR80474 |
C00311590
481952648527 |
Dryer DRS15 With 3 ways valve | Na dotaz | Zadat poptávku | |
| 783 0 WHR80474 |
C00318198
481952643046 |
SPOJKA | 306 Kč
€ 12.10 |
||
| 902 5 WHR80474 |
C00458866
481241848825 |
Basket insert printed | Na dotaz | Zadat poptávku | |
| 902 9 WHR80474 |
C00458867
481241848826 |
Basket insert | Na dotaz | Zadat poptávku | |
| 904 0 WHR80474 |
C00333158
481946818282 |
Podložka distanční | 351 Kč
€ 13.90 |
||
| 965 0 WHR80474 |
C00332698
481253288061 |
Cover | Na dotaz | Zadat poptávku | |
| 965 1 WHR80474 |
C00332688
481253288029 |
zaslepka 480132102378 | 186 Kč
€ 7.30 |
||
| 965 2 WHR80474 |
C00316614
481222608029 |
zaslepka | 298 Kč
€ 11.80 |
||
| 965 6 WHR80474 |
C00330501
481246228511 |
drzak | 109 Kč
€ 4.30 |
||
| 965 7 WHR80474 |
C00316993
481222608003 |
zaslepka | 303 Kč
€ 12.00 |
||
| 999 WHR80474 |
C00710753 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
