KITCHENAID KHGH 7510/I
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | KHGH 7510/I |
| Kód 12NC: | 851330361000 |
| I.C. kód: | 851330361001 |
| Značka: | KITCHENAID |
| Typ produktu: | Vestavné trouby a varné desky |
| Další podobné modely: | 851330338000, Q0917360000, 851330338002, Q0917360002, 851330322000, 851330329000, 851330329001, 851330361000 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

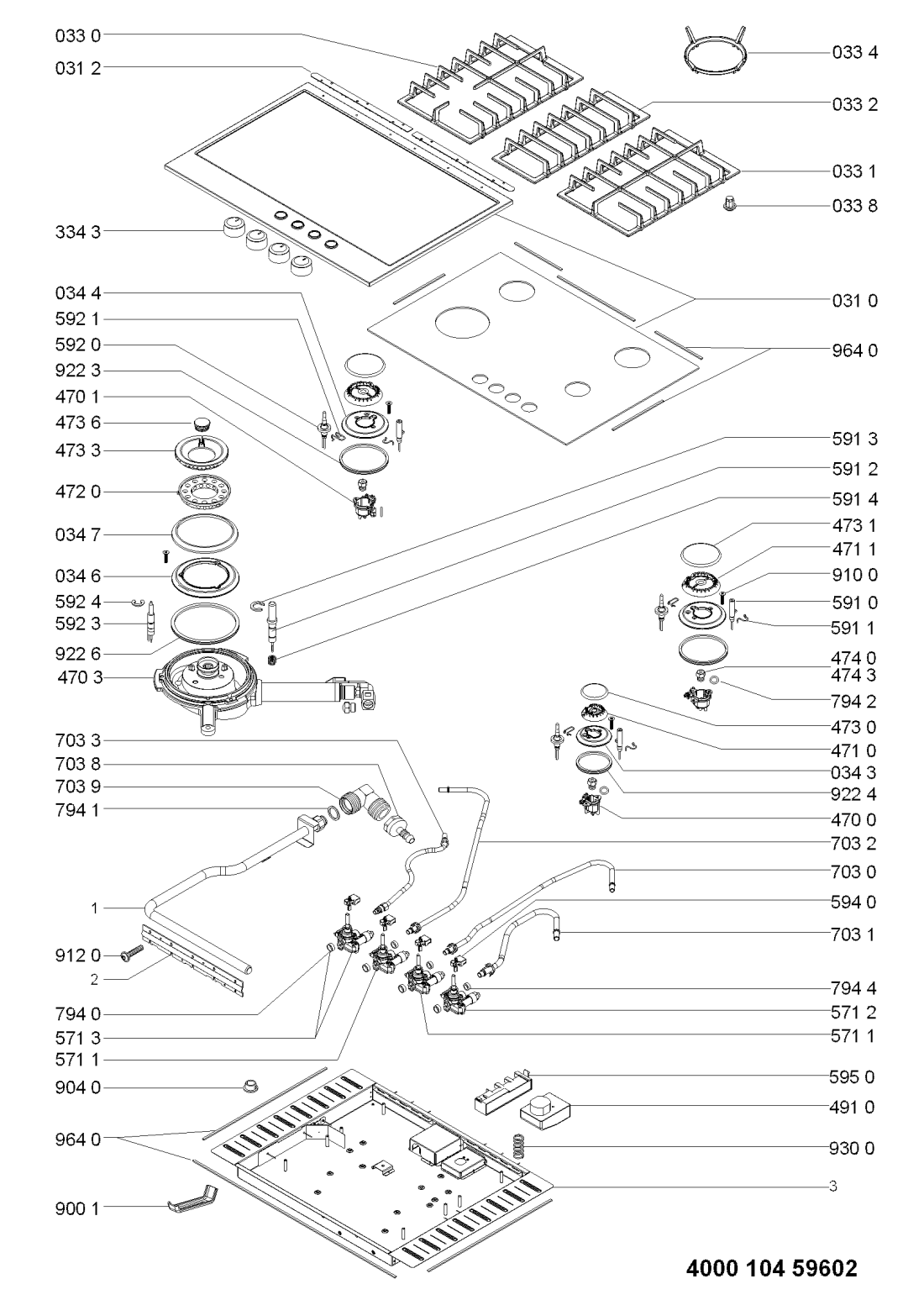

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0310 WHR19903 |
C00328240
481244039841 |
Hob glass assembly | Na dotaz | Zadat poptávku | |
| 0312 WHR19903 |
C00329170
481240468085 |
Spacer | Na dotaz | Zadat poptávku | |
| 0330 WHR19903 |
C00330185
481245858506 |
Grid for hob left | Na dotaz | Zadat poptávku | |
| 0331 WHR19903 |
C00330181
481245858502 |
Grid for hob left + right | Na dotaz | Zadat poptávku | |
| 0332 WHR19903 |
C00330184
481245858505 |
Grid for hob central | Na dotaz | Zadat poptávku | |
| 0334 WHR19903 |
C00330183
481245858504 |
Grid for hob WOK | Na dotaz | Zadat poptávku | |
| 0338 WHR19903 |
C00330798
481246378025 |
Rubber grid | Na dotaz | Zadat poptávku | |
| 0343 WHR19903 |
C00330593
481246228924 |
Cover A | Na dotaz | Zadat poptávku | |
| 0344 WHR19903 |
C00330594
481246228925 |
Cover SR | Na dotaz | Zadat poptávku | |
| 0346 WHR19903 |
C00330597
481246228928 |
Cover | Na dotaz | Zadat poptávku | |
| 0347 WHR19903 |
C00332359
481252648263 |
Ring | Na dotaz | Zadat poptávku | |
| 3343 WHR19903 |
C00328437
481231039181 |
Knobs set | Na dotaz | Zadat poptávku | |
| 4700 WHR19903 |
C00401444
481236058505 |
Injector holder AUX | Na dotaz | Zadat poptávku | |
| 4701 WHR19903 |
C00387374
481236058506 |
Injector holder SR | Na dotaz | Zadat poptávku | |
| 4703 WHR19903 |
C00389566
480121100044 |
Burner body WOK | Na dotaz | Zadat poptávku | |
| 4710 WHR19903 |
C00328787
481236078179 |
Burner body AUX | Na dotaz | Zadat poptávku | |
| 4711 WHR19903 |
C00328788
481236078181 |
Tělo hořáku | 498 Kč
€ 19.70 |
||
| 4720 WHR19903 |
C00328790
481236078183 |
Burner body WOK | Na dotaz | Zadat poptávku | |
| 4730 WHR19903 |
C00328718
481236068929 |
Burner cap AUX | Na dotaz | Zadat poptávku | |
| 4731 WHR19903 |
C00328719
481236068931 |
Burner cap SR | Na dotaz | Zadat poptávku | |
| 4733 WHR19903 |
C00328792
481236078185 |
Burner cap WOK outer | Na dotaz | Zadat poptávku | |
| 4736 WHR19903 |
C00328747
481236068995 |
Burner cap Wok inner | Na dotaz | Zadat poptávku | |
| 4740 WHR19903 |
C00389565
480121100043 |
Set of nozzles G20-20 mbar | Na dotaz | Zadat poptávku | |
| 4743 WHR19903 |
C00396858
481000370014 |
Set of nozzles G30-29 mbar | Na dotaz | Zadat poptávku | |
| 4910 WHR19903 |
C00327598
481229068318 |
svorkovnice | 294 Kč
€ 11.60 |
||
| 5711 WHR19903 |
C00314442
481236058502 |
ventil | 1 665 Kč
€ 65.70 |
||
| 5712 WHR19903 |
C00313328
481236058501 |
ventil plynovy | Na dotaz | Zadat poptávku | |
| 5713 WHR19903 |
C00328612
481236058503 |
ventil plynovy | 2 115 Kč
€ 83.50 |
||
| 5910 WHR19903 |
C00314182
481225268078 |
svicka zapalovaci | 306 Kč
€ 12.10 |
||
| 5911 WHR19903 |
C00316649
481249268204 |
Spring spark plug | Na dotaz | Zadat poptávku | |
| 5912 WHR19903 |
C00318669
481225268096 |
Spark plug | Na dotaz | Zadat poptávku | |
| 5913 WHR19903 |
C00332651
481253078071 |
Ring spark plug | Na dotaz | Zadat poptávku | |
| 5914 WHR19903 |
C00345754
481249238413 |
Spring spark plug | Na dotaz | Zadat poptávku | |
| 5920 WHR19903 |
C00397101
481010410615 |
Thermocouple | Na dotaz | Zadat poptávku | |
| 5921 WHR19903 |
C00318235
481249268205 |
pružina | 324 Kč
€ 12.80 |
||
| 5923 WHR19903 |
C00397102
481010410618 |
Thermocouple | Na dotaz | Zadat poptávku | |
| 5924 WHR19903 |
C00332643
481253058189 |
Ring thermocouple | Na dotaz | Zadat poptávku | |
| 5940 WHR19903 |
C00397190
481010444281 |
Electronic ignition | Na dotaz | Zadat poptávku | |
| 5950 WHR19903 |
C00316225
481213818017 |
Transf,puls | 1 092 Kč
€ 43.10 |
||
| 7030 WHR19903 |
C00332591
481253049295 |
Gas pipe SR left | Na dotaz | Zadat poptávku | |
| 7031 WHR19903 |
C00332594
481253049298 |
Gas pipe AUX | Na dotaz | Zadat poptávku | |
| 7032 WHR19903 |
C00332592
481253049296 |
Gas pipe SR right | Na dotaz | Zadat poptávku | |
| 7033 WHR19903 |
C00332593
481253049297 |
Gas pipe | Na dotaz | Zadat poptávku | |
| 7038 WHR19903 |
C00391464
480121104256 |
Connection gas pipe | Na dotaz | Zadat poptávku | |
| 7039 WHR19903 |
C00317975
481931039599 |
Koleno | 361 Kč
€ 14.30 |
||
| 7940 WHR19903 |
C00314461
481246688908 |
Gasket | Na dotaz | Zadat poptávku | |
| 7941 WHR19903 |
C00314988
481953258229 |
Těsnění | 129 Kč
€ 5.10 |
||
| 7942 WHR19903 |
C00314285
481953058065 |
Gasket ring | Na dotaz | Zadat poptávku | |
| 7944 WHR19903 |
C00319466
481253058098 |
tesneni vzdusniku-náhrada 481010395017 | 118 Kč
€ 4.70 |
||
| 9001 WHR19903 |
C00328995
481240418589 |
Clamp hob | Na dotaz | Zadat poptávku | |
| 9040 WHR19903 |
C00330596
481246228927 |
Stopper | Na dotaz | Zadat poptávku | |
| 9100 WHR19903 |
C00332139
481250218783 |
Screw M4x15mm | Na dotaz | Zadat poptávku | |
| 9120 WHR19903 |
C00332121
481250218754 |
Screw M4x18 | Na dotaz | Zadat poptávku | |
| 9223 WHR19903 |
C00331548
481246688992 |
Těsnění | 415 Kč
€ 16.40 |
||
| 9224 WHR19903 |
C00331547
481246688991 |
Gasket A | Na dotaz | Zadat poptávku | |
| 9226 WHR19903 |
C00331550
481246688994 |
Gasket | Na dotaz | Zadat poptávku | |
| 9300 WHR19903 |
C00345753
481249228221 |
Spring | Na dotaz | Zadat poptávku | |
| 9640 WHR19903 |
C00319999
481246689004 |
Těsnění varné desky | 558 Kč
€ 22.00 |
||
| 999 WHR19903 |
C00559648 | Gas table WHP | Na dotaz | Zadat poptávku | |
