KITCHENAID KHMP5 77510
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | KHMP5 77510 |
| Kód 12NC: | 851349312000 |
| Značka: | KITCHENAID |
| Typ produktu: | Vestavné trouby a varné desky |
| Další podobné modely: | 44965510000, 769990965512, 769990965513, 851349338000, Q0961940000 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

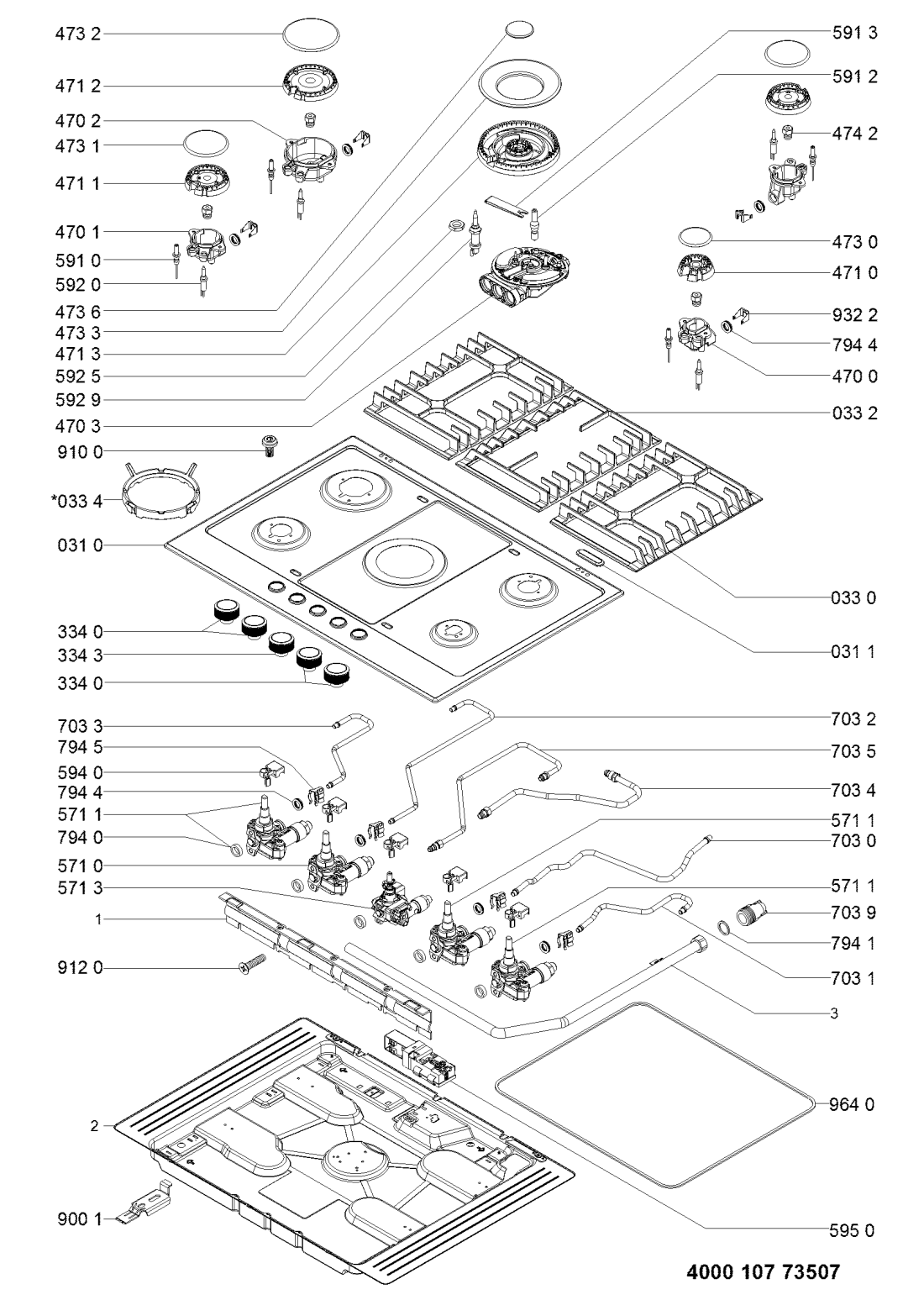

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0020 WHR20534 |
C00326587
481061269921 |
Lid | Na dotaz | Zadat poptávku | |
| 0021 WHR20534 |
C00330380
481246068574 |
Profile lid | Na dotaz | Zadat poptávku | |
| 0310 WHR20534 |
C00398139
481010753759 |
METAL TOP 75CM 5B KA GOM | Na dotaz | Zadat poptávku | |
| 0311 WHR20534 |
C00319395
481246228718 |
zaslepka | 459 Kč
€ 18.10 |
||
| 0330 WHR20534 |
C00398021
481010720406 |
LEFT/RIGHT CI GRID GOM KA 75 CM ASSY | Na dotaz | Zadat poptávku | |
| 0330 WHR20534 |
C00516239
488000516239 |
KIT RUBBER BUFFER PAN GRID IRON KITCHEN | Na dotaz | Zadat poptávku | |
| 0332 WHR20534 |
C00398022
481010720408 |
CENTRAL CI GRID GOM KA 75 CM ASSY | Na dotaz | Zadat poptávku | |
| 0334 WHR20534 |
C00398177
481010765321 |
Grid Wok | Na dotaz | Zadat poptávku | |
| 0337 WHR20534 |
C00312063
481246368017 |
Gumová nožička mřížky hořáku | 59 Kč
€ 2.30 |
||
| 0430 WHR20534 |
C00332993
481941719598 |
Hinge right | Na dotaz | Zadat poptávku | |
| 0431 WHR20534 |
C00332994
481941719599 |
Hinge left | Na dotaz | Zadat poptávku | |
| 0432 WHR20534 |
C00329213
481240478745 |
Support hinge right | Na dotaz | Zadat poptávku | |
| 0433 WHR20534 |
C00329019
481240438754 |
Support hinge left | Na dotaz | Zadat poptávku | |
| 0434 WHR20534 |
C00327656
481231038994 |
Fastener lid assembly | Na dotaz | Zadat poptávku | |
| 0435 WHR20534 |
C00333141
481946698736 |
Gasket | Na dotaz | Zadat poptávku | |
| 3340 WHR20534 |
C00398072
481010734996 |
KITCHEN AID KNOB - GOM | Na dotaz | Zadat poptávku | |
| 3343 WHR20534 |
C00398108
481010746904 |
KITCHEN AID KNOB - DUAL GOM | Na dotaz | Zadat poptávku | |
| 4700 WHR20534 |
C00325358
481010570995 |
Injector holder AUX | Na dotaz | Zadat poptávku | |
| 4701 WHR20534 |
C00325359
481010570999 |
Injector holder SR | Na dotaz | Zadat poptávku | |
| 4702 WHR20534 |
C00325360
481010571003 |
Injector holder R | Na dotaz | Zadat poptávku | |
| 4703 WHR20534 |
C00398206
481010770862 |
DCC POWER BURNER Z-SHAPE AFB 6kW G25 | Na dotaz | Zadat poptávku | |
| 4710 WHR20534 |
C00397557
481010570632 |
DEF. AUX. HE SPREAD. PYRAL MACH. | Na dotaz | Zadat poptávku | |
| 4711 WHR20534 |
C00397558
481010570634 |
DEF. SR HE SPREAD. PYRAL. MACH | Na dotaz | Zadat poptávku | |
| 4712 WHR20534 |
C00397559
481010570638 |
DEF. R HE SPREAD. PYRAL MACH. | Na dotaz | Zadat poptávku | |
| 4713 WHR20534 |
C00398220
481010777688 |
Burner body DCC | Na dotaz | Zadat poptávku | |
| 4730 WHR20534 |
C00325268
481010564572 |
Víko hořáku malé | 223 Kč
€ 8.80 |
||
| 4731 WHR20534 |
C00325269
481010564638 |
Víko hořáku | 314 Kč
€ 12.40 |
||
| 4732 WHR20534 |
C00325272
481010564650 |
Burner cap R | Na dotaz | Zadat poptávku | |
| 4733 WHR20534 |
C00398039
481010723354 |
Burner cap outer | Na dotaz | Zadat poptávku | |
| 4736 WHR20534 |
C00325440
481010581086 |
Víko velkého hořáku-středový | 290 Kč
€ 11.40 |
||
| 4742 WHR20534 |
C00446961
481010773508 |
KIT G25 25 5G 4-6 KW 75-90 SERVICE | Na dotaz | Zadat poptávku | |
| 5710 WHR20534 |
C00325854
481010647655 |
Gas cock R | Na dotaz | Zadat poptávku | |
| 5711 WHR20534 |
C00325853
481010647654 |
Gas cock AUX/SR | Na dotaz | Zadat poptávku | |
| 5713 WHR20534 |
C00398004
481010720036 |
Gas cock dual valve | Na dotaz | Zadat poptávku | |
| 5910 WHR20534 |
C00313212
480121103659 |
Svíčka zapalovací náhrada C00313212 | Na dotaz | Zadat poptávku | |
| 5912 WHR20534 |
C00315586
481010581082 |
Svíčka | 224 Kč
€ 8.80 |
||
| 5913 WHR20534 |
C00324901
481010594054 |
Clip spark plug | Na dotaz | Zadat poptávku | |
| 5920 WHR20534 |
C00324904
481010594605 |
termopojistka | Na dotaz | Zadat poptávku | |
| 5925 WHR20534 |
C00324902
481010594055 |
Nut thermocouple | Na dotaz | Zadat poptávku | |
| 5929 WHR20534 |
C00325438
481010581083 |
Thermocouple | Na dotaz | Zadat poptávku | |
| 5940 WHR20534 |
C00398147
481010755283 |
Electronic ignition | Na dotaz | Zadat poptávku | |
| 5950 WHR20534 |
C00322501
480121104698 |
Transformátor | 1 769 Kč
€ 69.80 |
||
| 7030 WHR20534 |
C00398101
481010743431 |
REAR RIGHT SR TUBE KA GOM 75 | Na dotaz | Zadat poptávku | |
| 7031 WHR20534 |
C00398118
481010748056 |
FRONT RIGHT TUBE KA GOM 75 | Na dotaz | Zadat poptávku | |
| 7032 WHR20534 |
C00325101
481010540583 |
Gas pipe R | Na dotaz | Zadat poptávku | |
| 7033 WHR20534 |
C00325100
481010540579 |
Gas pipe SR | Na dotaz | Zadat poptávku | |
| 7034 WHR20534 |
C00398005
481010720053 |
PRIMARY TUBE DUAL VALVE KA GOM 75 | Na dotaz | Zadat poptávku | |
| 7035 WHR20534 |
C00398006
481010720054 |
SECONDARY TUBE DUAL VALVE KA GOM 75 | Na dotaz | Zadat poptávku | |
| 7039 WHR20534 |
C00317975
481931039599 |
Koleno | 361 Kč
€ 14.30 |
||
| 7940 WHR20534 |
C00313330
480121103673 |
Těsnění | 222 Kč
€ 8.80 |
||
| 7941 WHR20534 |
C00314988
481953258229 |
Těsnění | 129 Kč
€ 5.10 |
||
| 7944 WHR20534 |
C00325047
481010532151 |
Těsnění | 211 Kč
€ 8.30 |
||
| 7945 WHR20534 |
C00324905
481010595118 |
Clip tube/valve | Na dotaz | Zadat poptávku | |
| 9001 WHR20534 |
C00314843
481240478776 |
Držáky +šrouby | 343 Kč
€ 13.50 |
||
| 9100 WHR20534 |
C00332083
481250218531 |
Screw M4x8 | Na dotaz | Zadat poptávku | |
| 9120 WHR20534 |
C00322394
480121103816 |
Screw | Na dotaz | Zadat poptávku | |
| 9227 WHR20534 |
C00333318
481953258281 |
Washer | Na dotaz | Zadat poptávku | |
| 9322 WHR20534 |
C00322347
480121103657 |
Clip injector holder | Na dotaz | Zadat poptávku | |
| 9640 WHR20534 |
C00319999
481246689004 |
Těsnění varné desky | 558 Kč
€ 22.00 |
||
| 999 WHR20534 |
C00560343 | Gas table WHP | Na dotaz | Zadat poptávku | |
