| Komerční kód: | KING SIZE 1000 WASHINGMACHINES WP |
| Kód 12NC: | 857081012000 |
| I.C. kód: | 857081012005 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Pračky |
| Další podobné modely: | 857081012004, 857081012000, 857081012001 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

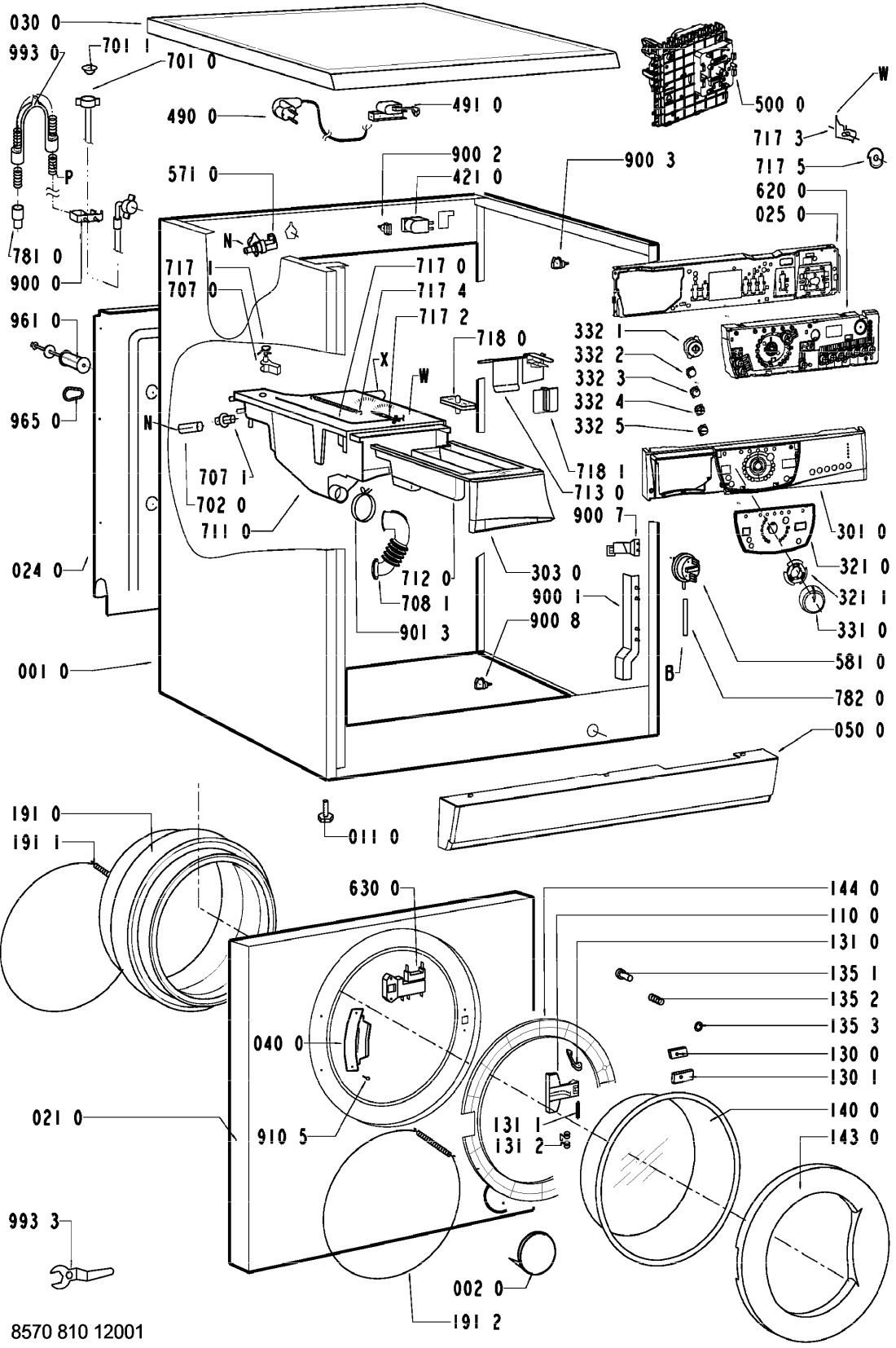

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 0 WHR92207 |
C00327957
481244010784 |
Cabinet GW | Na dotaz | Zadat poptávku | |
| 002 0 WHR92207 |
C00340831
481244010778 |
kryt filtru | 643 Kč
€ 25.40 |
||
| 011 0 WHR92207 |
C00311705
481250018099 |
noha pracky M8*34/A | Na dotaz | Zadat poptávku | |
| 021 0 WHR92207 |
C00340652
481244010897 |
stena predni | 2 161 Kč
€ 85.20 |
||
| 024 0 WHR92207 |
C00328103
481244018998 |
Stěna přední AWM250 | 1 101 Kč
€ 43.40 |
||
| 025 0 WHR92207 |
C00335851
481240438551 |
Support control board VBL WH | Na dotaz | Zadat poptávku | |
| 030 0 WHR92207 |
C00316328
481231018937 |
deska horni vyřazeno | Na dotaz | Zadat poptávku | |
| 040 0 WHR92207 |
C00312018
481241718787 |
Hinge BK | Na dotaz | Zadat poptávku | |
| 050 0 WHR92207 |
C00337676
481244010823 |
sokl pracky GW | 1 453 Kč
€ 57.30 |
||
| 061 0 WHR92207 |
C00320755
481246688833 |
zavazi horni | 2 012 Kč
€ 79.40 |
||
| 061 1 WHR92207 |
C00316001
481246688607 |
Counter weight front, bottom | Na dotaz | Zadat poptávku | |
| 061 2 WHR92207 |
C00332868
481931039227 |
sroub do zavazi sada | 1 949 Kč
€ 76.90 |
||
| 061 3 WHR92207 |
C00320457
481931039228 |
Mounting kit Weight bottom | Na dotaz | Zadat poptávku | |
| 081 0 WHR92207 |
C00312055
481252918038 |
Shock absorber until 1200 | Na dotaz | Zadat poptávku | |
| 084 0 WHR92207 |
C00330907
481246658001 |
drzak pruziny agreg. | 101 Kč
€ 4.00 |
||
| 086 2 WHR92207 |
C00314527
481240118412 |
pojistka tlumice | 584 Kč
€ 23.00 |
||
| 110 0 WHR92207 |
C00316653
481249818261 |
Rukojeť dveří GW UZ NEBUDE !!!!!!! | Na dotaz | Zadat poptávku | |
| 130 0 WHR92207 |
C00318057
481241728047 |
desticka uzaveru dv. | 62 Kč
€ 2.40 |
||
| 130 1 WHR92207 |
C00318073
481241728108 |
podlozka | 619 Kč
€ 24.40 |
||
| 131 0 WHR92207 |
C00312433
481241728046 |
Lock Door | Na dotaz | Zadat poptávku | |
| 131 1 WHR92207 |
C00312243
481241728045 |
osa uzaveru dveri | 86 Kč
€ 3.40 |
||
| 131 2 WHR92207 |
C00312651
481249258022 |
Pružina uzávěru dveří | 433 Kč
€ 17.10 |
||
| 135 1 WHR92207 |
C00317048
481249818262 |
pojistka dveri | 416 Kč
€ 16.40 |
||
| 135 2 WHR92207 |
C00317024
481249148004 |
Pružina | 397 Kč
€ 15.70 |
||
| 135 3 WHR92207 |
C00313732
481229068153 |
drzak pojistky | 309 Kč
€ 12.20 |
||
| 140 0 WHR92207 |
C00317618
481245058981 |
Door glass | Na dotaz | Zadat poptávku | |
| 143 0 WHR92207 |
C00311758
481244010817 |
Rám dveří vnější GW | 1 494 Kč
€ 58.90 |
||
| 144 0 WHR92207 |
C00314075
481244019589 |
priruba dveri | 1 703 Kč
€ 67.20 |
||
| 191 0 WHR92207 |
C00311137
481246068617 |
Manžeta pračky Whilrlpool (TVO) Delta | 391 Kč
€ 15.40 |
||
| 191 0 WHR92207 |
C00313381
481246068527 |
Door bellow standard | Na dotaz | Zadat poptávku | |
| 191 1 WHR92207 |
C00313764
481249218017 |
spona TVO - vnitřní | 286 Kč
€ 11.30 |
||
| 191 2 WHR92207 |
C00318256
481953058059 |
spona TVO predni st. | Na dotaz | Zadat poptávku | |
| 200 1 WHR92207 |
C00337438
481241818283 |
nadrz predni cast | 3 983 Kč
€ 157.10 |
||
| 200 2 WHR92207 |
C00311099
481241818318 |
Nádrž - zadní část | 4 953 Kč
€ 195.30 |
||
| 200 4 WHR92207 |
C00314317
481229088054 |
Spona nádrže | 651 Kč
€ 25.70 |
||
| 220 0 WHR92207 |
C00316593
481241818281 |
Drum 53l, 1000 | Na dotaz | Zadat poptávku | |
| 271 0 WHR92207 |
C00311078
481235818056 |
Řemen vícekl. 1250J4 | 178 Kč
€ 7.00 |
||
| 272 0 WHR92207 |
C00313543
481252858041 |
remenice bubnu | 1 562 Kč
€ 61.60 |
||
| 272 2 WHR92207 |
C00337249
481253218024 |
PODLOZKA | 24 Kč
€ 0.90 |
||
| 272 3 WHR92207 |
C00313776
481250518371 |
matice remenice | Na dotaz | Zadat poptávku | |
| 292 0 WHR92207 |
C00311501
481253058101 |
těsnění bočnice | 740 Kč
€ 29.20 |
||
| 301 0 WHR92207 |
C00507620
481245212911 |
Control panel. | Na dotaz | Zadat poptávku | |
| 303 0 WHR92207 |
C00373754
481249878448 |
Čelo násypky pračky Whirlpool | 2 518 Kč
€ 99.30 |
||
| 321 0 WHR92207 |
C00496711
481245319986 |
Insert panel | Na dotaz | Zadat poptávku | |
| 321 1 WHR92207 |
C00341002
481253298011 |
unasec knofliku | 183 Kč
€ 7.20 |
||
| 331 0 WHR92207 |
C00341875
481241458201 |
Knoflík programátoru VBL | 623 Kč
€ 24.60 |
||
| 332 1 WHR92207 |
C00317086
481251318126 |
tlacitko | 114 Kč
€ 4.50 |
||
| 332 2 WHR92207 |
C00336968
481251318127 |
tlacitko | 39 Kč
€ 1.50 |
||
| 332 3 WHR92207 |
C00336971
481251318128 |
tlacitko | 83 Kč
€ 3.30 |
||
| 332 4 WHR92207 |
C00336993
481251318129 |
Push button Plustemp. + VBL WH GW | Na dotaz | Zadat poptávku | |
| 332 5 WHR92207 |
C00336979
481251318131 |
Push button temp. - VBL WH GW | Na dotaz | Zadat poptávku | |
| 400 0 WHR92207 |
C00314675
481236118301 |
Motor 52/64-148 WHE14 - 9699.A3209 - WM | Na dotaz | Zadat poptávku | |
| 409 0 WHR92207 |
C00311127
481236248004 |
Uhlíky motoru - pár 13,6x5x32 mm | Na dotaz | Zadat poptávku | |
| 421 0 WHR92207 |
C00311350
481212118285 |
Filtr odrušovací 1 uF | Na dotaz | Zadat poptávku | |
| 430 0 WHR92207 |
C00311139
481231028144 |
Čerpadlo vypouštěcí DELTA | 1 120 Kč
€ 44.20 |
||
| 451 0 WHR92207 |
C00373838
481225928905 |
Topné těleso + NTC | 1 714 Kč
€ 67.60 |
||
| 490 0 WHR92207 |
C00316393
481932118136 |
Flexo kabel 2 m, konektory | Na dotaz | Zadat poptávku | |
| 491 0 WHR92207 |
C00309418
481232128367 |
Přechodka | 591 Kč
€ 23.30 |
||
| 500 0 WHR92207 |
C00501289
481228218808 |
Timer SC1 (EI,EC,PW,IR,RH) | Na dotaz | Zadat poptávku | |
| 571 0 WHR92207 |
C00312238
481227128375 |
Napouštěcí ventil pračky - jednocestný, boční vývod | 383 Kč
€ 15.10 |
||
| 581 0 WHR92207 |
C00313889
481227618327 |
presostat | 1 477 Kč
€ 58.30 |
||
| 620 0 WHR92207 |
C00374134
481223958048 |
modul A C/DS | 4 749 Kč
€ 187.30 |
||
| 630 0 WHR92207 |
C00311146
481228058044 |
Blokování dveří předem plněné pračky Whirlpool | 488 Kč
€ 19.20 |
||
| 691 0 WHR92207 |
C00313117
481228219485 |
senzor NTC | 729 Kč
€ 28.80 |
||
| 701 0 WHR92207 |
C00314963
481953028848 |
hadicenapousteci | 1 331 Kč
€ 52.50 |
||
| 701 1 WHR92207 |
C00316490
481946669704 |
tesneni + sitko | 328 Kč
€ 12.90 |
||
| 702 0 WHR92207 |
C00313911
481953029019 |
Hadice ventil - násypka pračky Whirlpool, Ignis, Bauknecht | 218 Kč
€ 8.60 |
||
| 707 0 WHR92207 |
C00317102
481252648031 |
Tryska násypky pračky | 224 Kč
€ 8.80 |
||
| 707 1 WHR92207 |
C00332324
481252648028 |
Tryska násypky pračky | 575 Kč
€ 22.70 |
||
| 708 1 WHR92207 |
C00313009
481253048143 |
hadice k násypce pračky Whirlpool uz nebude !!!! | Na dotaz | Zadat poptávku | |
| 711 0 WHR92207 |
C00485027
481241888056 |
Detergent disp. 3 ch. 53 l | Na dotaz | Zadat poptávku | |
| 712 0 WHR92207 |
C00313433
481241868198 |
zasuvka nasypky | 1 592 Kč
€ 62.80 |
||
| 713 0 WHR92207 |
C00314041
481241889037 |
vlozka nasypky klap. | Na dotaz | Zadat poptávku | |
| 717 0 WHR92207 |
C00344286
481241878925 |
Bovden komplet | Na dotaz | Zadat poptávku | |
| 717 1 WHR92207 |
C00328523
481232138013 |
Páčka trysky násypky | Na dotaz | Zadat poptávku | |
| 717 2 WHR92207 |
C00328522
481232138012 |
drzak | 57 Kč
€ 2.20 |
||
| 717 3 WHR92207 |
C00318843
481227888018 |
posouvac | 186 Kč
€ 7.30 |
||
| 717 4 WHR92207 |
C00312356
481249238359 |
Pružina trysky násypky | 30 Kč
€ 1.20 |
||
| 717 5 WHR92207 |
C00316494
481228218807 |
SOSOVKA PLAST | 413 Kč
€ 16.30 |
||
| 718 0 WHR92207 |
C00332332
481252648051 |
sifon do nasypky | 723 Kč
€ 28.50 |
||
| 718 1 WHR92207 |
C00314031
481241888018 |
ovladac | 647 Kč
€ 25.50 |
||
| 753 1 WHR92207 |
C00312723
481941868234 |
vzdusnik | 949 Kč
€ 37.40 |
||
| 754 0 WHR92207 |
C00312061
481253028826 |
Hadice nádrž-čerpadlo | Na dotaz | Zadat poptávku | |
| 754 1 WHR92207 |
C00309391
481253028832 |
Kulička hadice mezi vanou a čerpadlem pračky Whirpool | 1 173 Kč
€ 46.30 |
||
| 754 2 WHR92207 |
C00332452
481253029352 |
Příruba eco AWT,AWO/D | 539 Kč
€ 21.30 |
||
| 760 0 WHR92207 |
C00314625
481248058105 |
Filtr čerpadla DELTA | 1 075 Kč
€ 42.40 |
||
| 781 0 WHR92207 |
C00318230
481953028847 |
Hose,draining | Na dotaz | Zadat poptávku | |
| 782 0 WHR92207 |
C00317136
481253028827 |
Hose Pressostat | Na dotaz | Zadat poptávku | |
| 787 0 WHR92207 |
C00315511
481253028813 |
hadice odparovaci | 777 Kč
€ 30.60 |
||
| 787 2 WHR92207 |
C00311154
481940118174 |
Spona odparov.hadica | 234 Kč
€ 9.20 |
||
| 794 5 WHR92207 |
C00340485
481253058095 |
tesneni vzdusniku | 35 Kč
€ 1.40 |
||
| 900 0 WHR92207 |
C00327119
481225518204 |
Vnější držák hadic pračky Whirlpool | 421 Kč
€ 16.60 |
||
| 900 1 WHR92207 |
C00327311
481229088049 |
Bracket | Na dotaz | Zadat poptávku | |
| 900 2 WHR92207 |
C00327313
481229088077 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 900 3 WHR92207 |
C00328874
481240118446 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 900 4 WHR92207 |
C00332933
481940118872 |
SPONA HADICE AW | 119 Kč
€ 4.70 |
||
| 900 5 WHR92207 |
C00309461
481940118529 |
Spona nádrž-čerpadlo | 199 Kč
€ 7.80 |
||
| 900 6 WHR92207 |
C00317960
481240118444 |
Držák topení pračky Whirlpool, Ignis | 354 Kč
€ 14.00 |
||
| 900 7 WHR92207 |
C00327148
481225698031 |
Holder pressostat | Na dotaz | Zadat poptávku | |
| 900 8 WHR92207 |
C00332928
481940118823 |
SPONA | 393 Kč
€ 15.50 |
||
| 901 3 WHR92207 |
C00318107
481240118549 |
Clamp hose | Na dotaz | Zadat poptávku | |
| 910 0 WHR92207 |
C00336553
481250218383 |
sroub M8*25loz.domu | 169 Kč
€ 6.70 |
||
| 910 5 WHR92207 |
C00332081
481250218516 |
Screw 4,2 x 13 | Na dotaz | Zadat poptávku | |
| 930 0 WHR92207 |
C00320162
481949238139 |
pruzina | Na dotaz | Zadat poptávku | |
| 941 0 WHR92207 |
C00314732
481252028004 |
Ložisko 6206 2Z C3 GJN (SKF) | 371 Kč
€ 14.60 |
||
| 941 1 WHR92207 |
C00315230
481252028066 |
Ložisko 6204 2Z C3 GJN (SKF) | 297 Kč
€ 11.70 |
||
| 953 0 WHR92207 |
C00313798
481253058099 |
Shaft seal 1200 | Na dotaz | Zadat poptávku | |
| 961 0 WHR92207 |
C00333324
481953268829 |
Vložka vymezovací | 532 Kč
€ 21.00 |
||
| 965 0 WHR92207 |
C00330912
481246668545 |
kryt odjisteni prack | 408 Kč
€ 16.10 |
||
| 993 0 WHR92207 |
C00316831
481953029028 |
Koleno výtokové hadice | 95 Kč
€ 3.70 |
||
| 993 3 WHR92207 |
C00328868
481239558004 |
klic montazni | 139 Kč
€ 5.50 |
||
