KITCHENAID KOASS 60600
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | KOASS 60600 |
| Kód 12NC: | 851356701100 |
| Značka: | KITCHENAID |
| Typ produktu: | Vestavné trouby a varné desky |
| Další podobné modely: | 751356701100 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

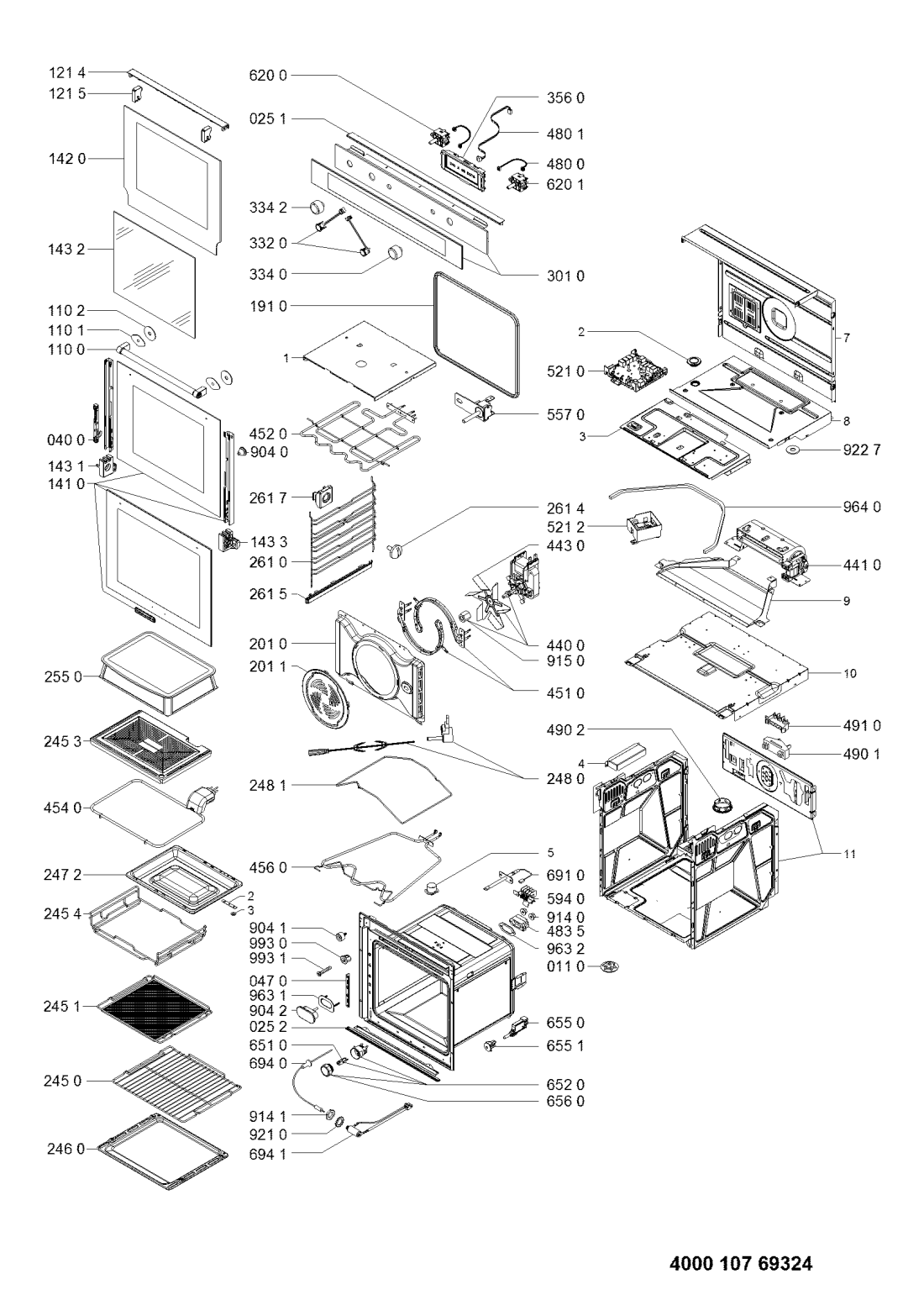

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0110 WHR07674 |
C00330453
481246218255 |
FOOT | Na dotaz | Zadat poptávku | |
| 0251 WHR07674 |
C00317554
480120100539 |
Profile ventilator | Na dotaz | Zadat poptávku | |
| 0252 WHR07674 |
C00316558
480121101163 |
lišta odvodu vody IX | 323 Kč
€ 12.80 |
||
| 0400 WHR07674 |
C00385953
481010724327 |
Závěs dveří-pár | 1 494 Kč
€ 59.00 |
||
| 0470 WHR07674 |
C00312426
480121101154 |
uhelnik | Na dotaz | Zadat poptávku | |
| 1100 WHR07674 |
C00376559
481010713236 |
Handle assembly | Na dotaz | Zadat poptávku | |
| 1101 WHR07674 |
C00336781
481246668919 |
Rubber door handle | Na dotaz | Zadat poptávku | |
| 1102 WHR07674 |
C00374987
481010410709 |
Podložka kovová | 167 Kč
€ 6.60 |
||
| 1214 WHR07674 |
C00379877
481010618380 |
Exhaust fume | Na dotaz | Zadat poptávku | |
| 1215 WHR07674 |
C00325764
481010633369 |
Spacer | Na dotaz | Zadat poptávku | |
| 1410 WHR07674 |
C00376649
482000020864 |
Nameplate KA | Na dotaz | Zadat poptávku | |
| 1410 WHR07674 |
C00398200
481010769637 |
Oven door outer assembly | Na dotaz | Zadat poptávku | |
| 1420 WHR07674 |
C00398129
481010750317 |
Oven door inner glass | Na dotaz | Zadat poptávku | |
| 1431 WHR07674 |
C00324889
481010593001 |
Držák skla - pravý | 93 Kč
€ 3.70 |
||
| 1432 WHR07674 |
C00325449
481010582564 |
Sklo dveří střední | 1 304 Kč
€ 51.50 |
||
| 1433 WHR07674 |
C00324870
481010589909 |
Držák skla trouby Whirlpool, Bauknecht - levý | 93 Kč
€ 3.70 |
||
| 1910 WHR07674 |
C00323939
481010349300 |
Gasket oven door | Na dotaz | Zadat poptávku | |
| 2010 WHR07674 |
C00325301
481010567079 |
Rear panel enamelled | Na dotaz | Zadat poptávku | |
| 2011 WHR07674 |
C00323922
481010340204 |
Panel fan motor circular | Na dotaz | Zadat poptávku | |
| 2450 WHR07674 |
C00325778
481010635612 |
Mřížka na grilování pro trouby Whirlpool Wpro GR 13 | 405 Kč
€ 16.00 |
||
| 2451 WHR07674 |
C00379883
481010666419 |
Dehydration tray | Na dotaz | Zadat poptávku | |
| 2453 WHR07674 |
C00325188
481010554141 |
Grid steam + profile | Na dotaz | Zadat poptávku | |
| 2454 WHR07674 |
C00398082
481010736093 |
Grill pan set | Na dotaz | Zadat poptávku | |
| 2460 WHR07674 |
C00344938
481010674818 |
Plech na pečení mělký pro trouby Whirlpool AKZ9 6230 IX, AKZM 6630/IXL, AKZM 8480 IX. | 740 Kč
€ 29.20 |
||
| 2472 WHR07674 |
C00446312
481010748202 |
Baking tray pan set | Na dotaz | Zadat poptávku | |
| 2480 WHR07674 |
C00322873
480131000139 |
Rožeň otočný + motorek | 2 006 Kč
€ 79.20 |
||
| 2481 WHR07674 |
C00322028
480121101582 |
Turnspit support | Na dotaz | Zadat poptávku | |
| 2550 WHR07674 |
C00446818
481010769687 |
Glass lid steam | Na dotaz | Zadat poptávku | |
| 2610 WHR07674 |
C00379899
481010762741 |
Mřížka boční levá/pravá | 375 Kč
€ 14.80 |
||
| 2614 WHR07674 |
C00322274
480121103347 |
Šroub | 147 Kč
€ 5.80 |
||
| 2615 WHR07674 |
C00325797
481010640995 |
kolejnice výsuvné pro 1 úroveň | 1 990 Kč
€ 78.60 |
||
| 2617 WHR07674 |
C00326404
481041701023 |
Matice uchycení roštu | 137 Kč
€ 5.40 |
||
| 3010 WHR07674 |
C00387394
481010766095 |
Control panel assembly | Na dotaz | Zadat poptávku | |
| 3320 WHR07674 |
C00322001
480121101169 |
Tlačítko | 664 Kč
€ 26.20 |
||
| 3340 WHR07674 |
C00376570
481010755348 |
Knob without index | Na dotaz | Zadat poptávku | |
| 3342 WHR07674 |
C00376560
481010713682 |
Knob assembly with index | Na dotaz | Zadat poptávku | |
| 3560 WHR07674 |
C00517470
488000517470 |
Displej | 4 724 Kč
€ 186.50 |
||
| 4400 WHR07674 |
C00310972
481236118492 |
OVEN CAVITY FAN | Na dotaz | Zadat poptávku | |
| 4410 WHR07674 |
C00312567
480121101162 |
Chladící ventilátor vestavné trouby Whirlpool AKZM 654 IX | Na dotaz | Zadat poptávku | |
| 4430 WHR07674 |
C00312020
481951548065 |
IMPELLER FAN | Na dotaz | Zadat poptávku | |
| 4510 WHR07674 |
C00315920
481010368831 |
Heating element circular | Na dotaz | Zadat poptávku | |
| 4520 WHR07674 |
C00313436
484000000514 |
Topení horní trouby, Whirlpool, Bauknecht, Hotpoint | 2 420 Kč
€ 95.50 |
||
| 4540 WHR07674 |
C00324840
481010583967 |
Heating element steam | Na dotaz | Zadat poptávku | |
| 4560 WHR07674 |
C00319574
481010551720 |
Topné těleso trouby - spodní | 399 Kč
€ 15.80 |
||
| 4800 WHR07674 |
C00311239
480121101172 |
kabelaz | 212 Kč
€ 8.40 |
||
| 4801 WHR07674 |
C00315339
480121101171 |
kabelaz | 304 Kč
€ 12.00 |
||
| 4835 WHR07674 |
C00325186
481010553994 |
Plug steam heating element | Na dotaz | Zadat poptávku | |
| 4901 WHR07674 |
C00322504
480121104772 |
Svorka kabelu | 156 Kč
€ 6.20 |
||
| 4902 WHR07674 |
C00321790
480121100013 |
Kryt | 202 Kč
€ 8.00 |
||
| 4910 WHR07674 |
C00313503
481229068329 |
svorkovnice | 196 Kč
€ 7.70 |
||
| 5210 WHR07674 |
C00398131
481010750829 |
Power unit Antares | Na dotaz | Zadat poptávku | |
| 5212 WHR07674 |
C00321829
480121100219 |
modul trouby | 1 647 Kč
€ 65.00 |
||
| 5570 WHR07674 |
C00311049
481010552514 |
termostat | Na dotaz | Zadat poptávku | |
| 5940 WHR07674 |
C00324888
481010592989 |
Switch steam | Na dotaz | Zadat poptávku | |
| 6200 WHR07674 |
C00311236
480121101145 |
Přepínač 11 poloh | 229 Kč
€ 9.00 |
||
| 6201 WHR07674 |
C00311185
480121101146 |
Přepínač volby +/- | 1 133 Kč
€ 44.70 |
||
| 6510 WHR07674 |
C00314191
481010391431 |
Žárovka do trouby - halogen 40W G9 | Na dotaz | Zadat poptávku | |
| 6520 WHR07674 |
C00325786
481010638530 |
Osvětlení trouby komplet 40W | 443 Kč
€ 17.50 |
||
| 6550 WHR07674 |
C00317556
480121101182 |
Spínač dveří trouby | 177 Kč
€ 7.00 |
||
| 6551 WHR07674 |
C00322005
480121101177 |
Šroubení dveřního spínače | 129 Kč
€ 5.10 |
||
| 6560 WHR07674 |
C00325847
481010646361 |
Kryt žárovky trouby Whirlpool /Bauknecht | 188 Kč
€ 7.40 |
||
| 6910 WHR07674 |
C00311498
480121101179 |
Senzor teploty | 1 723 Kč
€ 68.00 |
||
| 6940 WHR07674 |
C00326916
481221058077 |
sonda na maso | 943 Kč
€ 37.20 |
||
| 6941 WHR07674 |
C00344940
481010634657 |
Kabel | 1 832 Kč
€ 72.30 |
||
| 9040 WHR07674 |
C00322031
480121101594 |
Oddělovač | 230 Kč
€ 9.10 |
||
| 9041 WHR07674 |
C00323938
481010349282 |
Spacer oven door | Na dotaz | Zadat poptávku | |
| 9042 WHR07674 |
C00325441
481010581097 |
Cover plug | Na dotaz | Zadat poptávku | |
| 9140 WHR07674 |
C00332178
481250518421 |
NUT M4 | Na dotaz | Zadat poptávku | |
| 9141 WHR07674 |
C00332190
481250518439 |
Nut 10x1.57 | Na dotaz | Zadat poptávku | |
| 9150 WHR07674 |
C00314899
481950518145 |
NUT PROPELLER CAVITY FAN | Na dotaz | Zadat poptávku | |
| 9210 WHR07674 |
C00332642
481253058187 |
WASHER MEAT PROBE | Na dotaz | Zadat poptávku | |
| 9227 WHR07674 |
C00333313
481953228281 |
podlozka | 119 Kč
€ 4.70 |
||
| 9631 WHR07674 |
C00325430
481010579968 |
Plug female assembly | Na dotaz | Zadat poptávku | |
| 9632 WHR07674 |
C00325189
481010554142 |
Insulation steam plug | Na dotaz | Zadat poptávku | |
| 9640 WHR07674 |
C00322212
480121102934 |
tesneni | 1 155 Kč
€ 45.60 |
||
| 9930 WHR07674 |
C00326565
481060283201 |
Spacer oven | Na dotaz | Zadat poptávku | |
| 9931 WHR07674 |
C00324084
481010390475 |
Kit screws | Na dotaz | Zadat poptávku | |
| 999 WHR07674 |
C00351547
488000351547 |
Testprogram WHP | Na dotaz | Zadat poptávku | |
