KITCHENAID KOMP 6610/IX
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | KOMP 6610/IX |
| Kód 12NC: | 851333029000 |
| I.C. kód: | 851333029003 |
| Značka: | KITCHENAID |
| Typ produktu: | Vestavné trouby a varné desky |
| Další podobné modely: | 851333015000, Q0909560000, 851333029000, 851333029002, 851333038002, 851333038004, 851333038000 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

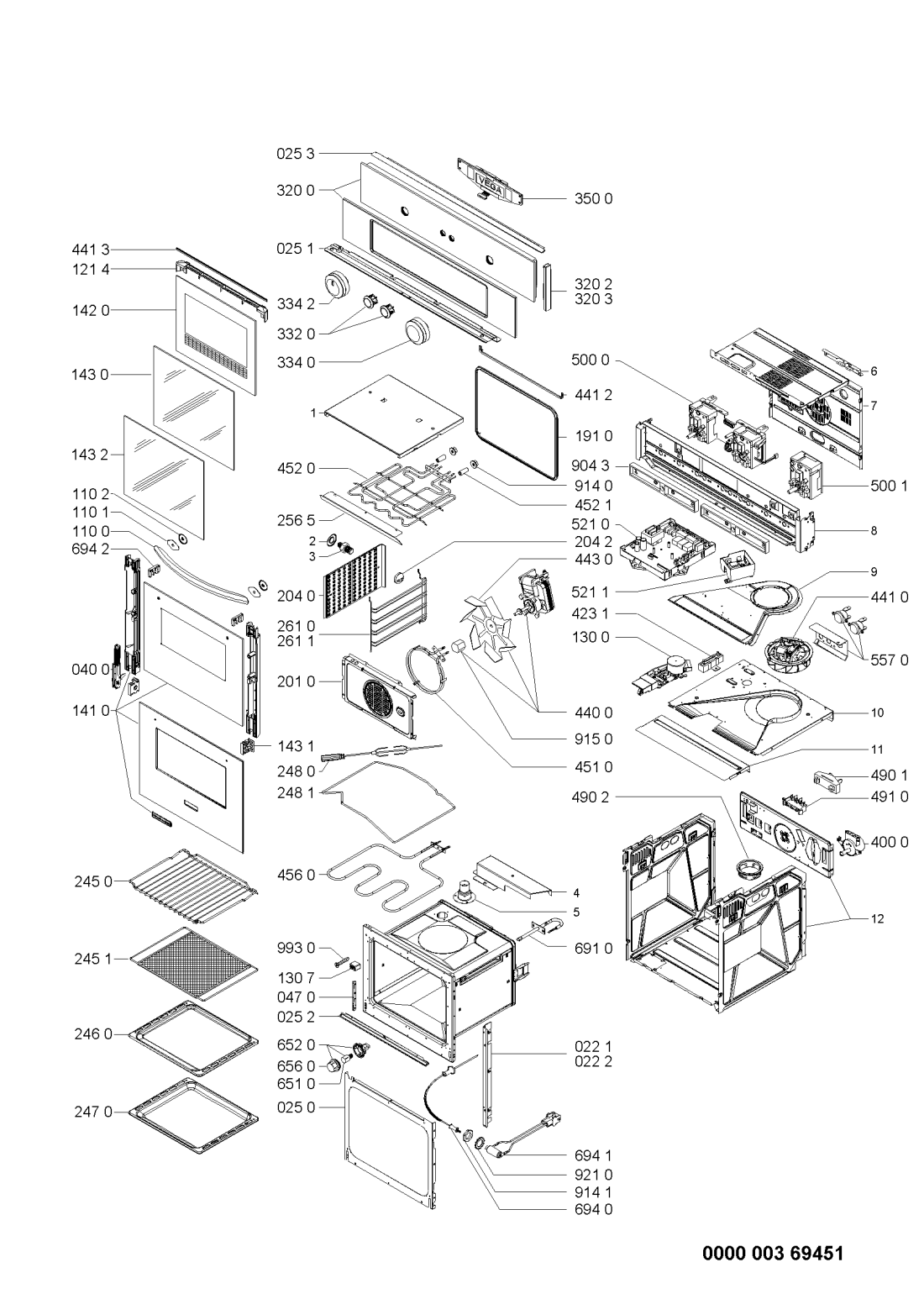

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 022 1 WHR19927 |
C00330327
481246049778 |
Trim side left | Na dotaz | Zadat poptávku | |
| 022 2 WHR19927 |
C00330326
481246049777 |
Trim side right | Na dotaz | Zadat poptávku | |
| 025 0 WHR19927 |
C00330344
481246049827 |
Front trim | Na dotaz | Zadat poptávku | |
| 025 1 WHR19927 |
C00321827
480121100217 |
Trim lower control panel | Na dotaz | Zadat poptávku | |
| 025 2 WHR19927 |
C00322020
480121101503 |
Profile | Na dotaz | Zadat poptávku | |
| 025 3 WHR19927 |
C00319277
481246058389 |
Trim upper part | Na dotaz | Zadat poptávku | |
| 040 0 WHR19927 |
C00329767
481241719474 |
Hinge | Na dotaz | Zadat poptávku | |
| 047 0 WHR19927 |
C00329812
481241778152 |
Cover hinge | Na dotaz | Zadat poptávku | |
| 110 0 WHR19927 |
C00344882
481249868284 |
Door handle | Na dotaz | Zadat poptávku | |
| 110 1 WHR19927 |
C00312913
481246668928 |
Podložka gumová | 101 Kč
€ 4.00 |
||
| 110 2 WHR19927 |
C00311265
481246248451 |
Podložka madla dveří trouby | 56 Kč
€ 2.20 |
||
| 121 4 WHR19927 |
C00331099
481244528037 |
Deflector | Na dotaz | Zadat poptávku | |
| 130 0 WHR19927 |
C00311536
481241758411 |
zamek dveri PYRO | 2 345 Kč
€ 92.60 |
||
| 130 7 WHR19927 |
C00330935
481246668813 |
Rubber | 204 Kč
€ 8.10 |
||
| 141 0 WHR19927 |
C00317676
481245059775 |
Oven glass complete | Na dotaz | Zadat poptávku | |
| 142 0 WHR19927 |
C00331148
481245059774 |
Inner glass KA | Na dotaz | Zadat poptávku | |
| 143 0 WHR19927 |
C00331115
481245058907 |
Glass | Na dotaz | Zadat poptávku | |
| 143 1 WHR19927 |
C00317299
481245058908 |
Spacer door glass | Na dotaz | Zadat poptávku | |
| 143 2 WHR19927 |
C00312271
481245059599 |
sklo dveri | 2 947 Kč
€ 116.30 |
||
| 191 0 WHR19927 |
C00312929
481246689042 |
Těsnění dveří trouby | 1 335 Kč
€ 52.70 |
||
| 201 0 WHR19927 |
C00459747
481244269703 |
Panel rear blue | Na dotaz | Zadat poptávku | |
| 204 0 WHR19927 |
C00331083
481244269694 |
Air diffuser left + right | Na dotaz | Zadat poptávku | |
| 204 2 WHR19927 |
C00332315
481252448018 |
Nut | Na dotaz | Zadat poptávku | |
| 245 0 WHR19927 |
C00404456
481245858488 |
Oven shelf | Na dotaz | Zadat poptávku | |
| 245 1 WHR19927 |
C00330179
481245858497 |
Oven grill | Na dotaz | Zadat poptávku | |
| 246 0 WHR19927 |
C00327799
481241838161 |
Baking tray blue | Na dotaz | Zadat poptávku | |
| 247 0 WHR19927 |
C00327798
481241838159 |
Fat pan blue | Na dotaz | Zadat poptávku | |
| 248 0 WHR19927 |
C00332724
481253578072 |
Rotary spit assembly | Na dotaz | Zadat poptávku | |
| 248 1 WHR19927 |
C00330050
481245819146 |
drzak rozne | 725 Kč
€ 28.60 |
||
| 256 5 WHR19927 |
C00330886
481246638114 |
Protector grill blue | Na dotaz | Zadat poptávku | |
| 261 0 WHR19927 |
C00404455
481245858487 |
Inset grid left | Na dotaz | Zadat poptávku | |
| 261 1 WHR19927 |
C00404454
481245858486 |
Inset grid right | Na dotaz | Zadat poptávku | |
| 320 0 WHR19927 |
C00318038
481245249905 |
Panel control VEGA KA | Na dotaz | Zadat poptávku | |
| 320 2 WHR19927 |
C00329219
481240478767 |
End block left | Na dotaz | Zadat poptávku | |
| 320 3 WHR19927 |
C00329220
481240478768 |
End block right | Na dotaz | Zadat poptávku | |
| 332 0 WHR19927 |
C00314923
481241029494 |
Push button Rold TSCU601 | Na dotaz | Zadat poptávku | |
| 334 0 WHR19927 |
C00316748
481241279352 |
Knoflík | 1 709 Kč
€ 67.50 |
||
| 334 2 WHR19927 |
C00318349
481241279351 |
Knoflík | 1 700 Kč
€ 67.10 |
||
| 350 0 WHR19927 |
C00313320
481213018688 |
Display Vega blue | Na dotaz | Zadat poptávku | |
| 400 0 WHR19927 |
C00328836
481236168002 |
motorek grilu | 652 Kč
€ 25.70 |
||
| 423 1 WHR19927 |
C00326735
481211518038 |
Resistor 470 ohm | Na dotaz | Zadat poptávku | |
| 440 0 WHR19927 |
C00310972
481236118492 |
OVEN CAVITY FAN | Na dotaz | Zadat poptávku | |
| 441 0 WHR19927 |
C00312506
481236118511 |
ventilator | 2 888 Kč
€ 114.00 |
||
| 441 2 WHR19927 |
C00315028
481246688784 |
Těsnění dveří trouby | 958 Kč
€ 37.80 |
||
| 441 3 WHR19927 |
C00331562
481246699047 |
tesneni dveri trouby | 466 Kč
€ 18.40 |
||
| 443 0 WHR19927 |
C00312020
481951548065 |
IMPELLER FAN | Na dotaz | Zadat poptávku | |
| 451 0 WHR19927 |
C00311124
481225998405 |
Topné těleso trouby – kruhové, horkovzduch 2000W | 429 Kč
€ 16.90 |
||
| 452 0 WHR19927 |
C00314913
481225928873 |
Topení horní | 3 864 Kč
€ 152.50 |
||
| 452 1 WHR19927 |
C00328909
481240118665 |
Spacer heating element | Na dotaz | Zadat poptávku | |
| 456 0 WHR19927 |
C00311461
481225998418 |
Topné těleso trouby - spodní 1450 W | 2 449 Kč
€ 96.70 |
||
| 490 1 WHR19927 |
C00327588
481229068255 |
Clamp cable | Na dotaz | Zadat poptávku | |
| 490 2 WHR19927 |
C00328528
481232148026 |
kryt nahrada 480121100013 | Na dotaz | Zadat poptávku | |
| 491 0 WHR19927 |
C00313503
481229068329 |
svorkovnice | 196 Kč
€ 7.70 |
||
| 500 0 WHR19927 |
C00389582
480121100148 |
Unit control | Na dotaz | Zadat poptávku | |
| 500 1 WHR19927 |
C00326952
481221458542 |
User board Sing. Flex. | Na dotaz | Zadat poptávku | |
| 521 0 WHR19927 |
C00318696
481221458471 |
Power unit sub 480131000048 | Na dotaz | Zadat poptávku | |
| 521 1 WHR19927 |
C00321829
480121100219 |
modul trouby | 1 647 Kč
€ 65.00 |
||
| 557 0 WHR19927 |
C00313245
481228228336 |
termostat PYRO | 1 521 Kč
€ 60.00 |
||
| 651 0 WHR19927 |
C00318382
481213428101 |
Oven lamp | Na dotaz | Zadat poptávku | |
| 652 0 WHR19927 |
C00316065
481231039167 |
Lamp oven rear assembly | Na dotaz | Zadat poptávku | |
| 656 0 WHR19927 |
C00328845
481238028042 |
Lamp screen | Na dotaz | Zadat poptávku | |
| 691 0 WHR19927 |
C00314814
481221058051 |
sonda | 1 593 Kč
€ 62.90 |
||
| 694 0 WHR19927 |
C00326916
481221058077 |
sonda na maso | 943 Kč
€ 37.20 |
||
| 694 1 WHR19927 |
C00332654
481253088029 |
Temperature probe | Na dotaz | Zadat poptávku | |
| 694 2 WHR19927 |
C00315933
481246368024 |
Shock absorber | Na dotaz | Zadat poptávku | |
| 904 3 WHR19927 |
C00329144
481240449867 |
Support knob | Na dotaz | Zadat poptávku | |
| 914 0 WHR19927 |
C00332178
481250518421 |
NUT M4 | Na dotaz | Zadat poptávku | |
| 914 1 WHR19927 |
C00332190
481250518439 |
Nut 10x1.57 | Na dotaz | Zadat poptávku | |
| 915 0 WHR19927 |
C00314899
481950518145 |
NUT PROPELLER CAVITY FAN | Na dotaz | Zadat poptávku | |
| 921 0 WHR19927 |
C00332642
481253058187 |
WASHER MEAT PROBE | Na dotaz | Zadat poptávku | |
| 993 0 WHR19927 |
C00327633
481231038844 |
Mounting kit | Na dotaz | Zadat poptávku | |
