| Komerční kód: | KOMS 6630/IX |
| Kód 12NC: | 851333301000 |
| Značka: | KITCHENAID |
| Typ produktu: | Vestavné trouby a varné desky |
Potřebujete servis? Jsme tady pro Vás

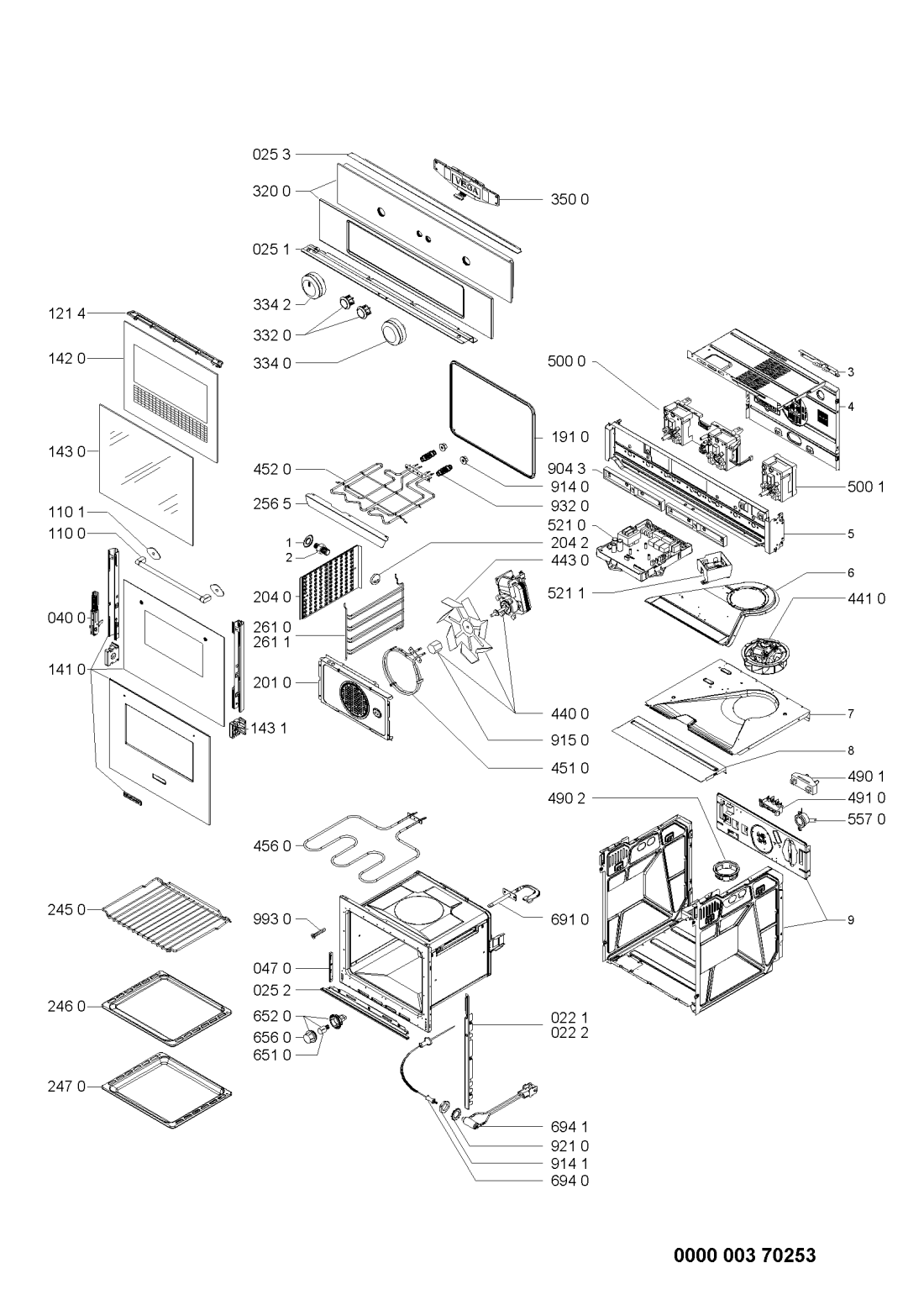

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 022 1 WHR61813 |
C00330383
481246068596 |
Trim side left | Na dotaz | Zadat poptávku | |
| 022 2 WHR61813 |
C00330382
481246068595 |
Trim side right | Na dotaz | Zadat poptávku | |
| 025 1 WHR61813 |
C00330415
481246079228 |
Trim lower control panel | Na dotaz | Zadat poptávku | |
| 025 2 WHR61813 |
C00330398
481246068637 |
Profile | Na dotaz | Zadat poptávku | |
| 025 3 WHR61813 |
C00330412
481246079201 |
Trim upper | Na dotaz | Zadat poptávku | |
| 040 0 WHR61813 |
C00329778
481241719516 |
Hinge 3V | Na dotaz | Zadat poptávku | |
| 047 0 WHR61813 |
C00329812
481241778152 |
Cover hinge | Na dotaz | Zadat poptávku | |
| 110 0 WHR61813 |
C00321808
480121100147 |
Door handle | Na dotaz | Zadat poptávku | |
| 110 1 WHR61813 |
C00312913
481246668928 |
Podložka gumová | 101 Kč
€ 4.00 |
||
| 121 4 WHR61813 |
C00311017
481246058418 |
Exhaust fume | Na dotaz | Zadat poptávku | |
| 141 0 WHR61813 |
C00331171
481245059971 |
Oven glass + supports | Na dotaz | Zadat poptávku | |
| 142 0 WHR61813 |
C00331170
481245059969 |
Inner glass | Na dotaz | Zadat poptávku | |
| 143 0 WHR61813 |
C00314136
481245059488 |
Sklo dveří - střední | 2 977 Kč
€ 117.40 |
||
| 143 1 WHR61813 |
C00314180
481240438808 |
Podpěra | 442 Kč
€ 17.40 |
||
| 191 0 WHR61813 |
C00331558
481246689037 |
Gasket door | Na dotaz | Zadat poptávku | |
| 201 0 WHR61813 |
C00331084
481244269695 |
Panel rear blue | Na dotaz | Zadat poptávku | |
| 204 0 WHR61813 |
C00331083
481244269694 |
Air diffuser left + right | Na dotaz | Zadat poptávku | |
| 204 2 WHR61813 |
C00332315
481252448018 |
Nut | Na dotaz | Zadat poptávku | |
| 245 0 WHR61813 |
C00404456
481245858488 |
Oven shelf | Na dotaz | Zadat poptávku | |
| 246 0 WHR61813 |
C00327799
481241838161 |
Baking tray blue | Na dotaz | Zadat poptávku | |
| 247 0 WHR61813 |
C00327798
481241838159 |
Fat pan blue | Na dotaz | Zadat poptávku | |
| 256 5 WHR61813 |
C00331085
481244269696 |
Plate protection grill | Na dotaz | Zadat poptávku | |
| 261 0 WHR61813 |
C00404455
481245858487 |
Inset grid left | Na dotaz | Zadat poptávku | |
| 261 1 WHR61813 |
C00404454
481245858486 |
Inset grid right | Na dotaz | Zadat poptávku | |
| 320 0 WHR61813 |
C00462274
481245249839 |
Panel control | Na dotaz | Zadat poptávku | |
| 332 0 WHR61813 |
C00314923
481241029494 |
Push button Rold TSCU601 | Na dotaz | Zadat poptávku | |
| 334 0 WHR61813 |
C00316748
481241279352 |
Knoflík | 1 709 Kč
€ 67.40 |
||
| 334 2 WHR61813 |
C00318349
481241279351 |
Knoflík | 1 700 Kč
€ 67.00 |
||
| 350 0 WHR61813 |
C00313320
481213018688 |
Display Vega blue | Na dotaz | Zadat poptávku | |
| 440 0 WHR61813 |
C00310972
481236118492 |
OVEN CAVITY FAN | Na dotaz | Zadat poptávku | |
| 441 0 WHR61813 |
C00313480
481236118498 |
Ventilator | Na dotaz | Zadat poptávku | |
| 443 0 WHR61813 |
C00312020
481951548065 |
IMPELLER FAN | Na dotaz | Zadat poptávku | |
| 451 0 WHR61813 |
C00311124
481225998405 |
Topné těleso trouby – kruhové, horkovzduch 2000W | 429 Kč
€ 16.90 |
||
| 452 0 WHR61813 |
C00317197
481225998471 |
Heating element upper/grill | Na dotaz | Zadat poptávku | |
| 456 0 WHR61813 |
C00311461
481225998418 |
Topné těleso trouby - spodní 1450 W | 2 449 Kč
€ 96.60 |
||
| 490 1 WHR61813 |
C00327588
481229068255 |
Clamp cable | Na dotaz | Zadat poptávku | |
| 490 2 WHR61813 |
C00328528
481232148026 |
kryt nahrada 480121100013 | Na dotaz | Zadat poptávku | |
| 491 0 WHR61813 |
C00313503
481229068329 |
svorkovnice | 196 Kč
€ 7.70 |
||
| 500 0 WHR61813 |
C00389582
480121100148 |
Unit control | Na dotaz | Zadat poptávku | |
| 500 1 WHR61813 |
C00326952
481221458542 |
User board Sing. Flex. | Na dotaz | Zadat poptávku | |
| 521 0 WHR61813 |
C00389581
480121100146 |
power unit | Na dotaz | Zadat poptávku | |
| 521 1 WHR61813 |
C00321829
480121100219 |
modul trouby | 1 647 Kč
€ 65.00 |
||
| 557 0 WHR61813 |
C00312260
481228228325 |
pojistka tepelna 155°C | Na dotaz | Zadat poptávku | |
| 651 0 WHR61813 |
C00318382
481213428101 |
Oven lamp | Na dotaz | Zadat poptávku | |
| 652 0 WHR61813 |
C00316065
481231039167 |
Lamp oven rear assembly | Na dotaz | Zadat poptávku | |
| 656 0 WHR61813 |
C00328845
481238028042 |
Lamp screen | Na dotaz | Zadat poptávku | |
| 691 0 WHR61813 |
C00311427
481221078034 |
Senzor teploty | Na dotaz | Zadat poptávku | |
| 694 0 WHR61813 |
C00326916
481221058077 |
sonda na maso | 943 Kč
€ 37.20 |
||
| 694 1 WHR61813 |
C00332654
481253088029 |
Temperature probe | Na dotaz | Zadat poptávku | |
| 904 3 WHR61813 |
C00329144
481240449867 |
Support knob | Na dotaz | Zadat poptávku | |
| 914 0 WHR61813 |
C00332178
481250518421 |
NUT M4 | Na dotaz | Zadat poptávku | |
| 914 1 WHR61813 |
C00332190
481250518439 |
Nut 10x1.57 | Na dotaz | Zadat poptávku | |
| 915 0 WHR61813 |
C00314899
481950518145 |
NUT PROPELLER CAVITY FAN | Na dotaz | Zadat poptávku | |
| 921 0 WHR61813 |
C00332642
481253058187 |
WASHER MEAT PROBE | Na dotaz | Zadat poptávku | |
| 932 0 WHR61813 |
C00333184
481949268714 |
SPRING UPPER HEATING ELEMENT | Na dotaz | Zadat poptávku | |
| 993 0 WHR61813 |
C00316311
481231039078 |
Mounting kit | Na dotaz | Zadat poptávku | |
