KITCHENAID KOSCX 45600
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | KOSCX 45600 |
| Kód 12NC: | 851344601900 |
| Značka: | KITCHENAID |
| Typ produktu: | Vestavné trouby a varné desky |
| Další podobné modely: | Q0927860000, 751344601901, 751344601902 |
Potřebujete servis? Jsme tady pro Vás

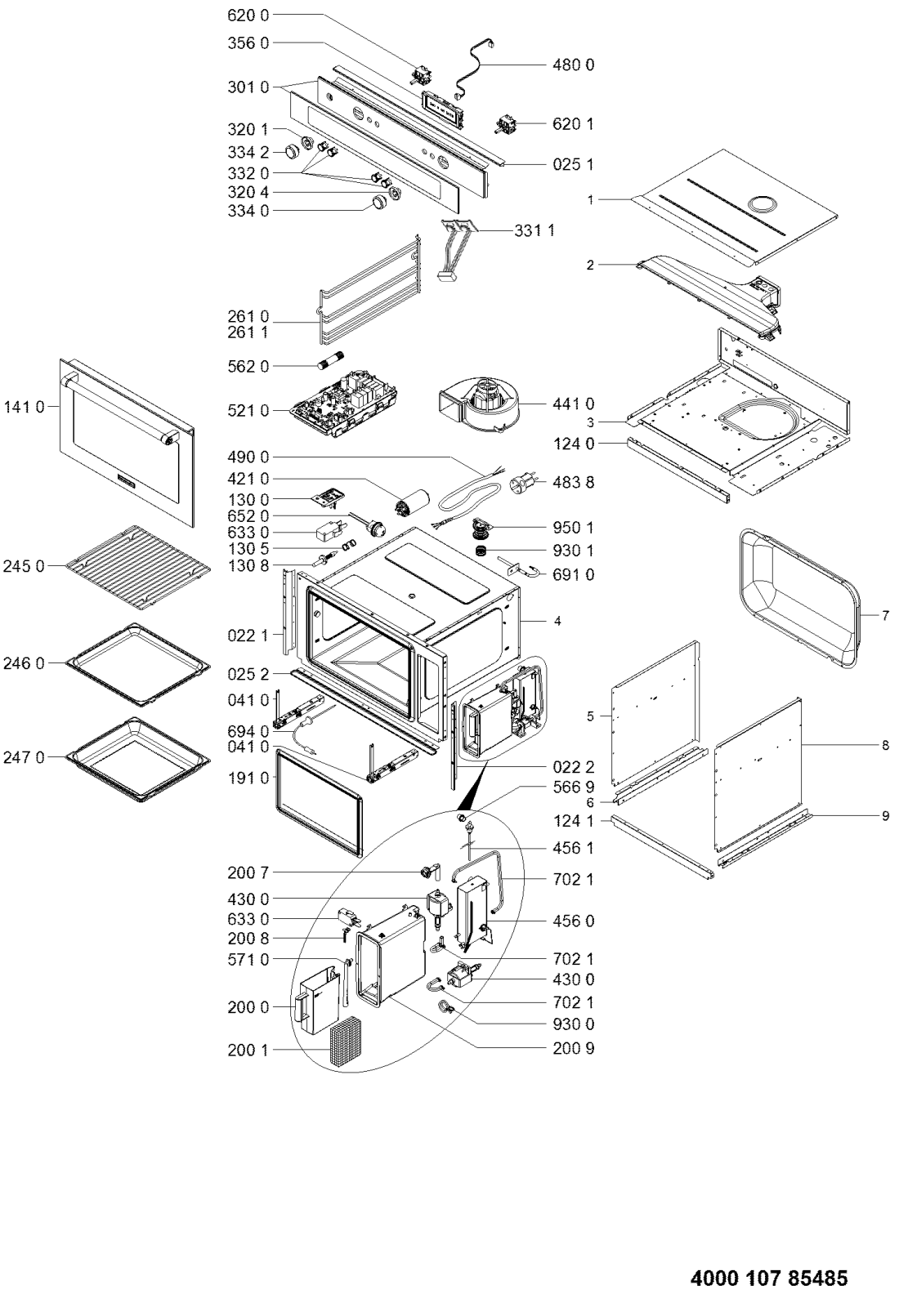

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0221 WHR06273 |
C00322409
480121104044 |
Trim lateral left | Na dotaz | Zadat poptávku | |
| 0222 WHR06273 |
C00322400
480121104014 |
Trim lateral right | Na dotaz | Zadat poptávku | |
| 0251 WHR06273 |
C00317554
480120100539 |
Profile ventilator | Na dotaz | Zadat poptávku | |
| 0252 WHR06273 |
C00383077
481068972371 |
Trim Shelf BL SAUNA | Na dotaz | Zadat poptávku | |
| 0410 WHR06273 |
C00332138
481250218782 |
Screw | 386 Kč
€ 15.20 |
||
| 0410 WHR06273 |
C00383071
481010760845 |
Hinge SAUNA 450 KA VBL | Na dotaz | Zadat poptávku | |
| 1240 WHR06273 |
C00322401
480121104015 |
Batten bottom | Na dotaz | Zadat poptávku | |
| 1241 WHR06273 |
C00382921
481067016511 |
Vent grid STAINLESS 450 SAUNA | Na dotaz | Zadat poptávku | |
| 1300 WHR06273 |
C00321524
480123100293 |
Bracket door switch | Na dotaz | Zadat poptávku | |
| 1305 WHR06273 |
C00322402
480121104016 |
Spring | Na dotaz | Zadat poptávku | |
| 1308 WHR06273 |
C00321525
480123100294 |
Pin door switch | Na dotaz | Zadat poptávku | |
| 1410 WHR06273 |
C00383073
481010769761 |
Door cpl. KA VBL SAUNA | Na dotaz | Zadat poptávku | |
| 1910 WHR06273 |
C00322280
480121103392 |
Těsnění dveří trouby | 2 798 Kč
€ 110.50 |
||
| 2000 WHR06273 |
C00321517
480123100285 |
Nádoba na vodu | 2 235 Kč
€ 88.20 |
||
| 2001 WHR06273 |
C00322441
480121104258 |
Sponge not shown | Na dotaz | Zadat poptávku | |
| 2007 WHR06273 |
C00321520
480123100288 |
Tube connection Sauna | Na dotaz | Zadat poptávku | |
| 2008 WHR06273 |
C00321518
480123100286 |
Sensor water | Na dotaz | Zadat poptávku | |
| 2009 WHR06273 |
C00321519
480123100287 |
Guide water tank | Na dotaz | Zadat poptávku | |
| 2450 WHR06273 |
C00325224
481010558232 |
Rošt trouby | 2 432 Kč
€ 96.00 |
||
| 2460 WHR06273 |
C00325222
481010558224 |
plech mělký SAUNA W | 1 997 Kč
€ 78.80 |
||
| 2470 WHR06273 |
C00325223
481010558226 |
Plech - perforovaný | 3 081 Kč
€ 121.60 |
||
| 2610 WHR06273 |
C00321516
480123100284 |
Insert grid left | Na dotaz | Zadat poptávku | |
| 2611 WHR06273 |
C00321515
480123100283 |
Inset grid right | Na dotaz | Zadat poptávku | |
| 3010 WHR06273 |
C00446838
481010770693 |
Control panel KA VBL SAUNA | Na dotaz | Zadat poptávku | |
| 3201 WHR06273 |
C00376561
481010714252 |
Ring KA knob index for glass panel | Na dotaz | Zadat poptávku | |
| 3204 WHR06273 |
C00376564
481010726600 |
Ring KA knob no index f. glass panel | Na dotaz | Zadat poptávku | |
| 3320 WHR06273 |
C00318713
480120100727 |
knoflik mw | 610 Kč
€ 24.10 |
||
| 3340 WHR06273 |
C00376570
481010755348 |
Knob without index | Na dotaz | Zadat poptávku | |
| 3342 WHR06273 |
C00376560
481010713682 |
Knob assembly with index | Na dotaz | Zadat poptávku | |
| 3560 WHR06273 |
C00446788
481010767239 |
Display board TIANMA WH KN MP ST KA VBL | Na dotaz | Zadat poptávku | |
| 4210 WHR06273 |
C00319002
481212208004 |
Filtr odrušovací | 1 355 Kč
€ 53.50 |
||
| 4300 WHR06273 |
C00325511
481068979381 |
Pump KIT 22W 230V/50Hz | Na dotaz | Zadat poptávku | |
| 4410 WHR06273 |
C00322284
480121103398 |
Motor cooling | Na dotaz | Zadat poptávku | |
| 4560 WHR06273 |
C00320100
480121103385 |
Boiler steamer 1400W | Na dotaz | Zadat poptávku | |
| 4561 WHR06273 |
C00382920
481067015221 |
Water level Probe SAUNA | Na dotaz | Zadat poptávku | |
| 4800 WHR06273 |
C00382922
481068969481 |
Control harnessFLAT R2.5 C4/5 R2.5 5-POL | Na dotaz | Zadat poptávku | |
| 4838 WHR06273 |
C00376540
481010516451 |
Plug Shuko | Na dotaz | Zadat poptávku | |
| 4900 WHR06273 |
C00376562
481010714748 |
Mains cable no plug | Na dotaz | Zadat poptávku | |
| 5210 WHR06273 |
C00323944
481010350777 |
Control board ACU 230V 50Hz S SAUN PROBE | Na dotaz | Zadat poptávku | |
| 5620 WHR06273 |
C00311937
481925228125 |
Pojistka 10A L | 266 Kč
€ 10.50 |
||
| 5669 WHR06273 |
C00321523
480123100292 |
Gasket diffusor outlet | Na dotaz | Zadat poptávku | |
| 5710 WHR06273 |
C00321521
480123100289 |
Pipe water Sauna | Na dotaz | Zadat poptávku | |
| 6200 WHR06273 |
C00313110
480121102662 |
Přepínač trouby Whirlpool, Bauknecht - 9 poloh | 229 Kč
€ 9.00 |
||
| 6201 WHR06273 |
C00311185
480121101146 |
Přepínač volby +/- | 1 133 Kč
€ 44.70 |
||
| 6330 WHR06273 |
C00314456
480120100814 |
Mikrospínač | 236 Kč
€ 9.30 |
||
| 6520 WHR06273 |
C00322281
480121103393 |
Osvětlení komplet | 1 221 Kč
€ 48.20 |
||
| 6910 WHR06273 |
C00316169
480121103384 |
Sensor cavity | Na dotaz | Zadat poptávku | |
| 6940 WHR06273 |
C00324394
481010460412 |
Probe FOOD | Na dotaz | Zadat poptávku | |
| 7021 WHR06273 |
C00321522
480123100291 |
Tube silicon | Na dotaz | Zadat poptávku | |
| 9300 WHR06273 |
C00382923
481071300007 |
Clamp FZB 9.8x10.4 MATTSSONS not shown | Na dotaz | Zadat poptávku | |
| 9301 WHR06273 |
C00321527
480123100297 |
Spring airflow | Na dotaz | Zadat poptávku | |
| 9501 WHR06273 |
C00321526
480123100296 |
Gasket airflow | Na dotaz | Zadat poptávku | |
