KITCHENAID KOST 7035
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | KOST 7035 |
| Kód 12NC: | 851354601010 |
| I.C. kód: | 851354601012 |
| Značka: | KITCHENAID |
| Typ produktu: | Vestavné trouby a varné desky |
| Další podobné modely: | 851354601010, Q0909840000, 851354601011, Q0909840001, 851354601013, Q0909840003 |
Potřebujete servis? Jsme tady pro Vás

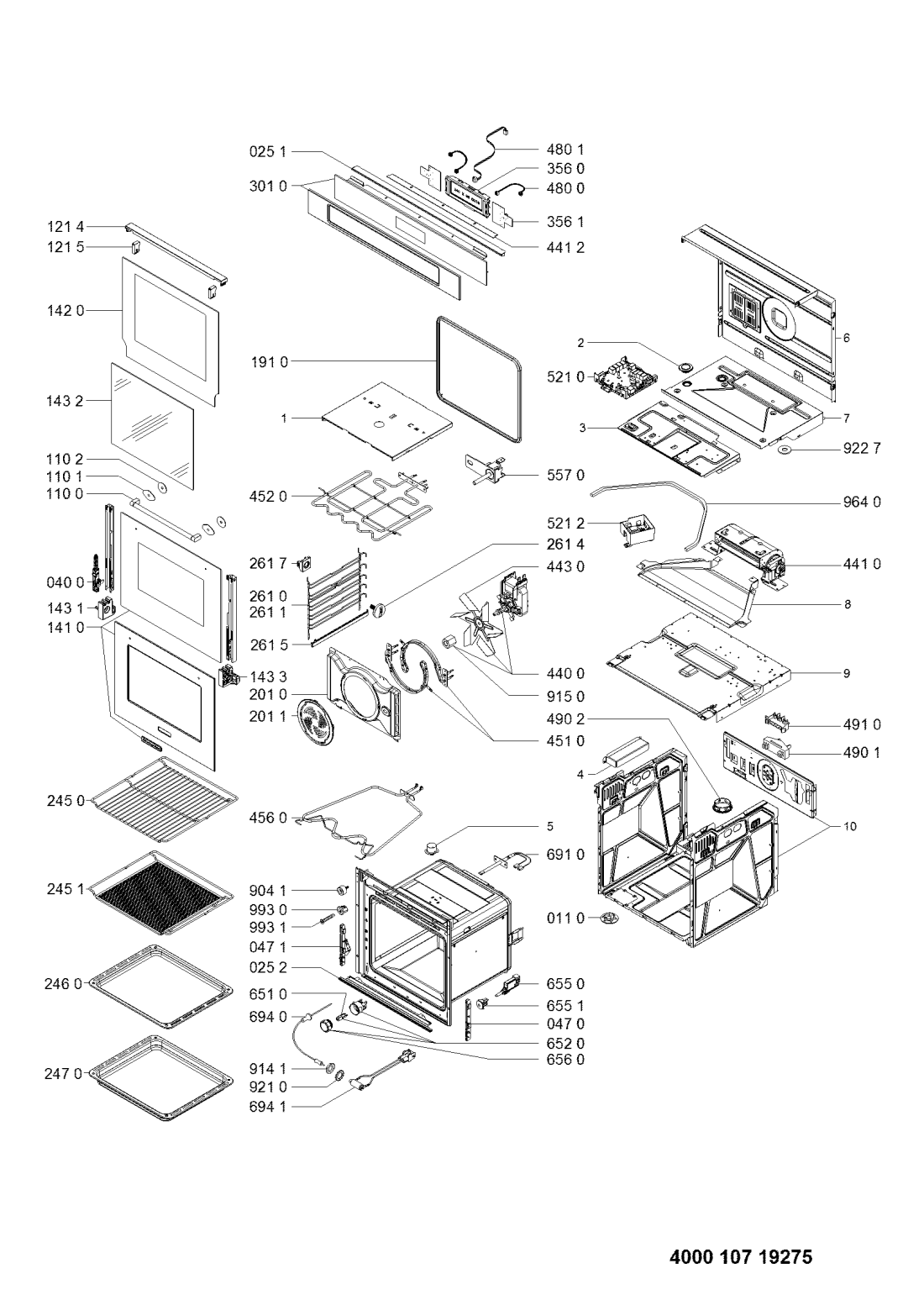

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0110 WHR99167 |
C00330453
481246218255 |
FOOT | Na dotaz | Zadat poptávku | |
| 0251 WHR99167 |
C00317554
480120100539 |
Profile ventilator | Na dotaz | Zadat poptávku | |
| 0252 WHR99167 |
C00316558
480121101163 |
lišta odvodu vody IX | 323 Kč
€ 12.80 |
||
| 0400 WHR99167 |
C00324545
481010475561 |
Hinge oven door | Na dotaz | Zadat poptávku | |
| 0470 WHR99167 |
C00323906
481010308519 |
Pant | 99 Kč
€ 3.90 |
||
| 0471 WHR99167 |
C00324549
481010475569 |
Hinge support | Na dotaz | Zadat poptávku | |
| 1100 WHR99167 |
C00321808
480121100147 |
Door handle | Na dotaz | Zadat poptávku | |
| 1101 WHR99167 |
C00312913
481246668928 |
Podložka gumová | 101 Kč
€ 4.00 |
||
| 1102 WHR99167 |
C00322237
480121103197 |
Podložka madla Whirlpool, Bauknecht, KitchenAid | 205 Kč
€ 8.10 |
||
| 1214 WHR99167 |
C00379877
481010618380 |
Exhaust fume | Na dotaz | Zadat poptávku | |
| 1215 WHR99167 |
C00325764
481010633369 |
Spacer | Na dotaz | Zadat poptávku | |
| 1410 WHR99167 |
C00379886
481010687310 |
EXTERNAL GLASS KA+HE MOUNTING RAILS. | Na dotaz | Zadat poptávku | |
| 1420 WHR99167 |
C00379862
481010502970 |
INTERNAL HE DOOR GLASS - KA (BLUE) | Na dotaz | Zadat poptávku | |
| 1431 WHR99167 |
C00324889
481010593001 |
Držák skla - pravý | 93 Kč
€ 3.70 |
||
| 1432 WHR99167 |
C00325449
481010582564 |
Sklo dveří střední | 1 304 Kč
€ 51.50 |
||
| 1433 WHR99167 |
C00324870
481010589909 |
Držák skla trouby Whirlpool, Bauknecht - levý | 93 Kč
€ 3.70 |
||
| 1910 WHR99167 |
C00323939
481010349300 |
Gasket oven door | Na dotaz | Zadat poptávku | |
| 2010 WHR99167 |
C00323910
481010327334 |
Panel fan motor | Na dotaz | Zadat poptávku | |
| 2011 WHR99167 |
C00323922
481010340204 |
Panel fan motor circular | Na dotaz | Zadat poptávku | |
| 2450 WHR99167 |
C00325778
481010635612 |
Mřížka na grilování pro trouby Whirlpool Wpro GR 13 | 405 Kč
€ 16.00 |
||
| 2451 WHR99167 |
C00379883
481010666419 |
Dehydration tray | Na dotaz | Zadat poptávku | |
| 2460 WHR99167 |
C00379885
481010674831 |
BAKING TRAY MINERVA KA - BLUE ENAMEL | Na dotaz | Zadat poptávku | |
| 2470 WHR99167 |
C00379884
481010674830 |
FAT PAN MINERVA KA - BLUE ENAMEL | Na dotaz | Zadat poptávku | |
| 2610 WHR99167 |
C00325774
481010635602 |
Grid support left | Na dotaz | Zadat poptávku | |
| 2611 WHR99167 |
C00325775
481010635603 |
Grid support right | Na dotaz | Zadat poptávku | |
| 2614 WHR99167 |
C00322274
480121103347 |
Šroub | 147 Kč
€ 5.80 |
||
| 2615 WHR99167 |
C00325797
481010640995 |
kolejnice výsuvné pro 1 úroveň | 1 990 Kč
€ 78.60 |
||
| 2617 WHR99167 |
C00326404
481041701023 |
Matice uchycení roštu | 137 Kč
€ 5.40 |
||
| 3010 WHR99167 |
C00324078
481010389994 |
Control panel assembly KA | Na dotaz | Zadat poptávku | |
| 3560 WHR99167 |
C00345267
481010687842 |
Displaj Navigator | 4 985 Kč
€ 196.80 |
||
| 3561 WHR99167 |
C00314591
480121102685 |
Control unit assembly | Na dotaz | Zadat poptávku | |
| 4400 WHR99167 |
C00310972
481236118492 |
OVEN CAVITY FAN | Na dotaz | Zadat poptávku | |
| 4410 WHR99167 |
C00312567
480121101162 |
Chladící ventilátor vestavné trouby Whirlpool AKZM 654 IX | Na dotaz | Zadat poptávku | |
| 4412 WHR99167 |
C00321993
480121101151 |
tesneni | Na dotaz | Zadat poptávku | |
| 4430 WHR99167 |
C00312020
481951548065 |
IMPELLER FAN | Na dotaz | Zadat poptávku | |
| 4510 WHR99167 |
C00315920
481010368831 |
Heating element circular | Na dotaz | Zadat poptávku | |
| 4520 WHR99167 |
C00313436
484000000514 |
Topení horní trouby, Whirlpool, Bauknecht, Hotpoint | 2 420 Kč
€ 95.50 |
||
| 4560 WHR99167 |
C00319574
481010551720 |
Topné těleso trouby - spodní | 399 Kč
€ 15.80 |
||
| 4800 WHR99167 |
C00316662
480121101616 |
kabelaz | 187 Kč
€ 7.40 |
||
| 4801 WHR99167 |
C00315339
480121101171 |
kabelaz | 304 Kč
€ 12.00 |
||
| 4901 WHR99167 |
C00322504
480121104772 |
Svorka kabelu | 156 Kč
€ 6.20 |
||
| 4902 WHR99167 |
C00321790
480121100013 |
Kryt | 202 Kč
€ 8.00 |
||
| 4910 WHR99167 |
C00313503
481229068329 |
svorkovnice | 196 Kč
€ 7.70 |
||
| 5210 WHR99167 |
C00397915
481010687899 |
Power unit Antares | Na dotaz | Zadat poptávku | |
| 5212 WHR99167 |
C00321829
480121100219 |
modul trouby | 1 647 Kč
€ 65.00 |
||
| 5570 WHR99167 |
C00311049
481010552514 |
termostat | Na dotaz | Zadat poptávku | |
| 6510 WHR99167 |
C00314191
481010391431 |
Žárovka do trouby - halogen 40W G9 | Na dotaz | Zadat poptávku | |
| 6520 WHR99167 |
C00325786
481010638530 |
Osvětlení trouby komplet 40W | 443 Kč
€ 17.50 |
||
| 6550 WHR99167 |
C00317556
480121101182 |
Spínač dveří trouby | 177 Kč
€ 7.00 |
||
| 6551 WHR99167 |
C00322005
480121101177 |
Šroubení dveřního spínače | 129 Kč
€ 5.10 |
||
| 6560 WHR99167 |
C00325847
481010646361 |
Kryt žárovky trouby Whirlpool /Bauknecht | 188 Kč
€ 7.40 |
||
| 6910 WHR99167 |
C00311498
480121101179 |
Senzor teploty | 1 723 Kč
€ 68.00 |
||
| 6940 WHR99167 |
C00326916
481221058077 |
sonda na maso | 943 Kč
€ 37.20 |
||
| 6941 WHR99167 |
C00344940
481010634657 |
Kabel | 1 832 Kč
€ 72.30 |
||
| 9041 WHR99167 |
C00323938
481010349282 |
Spacer oven door | Na dotaz | Zadat poptávku | |
| 9141 WHR99167 |
C00332190
481250518439 |
Nut 10x1.57 | Na dotaz | Zadat poptávku | |
| 9150 WHR99167 |
C00314899
481950518145 |
NUT PROPELLER CAVITY FAN | Na dotaz | Zadat poptávku | |
| 9210 WHR99167 |
C00332642
481253058187 |
WASHER MEAT PROBE | Na dotaz | Zadat poptávku | |
| 9227 WHR99167 |
C00333313
481953228281 |
podlozka | 119 Kč
€ 4.70 |
||
| 9640 WHR99167 |
C00322212
480121102934 |
tesneni | 1 155 Kč
€ 45.60 |
||
| 9930 WHR99167 |
C00326565
481060283201 |
Spacer oven | Na dotaz | Zadat poptávku | |
| 9931 WHR99167 |
C00324084
481010390475 |
Kit screws | Na dotaz | Zadat poptávku | |
| 999 WHR99167 |
C00351547
488000351547 |
Testprogram WHP | Na dotaz | Zadat poptávku | |
