KITCHENAID KSOX 9015 OUTDOOR COOKING FULL OPT. KA
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | KSOX 9015 OUTDOOR COOKING FULL OPT. KA |
| Kód 12NC: | 851371501050 |
| Značka: | KITCHENAID |
| Typ produktu: | Venkovní příprava jídla |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

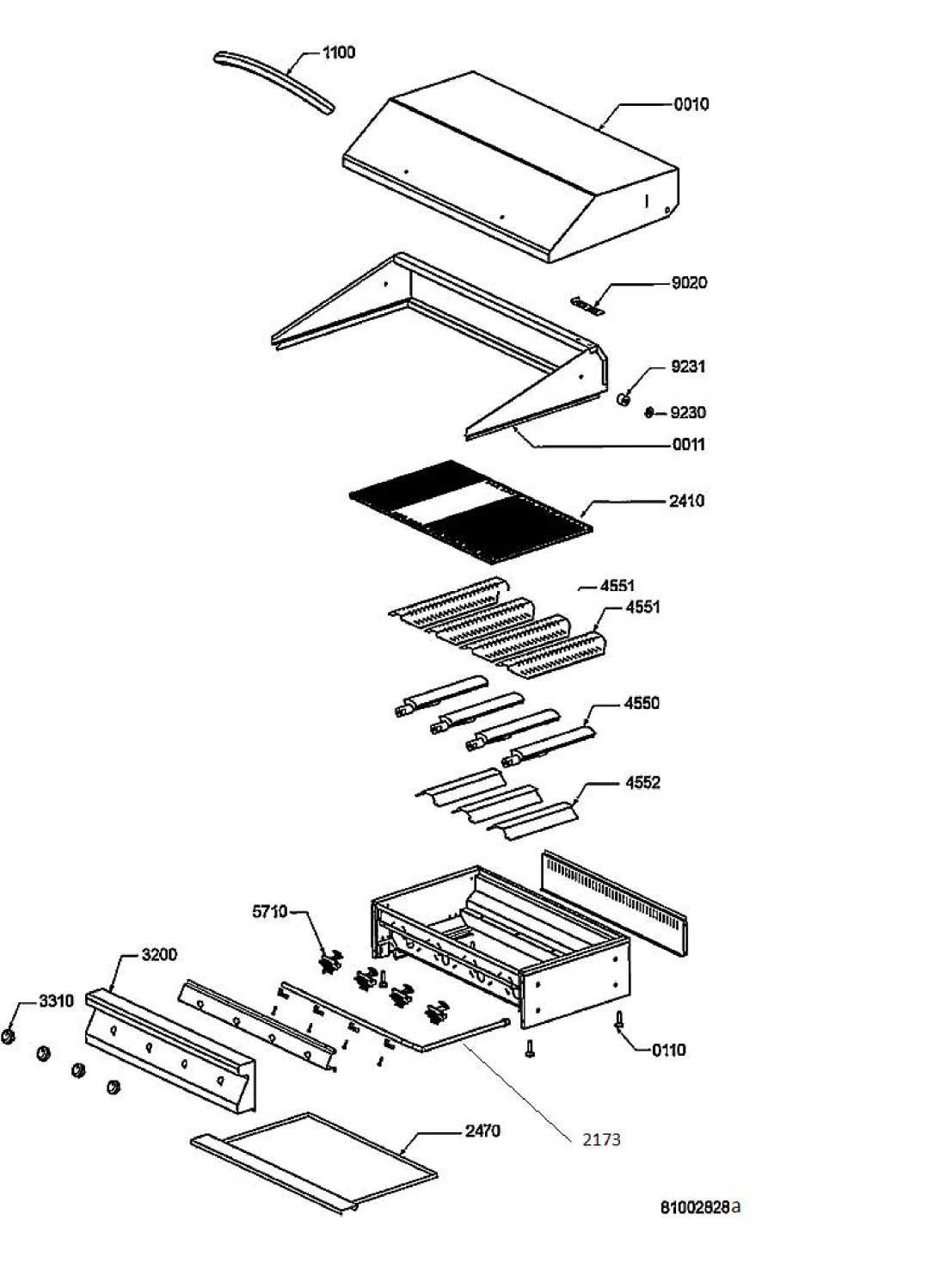

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0010 WHR15074 |
C00399698
481206578009 |
Lid | Na dotaz | Zadat poptávku | |
| 0011 WHR15074 |
C00404496
481245918297 |
Frame | Na dotaz | Zadat poptávku | |
| 0015 WHR15074 |
C00399700
481206578012 |
Lid | Na dotaz | Zadat poptávku | |
| 0110 WHR15074 |
C00330468
481246218313 |
Foot | Na dotaz | Zadat poptávku | |
| 0220 WHR15074 |
C00403317
481244039896 |
Side panel | Na dotaz | Zadat poptávku | |
| 0221 WHR15074 |
C00403318
481244039897 |
Side panel | Na dotaz | Zadat poptávku | |
| 0222 WHR15074 |
C00403319
481244039898 |
Cover | Na dotaz | Zadat poptávku | |
| 0229 WHR15074 |
C00403316
481244039895 |
Panel rear | Na dotaz | Zadat poptávku | |
| 0330 WHR15074 |
C00319145
481245838434 |
mrizka horaku | 2 045 Kč
€ 80.70 |
||
| 0500 WHR15074 |
C00399699
481206578011 |
Lid | Na dotaz | Zadat poptávku | |
| 0501 WHR15074 |
C00401890
481240418609 |
Support | Na dotaz | Zadat poptávku | |
| 0502 WHR15074 |
C00404497
481245918298 |
Frame | Na dotaz | Zadat poptávku | |
| 0503 WHR15074 |
C00404498
481245918299 |
Frame | Na dotaz | Zadat poptávku | |
| 0505 WHR15074 |
C00403315
481244039894 |
Plate | Na dotaz | Zadat poptávku | |
| 0506 WHR15074 |
C00403314
481244039893 |
Frame side | Na dotaz | Zadat poptávku | |
| 1000 WHR15074 |
C00402574
481241610546 |
Door | Na dotaz | Zadat poptávku | |
| 1001 WHR15074 |
C00402575
481241610547 |
Door | Na dotaz | Zadat poptávku | |
| 1100 WHR15074 |
C00344882
481249868284 |
Door handle | Na dotaz | Zadat poptávku | |
| 1105 WHR15074 |
C00405393
481249868295 |
Door handle | Na dotaz | Zadat poptávku | |
| 2020 WHR15074 |
C00403321
481244039903 |
Bottom gas bottle | Na dotaz | Zadat poptávku | |
| 2173 WHR15074 |
C00416567
482000019266 |
Manifold | Na dotaz | Zadat poptávku | |
| 2410 WHR15074 |
C00403699
481244508031 |
Grid top | Na dotaz | Zadat poptávku | |
| 2420 WHR15074 |
C00401942
481240438813 |
Bottom | Na dotaz | Zadat poptávku | |
| 2421 WHR15074 |
C00401892
481240418618 |
Support | Na dotaz | Zadat poptávku | |
| 2422 WHR15074 |
C00403320
481244039902 |
Panel rear | Na dotaz | Zadat poptávku | |
| 2423 WHR15074 |
C00328242
481244039899 |
Side panel right | Na dotaz | Zadat poptávku | |
| 2424 WHR15074 |
C00328243
481244039901 |
Side panel left | Na dotaz | Zadat poptávku | |
| 2470 WHR15074 |
C00402808
481241818679 |
Fat pan | Na dotaz | Zadat poptávku | |
| 2610 WHR15074 |
C00330674
481246238334 |
Rail | Na dotaz | Zadat poptávku | |
| 2614 WHR15074 |
C00329002
481240418615 |
Support left | Na dotaz | Zadat poptávku | |
| 2615 WHR15074 |
C00329000
481240418613 |
Bracket left | Na dotaz | Zadat poptávku | |
| 2616 WHR15074 |
C00328999
481240418612 |
Bracket right | Na dotaz | Zadat poptávku | |
| 2617 WHR15074 |
C00329003
481240418616 |
Clip right | Na dotaz | Zadat poptávku | |
| 2618 WHR15074 |
C00329004
481240418617 |
Clip left | Na dotaz | Zadat poptávku | |
| 2619 WHR15074 |
C00329001
481240418614 |
Support right | Na dotaz | Zadat poptávku | |
| 3200 WHR15074 |
C00404150
481245350383 |
Panel control | Na dotaz | Zadat poptávku | |
| 3311 WHR15074 |
C00402310
481241129094 |
Knob | Na dotaz | Zadat poptávku | |
| 4550 WHR15074 |
C00406476
481285038001 |
Burner | Na dotaz | Zadat poptávku | |
| 4551 WHR15074 |
C00399879
481214038006 |
Spreader,burner | Na dotaz | Zadat poptávku | |
| 4552 WHR15074 |
C00401780
481238028041 |
Reflector | Na dotaz | Zadat poptávku | |
| 4700 WHR15074 |
C00399880
481214038007 |
Burner cup | Na dotaz | Zadat poptávku | |
| 4720 WHR15074 |
C00328797
481236078193 |
Spreader,burner triple | Na dotaz | Zadat poptávku | |
| 4730 WHR15074 |
C00328796
481236078192 |
Burner cap triple, inner part | Na dotaz | Zadat poptávku | |
| 4731 WHR15074 |
C00328795
481236078191 |
Burner cap triple, outer part | Na dotaz | Zadat poptávku | |
| 5710 WHR15074 |
C00401491
481236058599 |
Gas cock | Na dotaz | Zadat poptávku | |
| 5711 WHR15074 |
C00401492
481236058601 |
Gas cock | Na dotaz | Zadat poptávku | |
| 9020 WHR15074 |
C00401891
481240418611 |
Support | Na dotaz | Zadat poptávku | |
| 9040 WHR15074 |
C00401889
481240418608 |
Support | Na dotaz | Zadat poptávku | |
| 9227 WHR15074 |
C00401896
481240418633 |
Support | Na dotaz | Zadat poptávku | |
| 9230 WHR15074 |
C00405957
481253218075 |
Washer | Na dotaz | Zadat poptávku | |
| 9231 WHR15074 |
C00498500
481246818349 |
Spacer | Na dotaz | Zadat poptávku | |
