| Komerční kód: | KVE 1432/A/1 BR |
| Kód 12NC: | 855001616580 |
| I.C. kód: | 855001616587 |
| Značka: | BAUKNECHT |
| Typ produktu: | Vestavné lednice |
| Další podobné modely: | 855001616588, 855001616585 |
Potřebujete servis? Jsme tady pro Vás

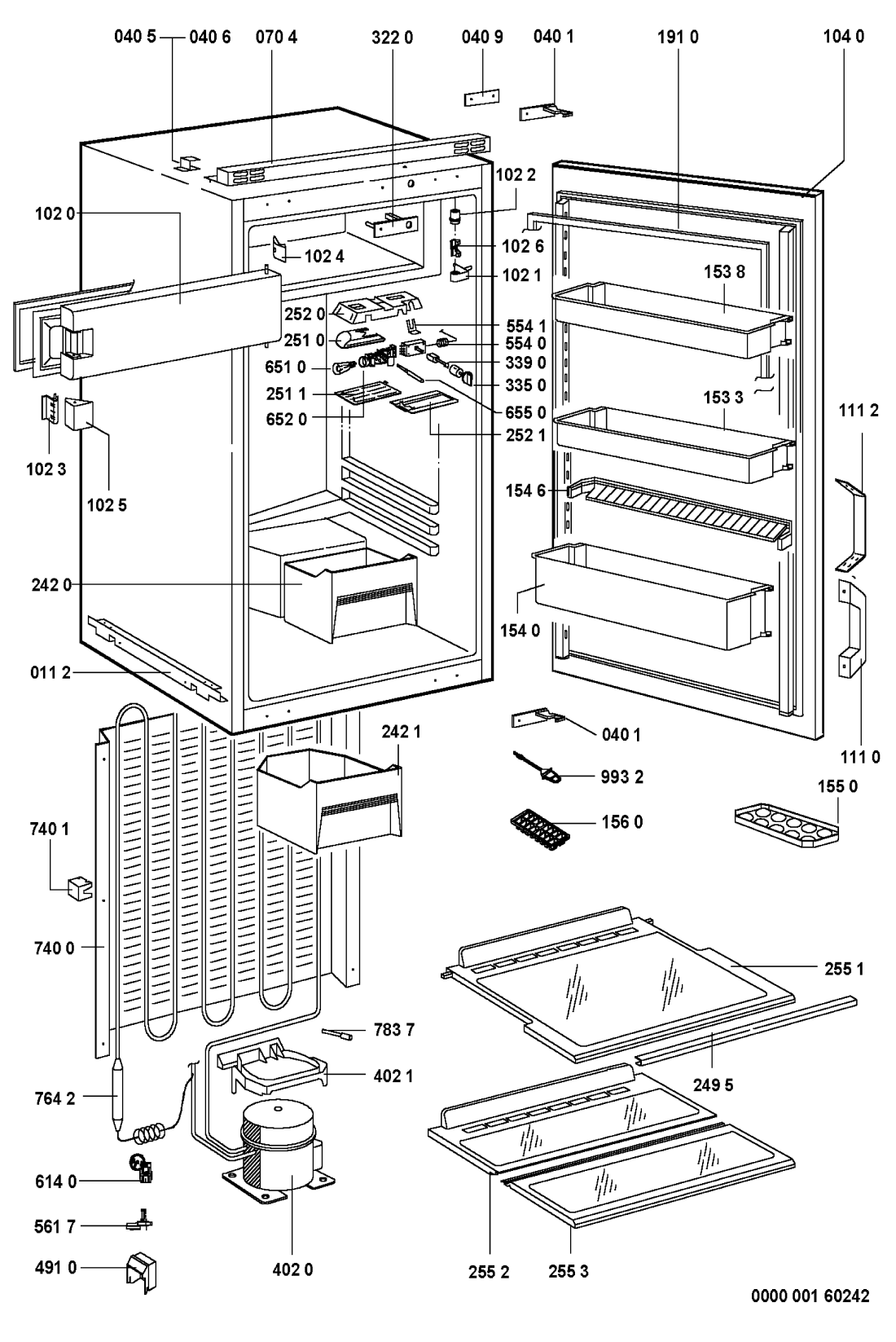

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 011 2 WHR73571 |
C00513859
481250018015 |
Foot. | Na dotaz | Zadat poptávku | |
| 040 1 WHR73571 |
C00490239
481253268033 |
Hinge upper/lower KIT | Na dotaz | Zadat poptávku | |
| 040 5 WHR73571 |
C00457629
481240449646 |
Bracket | Na dotaz | Zadat poptávku | |
| 040 6 WHR73571 |
C00457628
481240449645 |
Bracket | Na dotaz | Zadat poptávku | |
| 040 9 WHR73571 |
C00589750
481240448147 |
Holder adjust. | Na dotaz | Zadat poptávku | |
| 070 4 WHR73571 |
C00483411
481245228052 |
Grid air | Na dotaz | Zadat poptávku | |
| 102 0 WHR73571 |
C00374058
481244058326 |
Dveře výparníku komplet | 3 147 Kč
€ 124.20 |
||
| 102 1 WHR73571 |
C00319551
481240478335 |
zaves dveri vyparnik | 1 075 Kč
€ 42.40 |
||
| 102 2 WHR73571 |
C00583663
481240418418 |
Bushing | Na dotaz | Zadat poptávku | |
| 102 3 WHR73571 |
C00345852
481249298033 |
pruzina rukojete dv. | 621 Kč
€ 24.50 |
||
| 102 4 WHR73571 |
C00331560
481246699028 |
hak | 700 Kč
€ 27.60 |
||
| 102 5 WHR73571 |
C00319365
481246228506 |
rukojet dveri vypar. | 956 Kč
€ 37.70 |
||
| 102 6 WHR73571 |
C00327930
481242938038 |
PRUZINA ARL172 | 425 Kč
€ 16.80 |
||
| 104 0 WHR73571 |
C00589789
481241618852 |
Door refriger. | Na dotaz | Zadat poptávku | |
| 111 0 WHR73571 |
C00487802
481249868093 |
Door handle | Na dotaz | Zadat poptávku | |
| 111 2 WHR73571 |
C00487696
481246048077 |
DOOR HANDLE INSERT BROWN | Na dotaz | Zadat poptávku | |
| 153 3 WHR73571 |
C00345099
481241828867 |
Police dveří | Na dotaz | Zadat poptávku | |
| 153 8 WHR73571 |
C00458755
481241829686 |
Door dairy | Na dotaz | Zadat poptávku | |
| 154 0 WHR73571 |
C00374074
481241829687 |
Bottle shelf | Na dotaz | Zadat poptávku | |
| 154 6 WHR73571 |
C00374294
481946078835 |
Držák na lahve do dveří lednice Bauknecht | 1 150 Kč
€ 45.40 |
||
| 155 0 WHR73571 |
C00458740
481241828915 |
Rack egg | Na dotaz | Zadat poptávku | |
| 156 0 WHR73571 |
C00333002
481941848116 |
NÁDOBKA NA LED | Na dotaz | Zadat poptávku | |
| 191 0 WHR73571 |
C00490133
481246668518 |
tesneni magneticke | 1 682 Kč
€ 66.40 |
||
| 242 0 WHR73571 |
C00458885
481241848862 |
Drawer | Na dotaz | Zadat poptávku | |
| 242 1 WHR73571 |
C00403042
481241848861 |
Drawer | Na dotaz | Zadat poptávku | |
| 249 5 WHR73571 |
C00485874
481246049372 |
Trim | Na dotaz | Zadat poptávku | |
| 251 0 WHR73571 |
C00332896
481938028002 |
Reflector | Na dotaz | Zadat poptávku | |
| 251 1 WHR73571 |
C00320080
481946279556 |
kryt dif | 725 Kč
€ 28.60 |
||
| 252 0 WHR73571 |
C00316781
481940478855 |
Casing | Na dotaz | Zadat poptávku | |
| 252 1 WHR73571 |
C00318922
481946279617 |
kryt | 39 Kč
€ 1.50 |
||
| 255 1 WHR73571 |
C00485359
481245088129 |
Glass shelf | Na dotaz | Zadat poptávku | |
| 255 2 WHR73571 |
C00485361
481245088133 |
Glass shelf | Na dotaz | Zadat poptávku | |
| 255 3 WHR73571 |
C00485360
481245088132 |
Glass shelf front | Na dotaz | Zadat poptávku | |
| 322 0 WHR73571 |
C00329048
481240448874 |
Holder | Na dotaz | Zadat poptávku | |
| 335 0 WHR73571 |
C00318407
481241359127 |
spinac+termostat | 114 Kč
€ 4.50 |
||
| 339 0 WHR73571 |
C00333350
481953598347 |
Shaft thermostat | Na dotaz | Zadat poptávku | |
| 402 0 WHR73571 |
C00320895
481936058764 |
COMPRESSOR EMX32CLC R600a 92W 1/10 S.P. | Na dotaz | Zadat poptávku | |
| 402 1 WHR73571 |
C00327895
481241878039 |
Tray compressor | Na dotaz | Zadat poptávku | |
| 491 0 WHR73571 |
C00327312
481229088075 |
Cover connection block | Na dotaz | Zadat poptávku | |
| 554 0 WHR73571 |
C00491338
481228238055 |
Thermostat RK59 L....-33 | Na dotaz | Zadat poptávku | |
| 554 1 WHR73571 |
C00333185
481949268723 |
pruzina | 472 Kč
€ 18.60 |
||
| 561 7 WHR73571 |
C00327473
481228038104 |
Protect motor 1027066 | Na dotaz | Zadat poptávku | |
| 614 0 WHR73571 |
C00379189
481228228229 |
Monoblock +AD23FQ10 | Na dotaz | Zadat poptávku | |
| 651 0 WHR73571 |
C00311277
481913488135 |
BULB LED E14 T25 - 15W - 220V | Na dotaz | Zadat poptávku | |
| 652 0 WHR73571 |
C00313941
481925518199 |
spinac osvetl.+obj. | 944 Kč
€ 37.30 |
||
| 655 0 WHR73571 |
C00329408
481241168009 |
Switch | Na dotaz | Zadat poptávku | |
| 740 0 WHR73571 |
C00590069
481251148016 |
Condenser. | Na dotaz | Zadat poptávku | |
| 740 1 WHR73571 |
C00590116
481940449864 |
Fastener condenser. | Na dotaz | Zadat poptávku | |
| 764 2 WHR73571 |
C00266743
481948028144 |
Filtr chladničky - patrona | Na dotaz | Zadat poptávku | |
| 783 7 WHR73571 |
C00326890
481217088001 |
Tube | Na dotaz | Zadat poptávku | |
| 993 2 WHR73571 |
C00316841
481969028169 |
Čistič odtokového kanálku chladničky Whirlpool ARG 790/A+, ARG 734/A+, ARG 184701. | 155 Kč
€ 6.10 |
||
| 993 8 WHR73571 |
C00457022
481231028324 |
Accessories not shown | Na dotaz | Zadat poptávku | |
| 993 9 WHR73571 |
C00457021
481231028323 |
Accessories not shown | Na dotaz | Zadat poptávku | |
| 999 WHR73571 |
C00696848 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
