BAUKNECHT KVE 2032/A BK
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | KVE 2032/A BK |
| Kód 12NC: | 855011516020 |
| I.C. kód: | 855011516021 |
| Značka: | BAUKNECHT |
| Typ produktu: | Vestavné lednice |
| Další podobné modely: | 855011516020, 855011516026, 855011501410, 855011516024, 855011501411, 855011501412, 855011501413, 855011501415, 855011501416, 855011501417, 855011501418, 855011516022, 855011516023, 855011516025 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

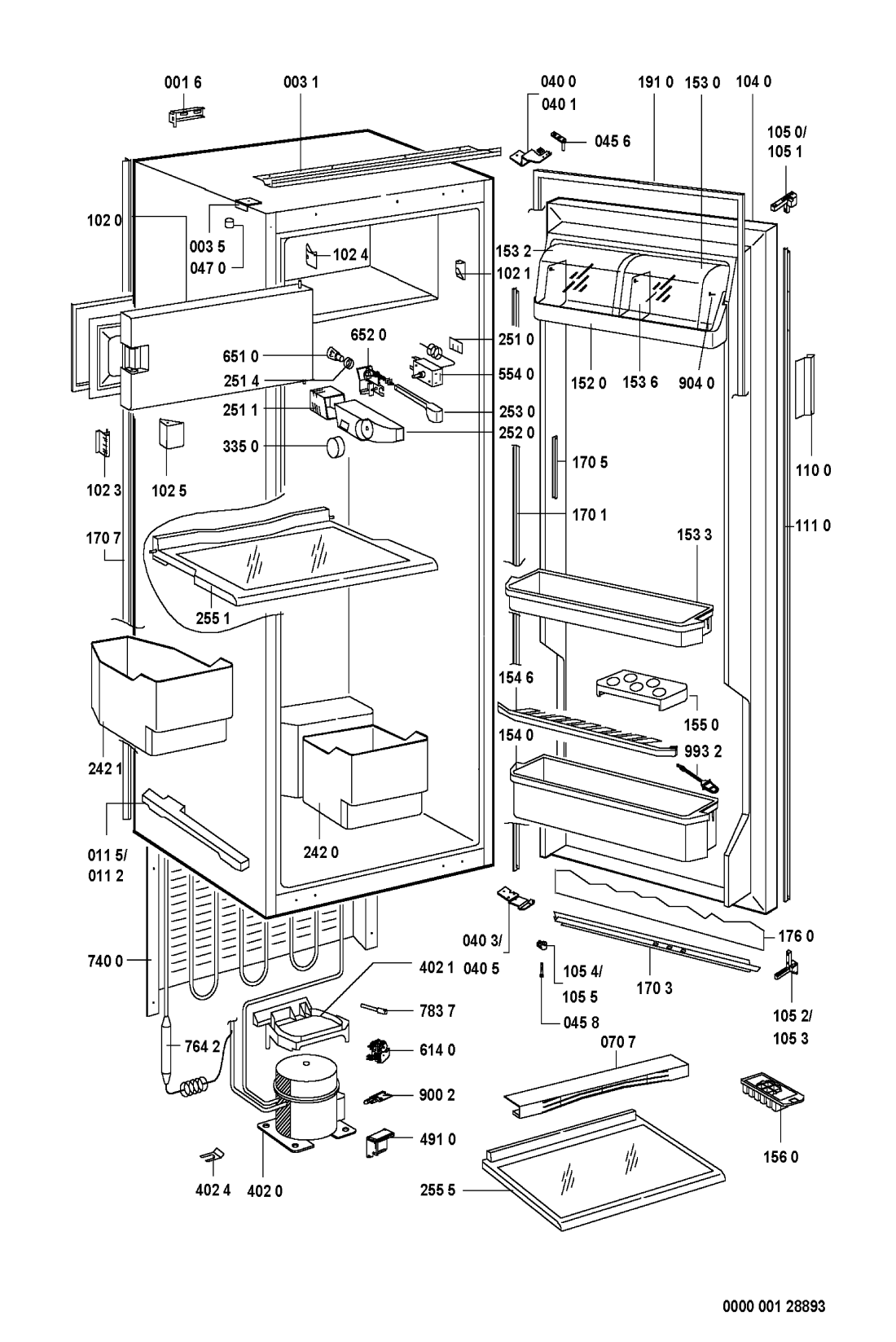

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0016 WHR80406 |
C00329697
481241718765 |
PRICHYTKA | 344 Kč
€ 13.60 |
||
| 0031 WHR80406 |
C00491770
481244079076 |
Front | Na dotaz | Zadat poptávku | |
| 0035 WHR80406 |
C00497305
481225698014 |
HOLDER | Na dotaz | Zadat poptávku | |
| 0112 WHR80406 |
C00490210
481250018076 |
Batten foot right | Na dotaz | Zadat poptávku | |
| 0115 WHR80406 |
C00590752
481250018102 |
Batten foot left. | Na dotaz | Zadat poptávku | |
| 0400 WHR80406 |
C00488970
481241719163 |
Hinge top left | Na dotaz | Zadat poptávku | |
| 0401 WHR80406 |
C00496637
481241719164 |
Hinge top right | Na dotaz | Zadat poptávku | |
| 0403 WHR80406 |
C00590507
481241719208 |
Hinge lower right | Na dotaz | Zadat poptávku | |
| 0405 WHR80406 |
C00488978
481241719207 |
Hinge lower left | Na dotaz | Zadat poptávku | |
| 0456 WHR80406 |
C00484396
481941718655 |
Bearing hinge | Na dotaz | Zadat poptávku | |
| 0458 WHR80406 |
C00311311
481953598188 |
Osa závěsu dveří vestavné lednice Whirlpool | 287 Kč
€ 11.30 |
||
| 0470 WHR80406 |
C00492107
481253268068 |
Bushing set | Na dotaz | Zadat poptávku | |
| 0707 WHR80406 |
C00482956
481244089058 |
Grid air | Na dotaz | Zadat poptávku | |
| 1020 WHR80406 |
C00317219
481244069334 |
Dveře výparníku kompletní Whirlpool | 2 570 Kč
€ 101.50 |
||
| 1021 WHR80406 |
C00319774
481241719199 |
Bearing | Na dotaz | Zadat poptávku | |
| 1023 WHR80406 |
C00318229
481249268132 |
Pružina rukojetě dveří | 834 Kč
€ 32.90 |
||
| 1024 WHR80406 |
C00329030
481240448612 |
Hook | Na dotaz | Zadat poptávku | |
| 1025 WHR80406 |
C00318327
481249868226 |
rukojet dveri vypar. | 451 Kč
€ 17.80 |
||
| 1040 WHR80406 |
C00485112
481244029423 |
Door refriger. | Na dotaz | Zadat poptávku | |
| 1050 WHR80406 |
C00480556
481940478788 |
Support upper left | Na dotaz | Zadat poptávku | |
| 1051 WHR80406 |
C00480555
481940478787 |
Support upper right | Na dotaz | Zadat poptávku | |
| 1052 WHR80406 |
C00480554
481940478786 |
Support lower left | Na dotaz | Zadat poptávku | |
| 1053 WHR80406 |
C00480553
481940478785 |
Support lower right | Na dotaz | Zadat poptávku | |
| 1054 WHR80406 |
C00492487
481946689482 |
Stop door | Na dotaz | Zadat poptávku | |
| 1055 WHR80406 |
C00492486
481946689481 |
Stop door | Na dotaz | Zadat poptávku | |
| 1100 WHR80406 |
C00487764
481249818223 |
Handle | Na dotaz | Zadat poptávku | |
| 1110 WHR80406 |
C00500913
481249818222 |
Handle | Na dotaz | Zadat poptávku | |
| 1520 WHR80406 |
C00513853
481241828295 |
Door dairy. | Na dotaz | Zadat poptávku | |
| 1530 WHR80406 |
C00387241
481241828214 |
Lid door dairy | Na dotaz | Zadat poptávku | |
| 1532 WHR80406 |
C00484960
481241828215 |
Lid door dairy | Na dotaz | Zadat poptávku | |
| 1533 WHR80406 |
C00381143
481241828294 |
Polička dveří dveří chladničky | 1 196 Kč
€ 47.20 |
||
| 1536 WHR80406 |
C00490729
481944278145 |
Separator | Na dotaz | Zadat poptávku | |
| 1540 WHR80406 |
C00374065
481241848656 |
police lahví | Na dotaz | Zadat poptávku | |
| 1546 WHR80406 |
C00374294
481946078835 |
Držák na lahve do dveří lednice Bauknecht | 1 150 Kč
€ 45.40 |
||
| 1550 WHR80406 |
C00329909
481241828013 |
Holder, eggs (6 pcs.) | Na dotaz | Zadat poptávku | |
| 1560 WHR80406 |
C00333002
481941848116 |
NÁDOBKA NA LED | Na dotaz | Zadat poptávku | |
| 1701 WHR80406 |
C00485865
481246049273 |
Profile | Na dotaz | Zadat poptávku | |
| 1703 WHR80406 |
C00480557
481946078711 |
Trim upper/lower silver | Na dotaz | Zadat poptávku | |
| 1705 WHR80406 |
C00486672
481946058943 |
Trim crisper cooling | Na dotaz | Zadat poptávku | |
| 1707 WHR80406 |
C00330276
481246049432 |
PROFIL BOČNÍ BÍLÝ 1194 MM | Na dotaz | Zadat poptávku | |
| 1760 WHR80406 |
C00491860
481245310262 |
Panel | Na dotaz | Zadat poptávku | |
| 1910 WHR80406 |
C00330994
481246688572 |
Magnetic seal | Na dotaz | Zadat poptávku | |
| 2420 WHR80406 |
C00590556
481241868271 |
Drawer. | Na dotaz | Zadat poptávku | |
| 2421 WHR80406 |
C00590557
481241868272 |
Drawer. | Na dotaz | Zadat poptávku | |
| 2510 WHR80406 |
C00328840
481238028018 |
Reflector | Na dotaz | Zadat poptávku | |
| 2511 WHR80406 |
C00316270
481244078294 |
stinidlo osvetleni | 849 Kč
€ 33.50 |
||
| 2514 WHR80406 |
C00330117
481245828001 |
Gasket lamp holder | Na dotaz | Zadat poptávku | |
| 2520 WHR80406 |
C00315084
481246279864 |
drzak termostatu | Na dotaz | Zadat poptávku | |
| 2530 WHR80406 |
C00332733
481253598099 |
spinac osvetleni al. | 144 Kč
€ 5.70 |
||
| 2551 WHR80406 |
C00590653
481245088194 |
Glass shelf. | Na dotaz | Zadat poptávku | |
| 2555 WHR80406 |
C00331189
481245088124 |
Glass shelf | Na dotaz | Zadat poptávku | |
| 3350 WHR80406 |
C00318429
481241359148 |
knoflik termostatu | 565 Kč
€ 22.30 |
||
| 4020 WHR80406 |
C00497500
481236038584 |
KOMPRESOR EMT40CLP N | Na dotaz | Zadat poptávku | |
| 4021 WHR80406 |
C00327895
481241878039 |
Tray compressor | Na dotaz | Zadat poptávku | |
| 4024 WHR80406 |
C00333135
481946689405 |
PRICHYTKA | 120 Kč
€ 4.70 |
||
| 4910 WHR80406 |
C00267000
481229088084 |
KRYT PLAST | Na dotaz | Zadat poptávku | |
| 5540 WHR80406 |
C00332837
481927129068 |
Thermostat A13-0460-33 | Na dotaz | Zadat poptávku | |
| 6140 WHR80406 |
C00327472
481228038098 |
Monoblock | Na dotaz | Zadat poptávku | |
| 6510 WHR80406 |
C00311277
481913488135 |
BULB LED E14 T25 - 15W - 220V | Na dotaz | Zadat poptávku | |
| 6520 WHR80406 |
C00327118
481225518203 |
objimka zarovky | 930 Kč
€ 36.70 |
||
| 7400 WHR80406 |
C00332241
481251148363 |
Condenser | Na dotaz | Zadat poptávku | |
| 7642 WHR80406 |
C00266743
481948028144 |
Filtr chladničky - patrona | Na dotaz | Zadat poptávku | |
| 7837 WHR80406 |
C00326890
481217088001 |
Tube | Na dotaz | Zadat poptávku | |
| 9002 WHR80406 |
C00330476
481246228261 |
pruchodka | 189 Kč
€ 7.50 |
||
| 9040 WHR80406 |
C00333158
481946818282 |
Podložka distanční | 351 Kč
€ 13.90 |
||
| 9932 WHR80406 |
C00316841
481969028169 |
Čistič odtokového kanálku chladničky Whirlpool ARG 790/A+, ARG 734/A+, ARG 184701. | 155 Kč
€ 6.10 |
||
| 9939 WHR80406 |
C00482582
481231018562 |
Accessories not shown | Na dotaz | Zadat poptávku | |
| 999 WHR80406 |
C00710602 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
