BAUKNECHT KVIC 1356/3
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
Komerční kód: | KVIC 1356/3 |
Kód 12NC: | 855010916400 |
Značka: | BAUKNECHT |
Typ produktu: |
Potřebujete servis? Jsme tady pro Vás

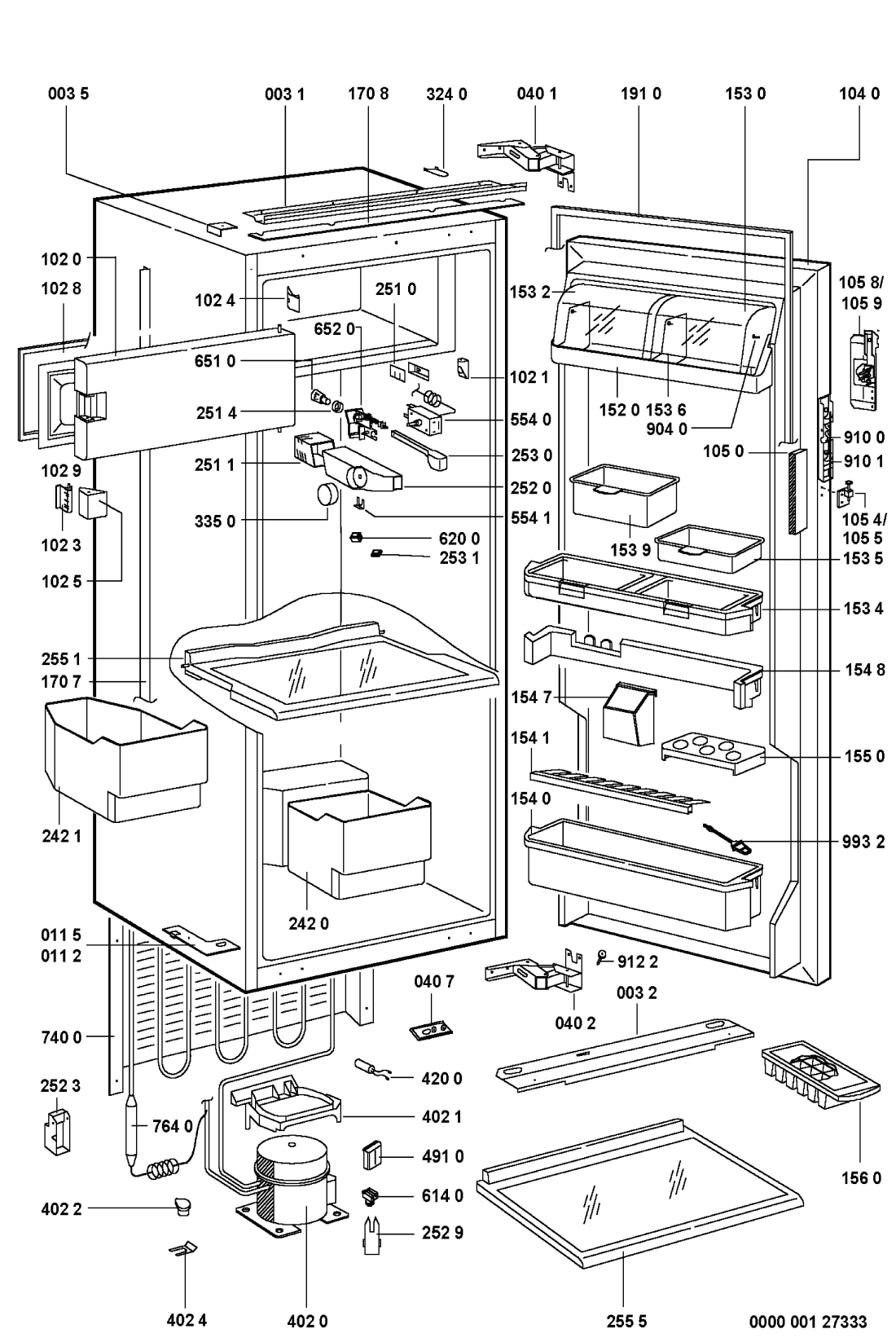

Nabídka náhradních dílů
Číslo | Kód | Název | Cena | ||
---|---|---|---|---|---|
003 1 WHR109550 |
C00553708
481246058311 |
FASTENER.. | Na dotaz | Zadat poptávku | |
003 2 WHR109550 |
C00590714
481246088212 |
FASTENER. | Na dotaz | Zadat poptávku | |
003 5 WHR109550 |
C00497305
481225698014 |
HOLDER | Na dotaz | Zadat poptávku | |
011 2 WHR109550 |
C00492014
481250018071 |
FOOT | Na dotaz | Zadat poptávku | |
011 5 WHR109550 |
C00590750
481250018069 |
FOOT. | Na dotaz | Zadat poptávku | |
040 1 WHR109550 |
C00339858
481241718814 |
Hinge | Na dotaz | Zadat poptávku | |
040 2 WHR109550 |
C00339859
481241718813 |
Hinge | Na dotaz | Zadat poptávku | |
040 7 WHR109550 |
C00327816
481241848473 |
Záslepka | 278 Kč
€ 11.00 |
||
102 0 WHR109550 |
C00584974
481244229001 |
DVIERKA VYPARNIKA VONKAJSIE N | Na dotaz | Zadat poptávku | |
102 1 WHR109550 |
C00584955
481241718788 |
PANT N | Na dotaz | Zadat poptávku | |
102 3 WHR109550 |
C00318229
481249268132 |
Pružina rukojetě dveří | 834 Kč
€ 32.90 |
||
102 4 WHR109550 |
C00329030
481240448612 |
Hook | Na dotaz | Zadat poptávku | |
102 5 WHR109550 |
C00585040
481249868135 |
RUKOVAT DVERI VYPARNIKA *** N | Na dotaz | Zadat poptávku | |
102 8 WHR109550 |
C00330913
481246668565 |
Gasket, door evaporator | Na dotaz | Zadat poptávku | |
102 9 WHR109550 |
C00584972
481244028953 |
VNUTRO DVERI VYPARNIKA N | Na dotaz | Zadat poptávku | |
104 0 WHR109550 |
C00590572
481244028862 |
DOOR,REFRIGER.. | Na dotaz | Zadat poptávku | |
105 0 WHR109550 |
C00497041
481244028839 |
COVER | Na dotaz | Zadat poptávku | |
105 4 WHR109550 |
C00332368
481252838057 |
Držák pravý | 427 Kč
€ 16.90 |
||
105 5 WHR109550 |
C00332367
481252838056 |
Držák levý | 1 202 Kč
€ 47.50 |
||
105 8 WHR109550 |
C00329033
481240448619 |
Držák pravý | 1 048 Kč
€ 41.40 |
||
105 9 WHR109550 |
C00329032
481240448618 |
Držák levý | 1 202 Kč
€ 47.50 |
||
152 0 WHR109550 |
C00557459
481941879617 |
Door,dairy upper.. | Na dotaz | Zadat poptávku | |
153 0 WHR109550 |
C00557518
481944278319 |
Door,flap right.. | Na dotaz | Zadat poptávku | |
153 2 WHR109550 |
C00557519
481944278321 |
Door,flap left.. | Na dotaz | Zadat poptávku | |
153 4 WHR109550 |
C00557457
481941879582 |
Door,dairy f. containe.. | Na dotaz | Zadat poptávku | |
153 5 WHR109550 |
C00374312
481941879286 |
Tray | Na dotaz | Zadat poptávku | |
153 6 WHR109550 |
C00490729
481944278145 |
Separator | Na dotaz | Zadat poptávku | |
153 9 WHR109550 |
C00374311
481941879287 |
Tray | Na dotaz | Zadat poptávku | |
154 0 WHR109550 |
C00553532
481241848469 |
Bottle shelf WH.. | Na dotaz | Zadat poptávku | |
154 1 WHR109550 |
C00527881
481241848471 |
Bottle holder green green | Na dotaz | Zadat poptávku | |
154 7 WHR109550 |
C00379225
481241848419 |
HOLDER | Na dotaz | Zadat poptávku | |
154 8 WHR109550 |
C00586664
481241848438 |
BATTEN. | Na dotaz | Zadat poptávku | |
155 0 WHR109550 |
C00329909
481241828013 |
Holder, eggs (6 pcs.) | Na dotaz | Zadat poptávku | |
156 0 WHR109550 |
C00287849
481941878977 |
miska na led | 300 Kč
€ 11.80 |
||
170 7 WHR109550 |
C00555493
481246088072 |
COVER BAR LATERAL.. | Na dotaz | Zadat poptávku | |
170 8 WHR109550 |
C00330363
481246058309 |
Profile top | Na dotaz | Zadat poptávku | |
191 0 WHR109550 |
C00555544
481246668525 |
TESNENIE DVERI MAGN. N | Na dotaz | Zadat poptávku | |
242 0 WHR109550 |
C00590543
481241848411 |
CRISPER. | Na dotaz | Zadat poptávku | |
242 1 WHR109550 |
C00511340
481241848409 |
CRISPER | Na dotaz | Zadat poptávku | |
251 0 WHR109550 |
C00328840
481238028018 |
Reflector | Na dotaz | Zadat poptávku | |
251 1 WHR109550 |
C00316270
481244078294 |
stinidlo osvetleni | 849 Kč
€ 33.50 |
||
251 4 WHR109550 |
C00330117
481245828001 |
Gasket lamp holder | Na dotaz | Zadat poptávku | |
252 0 WHR109550 |
C00342770
481246279652 |
Casing | Na dotaz | Zadat poptávku | |
252 3 WHR109550 |
C00585030
481246278207 |
Cover thermostat.. | Na dotaz | Zadat poptávku | |
252 9 WHR109550 |
C00333089
481946258371 |
Guard | Na dotaz | Zadat poptávku | |
253 0 WHR109550 |
C00344553
481253598053 |
ovladac spinace osv. | 34 Kč
€ 1.30 |
||
253 1 WHR109550 |
C00330745
481246279645 |
Cover switch | Na dotaz | Zadat poptávku | |
255 1 WHR109550 |
C00553736
481246678364 |
Shelf plate glass 3.2.. | Na dotaz | Zadat poptávku | |
255 5 WHR109550 |
C00555453
481245818934 |
SHELF PLATE.. | Na dotaz | Zadat poptávku | |
324 0 WHR109550 |
C00342500
481244028856 |
krytka | 89 Kč
€ 3.50 |
||
335 0 WHR109550 |
C00338427
481241358891 |
Knob thermostat | Na dotaz | Zadat poptávku | |
402 0 WHR109550 |
C00555048
481236038567 |
Compressor.. | Na dotaz | Zadat poptávku | |
402 1 WHR109550 |
C00327895
481241878039 |
Tray compressor | Na dotaz | Zadat poptávku | |
402 2 WHR109550 |
C00195454
481936048014 |
VENTIL | Na dotaz | Zadat poptávku | |
402 4 WHR109550 |
C00333135
481946689405 |
PRICHYTKA | 120 Kč
€ 4.70 |
||
420 0 WHR109550 |
C00584887
481212118148 |
CAPACITOR. | Na dotaz | Zadat poptávku | |
491 0 WHR109550 |
C00333094
481946279241 |
Cover connection block | Na dotaz | Zadat poptávku | |
554 0 WHR109550 |
C00620369
481231028009 |
THERMOSTAT SET | Na dotaz | Zadat poptávku | |
554 1 WHR109550 |
C00333185
481949268723 |
pruzina | 472 Kč
€ 18.60 |
||
614 0 WHR109550 |
C00332847
481928068367 |
RELE ART284 | 1 086 Kč
€ 42.90 |
||
620 0 WHR109550 |
C00316468
481927618259 |
tlacitko zlute-topen | 951 Kč
€ 37.50 |
||
651 0 WHR109550 |
C00311277
481913488135 |
BULB LED E14 T25 - 15W - 220V | Na dotaz | Zadat poptávku | |
652 0 WHR109550 |
C00327118
481225518203 |
objimka zarovky | 930 Kč
€ 36.70 |
||
740 0 WHR109550 |
C00590072
481251148181 |
CHLADIA N | Na dotaz | Zadat poptávku | |
764 0 WHR109550 |
C00266743
481948028144 |
Filtr chladničky - patrona | Na dotaz | Zadat poptávku | |
904 0 WHR109550 |
C00333158
481946818282 |
Podložka distanční | 351 Kč
€ 13.90 |
||
910 0 WHR109550 |
C00329031
481240448617 |
Držák pravý | 129 Kč
€ 5.10 |
||
910 1 WHR109550 |
C00329034
481240448622 |
Držák levý | 226 Kč
€ 8.90 |
||
912 2 WHR109550 |
C00345735
481250218392 |
Screw M5 X 16 | Na dotaz | Zadat poptávku | |
993 2 WHR109550 |
C00316841
481969028169 |
Čistič odtokového kanálku chladničky Whirlpool ARG 790/A+, ARG 734/A+, ARG 184701. | 155 Kč
€ 6.10 |
||
993 9 WHR109550 |
C00590451
481231038467 |
Door revers.Kit not shown. | Na dotaz | Zadat poptávku | |
999 WHR109550 |
C00789744 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku |
