BAUKNECHT KVIP 3461 A+++
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | KVIP 3461 A+++ |
| Kód 12NC: | 855091316000 |
| Značka: | BAUKNECHT |
| Typ produktu: | Vestavné lednice |
Potřebujete servis? Jsme tady pro Vás

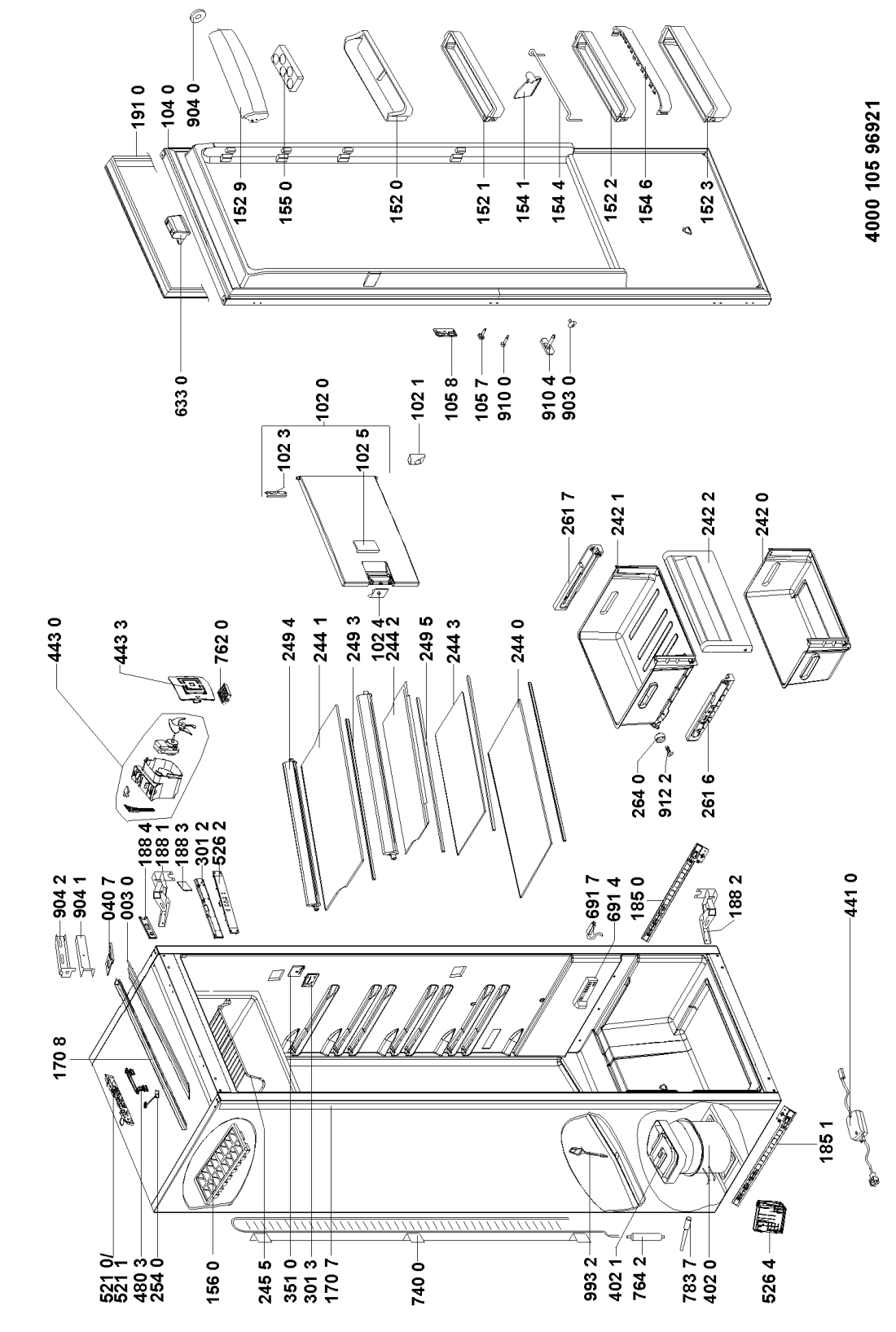

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0030 WHR26681 |
C00439665
481010504569 |
Fastener upper,547 x 58,7 mm | Na dotaz | Zadat poptávku | |
| 0407 WHR26681 |
C00324626
481010491221 |
Cover hinge GW HETTICH DX/SX | Na dotaz | Zadat poptávku | |
| 1020 WHR26681 |
C00328339
481244079243 |
Dveře výparníku komplet | 2 349 Kč
€ 92.70 |
||
| 1021 WHR26681 |
C00319914
481241719479 |
Pouzdro dveří | 614 Kč
€ 24.20 |
||
| 1023 WHR26681 |
C00318229
481249268132 |
Pružina rukojetě dveří | 834 Kč
€ 32.90 |
||
| 1024 WHR26681 |
C00319483
480131100599 |
hak | 591 Kč
€ 23.30 |
||
| 1025 WHR26681 |
C00318327
481249868226 |
rukojet dveri vypar. | 451 Kč
€ 17.80 |
||
| 1040 WHR26681 |
C00441843
481010568276 |
Door refriger. | Na dotaz | Zadat poptávku | |
| 1057 WHR26681 |
C00329206
481240478707 |
drzak | 400 Kč
€ 15.80 |
||
| 1058 WHR26681 |
C00329163
481240468035 |
Držák dekor.desky | 561 Kč
€ 22.10 |
||
| 1520 WHR26681 |
C00324467
481010470960 |
Dno horní police | 1 317 Kč
€ 52.00 |
||
| 1521 WHR26681 |
C00324476
481010471458 |
Door dairy printed | Na dotaz | Zadat poptávku | |
| 1522 WHR26681 |
C00324477
481010471465 |
Door dairy printed,0.5lt | Na dotaz | Zadat poptávku | |
| 1523 WHR26681 |
C00324470
481010470976 |
Police lahví | 1 312 Kč
€ 51.80 |
||
| 1529 WHR26681 |
C00324471
481010470978 |
Flap f. door dairy printedBK | Na dotaz | Zadat poptávku | |
| 1541 WHR26681 |
C00322976
480131100226 |
Držák lahví posuvný | 433 Kč
€ 17.10 |
||
| 1544 WHR26681 |
C00431558
480131100304 |
Rod shelf | Na dotaz | Zadat poptávku | |
| 1546 WHR26681 |
C00431571
480131100337 |
Holder bottles | Na dotaz | Zadat poptávku | |
| 1550 WHR26681 |
C00324468
481010470963 |
Držák vajec | 246 Kč
€ 9.70 |
||
| 1560 WHR26681 |
C00287849
481941878977 |
miska na led | 300 Kč
€ 11.80 |
||
| 1707 WHR26681 |
C00330347
481246049842 |
profil | 1 568 Kč
€ 61.90 |
||
| 1708 WHR26681 |
C00485896
481246049631 |
Profile | Na dotaz | Zadat poptávku | |
| 1850 WHR26681 |
C00323047
480131100569 |
lista | 313 Kč
€ 12.40 |
||
| 1851 WHR26681 |
C00323048
480131100571 |
lista | 302 Kč
€ 11.90 |
||
| 1881 WHR26681 |
C00324564
481010478059 |
Hinge,soft close lower left /upper right | Na dotaz | Zadat poptávku | |
| 1882 WHR26681 |
C00324565
481010478061 |
Hinge, soft close lower right/upper left | Na dotaz | Zadat poptávku | |
| 1883 WHR26681 |
C00324677
481010500009 |
Cover plate f.user board DOTYK | Na dotaz | Zadat poptávku | |
| 1884 WHR26681 |
C00324562
481010477522 |
support, hinge HT SOFT CLOSING | Na dotaz | Zadat poptávku | |
| 1910 WHR26681 |
C00319576
480131100563 |
tesneni magneticke | 2 436 Kč
€ 96.20 |
||
| 2420 WHR26681 |
C00327839
481241848849 |
Zásuvka na zeleninu spodní-bez čela | 2 350 Kč
€ 92.80 |
||
| 2421 WHR26681 |
C00327838
481241848848 |
Zásuvka bez čela | 2 610 Kč
€ 103.00 |
||
| 2422 WHR26681 |
C00322985
480131100246 |
Kryt mrazícího prostoru | 839 Kč
€ 33.10 |
||
| 2440 WHR26681 |
C00320835
481245088461 |
krycí deska | Na dotaz | Zadat poptávku | |
| 2441 WHR26681 |
C00322974
480131100224 |
Glass shelf printed SAFETY GLASS | Na dotaz | Zadat poptávku | |
| 2442 WHR26681 |
C00322999
480131100325 |
Glass shelf 1/2 rear part | Na dotaz | Zadat poptávku | |
| 2443 WHR26681 |
C00323000
480131100326 |
Glass shelf 1/2 front part | Na dotaz | Zadat poptávku | |
| 2455 WHR26681 |
C00330144
481245838455 |
Grid | 1 155 Kč
€ 45.60 |
||
| 2493 WHR26681 |
C00322983
480131100242 |
Trim front | Na dotaz | Zadat poptávku | |
| 2494 WHR26681 |
C00314992
481010495387 |
Krycí lišta skleněné police chladničky - zadní | 109 Kč
€ 4.30 |
||
| 2495 WHR26681 |
C00323001
480131100327 |
Profile connecting,dark silver | 474 Kč
€ 18.70 |
||
| 2540 WHR26681 |
C00439768
481010507226 |
Contact reed board CENTAUR | Na dotaz | Zadat poptávku | |
| 2616 WHR26681 |
C00332320
481252518038 |
Lišta levá | 887 Kč
€ 35.00 |
||
| 2617 WHR26681 |
C00332319
481252518037 |
Lišta pravá | 926 Kč
€ 36.60 |
||
| 2640 WHR26681 |
C00332384
481252898024 |
kolecko | 174 Kč
€ 6.90 |
||
| 3012 WHR26681 |
C00439707
481010505252 |
Plate support f.control board | Na dotaz | Zadat poptávku | |
| 3013 WHR26681 |
C00323002
480131100329 |
kryt | 326 Kč
€ 12.90 |
||
| 3510 WHR26681 |
C00324261
481010423337 |
LED osvětlení,1 x LED 90 lm | 1 636 Kč
€ 64.60 |
||
| 4020 WHR26681 |
C00377250
481010529409 |
Kompresor | 3 964 Kč
€ 156.50 |
||
| 4021 WHR26681 |
C00320775
481241828358 |
miska odkapni | 425 Kč
€ 16.80 |
||
| 4410 WHR26681 |
C00441060
481010547428 |
Power supplier LED light ,V-ZUG | Na dotaz | Zadat poptávku | |
| 4430 WHR26681 |
C00316811
480132101184 |
Fan box GW cpl. VELA with switch | Na dotaz | Zadat poptávku | |
| 4433 WHR26681 |
C00323438
480132101293 |
Kryt filtru | 232 Kč
€ 9.20 |
||
| 4803 WHR26681 |
C00439769
481010507228 |
Cable harness ,bridge 4P | Na dotaz | Zadat poptávku | |
| 5210 WHR26681 |
C00441265
481010553926 |
Control board CENTAUR BK programmed | Na dotaz | Zadat poptávku | |
| 5211 WHR26681 |
C00440655
481010534114 |
Control board CENTAUR blank | Na dotaz | Zadat poptávku | |
| 5262 WHR26681 |
C00441672
481010562967 |
User board set,DOTYK BK | Na dotaz | Zadat poptávku | |
| 5264 WHR26681 |
C00440506
481010529410 |
Control board VEMC 7 C | Na dotaz | Zadat poptávku | |
| 6330 WHR26681 |
C00323039
480131100515 |
magnet | 979 Kč
€ 38.60 |
||
| 6914 WHR26681 |
C00330510
481246228546 |
Kryt senzoru | 124 Kč
€ 4.90 |
||
| 6917 WHR26681 |
C00311307
481231018846 |
Senzor teploty - sada | 1 663 Kč
€ 65.70 |
||
| 7400 WHR26681 |
C00332275
481251148486 |
Condenser | Na dotaz | Zadat poptávku | |
| 7620 WHR26681 |
C00345845
481248048173 |
Filtr antibakteriální - BAUKNECHT | Na dotaz | Zadat poptávku | |
| 7642 WHR26681 |
C00266743
481948028144 |
Filtr chladničky - patrona | Na dotaz | Zadat poptávku | |
| 7837 WHR26681 |
C00326892
481217088015 |
TUBE 60 MM | Na dotaz | Zadat poptávku | |
| 9030 WHR26681 |
C00319367
481246228507 |
Záslepka | 302 Kč
€ 11.90 |
||
| 9040 WHR26681 |
C00333158
481946818282 |
Podložka distanční | 351 Kč
€ 13.90 |
||
| 9041 WHR26681 |
C00323045
480131100567 |
kryt | 530 Kč
€ 20.90 |
||
| 9042 WHR26681 |
C00323046
480131100568 |
kryt | 234 Kč
€ 9.20 |
||
| 9100 WHR26681 |
C00332119
481250218745 |
Šroubek | 84 Kč
€ 3.30 |
||
| 9104 WHR26681 |
C00315481
481250218749 |
Šroubek | 58 Kč
€ 2.30 |
||
| 9122 WHR26681 |
C00332159
481250238371 |
Štoubek / čep kolečka kolejničky šuplíku mrazáku Whirlpool | 146 Kč
€ 5.80 |
||
| 9932 WHR26681 |
C00316841
481969028169 |
Čistič odtokového kanálku chladničky Whirlpool ARG 790/A+, ARG 734/A+, ARG 184701. | 155 Kč
€ 6.10 |
||
| 9938 WHR26681 |
C00488590
481231028139 |
Montážní sada na přehození dveří | 2 196 Kč
€ 86.70 |
||
| 9939 WHR26681 |
C00439895
481010512188 |
Door revers.Kit not shown/SOFT CLOS. | Na dotaz | Zadat poptávku | |
