IGNIS LPA 71 AL
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | LPA 71 AL |
| Kód 12NC: | 850875138850 |
| Značka: | IGNIS |
| Typ produktu: | Myčky |
| Další podobné modely: | 850875138851, 850875138856 |
Potřebujete servis? Jsme tady pro Vás

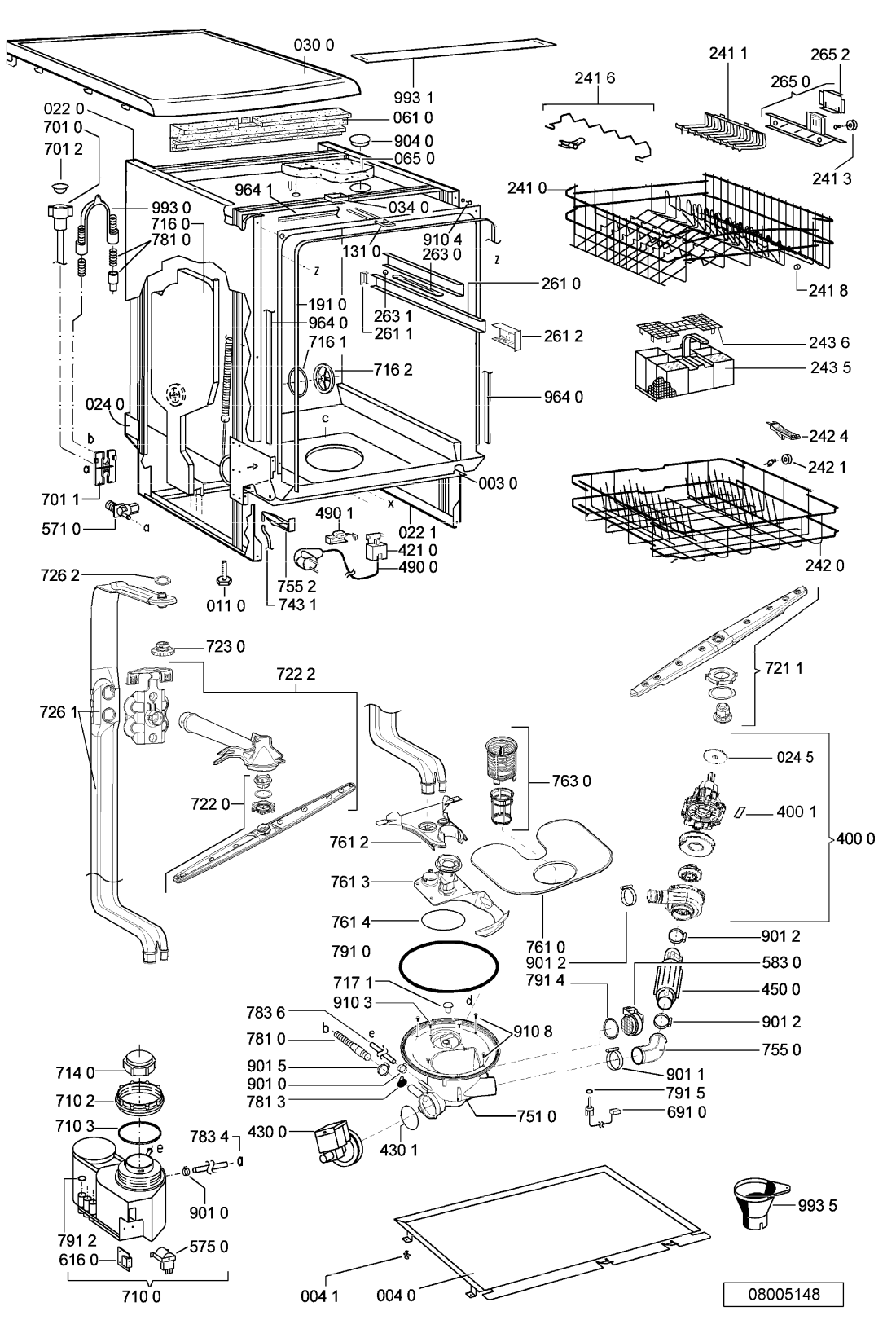

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 003 0 WHR15072 |
C00497944
481244019594 |
LISTA ADP962/3 N | Na dotaz | Zadat poptávku | |
| 004 0 WHR15072 |
C00328100
481244018952 |
Drip tray assy | Na dotaz | Zadat poptávku | |
| 004 1 WHR15072 |
C00317898
481240118402 |
drzak | Na dotaz | Zadat poptávku | |
| 011 0 WHR15072 |
C00332170
481250518357 |
noha | 216 Kč
€ 8.50 |
||
| 022 0 WHR15072 |
C00497911
481244011123 |
Side panel left alu painted | Na dotaz | Zadat poptávku | |
| 022 1 WHR15072 |
C00497912
481244011124 |
Side panel | Na dotaz | Zadat poptávku | |
| 024 0 WHR15072 |
C00497878
481244010417 |
Panel, rear | Na dotaz | Zadat poptávku | |
| 024 5 WHR15072 |
C00327974
481244010944 |
Damper fix Motor synch.(Askoll) | Na dotaz | Zadat poptávku | |
| 030 0 WHR15072 |
C00327346
481231019007 |
Table top alu painted | Na dotaz | Zadat poptávku | |
| 034 0 WHR15072 |
C00329171
481240478237 |
PRICHYTKA | 641 Kč
€ 25.30 |
||
| 040 1 WHR15072 |
C00312272
481241718774 |
Závěs dveří levý | 945 Kč
€ 37.30 |
||
| 040 1 WHR15072 |
C00313635
481231019244 |
Hinge | Na dotaz | Zadat poptávku | |
| 040 2 WHR15072 |
C00312358
481241718773 |
zaves dveri pravy | 945 Kč
€ 37.30 |
||
| 040 3 WHR15072 |
C00329700
481241718851 |
Protector f.door set grau | Na dotaz | Zadat poptávku | |
| 044 0 WHR15072 |
C00312167
481249238358 |
pruzina | 1 134 Kč
€ 44.80 |
||
| 047 0 WHR15072 |
C00311044
481240448746 |
Brzda dveří | 100 Kč
€ 3.90 |
||
| 047 1 WHR15072 |
C00311343
481240118397 |
Band,brake | Na dotaz | Zadat poptávku | |
| 047 2 WHR15072 |
C00311951
481240468023 |
hak brzdne pasky | 174 Kč
€ 6.90 |
||
| 053 0 WHR15072 |
C00328400
481244089093 |
Plinth AL | Na dotaz | Zadat poptávku | |
| 053 4 WHR15072 |
C00328401
481244089094 |
Plinth ROUNDED AL | Na dotaz | Zadat poptávku | |
| 061 0 WHR15072 |
C00331004
481246688672 |
senzor hmotnosti | 1 632 Kč
€ 64.40 |
||
| 065 0 WHR15072 |
C00330893
481246648051 |
izolace | Na dotaz | Zadat poptávku | |
| 103 0 WHR15072 |
C00327983
481244011125 |
Door outer alu painted | Na dotaz | Zadat poptávku | |
| 120 0 WHR15072 |
C00328106
481244019456 |
vnitrek dveri mycky | Na dotaz | Zadat poptávku | |
| 120 1 WHR15072 |
C00328101
481244018969 |
lista | 665 Kč
€ 26.30 |
||
| 120 1 WHR15072 |
C00322624
480140100772 |
Ledge | Na dotaz | Zadat poptávku | |
| 130 0 WHR15072 |
C00329789
481241758373 |
Tilt lock cpl. bk | Na dotaz | Zadat poptávku | |
| 131 0 WHR15072 |
C00314010
481240118416 |
pojistka zamku | 848 Kč
€ 33.50 |
||
| 191 0 WHR15072 |
C00311041
481246668564 |
Těsnění dveří myčky - obvodové | 588 Kč
€ 23.20 |
||
| 192 0 WHR15072 |
C00311260
481246668467 |
Těsnění dveří - spodní | 561 Kč
€ 22.10 |
||
| 241 0 WHR15072 |
C00498279
481245819027 |
KOS NA RIAD HORNY KOV N | Na dotaz | Zadat poptávku | |
| 241 1 WHR15072 |
C00319073
481245818324 |
Holder cups right whcups right wh | Na dotaz | Zadat poptávku | |
| 241 3 WHR15072 |
C00312273
481252888113 |
Kolečka horn.koše - 4ks | 499 Kč
€ 19.70 |
||
| 241 6 WHR15072 |
C00319342
481231018757 |
Držák skleniček WGH1000 | 1 293 Kč
€ 51.00 |
||
| 241 8 WHR15072 |
C00314554
481246668553 |
Spacer cap set | Na dotaz | Zadat poptávku | |
| 242 0 WHR15072 |
C00313639
481231028134 |
Basket lower KIT wh | Na dotaz | Zadat poptávku | |
| 242 1 WHR15072 |
C00314772
481252888069 |
Wheel,basket lower wh | Na dotaz | Zadat poptávku | |
| 242 4 WHR15072 |
C00330894
481246648091 |
Fixation grgr | Na dotaz | Zadat poptávku | |
| 243 5 WHR15072 |
C00527245
481231038746 |
Cutlery basket KIT | Na dotaz | Zadat poptávku | |
| 243 6 WHR15072 |
C00498277
481245818996 |
mrizka WH | 935 Kč
€ 36.90 |
||
| 261 0 WHR15072 |
C00311448
481246279831 |
Rail telescope, inner | Na dotaz | Zadat poptávku | |
| 261 1 WHR15072 |
C00311245
481246279768 |
Koncovka kolejnice - zadní | Na dotaz | Zadat poptávku | |
| 261 2 WHR15072 |
C00315195
481231018972 |
Cap rail front | Na dotaz | Zadat poptávku | |
| 263 0 WHR15072 |
C00311960
481952018013 |
Ball cage cpl. | Na dotaz | Zadat poptávku | |
| 263 1 WHR15072 |
C00311847
481231048026 |
kulicka plastova | 574 Kč
€ 22.70 |
||
| 265 0 WHR15072 |
C00544950
481240448882 |
Basket adjustm. cpl. VBL. | Na dotaz | Zadat poptávku | |
| 265 2 WHR15072 |
C00488721
481240448871 |
Grip basket adj.green VBL | Na dotaz | Zadat poptávku | |
| 301 0 WHR15072 |
C00463259
481245372884 |
Control panel ,LPA 71 AL | Na dotaz | Zadat poptávku | |
| 301 1 WHR15072 |
C00462410
481245279743 |
Nameplate IGNIS | Na dotaz | Zadat poptávku | |
| 303 1 WHR15072 |
C00490046
481246038164 |
Plate handle grey | Na dotaz | Zadat poptávku | |
| 331 0 WHR15072 |
C00457934
481241359202 |
Knob ALU | Na dotaz | Zadat poptávku | |
| 332 0 WHR15072 |
C00457704
481241029344 |
Button Start alu | Na dotaz | Zadat poptávku | |
| 332 1 WHR15072 |
C00457705
481241029345 |
Button options alu | Na dotaz | Zadat poptávku | |
| 332 3 WHR15072 |
C00344014
481241029218 |
Button ON/OFF | Na dotaz | Zadat poptávku | |
| 350 1 WHR15072 |
C00487011
481228128457 |
Window | Na dotaz | Zadat poptávku | |
| 350 2 WHR15072 |
C00484755
481238128071 |
Light guide | Na dotaz | Zadat poptávku | |
| 350 3 WHR15072 |
C00484756
481238128072 |
Light guide | Na dotaz | Zadat poptávku | |
| 350 5 WHR15072 |
C00329967
481245372617 |
Insert DB 3-6-9 | Na dotaz | Zadat poptávku | |
| 400 0 WHR15072 |
C00311248
481236158334 |
Motor + spray pump - PNT permanent | Na dotaz | Zadat poptávku | |
| 400 1 WHR15072 |
C00330930
481246668776 |
podlozka cerpadla | 101 Kč
€ 4.00 |
||
| 421 0 WHR15072 |
C00318174
481212118158 |
Interf.filter - 68820-06 | Na dotaz | Zadat poptávku | |
| 430 0 WHR15072 |
C00312277
481236018508 |
Pump,draining - 7828.64747 | Na dotaz | Zadat poptávku | |
| 430 1 WHR15072 |
C00317755
481246668689 |
tesneni | 739 Kč
€ 29.20 |
||
| 450 0 WHR15072 |
C00311759
481225928684 |
Heating element 2040W 220V - 303554 | Na dotaz | Zadat poptávku | |
| 480 0 WHR15072 |
C00312437
481232128424 |
vodice svazek | 2 884 Kč
€ 113.90 |
||
| 480 0 WHR15072 |
C00318328
480140101442 |
kabelaz | 3 346 Kč
€ 132.10 |
||
| 480 1 WHR15072 |
C00343872
481232128426 |
Cable | Na dotaz | Zadat poptávku | |
| 480 3 WHR15072 |
C00311946
481240118418 |
Protector f.wiring | Na dotaz | Zadat poptávku | |
| 490 0 WHR15072 |
C00316393
481932118136 |
Flexo kabel 2 m, konektory | Na dotaz | Zadat poptávku | |
| 490 1 WHR15072 |
C00309418
481232128367 |
Přechodka | 591 Kč
€ 23.30 |
||
| 521 0 WHR15072 |
C00544911
481221838244 |
Control board. | Na dotaz | Zadat poptávku | |
| 521 8 WHR15072 |
C00314532
481253078066 |
Osa knoflíku | 680 Kč
€ 26.80 |
||
| 571 0 WHR15072 |
C00312837
481228128379 |
Valve inlet inlet | Na dotaz | Zadat poptávku | |
| 575 0 WHR15072 |
C00327511
481228128361 |
Regen.valve | Na dotaz | Zadat poptávku | |
| 583 0 WHR15072 |
C00311913
481227128407 |
Switch diaphragm | Na dotaz | Zadat poptávku | |
| 616 0 WHR15072 |
C00327505
481228118047 |
Contact reed salt | Na dotaz | Zadat poptávku | |
| 620 0 WHR15072 |
C00544913
481221878006 |
NAHRADA 481227658163 | Na dotaz | Zadat poptávku | |
| 621 0 WHR15072 |
C00311780
481941029004 |
Spínač síťový | 842 Kč
€ 33.20 |
||
| 621 0 WHR15072 |
C00314725
480140100929 |
Spínač ON/OFF | 1 038 Kč
€ 41.00 |
||
| 633 0 WHR15072 |
C00327238
481227138355 |
Microswitch door | Na dotaz | Zadat poptávku | |
| 680 0 WHR15072 |
C00312283
481241868155 |
Combidosage | Na dotaz | Zadat poptávku | |
| 680 1 WHR15072 |
C00314550
481246668495 |
Těsnění násypky | 783 Kč
€ 30.90 |
||
| 681 1 WHR15072 |
C00313952
481246668497 |
Gasket SK 5244.04.04 | Na dotaz | Zadat poptávku | |
| 681 2 WHR15072 |
C00316126
481244018975 |
klapka | 896 Kč
€ 35.40 |
||
| 682 0 WHR15072 |
C00319741
481246668496 |
tesneni nasypky | 116 Kč
€ 4.60 |
||
| 691 0 WHR15072 |
C00313437
481228268035 |
Feeler NTC | Na dotaz | Zadat poptávku | |
| 701 0 WHR15072 |
C00309500
481953028928 |
hadice napousteci | Na dotaz | Zadat poptávku | |
| 701 1 WHR15072 |
C00319991
481231018302 |
drzak hadic | Na dotaz | Zadat poptávku | |
| 701 2 WHR15072 |
C00318772
482248050159 |
Sieve inlet | Na dotaz | Zadat poptávku | |
| 710 0 WHR15072 |
C00327349
481231019022 |
MonoblockSK5176.0 | Na dotaz | Zadat poptávku | |
| 710 2 WHR15072 |
C00316961
481231038896 |
matice k zásobníku soli pro myčku Whirlpool | 172 Kč
€ 6.80 |
||
| 710 3 WHR15072 |
C00315128
481946669562 |
Gasket set | Na dotaz | Zadat poptávku | |
| 714 0 WHR15072 |
C00313274
481246279903 |
Uzávěr zásobníku soli | 532 Kč
€ 21.00 |
||
| 716 0 WHR15072 |
C00311895
481241868147 |
4812 418 68368 POSUDA | Na dotaz | Zadat poptávku | |
| 716 1 WHR15072 |
C00315959
481246668475 |
Gasket | Na dotaz | Zadat poptávku | |
| 716 2 WHR15072 |
C00311305
481246278994 |
mrizka bloku upravy vody | 300 Kč
€ 11.80 |
||
| 717 1 WHR15072 |
C00330750
481246279793 |
Stopper | Na dotaz | Zadat poptávku | |
| 721 1 WHR15072 |
C00311132
481236068689 |
Spray arm lower. cpl. sa | Na dotaz | Zadat poptávku | |
| 722 0 WHR15072 |
C00311968
481236068687 |
Spray arm upper sa | Na dotaz | Zadat poptávku | |
| 722 2 WHR15072 |
C00311304
481236068693 |
Spray arm 2nd level cpl. saph | Na dotaz | Zadat poptávku | |
| 723 0 WHR15072 |
C00312540
481236068691 |
Douche ceiling | Na dotaz | Zadat poptávku | |
| 726 1 WHR15072 |
C00313019
481253029331 |
Trubice přívodová | 640 Kč
€ 25.30 |
||
| 726 2 WHR15072 |
C00314925
481250518208 |
matice plast | 480 Kč
€ 18.90 |
||
| 743 1 WHR15072 |
C00314290
481253028102 |
Hadička | 169 Kč
€ 6.70 |
||
| 751 0 WHR15072 |
C00315536
481241818338 |
nadoba sberna | Na dotaz | Zadat poptávku | |
| 755 0 WHR15072 |
C00312127
481253029119 |
Hadice myčky Whirlpool, Ignis | 1 102 Kč
€ 43.50 |
||
| 755 2 WHR15072 |
C00332503
481253048148 |
Přepadový kanál levý | 388 Kč
€ 15.30 |
||
| 761 0 WHR15072 |
C00313265
481248058122 |
sitko jemne | Na dotaz | Zadat poptávku | |
| 761 2 WHR15072 |
C00311695
481241818337 |
kryt | Na dotaz | Zadat poptávku | |
| 761 3 WHR15072 |
C00311568
481241818341 |
Cover | Na dotaz | Zadat poptávku | |
| 761 4 WHR15072 |
C00311339
481253058141 |
Spodní těsnění k přívodu vody do mycích ramen myčky Whirlpool ADG 2040 FD, 5720 IX, ADG 6 | 175 Kč
€ 6.90 |
||
| 763 0 WHR15072 |
C00345765
481248058123 |
Sieve coarse | Na dotaz | Zadat poptávku | |
| 781 0 WHR15072 |
C00311031
481253029113 |
Hadice výtoková na myčku Whirlpool | 158 Kč
€ 6.20 |
||
| 781 3 WHR15072 |
C00317931
481228128417 |
Klapka zpětná | 803 Kč
€ 31.70 |
||
| 783 4 WHR15072 |
C00314292
481253028888 |
Hadice myčky Whirlpool, Ignis | 120 Kč
€ 4.70 |
||
| 783 6 WHR15072 |
C00332409
481253028796 |
Hose 10x3x180+10 | Na dotaz | Zadat poptávku | |
| 791 0 WHR15072 |
C00313003
481253268099 |
Těsnění jímky (spodní nádoby) myčky nádobí Whirlpool ADG 5720 FD A+, ADG 6240 FD, ADG 772 | 701 Kč
€ 27.70 |
||
| 791 2 WHR15072 |
C00312677
481253058093 |
Gasket SK 5199 01 4 | Na dotaz | Zadat poptávku | |
| 791 4 WHR15072 |
C00319745
481246668503 |
Těsnění ADP941 | 741 Kč
€ 29.30 |
||
| 791 5 WHR15072 |
C00330909
481246668504 |
tesneni | 544 Kč
€ 21.50 |
||
| 901 0 WHR15072 |
C00312134
482240110258 |
SPONA HADICE OD VENT | 180 Kč
€ 7.10 |
||
| 901 1 WHR15072 |
C00317950
481240118424 |
spona050,0 | 167 Kč
€ 6.60 |
||
| 901 2 WHR15072 |
C00311047
481240118157 |
spona 33-55 | 202 Kč
€ 8.00 |
||
| 901 5 WHR15072 |
C00314613
481240148573 |
spona028,6 | Na dotaz | Zadat poptávku | |
| 904 0 WHR15072 |
C00313055
481246278998 |
Záslepka (zátka) vany myčky | 547 Kč
€ 21.60 |
||
| 910 1 WHR15072 |
C00311881
481250218394 |
Šroub | 152 Kč
€ 6.00 |
||
| 910 2 WHR15072 |
C00316659
481250218363 |
Šroub | 191 Kč
€ 7.50 |
||
| 910 3 WHR15072 |
C00332082
481250218527 |
Screw 4x15 T204x15 T20 | Na dotaz | Zadat poptávku | |
| 910 4 WHR15072 |
C00345780
481250218385 |
Screw M3,5x8-T15M | Na dotaz | Zadat poptávku | |
| 910 5 WHR15072 |
C00345782
481250218393 |
Screw 3,5x9-1 Tx15 | Na dotaz | Zadat poptávku | |
| 910 7 WHR15072 |
C00314887
481250218397 |
Screw INOX A2 M 5x14 TX20 | Na dotaz | Zadat poptávku | |
| 910 8 WHR15072 |
C00345781
481250218389 |
sroub 5x20-TORX | 156 Kč
€ 6.20 |
||
| 910 9 WHR15072 |
C00328872
481240118425 |
Screw 2,5x18-H | Na dotaz | Zadat poptávku | |
| 964 0 WHR15072 |
C00340399
481246668577 |
Gaskethousing ri/le | Na dotaz | Zadat poptávku | |
| 964 1 WHR15072 |
C00340445
481246668576 |
Gasket housing upper grey | Na dotaz | Zadat poptávku | |
| 993 0 WHR15072 |
C00316831
481953029028 |
Koleno výtokové hadice | 95 Kč
€ 3.80 |
||
| 993 5 WHR15072 |
C00335151
482253280216 |
SALT FUNNEL | Na dotaz | Zadat poptávku | |
