IKEA 20108877 SNABB MBI A00 W Integr. MWO
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | 20108877 SNABB MBI A00 W Integr. MWO |
| Kód 12NC: | 858744301270 |
| I.C. kód: | 858744301271 |
| Značka: | IKEA |
| Typ produktu: | Mikrovlnné trouby |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

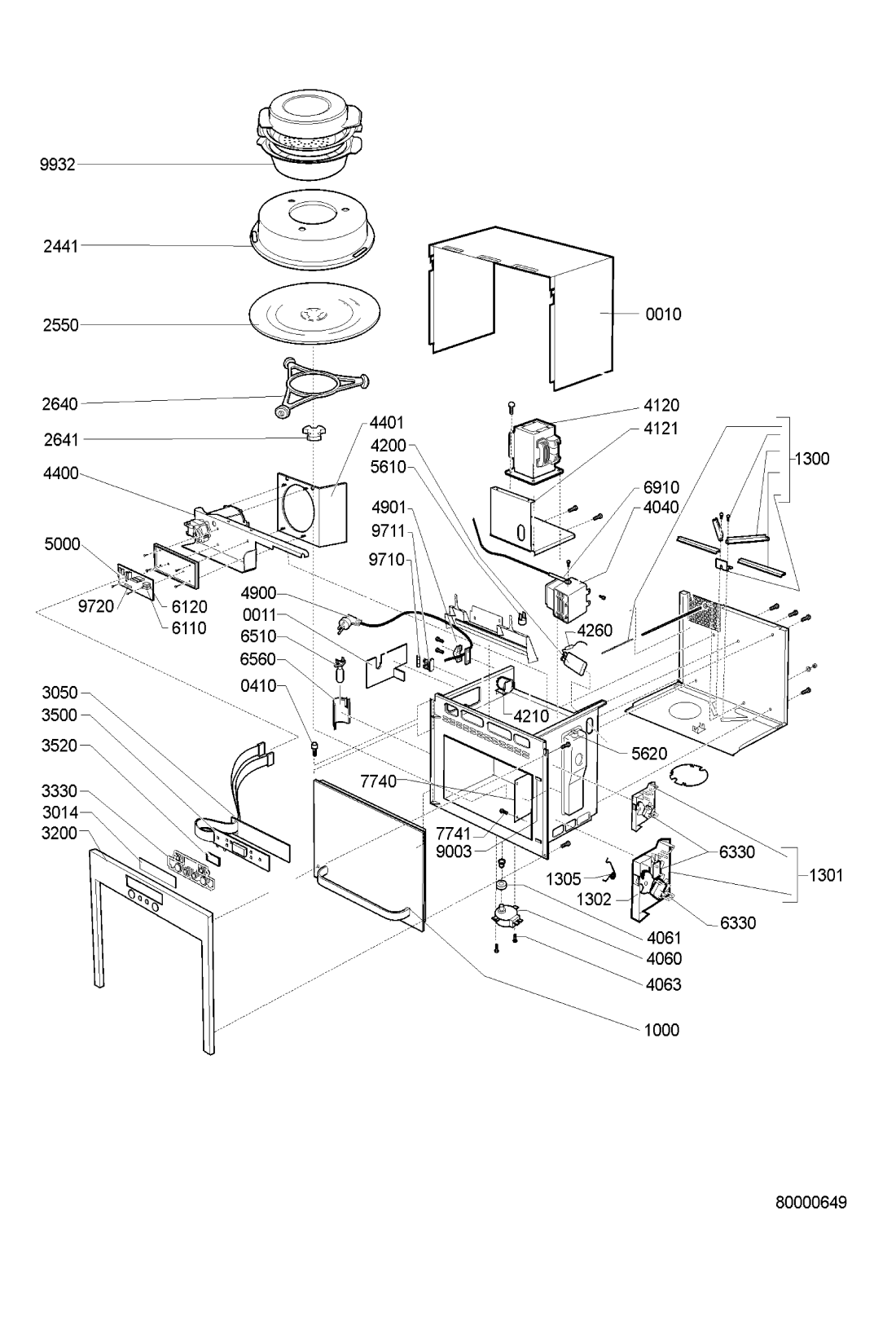

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 0 WHR66322 |
C00327984
481244011126 |
Cabinet | Na dotaz | Zadat poptávku | |
| 001 1 WHR66322 |
C00331042
481244229204 |
PANEL | 363 Kč
€ 14.50 |
||
| 041 0 WHR66322 |
C00329714
481241719181 |
Hinge screw | Na dotaz | Zadat poptávku | |
| 100 0 WHR66322 |
C00486252
481249878567 |
Door | Na dotaz | Zadat poptávku | |
| 130 0 WHR66322 |
C00327629
481231038748 |
sada montazni | 2 331 Kč
€ 92.80 |
||
| 130 1 WHR66322 |
C00327224
481227018044 |
Holder | Na dotaz | Zadat poptávku | |
| 130 2 WHR66322 |
C00327630
481231038782 |
Vačka | 230 Kč
€ 9.20 |
||
| 130 5 WHR66322 |
C00345823
481249268172 |
SPRING,TENSION | 984 Kč
€ 39.20 |
||
| 244 1 WHR66322 |
C00333131
481946689229 |
Cover for food | Na dotaz | Zadat poptávku | |
| 255 0 WHR66322 |
C00313978
481246678412 |
Talíř otočný 25 cm skleněný Whirlpool | 912 Kč
€ 36.30 |
||
| 264 0 WHR66322 |
C00332730
481253578092 |
Ring turntable | Na dotaz | Zadat poptávku | |
| 264 1 WHR66322 |
C00319471
481246238249 |
Crosspiece turntable | Na dotaz | Zadat poptávku | |
| 301 4 WHR66322 |
C00342167
481290208039 |
Display | Na dotaz | Zadat poptávku | |
| 305 0 WHR66322 |
C00484780
481240478658 |
Cover plate | Na dotaz | Zadat poptávku | |
| 320 0 WHR66322 |
C00463120
481245350281 |
Panel control WH | Na dotaz | Zadat poptávku | |
| 333 0 WHR66322 |
C00457862
481241259162 |
Button assy WH | Na dotaz | Zadat poptávku | |
| 350 0 WHR66322 |
C00313726
481220988105 |
displej | 3 849 Kč
€ 153.30 |
||
| 352 0 WHR66322 |
C00319056
481990200644 |
sklo displeje | Na dotaz | Zadat poptávku | |
| 404 0 WHR66322 |
C00313156
481213158813 |
magnetron | Na dotaz | Zadat poptávku | |
| 406 0 WHR66322 |
C00311611
481236158419 |
Motorek otočného talíře 5/6RPM 4W | 1 035 Kč
€ 41.20 |
||
| 406 1 WHR66322 |
C00314548
481953268686 |
tesneni motorku | 315 Kč
€ 12.50 |
||
| 406 3 WHR66322 |
C00333212
481950218402 |
Screw | Na dotaz | Zadat poptávku | |
| 412 0 WHR66322 |
C00317663
481214528019 |
Transformer HT | Na dotaz | Zadat poptávku | |
| 412 1 WHR66322 |
C00327143
481225638006 |
Support transformer | Na dotaz | Zadat poptávku | |
| 420 0 WHR66322 |
C00311879
481212158159 |
kondenzator VN 1,05uF | 333 Kč
€ 13.30 |
||
| 421 0 WHR66322 |
C00326791
481212208001 |
Filter,mains | Na dotaz | Zadat poptávku | |
| 426 0 WHR66322 |
C00319476
481221838134 |
Diode HV | Na dotaz | Zadat poptávku | |
| 440 0 WHR66322 |
C00320705
481236118441 |
motor ventilatoru | 3 589 Kč
€ 142.90 |
||
| 440 1 WHR66322 |
C00330649
481246238176 |
Air guide deflector | Na dotaz | Zadat poptávku | |
| 490 0 WHR66322 |
C00457192
481232118302 |
Cable,mains | Na dotaz | Zadat poptávku | |
| 490 1 WHR66322 |
C00332915
481940118494 |
Clamp | Na dotaz | Zadat poptávku | |
| 500 0 WHR66322 |
C00455172
481221470063 |
NAHRADENE 481220988113 | Na dotaz | Zadat poptávku | |
| 561 0 WHR66322 |
C00327565
481228248277 |
termostat | 1 349 Kč
€ 53.70 |
||
| 562 0 WHR66322 |
C00327566
481228248278 |
termostat | 1 316 Kč
€ 52.40 |
||
| 611 0 WHR66322 |
C00327501
481228068369 |
Relay G5PA-1-WP 24V | Na dotaz | Zadat poptávku | |
| 612 0 WHR66322 |
C00326770
481212118192 |
Relay | Na dotaz | Zadat poptávku | |
| 633 0 WHR66322 |
C00319013
481227138395 |
Switch door | Na dotaz | Zadat poptávku | |
| 651 0 WHR66322 |
C00326854
481213488055 |
Lamp | Na dotaz | Zadat poptávku | |
| 656 0 WHR66322 |
C00333084
481946258335 |
ochrana zarovky | 547 Kč
€ 21.80 |
||
| 691 0 WHR66322 |
C00314612
481221078032 |
senzor | 700 Kč
€ 27.90 |
||
| 774 0 WHR66322 |
C00311470
481244229206 |
Krytka slídová | 555 Kč
€ 22.10 |
||
| 774 1 WHR66322 |
C00312011
481249148016 |
Kolík krytky slídové | 148 Kč
€ 5.90 |
||
| 900 3 WHR66322 |
C00327628
481231038743 |
Stopper door | Na dotaz | Zadat poptávku | |
| 971 0 WHR66322 |
C00311937
481925228125 |
Pojistka 10A L | 266 Kč
€ 10.60 |
||
| 971 1 WHR66322 |
C00332822
481925638016 |
Držák pojistky | 377 Kč
€ 15.00 |
||
| 972 0 WHR66322 |
C00317905
481925228132 |
pojistka 160 mA | 301 Kč
€ 12.00 |
||
| 993 2 WHR66322 |
C00331525
481246688934 |
hrnec vareni v pare | 1 760 Kč
€ 70.10 |
||
