WHIRLPOOL MD 363 WHITE MICROWAVE OVENS WP
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | MD 363 WHITE MICROWAVE OVENS WP |
| Kód 12NC: | 853836329290 |
| I.C. kód: | 853836329291 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Mikrovlnné trouby |
| Další podobné modely: | 853836320291, 853836310291 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 002 0 WHR78655 |
C00484413
481944238042 |
skrin WH | 3 197 Kč
€ 126.20 |
||
| 002 2 WHR78655 |
C00373308
481946279721 |
krytka slidova | Na dotaz | Zadat poptávku | |
| 002 2 WHR78655 |
C00373307
481946279722 |
Cover lower | Na dotaz | Zadat poptávku | |
| 002 5 WHR78655 |
C00586026
481946689241 |
Plate protect. heat left. | Na dotaz | Zadat poptávku | |
| 002 6 WHR78655 |
C00586027
481946689242 |
Plate protect. heat right. | Na dotaz | Zadat poptávku | |
| 002 7 WHR78655 |
C00490379
481932518057 |
Insulation | Na dotaz | Zadat poptávku | |
| 013 0 WHR78655 |
C00340808
481946279423 |
noha | Na dotaz | Zadat poptávku | |
| 041 0 WHR78655 |
C00555969
481941719445 |
Hinge.. | Na dotaz | Zadat poptávku | |
| 041 1 WHR78655 |
C00585981
481941719379 |
Z?VES SPODN# N | Na dotaz | Zadat poptávku | |
| 100 0 WHR78655 |
C00556549
481244228042 |
Door cpl... | Na dotaz | Zadat poptávku | |
| 110 0 WHR78655 |
C00490826
481949869967 |
rukojet dveri | Na dotaz | Zadat poptávku | |
| 120 0 WHR78655 |
C00486562
481944238004 |
vnitrek dveri | 3 711 Kč
€ 146.50 |
||
| 130 0 WHR78655 |
C00585945
481927638171 |
SPINAC DVERI nad60V N | Na dotaz | Zadat poptávku | |
| 130 1 WHR78655 |
C00343271
481946689172 |
Clip Slide block | Na dotaz | Zadat poptávku | |
| 131 0 WHR78655 |
C00490841
481953598529 |
Door latch | Na dotaz | Zadat poptávku | |
| 141 0 WHR78655 |
C00586122
481245068228 |
SKLO DVIEROK WH AVM215 N | Na dotaz | Zadat poptávku | |
| 143 0 WHR78655 |
C00486657
481945948669 |
VONKAJŻSI RAM PLAST. N | Na dotaz | Zadat poptávku | |
| 201 0 WHR78655 |
C00586024
481946279801 |
Cover. | Na dotaz | Zadat poptávku | |
| 203 0 WHR78655 |
C00556232
481946698983 |
Insulation FC-cap.. | Na dotaz | Zadat poptávku | |
| 203 1 WHR78655 |
C00586040
481953268722 |
Shaft seal for motor. | Na dotaz | Zadat poptávku | |
| 204 0 WHR78655 |
C00586028
481946689243 |
Heat shield FC. | Na dotaz | Zadat poptávku | |
| 204 1 WHR78655 |
C00585984
481941879213 |
Cover FC | Na dotaz | Zadat poptávku | |
| 234 0 WHR78655 |
C00486564
481944238039 |
Plate protect. | Na dotaz | Zadat poptávku | |
| 244 0 WHR78655 |
C00336053
481946698789 |
rost pro druhy talir | 1 027 Kč
€ 40.50 |
||
| 244 1 WHR78655 |
C00383482
481945858562 |
Grid defrost | Na dotaz | Zadat poptávku | |
| 245 0 WHR78655 |
C00488245
481945819981 |
rost grilovaci | 1 061 Kč
€ 41.90 |
||
| 245 0 WHR78655 |
C00586012
481945858581 |
grilovací rošt nízký | Na dotaz | Zadat poptávku | |
| 246 0 WHR78655 |
C00556221
481946689271 |
NAHRADENE 481931018537 N | Na dotaz | Zadat poptávku | |
| 246 1 WHR78655 |
C00340209
481949869875 |
Grip crisp plate | Na dotaz | Zadat poptávku | |
| 251 0 WHR78655 |
C00486766
481946279799 |
KRYT ZIAROVKY PLAST N | Na dotaz | Zadat poptávku | |
| 251 1 WHR78655 |
C00486836
481946818076 |
ramecek osvetleni | 705 Kč
€ 27.80 |
||
| 255 0 WHR78655 |
C00314839
481946678348 |
Talíř skleněný otočný pro mikrovlnné trouby Whirlpool, Bauknecht, průměr 36 cm | 975 Kč
€ 38.50 |
||
| 264 0 WHR78655 |
C00373293
481952018029 |
Ring,set | Na dotaz | Zadat poptávku | |
| 264 1 WHR78655 |
C00312137
481946238767 |
Crosspiece | Na dotaz | Zadat poptávku | |
| 301 0 WHR78655 |
C00585946
481927638327 |
souprava tlacitek | 922 Kč
€ 36.40 |
||
| 301 1 WHR78655 |
C00340742
481946238751 |
Frame for switch, | Na dotaz | Zadat poptávku | |
| 305 0 WHR78655 |
C00492313
481940478937 |
Holder | Na dotaz | Zadat poptávku | |
| 320 0 WHR78655 |
C00491864
481245358783 |
Panel white | Na dotaz | Zadat poptávku | |
| 334 0 WHR78655 |
C00379202
481941258404 |
knoflik | 241 Kč
€ 9.50 |
||
| 334 1 WHR78655 |
C00343272
481941338126 |
unasec knofliku | 453 Kč
€ 17.90 |
||
| 352 0 WHR78655 |
C00320886
481913038072 |
Display | Na dotaz | Zadat poptávku | |
| 352 1 WHR78655 |
C00585957
481938118306 |
Pane display. | Na dotaz | Zadat poptávku | |
| 355 0 WHR78655 |
C00343953
481928018019 |
Buzzer | Na dotaz | Zadat poptávku | |
| 404 0 WHR78655 |
C00311859
481913158019 |
Magnetron | Na dotaz | Zadat poptávku | |
| 404 1 WHR78655 |
C00586019
481946238742 |
Air guide magnetron. | Na dotaz | Zadat poptávku | |
| 404 2 WHR78655 |
C00586023
481946279798 |
Air guide. | Na dotaz | Zadat poptávku | |
| 404 3 WHR78655 |
C00586031
481949268729 |
Clip. | Na dotaz | Zadat poptávku | |
| 406 0 WHR78655 |
C00341656
481936118381 |
Motor TT | Na dotaz | Zadat poptávku | |
| 406 2 WHR78655 |
C00314548
481953268686 |
tesneni motorku | 315 Kč
€ 12.40 |
||
| 411 0 WHR78655 |
C00335378
481914868076 |
Transformer electronics | Na dotaz | Zadat poptávku | |
| 412 0 WHR78655 |
C00555687
481914578168 |
Transformer | Na dotaz | Zadat poptávku | |
| 412 1 WHR78655 |
C00586020
481946248431 |
Shock absorber. | Na dotaz | Zadat poptávku | |
| 420 0 WHR78655 |
C00317238
481912148016 |
Capacitor | Na dotaz | Zadat poptávku | |
| 420 1 WHR78655 |
C00344204
481940478839 |
Bracket capacitorCAP. HOLDER VIP 34 | Na dotaz | Zadat poptávku | |
| 420 2 WHR78655 |
C00492545
481949268558 |
Clip fix | Na dotaz | Zadat poptávku | |
| 421 0 WHR78655 |
C00320874
481912118162 |
Filter,mains KPL3009 16A 10N GW850 ISKRA | Na dotaz | Zadat poptávku | |
| 426 0 WHR78655 |
C00498812
481921838039 |
VN DIODA MVO 4,25 mA N | Na dotaz | Zadat poptávku | |
| 440 0 WHR78655 |
C00490390
481936118356 |
motor ventilatoru | 3 432 Kč
€ 135.50 |
||
| 442 0 WHR78655 |
C00316775
481936118361 |
motor ventilatoru | 2 455 Kč
€ 96.90 |
||
| 442 1 WHR78655 |
C00486767
481946279803 |
SKRINKA VENTILATORA N | Na dotaz | Zadat poptávku | |
| 442 2 WHR78655 |
C00492431
481946258146 |
SPODOK VENTILATORA | Na dotaz | Zadat poptávku | |
| 442 3 WHR78655 |
C00484477
481946698922 |
OCHRANA | 512 Kč
€ 20.20 |
||
| 442 4 WHR78655 |
C00586037
481953028914 |
Conveyor. | Na dotaz | Zadat poptávku | |
| 443 0 WHR78655 |
C00317388
481951528224 |
vrtule ventilatoru | 1 152 Kč
€ 45.50 |
||
| 451 0 WHR78655 |
C00373411
481925928767 |
Topení horkovzduchu | 2 160 Kč
€ 85.30 |
||
| 451 1 WHR78655 |
C00318172
481951528223 |
Vrtule ventilátoru horkovzduchu kombinované mikrovlnné trouby Whirlpool | 1 587 Kč
€ 62.70 |
||
| 451 2 WHR78655 |
C00333312
481953228256 |
podlozka mot.ventil. | 271 Kč
€ 10.70 |
||
| 452 0 WHR78655 |
C00620482
481925998385 |
GRILOVACIE TELESO AVM210 MVO N | Na dotaz | Zadat poptávku | |
| 452 1 WHR78655 |
C00492312
481940478841 |
držák grilu | 426 Kč
€ 16.80 |
||
| 452 2 WHR78655 |
C00586011
481945858522 |
reflektor | 616 Kč
€ 24.30 |
||
| 452 3 WHR78655 |
C00585983
481941879082 |
Cover bar | Na dotaz | Zadat poptávku | |
| 452 4 WHR78655 |
C00586038
481953258263 |
Washer. | Na dotaz | Zadat poptávku | |
| 452 5 WHR78655 |
C00494771
481953258262 |
PODLOZKA KERAMICKA A | 651 Kč
€ 25.70 |
||
| 452 6 WHR78655 |
C00556112
481945858626 |
Grid,air.. | Na dotaz | Zadat poptávku | |
| 485 1 WHR78655 |
C00343873
481946698742 |
Cable | Na dotaz | Zadat poptávku | |
| 490 0 WHR78655 |
C00332879
481932118231 |
Cable mains complete with clamp | Na dotaz | Zadat poptávku | |
| 502 0 WHR78655 |
C00555709
481921478515 |
NAHRADENE 481921478579 N | Na dotaz | Zadat poptávku | |
| 502 1 WHR78655 |
C00557391
481920988048 |
Microprocessor.. | Na dotaz | Zadat poptávku | |
| 502 2 WHR78655 |
C00336867
481911388001 |
Odpor 100 Ohm 7W | 235 Kč
€ 9.30 |
||
| 502 3 WHR78655 |
C00337600
481910148142 |
potenciometr | Na dotaz | Zadat poptávku | |
| 561 0 WHR78655 |
C00335522
481928248247 |
Termostat mikrovlnné trouby Whirlpool 145 °C | 1 314 Kč
€ 51.90 |
||
| 562 0 WHR78655 |
C00494426
481928248277 |
termostat 160 C | Na dotaz | Zadat poptávku | |
| 564 0 WHR78655 |
C00335518
481928248275 |
Termostat mikrovlnné trouby Whirlpool 165 °C | 1 406 Kč
€ 55.50 |
||
| 566 0 WHR78655 |
C00555815
481928248216 |
NAHRADENE 481928248245 N | Na dotaz | Zadat poptávku | |
| 571 0 WHR78655 |
C00314701
481936058589 |
motorek klapky horkovzduchu | 590 Kč
€ 23.30 |
||
| 571 1 WHR78655 |
C00492584
481950298002 |
Screw to valve FC | Na dotaz | Zadat poptávku | |
| 571 2 WHR78655 |
C00620686
481936058588 |
Valve. | Na dotaz | Zadat poptávku | |
| 617 0 WHR78655 |
C00336880
481928068319 |
RELÉ AVM360 | 426 Kč
€ 16.80 |
||
| 617 1 WHR78655 |
C00336879
481928068323 |
rele 24V | 287 Kč
€ 11.30 |
||
| 622 0 WHR78655 |
C00335715
481927618273 |
mikrospinac | Na dotaz | Zadat poptávku | |
| 633 0 WHR78655 |
C00338098
481927138145 |
mikrospinac | 766 Kč
€ 30.20 |
||
| 651 0 WHR78655 |
C00341832
481913428029 |
Lamp | Na dotaz | Zadat poptávku | |
| 651 1 WHR78655 |
C00585954
481938028017 |
REFLEKTOR AVM68 | 737 Kč
€ 29.10 |
||
| 691 0 WHR78655 |
C00336520
481921078081 |
senzor teploty PTM | 1 158 Kč
€ 45.70 |
||
| 743 0 WHR78655 |
C00586022
481946279797 |
Air guide. | Na dotaz | Zadat poptávku | |
| 915 0 WHR78655 |
C00492588
481950518248 |
MATICA | Na dotaz | Zadat poptávku | |
| 971 0 WHR78655 |
C00311937
481925228125 |
Pojistka 10A L | 266 Kč
€ 10.50 |
||
| 972 0 WHR78655 |
C00340624
481925338006 |
pojistka 100mA | Na dotaz | Zadat poptávku | |
| 999 WHR78655 |

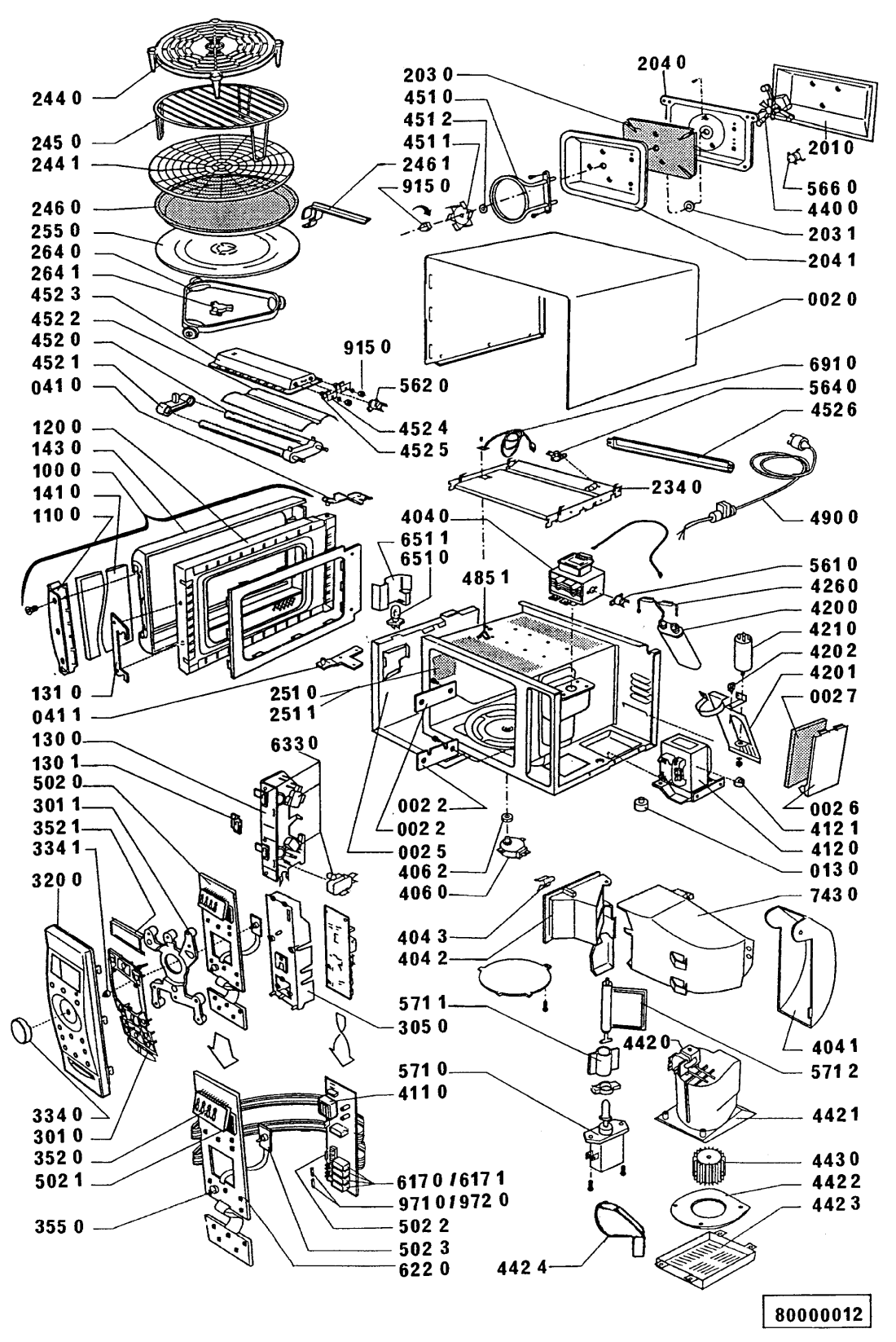

C00707029 | Board diagram WHP | Na dotaz | Zadat poptávku | |
