BAUKNECHT MNC 4213/1 IN MICROWAVE OVENS BK
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | MNC 4213/1 IN MICROWAVE OVENS BK |
| Kód 12NC: | 855832522710 |
| I.C. kód: | 855832522712 |
| Značka: | BAUKNECHT |
| Typ produktu: | Mikrovlnné trouby |
| Další podobné modely: | 855832522711 |
Potřebujete servis? Jsme tady pro Vás

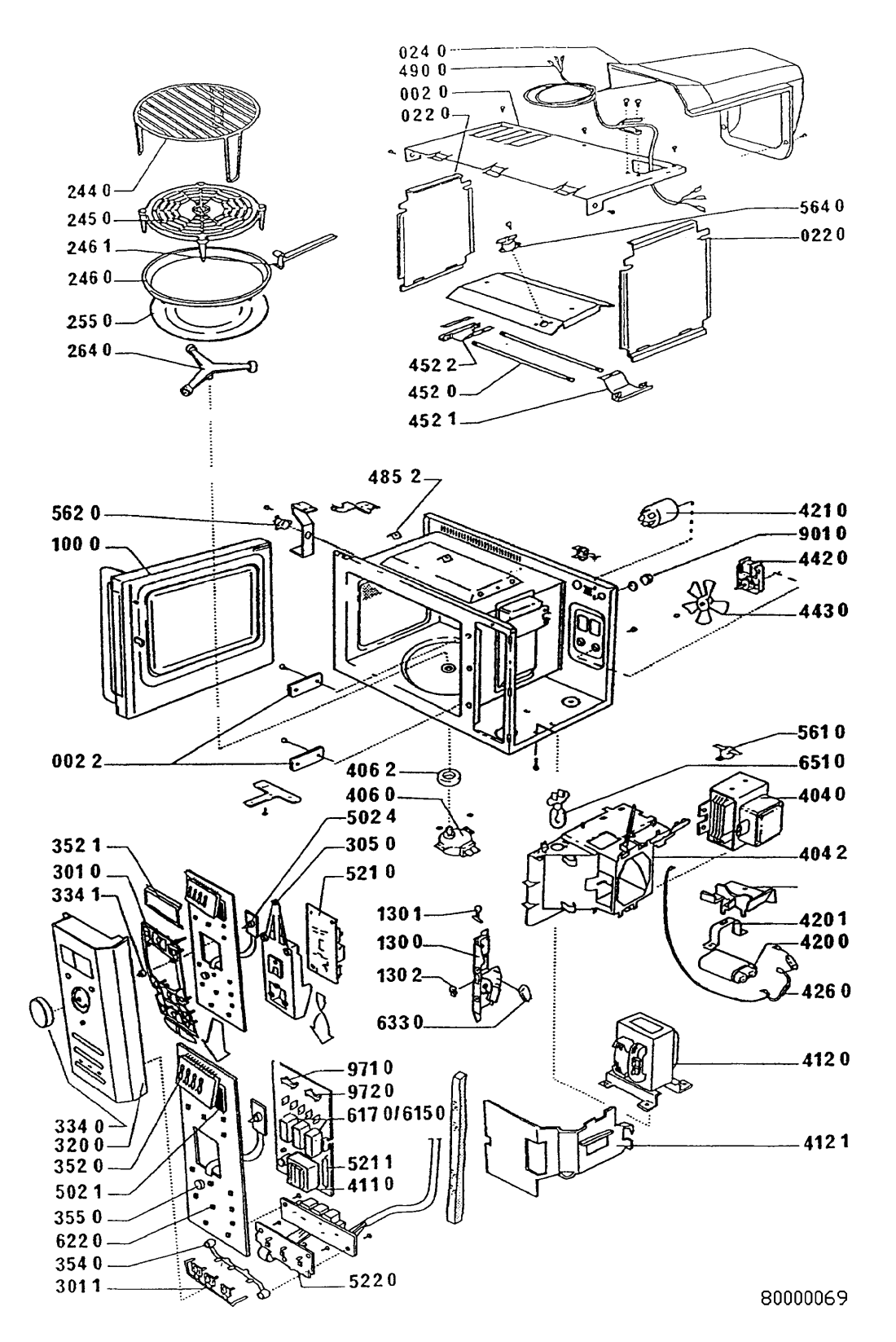

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 002 0 WHR94170 |
C00499173
481944238359 |
Cabinet MW | Na dotaz | Zadat poptávku | |
| 002 2 WHR94170 |
C00337749
481944059444 |
Krytka slídová | 240 Kč
€ 9.50 |
||
| 002 2 WHR94170 |
C00337770
481944238357 |
Krytka slídová | 456 Kč
€ 18.00 |
||
| 005 0 WHR94170 |
C00341236
481944238365 |
Drawer DA | Na dotaz | Zadat poptávku | |
| 005 2 WHR94170 |
C00335230
481946089438 |
Trim inner ri. DA | Na dotaz | Zadat poptávku | |
| 005 3 WHR94170 |
C00498364
481246088224 |
Trim outer left | Na dotaz | Zadat poptávku | |
| 005 4 WHR94170 |
C00498365
481246088225 |
lista prava IX | 903 Kč
€ 35.60 |
||
| 005 5 WHR94170 |
C00342828
481946248442 |
zaslepka | 76 Kč
€ 3.00 |
||
| 005 6 WHR94170 |
C00336211
481946689276 |
Spacer | Na dotaz | Zadat poptávku | |
| 005 7 WHR94170 |
C00343000
481246248056 |
Cover | Na dotaz | Zadat poptávku | |
| 005 8 WHR94170 |
C00343001
481246088218 |
Cover | Na dotaz | Zadat poptávku | |
| 021 0 WHR94170 |
C00344439
481245358771 |
Batten | Na dotaz | Zadat poptávku | |
| 022 0 WHR94170 |
C00336321
481944238361 |
Side panel MW | Na dotaz | Zadat poptávku | |
| 024 0 WHR94170 |
C00344574
481946238776 |
Air guide MW | Na dotaz | Zadat poptávku | |
| 025 0 WHR94170 |
C00486829
481946689316 |
Bar MW; LEFT BAR INOX ASSY MHC | Na dotaz | Zadat poptávku | |
| 100 0 WHR94170 |
C00592434
481944238588 |
Door complete IN | Na dotaz | Zadat poptávku | |
| 111 0 WHR94170 |
C00337472
481946279888 |
panel odsavace IX | Na dotaz | Zadat poptávku | |
| 111 1 WHR94170 |
C00592409
481249878165 |
Handle insert IN | Na dotaz | Zadat poptávku | |
| 111 2 WHR94170 |
C00586788
481246279796 |
Cover plug left/right IN | Na dotaz | Zadat poptávku | |
| 124 0 WHR94170 |
C00340256
481945858693 |
kryt horni | 2 675 Kč
€ 105.60 |
||
| 124 1 WHR94170 |
C00340258
481945858694 |
Grid assembly IN | Na dotaz | Zadat poptávku | |
| 124 2 WHR94170 |
C00335823
481940479177 |
Support IN right not shown | Na dotaz | Zadat poptávku | |
| 124 3 WHR94170 |
C00335824
481940479178 |
Support IN left not shown | Na dotaz | Zadat poptávku | |
| 130 0 WHR94170 |
C00319704
481927138148 |
Unit,pushbutton | Na dotaz | Zadat poptávku | |
| 130 1 WHR94170 |
C00338407
481940478492 |
Lever for microswitch | Na dotaz | Zadat poptávku | |
| 130 2 WHR94170 |
C00343271
481946689172 |
Clip Slide block | Na dotaz | Zadat poptávku | |
| 244 0 WHR94170 |
C00336055
481945819898 |
STAND HIGH | Na dotaz | Zadat poptávku | |
| 245 0 WHR94170 |
C00336054
481946698731 |
Stand optional | Na dotaz | Zadat poptávku | |
| 246 0 WHR94170 |
C00342308
481946689065 |
Crisp plate | Na dotaz | Zadat poptávku | |
| 246 1 WHR94170 |
C00340209
481949869875 |
Grip crisp plate | Na dotaz | Zadat poptávku | |
| 255 0 WHR94170 |
C00337373
481946678218 |
Skleněný otočný talíř VIP 20; průměr 28 cm | 805 Kč
€ 31.80 |
||
| 263 0 WHR94170 |
C00336956
481946238637 |
kolejnice AVM 955 | 1 291 Kč
€ 51.00 |
||
| 264 0 WHR94170 |
C00337374
481953578131 |
kříž unašecí | Na dotaz | Zadat poptávku | |
| 301 0 WHR94170 |
C00491629
481241028887 |
Button,push assembly IN | Na dotaz | Zadat poptávku | |
| 301 1 WHR94170 |
C00490414
481938118227 |
Lens | Na dotaz | Zadat poptávku | |
| 305 0 WHR94170 |
C00319886
481940478851 |
kryt | Na dotaz | Zadat poptávku | |
| 320 0 WHR94170 |
C00592375
481245359401 |
Panel control IN. | Na dotaz | Zadat poptávku | |
| 334 0 WHR94170 |
C00488752
481241258917 |
Knob rotacode IN | Na dotaz | Zadat poptávku | |
| 334 1 WHR94170 |
C00343272
481941338126 |
unasec knofliku | 453 Kč
€ 17.90 |
||
| 352 0 WHR94170 |
C00344877
481213038781 |
displej | 3 790 Kč
€ 149.60 |
||
| 352 1 WHR94170 |
C00340380
481945069947 |
Glass display MW | Na dotaz | Zadat poptávku | |
| 354 0 WHR94170 |
C00454988
481213038782 |
LED | Na dotaz | Zadat poptávku | |
| 355 0 WHR94170 |
C00343953
481928018019 |
Buzzer | Na dotaz | Zadat poptávku | |
| 401 0 WHR94170 |
C00319842
481936118405 |
motor ventilatoru le | Na dotaz | Zadat poptávku | |
| 401 1 WHR94170 |
C00318007
481936118406 |
motor ventilatoru pr | Na dotaz | Zadat poptávku | |
| 401 2 WHR94170 |
C00335829
481940479037 |
Support for motorfor motor | Na dotaz | Zadat poptávku | |
| 401 3 WHR94170 |
C00333239
481950518246 |
Nut motormotor | Na dotaz | Zadat poptávku | |
| 404 0 WHR94170 |
C00311859
481913158019 |
Magnetron | Na dotaz | Zadat poptávku | |
| 404 2 WHR94170 |
C00499368
481946238789 |
Air guide AIR GUIDE MAGN MWO MHC | Na dotaz | Zadat poptávku | |
| 406 0 WHR94170 |
C00341655
481936178238 |
Motor turntable | Na dotaz | Zadat poptávku | |
| 406 2 WHR94170 |
C00314548
481953268686 |
tesneni motorku | 315 Kč
€ 12.40 |
||
| 411 0 WHR94170 |
C00455048
481214868034 |
Transformer | Na dotaz | Zadat poptávku | |
| 412 0 WHR94170 |
C00555688
481914578181 |
NAHRADA 481214538026 | Na dotaz | Zadat poptávku | |
| 412 1 WHR94170 |
C00499369
481946238791 |
Air guide AIR GUIDE TRANSFORMER MHC | Na dotaz | Zadat poptávku | |
| 420 0 WHR94170 |
C00317238
481912148016 |
Capacitor | Na dotaz | Zadat poptávku | |
| 420 1 WHR94170 |
C00339686
481940478491 |
Holder | Na dotaz | Zadat poptávku | |
| 421 0 WHR94170 |
C00326791
481212208001 |
Filter,mains | Na dotaz | Zadat poptávku | |
| 422 0 WHR94170 |
C00335383
481921988008 |
transformator | 1 431 Kč
€ 56.50 |
||
| 426 0 WHR94170 |
C00342185
481913038078 |
Dioda | 358 Kč
€ 14.10 |
||
| 442 0 WHR94170 |
C00341648
481936178229 |
motor ventilatoru | Na dotaz | Zadat poptávku | |
| 443 0 WHR94170 |
C00341050
481936118314 |
Fan wheel | Na dotaz | Zadat poptávku | |
| 452 0 WHR94170 |
C00373406
481925998445 |
grilovaci teleso | 1 617 Kč
€ 63.80 |
||
| 452 1 WHR94170 |
C00344160
481940478511 |
Bracket right | Na dotaz | Zadat poptávku | |
| 452 2 WHR94170 |
C00457679
481240478818 |
Bracket | Na dotaz | Zadat poptávku | |
| 485 2 WHR94170 |
C00343873
481946698742 |
Cable | Na dotaz | Zadat poptávku | |
| 490 0 WHR94170 |
C00332879
481932118231 |
Cable mains complete with clamp | Na dotaz | Zadat poptávku | |
| 491 0 WHR94170 |
C00343462
481241878975 |
Connectionblock | Na dotaz | Zadat poptávku | |
| 491 1 WHR94170 |
C00498414
481246279685 |
Connection cover | Na dotaz | Zadat poptávku | |
| 491 2 WHR94170 |
C00337778
481929068375 |
Plate connector | Na dotaz | Zadat poptávku | |
| 502 1 WHR94170 |
C00338115
481920988041 |
Microprocessor | Na dotaz | Zadat poptávku | |
| 502 4 WHR94170 |
C00337600
481910148142 |
potenciometr | Na dotaz | Zadat poptávku | |
| 521 0 WHR94170 |
C00373675
481221479906 |
elektronika | 4 119 Kč
€ 162.60 |
||
| 521 1 WHR94170 |
C00336867
481911388001 |
Odpor 100 Ohm 7W | 235 Kč
€ 9.30 |
||
| 522 0 WHR94170 |
C00316071
481221479908 |
Control unit fan control board | Na dotaz | Zadat poptávku | |
| 561 0 WHR94170 |
C00335522
481928248247 |
Termostat mikrovlnné trouby Whirlpool 145 °C | 1 314 Kč
€ 51.90 |
||
| 562 0 WHR94170 |
C00335521
481928248248 |
Thermostat 165 C 36FXE14 20049 | Na dotaz | Zadat poptávku | |
| 564 0 WHR94170 |
C00481817
481928248217 |
TERMOSTAT GRILU 120[ | 507 Kč
€ 20.00 |
||
| 567 0 WHR94170 |
C00498892
481928248301 |
TERMOSTAT | 927 Kč
€ 36.60 |
||
| 615 0 WHR94170 |
C00336879
481928068323 |
rele 24V | 287 Kč
€ 11.30 |
||
| 617 0 WHR94170 |
C00336880
481928068319 |
RELÉ AVM360 | 426 Kč
€ 16.80 |
||
| 622 0 WHR94170 |
C00335715
481927618273 |
mikrospinac | Na dotaz | Zadat poptávku | |
| 623 0 WHR94170 |
C00338096
481927138245 |
mikrospinac | 402 Kč
€ 15.90 |
||
| 623 1 WHR94170 |
C00341083
481952838433 |
Excenter | Na dotaz | Zadat poptávku | |
| 623 2 WHR94170 |
C00341761
481953598564 |
PACKA LAVA AVM954 | 252 Kč
€ 9.90 |
||
| 623 3 WHR94170 |
C00336125
481949258133 |
Spring | Na dotaz | Zadat poptávku | |
| 623 4 WHR94170 |
C00499564
481952838434 |
Excenter DA | Na dotaz | Zadat poptávku | |
| 623 5 WHR94170 |
C00335840
481940479041 |
podlozka | 378 Kč
€ 14.90 |
||
| 623 6 WHR94170 |
C00341762
481953598563 |
Lever | Na dotaz | Zadat poptávku | |
| 623 7 WHR94170 |
C00335841
481940479039 |
podlozka | 319 Kč
€ 12.60 |
||
| 623 9 WHR94170 |
C00338097
481927138249 |
mikrospinac | 669 Kč
€ 26.40 |
||
| 633 0 WHR94170 |
C00338098
481927138145 |
mikrospinac | 766 Kč
€ 30.20 |
||
| 651 0 WHR94170 |
C00341832
481913428029 |
Lamp | Na dotaz | Zadat poptávku | |
| 651 0 WHR94170 |
C00341810
481213428024 |
Neon lamp 11W | Na dotaz | Zadat poptávku | |
| 651 1 WHR94170 |
C00343002
481925518211 |
Kryt | 211 Kč
€ 8.30 |
||
| 651 2 WHR94170 |
C00335843
482299900145 |
Support cover | Na dotaz | Zadat poptávku | |
| 652 0 WHR94170 |
C00339574
481225518008 |
objimka zarivky | 567 Kč
€ 22.40 |
||
| 652 2 WHR94170 |
C00335901
481940479044 |
konzole zarivky IX | 1 417 Kč
€ 55.90 |
||
| 652 3 WHR94170 |
C00342449
481946279833 |
Cover lamp glass DA | Na dotaz | Zadat poptávku | |
| 652 4 WHR94170 |
C00341131
481946698985 |
End block pair DA | Na dotaz | Zadat poptávku | |
| 652 5 WHR94170 |
C00335822
481925518217 |
Support lamp | Na dotaz | Zadat poptávku | |
| 727 0 WHR94170 |
C00341051
481951528248 |
Fan wheel | Na dotaz | Zadat poptávku | |
| 727 1 WHR94170 |
C00341042
481951528249 |
Fan wheel right | Na dotaz | Zadat poptávku | |
| 741 0 WHR94170 |
C00344601
481244218003 |
Air guide | Na dotaz | Zadat poptávku | |
| 762 0 WHR94170 |
C00340931
481945868293 |
Filtr tukový - hliník | 1 594 Kč
€ 62.90 |
||
| 762 1 WHR94170 |
C00335367
481941879251 |
Tray | Na dotaz | Zadat poptávku | |
| 765 0 WHR94170 |
C00556255
481948048262 |
AMH555 NAHRADENE 481948048355 | Na dotaz | Zadat poptávku | |
| 765 1 WHR94170 |
C00335842
481940479043 |
Support DA | Na dotaz | Zadat poptávku | |
| 781 0 WHR94170 |
C00499579
481953028917 |
priruba odsavaci tr | Na dotaz | Zadat poptávku | |
| 781 1 WHR94170 |
C00342534
481946258164 |
Cover DA | Na dotaz | Zadat poptávku | |
| 901 0 WHR94170 |
C00332915
481940118494 |
Clamp | Na dotaz | Zadat poptávku | |
| 971 0 WHR94170 |
C00311573
481925338019 |
pojistka T 8A | 95 Kč
€ 3.80 |
||
| 972 0 WHR94170 |
C00340624
481925338006 |
pojistka 100mA | Na dotaz | Zadat poptávku | |
| 990 0 WHR94170 |
C00341623
481931039264 |
Mounting kit | Na dotaz | Zadat poptávku | |
| 993 0 WHR94170 |
C00335902
481240478264 |
Support | Na dotaz | Zadat poptávku | |
| 993 1 WHR94170 |
C00556344
481953538132 |
NAHRADENE 481931038722 N | Na dotaz | Zadat poptávku | |
| 993 2 WHR94170 |
C00338868
481946689274 |
VLOZKA AVM954 | 935 Kč
€ 36.90 |
||
| 993 3 WHR94170 |
C00344098
481953228266 |
Bushing | Na dotaz | Zadat poptávku | |
