| Komerční kód: | MT 763 BL |
| Kód 12NC: | 853876301490 |
| I.C. kód: | 853876301491 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Mikrovlnné trouby |
Potřebujete servis? Jsme tady pro Vás

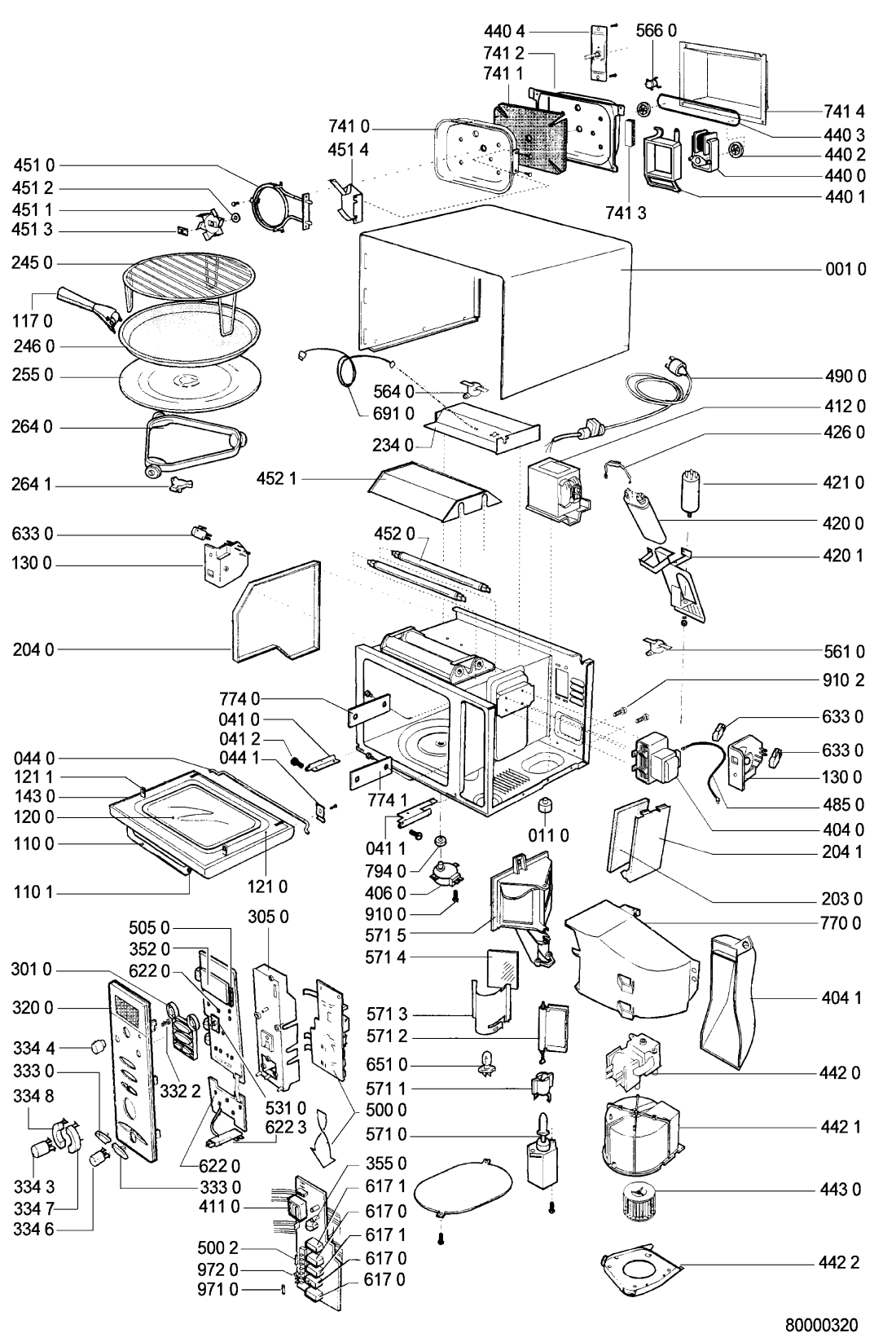

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 0 WHR95445 |
C00499176
481944238913 |
skrin BL | 2 838 Kč
€ 112.00 |
||
| 010 0 WHR95445 |
C00586563
481231038446 |
Mounting kit BL. | Na dotaz | Zadat poptávku | |
| 011 0 WHR95445 |
C00340808
481946279423 |
noha | Na dotaz | Zadat poptávku | |
| 041 0 WHR95445 |
C00339819
481941719547 |
Hinge left | Na dotaz | Zadat poptávku | |
| 041 1 WHR95445 |
C00339782
481941719548 |
Hinge right | Na dotaz | Zadat poptávku | |
| 041 2 WHR95445 |
C00336447
481253598059 |
SHAFT | 393 Kč
€ 15.50 |
||
| 044 0 WHR95445 |
C00336124
481949268886 |
Spring | Na dotaz | Zadat poptávku | |
| 044 1 WHR95445 |
C00335900
481940479353 |
Support | Na dotaz | Zadat poptávku | |
| 110 0 WHR95445 |
C00586800
481249878037 |
Door handle BL. | Na dotaz | Zadat poptávku | |
| 110 1 WHR95445 |
C00339654
481940479556 |
Holder (not shown) | Na dotaz | Zadat poptávku | |
| 117 0 WHR95445 |
C00318974
481949878366 |
Držák talíře Crisp | Na dotaz | Zadat poptávku | |
| 120 0 WHR95445 |
C00499177
481944238917 |
dvere-vnitrni cast | 2 623 Kč
€ 103.60 |
||
| 121 0 WHR95445 |
C00339294
481945948932 |
ram dveri vnitrni | 2 040 Kč
€ 80.50 |
||
| 121 1 WHR95445 |
C00499621
481953538153 |
kolik dver. spinacu | Na dotaz | Zadat poptávku | |
| 130 0 WHR95445 |
C00337338
481940479332 |
Unit,pushbutton for do | Na dotaz | Zadat poptávku | |
| 130 1 WHR95445 |
C00555596
481250218412 |
Screw f.locking hook.. | Na dotaz | Zadat poptávku | |
| 143 0 WHR95445 |
C00485834
481245948053 |
Door frame outer BL | Na dotaz | Zadat poptávku | |
| 203 0 WHR95445 |
C00498946
481932528033 |
DOSKA OCHRANNA - PRAVA N | Na dotaz | Zadat poptávku | |
| 204 0 WHR95445 |
C00498945
481932528031 |
DOSKA OCHRANNA - iAVA N | Na dotaz | Zadat poptávku | |
| 204 1 WHR95445 |
C00338681
481932528032 |
Insulator plate right | Na dotaz | Zadat poptávku | |
| 234 0 WHR95445 |
C00337762
481932518122 |
Plate protection | Na dotaz | Zadat poptávku | |
| 245 0 WHR95445 |
C00499293
481945868122 |
ROST OHRIEVACI KOV ]]] N | Na dotaz | Zadat poptávku | |
| 246 0 WHR95445 |
C00335349
481941879915 |
Tray crispcrisp | Na dotaz | Zadat poptávku | |
| 255 0 WHR95445 |
C00320106
481946678405 |
turnable glass | Na dotaz | Zadat poptávku | |
| 264 0 WHR95445 |
C00336955
481953579159 |
Rail | Na dotaz | Zadat poptávku | |
| 264 1 WHR95445 |
C00312137
481946238767 |
Crosspiece | Na dotaz | Zadat poptávku | |
| 301 0 WHR95445 |
C00335684
481227638063 |
Switch,pushbut. | Na dotaz | Zadat poptávku | |
| 305 0 WHR95445 |
C00499034
481940479555 |
Holder | Na dotaz | Zadat poptávku | |
| 320 0 WHR95445 |
C00750316
481245358908 |
Panel control BL | Na dotaz | Zadat poptávku | |
| 332 2 WHR95445 |
C00499044
481941029162 |
Button | Na dotaz | Zadat poptávku | |
| 333 0 WHR95445 |
C00343981
481241028663 |
tlacitko | 1 407 Kč
€ 55.50 |
||
| 334 3 WHR95445 |
C00585966
481941028931 |
TLACIDLO VYKON BL N | Na dotaz | Zadat poptávku | |
| 334 4 WHR95445 |
C00341902
481941129817 |
Knoflík | 373 Kč
€ 14.70 |
||
| 334 6 WHR95445 |
C00343975
481941029171 |
Button tt-stop | Na dotaz | Zadat poptávku | |
| 334 7 WHR95445 |
C00585965
481941028928 |
TLACIDLO PLUS BL N | Na dotaz | Zadat poptávku | |
| 334 8 WHR95445 |
C00585963
481941028926 |
TLACIDLO MINUS BL N | Na dotaz | Zadat poptávku | |
| 352 0 WHR95445 |
C00490294
481913038083 |
DISPLEJ N | Na dotaz | Zadat poptávku | |
| 355 0 WHR95445 |
C00343955
481928018029 |
Buzzer | Na dotaz | Zadat poptávku | |
| 404 0 WHR95445 |
C00311859
481913158019 |
Magnetron | Na dotaz | Zadat poptávku | |
| 404 1 WHR95445 |
C00343124
481946238875 |
Conveyor magnetron | Na dotaz | Zadat poptávku | |
| 406 0 WHR95445 |
C00341656
481936118381 |
Motor TT | Na dotaz | Zadat poptávku | |
| 411 0 WHR95445 |
C00335382
481914868081 |
Transformer | Na dotaz | Zadat poptávku | |
| 412 0 WHR95445 |
C00557390
481914578207 |
TRANSFORMATOR - VYSOKONAPAUOVY N | Na dotaz | Zadat poptávku | |
| 420 0 WHR95445 |
C00342799
481912118299 |
kondenzator VN 1.15 | Na dotaz | Zadat poptávku | |
| 420 1 WHR95445 |
C00344204
481940478839 |
Bracket capacitorCAP. HOLDER VIP 34 | Na dotaz | Zadat poptávku | |
| 421 0 WHR95445 |
C00320874
481912118162 |
Filter,mains KPL3009 16A 10N GW850 ISKRA | Na dotaz | Zadat poptávku | |
| 426 0 WHR95445 |
C00312562
481912118265 |
Diode HV 12KV/500MA | Na dotaz | Zadat poptávku | |
| 440 0 WHR95445 |
C00317495
481936118439 |
motor ventilatoru | 2 549 Kč
€ 100.60 |
||
| 440 1 WHR95445 |
C00339569
481936118438 |
Holder motor | Na dotaz | Zadat poptávku | |
| 440 2 WHR95445 |
C00315573
481935818151 |
remenice | 834 Kč
€ 32.90 |
||
| 440 3 WHR95445 |
C00499553
481952238025 |
remen | Na dotaz | Zadat poptávku | |
| 440 4 WHR95445 |
C00344530
481952018035 |
Ložisko s nosnikem | Na dotaz | Zadat poptávku | |
| 442 0 WHR95445 |
C00316775
481936118361 |
motor ventilatoru | 2 455 Kč
€ 96.90 |
||
| 442 1 WHR95445 |
C00342824
481946238876 |
skrinka ventilatoru | 468 Kč
€ 18.50 |
||
| 442 2 WHR95445 |
C00338941
481946238877 |
kryt ventilatoru | 221 Kč
€ 8.70 |
||
| 443 0 WHR95445 |
C00317388
481951528224 |
vrtule ventilatoru | 1 152 Kč
€ 45.50 |
||
| 451 0 WHR95445 |
C00339904
481925928908 |
topeni horkovzduchu | Na dotaz | Zadat poptávku | |
| 451 1 WHR95445 |
C00318172
481951528223 |
Vrtule ventilátoru horkovzduchu kombinované mikrovlnné trouby Whirlpool | 1 587 Kč
€ 62.70 |
||
| 451 2 WHR95445 |
C00333312
481953228256 |
podlozka mot.ventil. | 271 Kč
€ 10.70 |
||
| 451 3 WHR95445 |
C00333189
481949268802 |
Spring | Na dotaz | Zadat poptávku | |
| 451 4 WHR95445 |
C00499378
481946258336 |
OCHRANA | 471 Kč
€ 18.60 |
||
| 452 0 WHR95445 |
C00382473
481925998557 |
Infraredelement quartz | Na dotaz | Zadat poptávku | |
| 452 1 WHR95445 |
C00336915
481932518123 |
Reflector | Na dotaz | Zadat poptávku | |
| 485 0 WHR95445 |
C00343754
481932028025 |
Cable HT | Na dotaz | Zadat poptávku | |
| 490 0 WHR95445 |
C00332879
481932118231 |
Cable mains complete with clamp | Na dotaz | Zadat poptávku | |
| 500 0 WHR95445 |
C00484229
481921478611 |
elektronika | 4 526 Kč
€ 178.70 |
||
| 500 2 WHR95445 |
C00336867
481911388001 |
Odpor 100 Ohm 7W | 235 Kč
€ 9.30 |
||
| 505 0 WHR95445 |
C00498806
481920988058 |
MIKROPROCESOR *** N | Na dotaz | Zadat poptávku | |
| 531 0 WHR95445 |
C00750312
481210148001 |
Potentiometer | Na dotaz | Zadat poptávku | |
| 561 0 WHR95445 |
C00319764
481928248281 |
termostat 125 C | Na dotaz | Zadat poptávku | |
| 564 0 WHR95445 |
C00335518
481928248275 |
Termostat mikrovlnné trouby Whirlpool 165 °C | 1 406 Kč
€ 55.50 |
||
| 566 0 WHR95445 |
C00335522
481928248247 |
Termostat mikrovlnné trouby Whirlpool 145 °C | 1 314 Kč
€ 51.90 |
||
| 571 0 WHR95445 |
C00314701
481936058589 |
motorek klapky horkovzduchu | 590 Kč
€ 23.30 |
||
| 571 1 WHR95445 |
C00339682
481940479354 |
Holder | Na dotaz | Zadat poptávku | |
| 571 2 WHR95445 |
C00340872
481944278326 |
Flap | Na dotaz | Zadat poptávku | |
| 571 3 WHR95445 |
C00333084
481946258335 |
ochrana zarovky | 547 Kč
€ 21.60 |
||
| 571 4 WHR95445 |
C00340376
481945058233 |
Glass lamp | Na dotaz | Zadat poptávku | |
| 571 5 WHR95445 |
C00344584
481946238874 |
Air guide cavity | Na dotaz | Zadat poptávku | |
| 617 0 WHR95445 |
C00336878
481928068363 |
rele | 573 Kč
€ 22.60 |
||
| 617 1 WHR95445 |
C00336891
481928068321 |
rele mikr.trouby | 339 Kč
€ 13.40 |
||
| 622 0 WHR95445 |
C00335715
481927618273 |
mikrospinac | Na dotaz | Zadat poptávku | |
| 622 3 WHR95445 |
C00335717
481927618448 |
SPINAC VKS | 556 Kč
€ 22.00 |
||
| 633 0 WHR95445 |
C00312719
481927618336 |
Mikrospínač - náhrada 480120101578 | 688 Kč
€ 27.20 |
||
| 651 0 WHR95445 |
C00341817
481913488199 |
Lamp oven | Na dotaz | Zadat poptávku | |
| 691 0 WHR95445 |
C00750313
481221078014 |
Sensor temperature | Na dotaz | Zadat poptávku | |
| 741 0 WHR95445 |
C00336503
481941879676 |
Separator set | Na dotaz | Zadat poptávku | |
| 741 1 WHR95445 |
C00498944
481932528029 |
IZOLACIA N | Na dotaz | Zadat poptávku | |
| 741 2 WHR95445 |
C00499379
481946258337 |
STENA ZADNA - VNUTORNA N | Na dotaz | Zadat poptávku | |
| 741 3 WHR95445 |
C00336356
481952918121 |
Shock absorber | Na dotaz | Zadat poptávku | |
| 741 4 WHR95445 |
C00499178
481944238974 |
STENA ZADNA - VONKAJ?IA N | Na dotaz | Zadat poptávku | |
| 770 0 WHR95445 |
C00499209
481944278327 |
NAVADZAC VZDUCHU N | Na dotaz | Zadat poptávku | |
| 774 0 WHR95445 |
C00319998
481944238914 |
Krytka slídová - horní | 729 Kč
€ 28.80 |
||
| 774 1 WHR95445 |
C00315288
481946288031 |
Plate mica large lower 136.6x45mm | Na dotaz | Zadat poptávku | |
| 794 0 WHR95445 |
C00314548
481953268686 |
tesneni motorku | 315 Kč
€ 12.40 |
||
| 910 0 WHR95445 |
C00336584
481950218372 |
Screw for TT-Motor | Na dotaz | Zadat poptávku | |
| 910 2 WHR95445 |
C00336585
481950238274 |
Screw for trafo M4x16St | Na dotaz | Zadat poptávku | |
| 971 0 WHR95445 |
C00311937
481925228125 |
Pojistka 10A L | 266 Kč
€ 10.50 |
||
| 972 0 WHR95445 |
C00340625
481925228121 |
Fuse T100mA | Na dotaz | Zadat poptávku | |
