BAUKNECHT MW 28 AW
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | MW 28 AW |
| Kód 12NC: | 858902861260 |
| I.C. kód: | 858902861261 |
| Značka: | BAUKNECHT |
| Typ produktu: | Mikrovlnné trouby |
Potřebujete servis? Jsme tady pro Vás

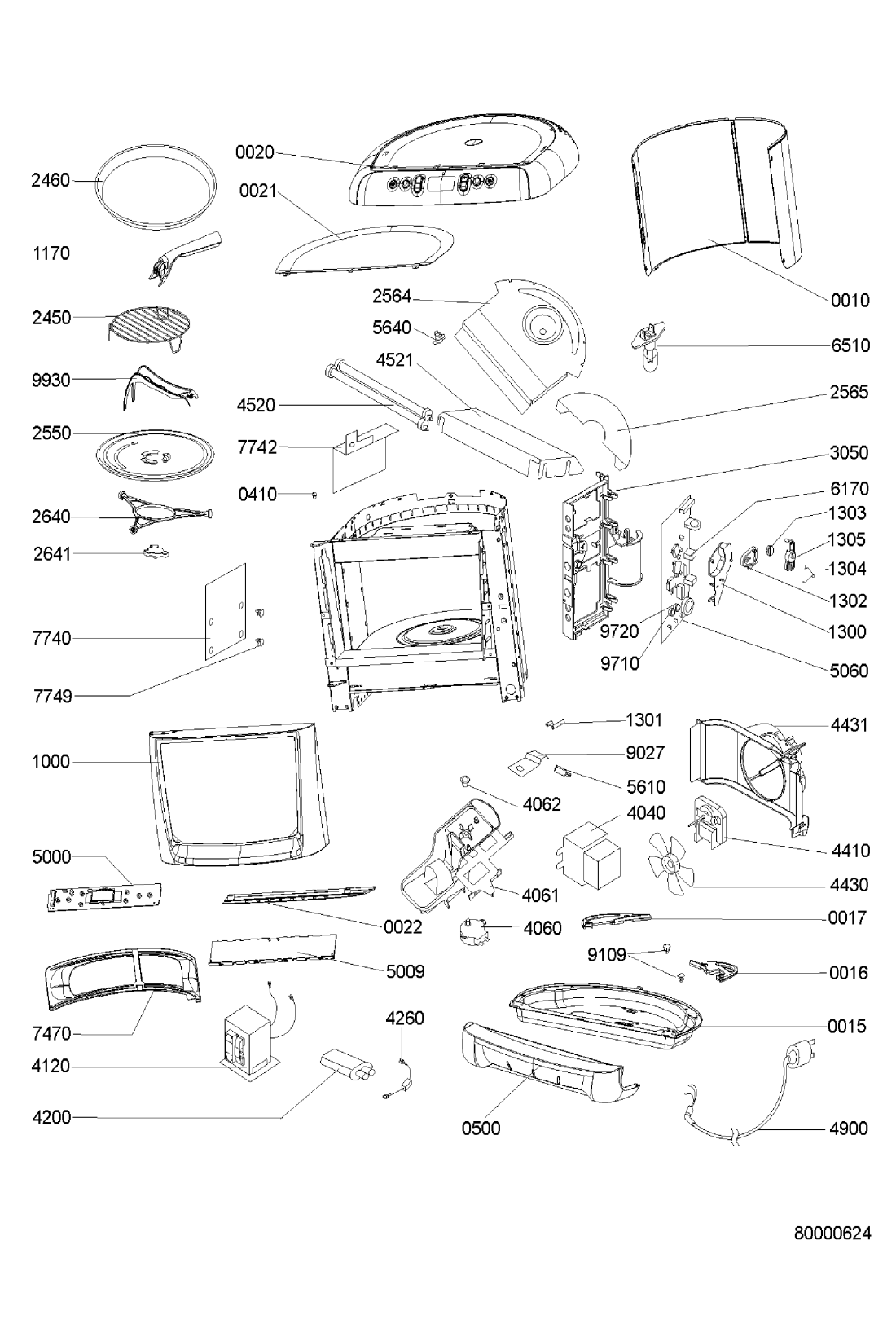

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 0 WHR85854 |
C00459061
481244011443 |
Cabinet outer | Na dotaz | Zadat poptávku | |
| 001 6 WHR85854 |
C00330763
481246279925 |
vlozka dispeje | 100 Kč
€ 3.90 |
||
| 001 7 WHR85854 |
C00330764
481246279926 |
Spacer left | Na dotaz | Zadat poptávku | |
| 002 0 WHR85854 |
C00459188
481244011759 |
Frame top | Na dotaz | Zadat poptávku | |
| 002 1 WHR85854 |
C00328551
481232558019 |
kryt | 634 Kč
€ 25.00 |
||
| 002 2 WHR85854 |
C00330942
481246668863 |
kryt | 192 Kč
€ 7.60 |
||
| 041 0 WHR85854 |
C00345817
481249248178 |
Hinge pin top | Na dotaz | Zadat poptávku | |
| 050 0 WHR85854 |
C00342024
481244089134 |
sokl MT. | 382 Kč
€ 15.10 |
||
| 100 0 WHR85854 |
C00459778
481244269755 |
Door cpl. | Na dotaz | Zadat poptávku | |
| 117 0 WHR85854 |
C00345830
481249878626 |
Handlefor crisp plate | Na dotaz | Zadat poptávku | |
| 130 0 WHR85854 |
C00327223
481227018038 |
Holder switch | Na dotaz | Zadat poptávku | |
| 130 1 WHR85854 |
C00345821
481249258049 |
Pin | Na dotaz | Zadat poptávku | |
| 130 2 WHR85854 |
C00330238
481246038149 |
vacka | 123 Kč
€ 4.90 |
||
| 130 3 WHR85854 |
C00345820
481249258048 |
drzak | 110 Kč
€ 4.30 |
||
| 130 4 WHR85854 |
C00333362
481990200756 |
pruzina | 126 Kč
€ 5.00 |
||
| 130 5 WHR85854 |
C00345819
481249258047 |
packa mikrospinace | 121 Kč
€ 4.80 |
||
| 245 0 WHR85854 |
C00330057
481245819216 |
rost grilovaci | 590 Kč
€ 23.30 |
||
| 246 0 WHR85854 |
C00330977
481246678424 |
Crisp plate 25 cm. Max/Vip20/27/34/Talen | Na dotaz | Zadat poptávku | |
| 255 0 WHR85854 |
C00312776
481246678407 |
Skleněný otočný talíř Max,Talent; průměr 28,1 cm | 463 Kč
€ 18.30 |
||
| 256 4 WHR85854 |
C00328550
481232558012 |
Heat shield | Na dotaz | Zadat poptávku | |
| 256 5 WHR85854 |
C00330513
481246228602 |
Heat shield | Na dotaz | Zadat poptávku | |
| 264 0 WHR85854 |
C00332723
481253578069 |
kriz unaseci | 596 Kč
€ 23.50 |
||
| 264 1 WHR85854 |
C00319453
481246238161 |
kriz unaseci kratky | 434 Kč
€ 17.10 |
||
| 305 0 WHR85854 |
C00327149
481225698042 |
drzak elektroniky | 435 Kč
€ 17.20 |
||
| 404 0 WHR85854 |
C00312088
481214158001 |
Magnetron | 2 046 Kč
€ 80.70 |
||
| 406 0 WHR85854 |
C00311669
481236158449 |
Motor turntable | Na dotaz | Zadat poptávku | |
| 406 1 WHR85854 |
C00327151
481225698044 |
Holder multi | Na dotaz | Zadat poptávku | |
| 406 2 WHR85854 |
C00345822
481249258051 |
Tube MW | Na dotaz | Zadat poptávku | |
| 412 0 WHR85854 |
C00326881
481214538049 |
transformator VN | 3 818 Kč
€ 150.60 |
||
| 420 0 WHR85854 |
C00311879
481212158159 |
kondenzator VN 1,05uF | 333 Kč
€ 13.10 |
||
| 426 0 WHR85854 |
C00319476
481221838134 |
Diode HV | Na dotaz | Zadat poptávku | |
| 441 0 WHR85854 |
C00328837
481236178033 |
motor ventilatoru | 1 386 Kč
€ 54.70 |
||
| 443 0 WHR85854 |
C00332292
481251528109 |
Wheel fan | Na dotaz | Zadat poptávku | |
| 443 1 WHR85854 |
C00327152
481225698045 |
Air guide | Na dotaz | Zadat poptávku | |
| 452 0 WHR85854 |
C00327157
481225928845 |
Heating element 115V | Na dotaz | Zadat poptávku | |
| 452 1 WHR85854 |
C00327159
481225928872 |
Heat shield grill | Na dotaz | Zadat poptávku | |
| 490 0 WHR85854 |
C00457175
481232118268 |
NAPAJACI KABEL N | Na dotaz | Zadat poptávku | |
| 500 0 WHR85854 |
C00327015
481221479635 |
elektronika horni | 3 366 Kč
€ 132.80 |
||
| 500 9 WHR85854 |
C00330659
481246238259 |
Plate | Na dotaz | Zadat poptávku | |
| 506 0 WHR85854 |
C00327037
481221778205 |
elektronika dolni | 5 688 Kč
€ 224.30 |
||
| 561 0 WHR85854 |
C00327521
481228208641 |
Thermostat | Na dotaz | Zadat poptávku | |
| 564 0 WHR85854 |
C00327522
481228208642 |
Termostat | 1 170 Kč
€ 46.10 |
||
| 617 0 WHR85854 |
C00327496
481228068349 |
Relay | Na dotaz | Zadat poptávku | |
| 651 0 WHR85854 |
C00311360
481913428051 |
Žárovka AVM 25W | 214 Kč
€ 8.40 |
||
| 747 0 WHR85854 |
C00327191
481225998523 |
Air guide | Na dotaz | Zadat poptávku | |
| 774 0 WHR85854 |
C00313173
481246228268 |
Krytka slídová | Na dotaz | Zadat poptávku | |
| 774 2 WHR85854 |
C00317542
481244269428 |
Heat shield waveguide | Na dotaz | Zadat poptávku | |
| 774 9 WHR85854 |
C00313052
481249148028 |
Zajišťovací kolík slídové krytky | 290 Kč
€ 11.40 |
||
| 902 7 WHR85854 |
C00327150
481225698043 |
Bracket thermostat | Na dotaz | Zadat poptávku | |
| 910 9 WHR85854 |
C00332115
481250218738 |
Screw | Na dotaz | Zadat poptávku | |
| 971 0 WHR85854 |
C00315549
481925338011 |
pojistka 250mA | 228 Kč
€ 9.00 |
||
| 972 0 WHR85854 |
C00327098
481225228039 |
pojistka 10A | 408 Kč
€ 16.10 |
||
| 993 0 WHR85854 |
C00332772
481281728767 |
stojan pro ohřev dětské láhve | Na dotaz | Zadat poptávku | |
