BAUKNECHT MW 66 WH
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | MW 66 WH |
| Kód 12NC: | 858926661290 |
| I.C. kód: | 858926661292 |
| Značka: | BAUKNECHT |
| Typ produktu: | Mikrovlnné trouby |
| Další podobné modely: | 858926661291, 858926661293 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

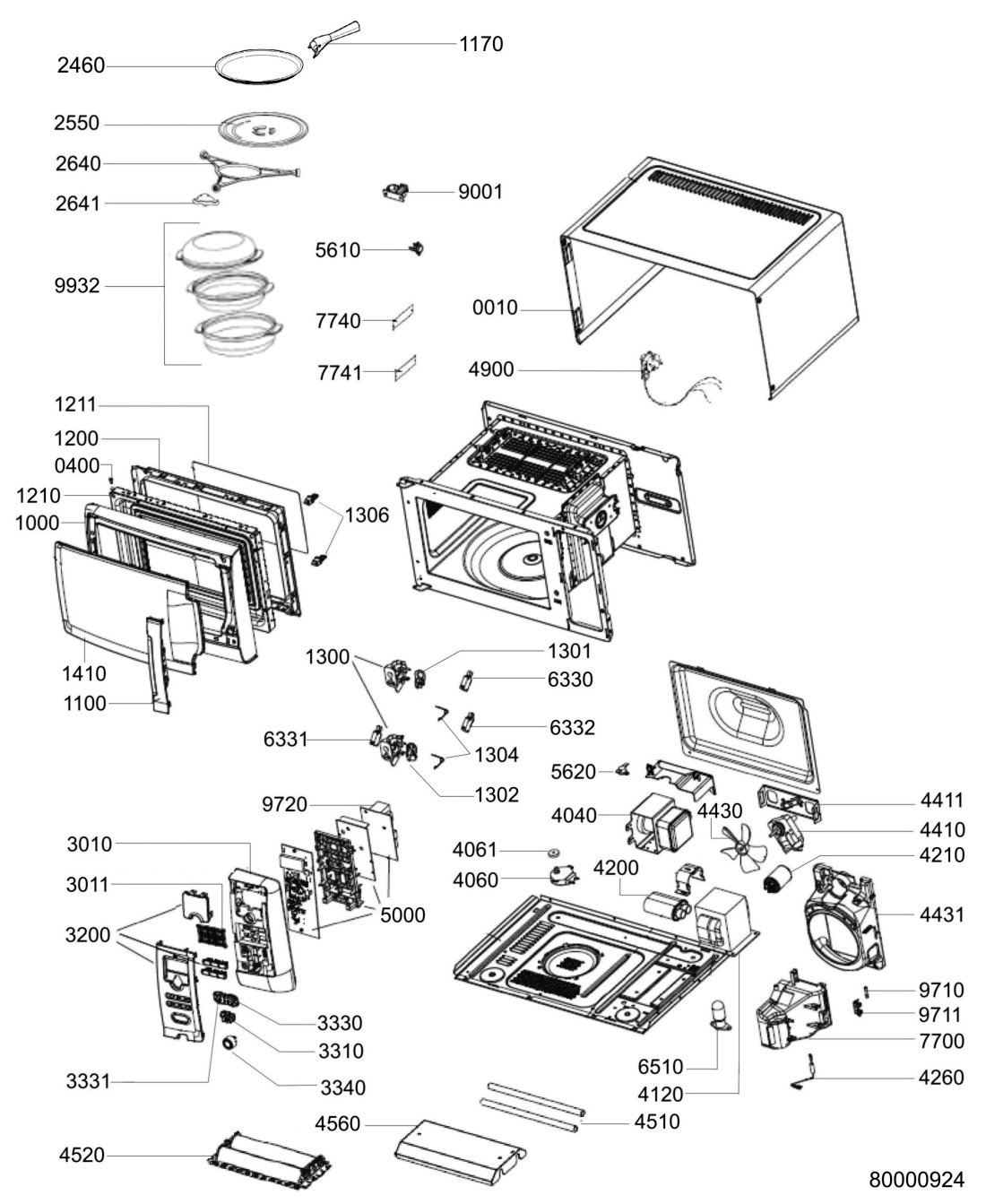

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 0 WHR35491 |
C00343896
480120100031 |
skrin | 832 Kč
€ 32.80 |
||
| 040 0 WHR35491 |
C00345817
481249248178 |
Hinge pin top | Na dotaz | Zadat poptávku | |
| 100 0 WHR35491 |
C00339286
480120101555 |
ram dveri | 589 Kč
€ 23.30 |
||
| 110 0 WHR35491 |
C00429670
480120100968 |
drzak | 268 Kč
€ 10.60 |
||
| 117 0 WHR35491 |
C00321593
480120100861 |
Handle crisp plate | Na dotaz | Zadat poptávku | |
| 120 0 WHR35491 |
C00321614
480120100898 |
ram | 483 Kč
€ 19.10 |
||
| 121 0 WHR35491 |
C00321748
480120101715 |
Dvířka trouby vnitřní | 1 030 Kč
€ 40.70 |
||
| 121 1 WHR35491 |
C00321613
480120100897 |
Sklo dveří vnitřní | 604 Kč
€ 23.80 |
||
| 130 0 WHR35491 |
C00313499
481940479412 |
drzak mikrospinacu | 197 Kč
€ 7.80 |
||
| 130 1 WHR35491 |
C00329257
481240478944 |
zapadka | 89 Kč
€ 3.50 |
||
| 130 4 WHR35491 |
C00345825
481249268229 |
Spring lock | Na dotaz | Zadat poptávku | |
| 130 6 WHR35491 |
C00321616
480120100909 |
hak náhrada 482000015517 | 354 Kč
€ 14.00 |
||
| 141 0 WHR35491 |
C00430034
480120101786 |
Oven door frame | Na dotaz | Zadat poptávku | |
| 246 0 WHR35491 |
C00318167
480120100687 |
Crisp talíř | Na dotaz | Zadat poptávku | |
| 255 0 WHR35491 |
C00320106
481946678405 |
turnable glass | Na dotaz | Zadat poptávku | |
| 264 0 WHR35491 |
C00332723
481253578069 |
kriz unaseci | 596 Kč
€ 23.50 |
||
| 264 1 WHR35491 |
C00330671
481246238318 |
Kríž unašecí krátký | 617 Kč
€ 24.40 |
||
| 301 0 WHR35491 |
C00341936
480120101559 |
Panel control WH | Na dotaz | Zadat poptávku | |
| 301 1 WHR35491 |
C00321631
480120100961 |
kryt | 187 Kč
€ 7.40 |
||
| 320 0 WHR35491 |
C00430035
480120101787 |
Control panel assembly | Na dotaz | Zadat poptávku | |
| 331 0 WHR35491 |
C00321618
480120100914 |
tlacitko | 118 Kč
€ 4.70 |
||
| 333 0 WHR35491 |
C00429673
480120100973 |
Button | Na dotaz | Zadat poptávku | |
| 333 1 WHR35491 |
C00429672
480120100972 |
Button | Na dotaz | Zadat poptávku | |
| 334 0 WHR35491 |
C00321562
480120100735 |
knoflik mw | 147 Kč
€ 5.80 |
||
| 404 0 WHR35491 |
C00429939
480120101612 |
magnetron | 2 904 Kč
€ 114.60 |
||
| 406 0 WHR35491 |
C00320629
480120100396 |
Motor TT | Na dotaz | Zadat poptávku | |
| 406 1 WHR35491 |
C00332676
481253268106 |
Podložka | 528 Kč
€ 20.80 |
||
| 412 0 WHR35491 |
C00313871
480120101615 |
transformator VN | 4 172 Kč
€ 164.70 |
||
| 420 0 WHR35491 |
C00316797
480120101616 |
Capacitor | Na dotaz | Zadat poptávku | |
| 421 0 WHR35491 |
C00321750
480120101722 |
Filter,mains. | Na dotaz | Zadat poptávku | |
| 426 0 WHR35491 |
C00312916
480120101082 |
Diode HV, 5 KV / 600 mA. | Na dotaz | Zadat poptávku | |
| 441 0 WHR35491 |
C00321652
480120101029 |
Motor ventilátoru mikrovlnné trouby | 1 135 Kč
€ 44.80 |
||
| 441 1 WHR35491 |
C00321729
480120101563 |
Bracket | Na dotaz | Zadat poptávku | |
| 443 0 WHR35491 |
C00321651
480120101024 |
vrtule | 317 Kč
€ 12.50 |
||
| 443 1 WHR35491 |
C00321745
480120101672 |
Air guide fan | Na dotaz | Zadat poptávku | |
| 451 0 WHR35491 |
C00321646
480120101007 |
Topení grilu | 1 931 Kč
€ 76.20 |
||
| 452 0 WHR35491 |
C00321628
480120100949 |
Grill assembly | Na dotaz | Zadat poptávku | |
| 456 0 WHR35491 |
C00321627
480120100948 |
kryt | 111 Kč
€ 4.40 |
||
| 490 0 WHR35491 |
C00342904
480120101611 |
kabel | 268 Kč
€ 10.60 |
||
| 500 0 WHR35491 |
C00376808
480120100969 |
Control board | Na dotaz | Zadat poptávku | |
| 561 0 WHR35491 |
C00321763
480120101913 |
Termostat mikrovlnné trouby 165 °C | 129 Kč
€ 5.10 |
||
| 562 0 WHR35491 |
C00327573
481228248298 |
Thermostat 125°C. | Na dotaz | Zadat poptávku | |
| 633 0 WHR35491 |
C00314629
480120101097 |
Mikrospínač dveří SZM-V16-FD-61 | 890 Kč
€ 35.10 |
||
| 633 1 WHR35491 |
C00318419
480120101096 |
mikrospinac | 734 Kč
€ 29.00 |
||
| 633 2 WHR35491 |
C00318430
480120101717 |
mikrospinac | 224 Kč
€ 8.80 |
||
| 651 0 WHR35491 |
C00313001
481213488071 |
Žárovka | Na dotaz | Zadat poptávku | |
| 770 0 WHR35491 |
C00321738
480120101614 |
Air guide | Na dotaz | Zadat poptávku | |
| 774 0 WHR35491 |
C00320625
480120100391 |
Plate mica upper | Na dotaz | Zadat poptávku | |
| 774 1 WHR35491 |
C00318019
480120100392 |
Plate mica lower | Na dotaz | Zadat poptávku | |
| 971 1 WHR35491 |
C00321749
480120101719 |
Fuse holder | Na dotaz | Zadat poptávku | |
| 972 WHR35491 |
C00313979
480120101721 |
Fuse | Na dotaz | Zadat poptávku | |
| 972 0 WHR35491 |
C00327101
481225228057 |
pojistka | 135 Kč
€ 5.30 |
||
| 993 2 WHR35491 |
C00321625
480120100942 |
parní hrnec kulatý 1,5 litru | Na dotaz | Zadat poptávku | |
| 999 WHR35491 |
C00351860
488000351860 |
Safety Instructions WHP | Na dotaz | Zadat poptávku | |
