BAUKNECHT MW 78 SW
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | MW 78 SW |
| Kód 12NC: | 858927899490 |
| I.C. kód: | 858927899491 |
| Značka: | BAUKNECHT |
| Typ produktu: | Mikrovlnné trouby |
| Další podobné modely: | 858927899492, 858927899493 |
Potřebujete servis? Jsme tady pro Vás

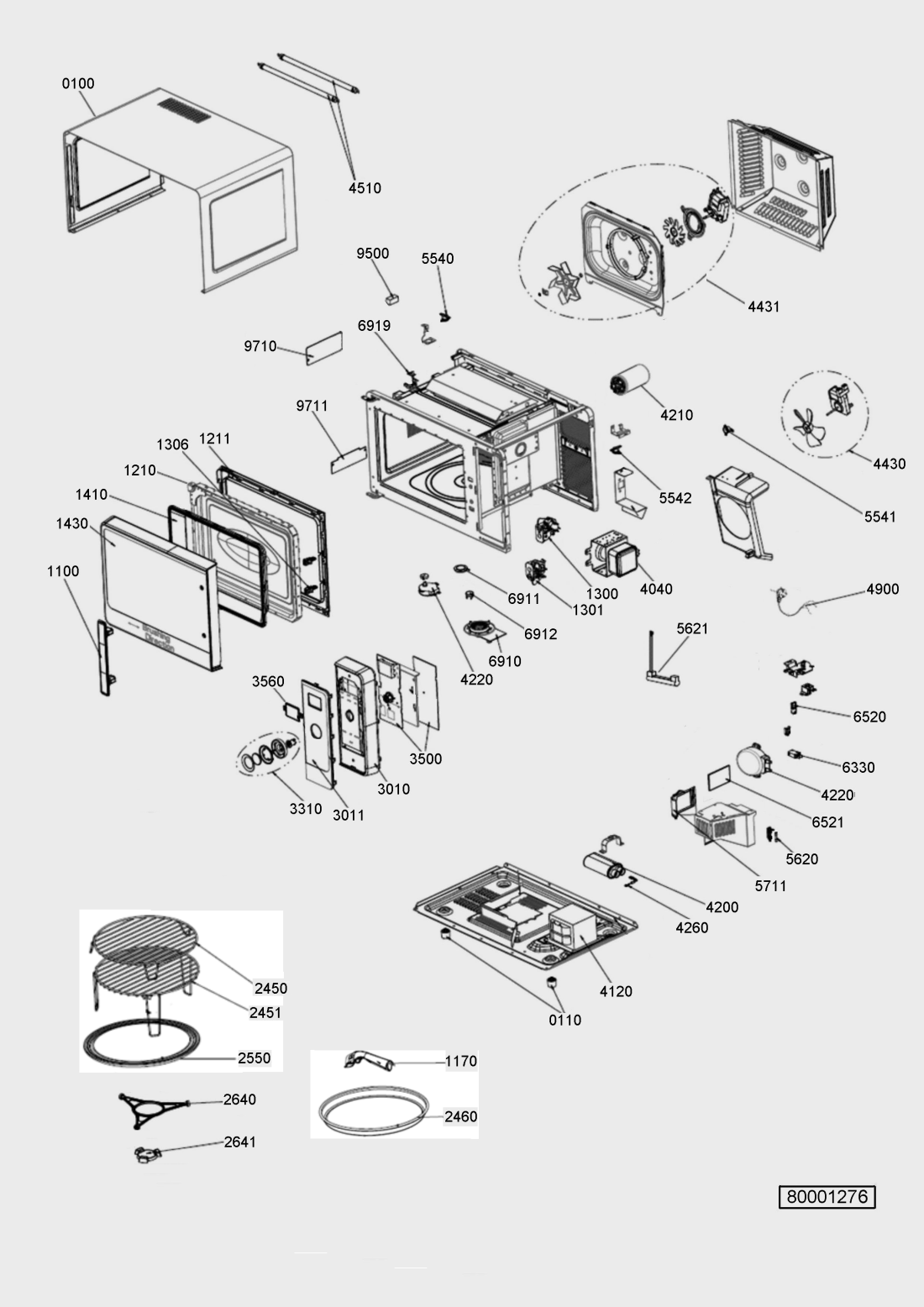

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0010 WHR35052 |
C00467516
482000013352 |
Cabinet BL | Na dotaz | Zadat poptávku | |
| 0110 WHR35052 |
C00333361
481990200694 |
Foot | Na dotaz | Zadat poptávku | |
| 1100 WHR35052 |
C00334675
482000013356 |
Madlo dveří mt | 639 Kč
€ 25.20 |
||
| 1170 WHR35052 |
C00318974
481949878366 |
Držák talíře Crisp | Na dotaz | Zadat poptávku | |
| 1210 WHR35052 |
C00334676
482000013357 |
Door inner | 1 090 Kč
€ 43.00 |
||
| 1211 WHR35052 |
C00334677
482000013358 |
Frame inner door | Na dotaz | Zadat poptávku | |
| 1300 WHR35052 |
C00334678
482000013359 |
Door lock assy upper | Na dotaz | Zadat poptávku | |
| 1301 WHR35052 |
C00334679
482000013360 |
Door lock assy lower | Na dotaz | Zadat poptávku | |
| 1306 WHR35052 |
C00334698
482000013440 |
Hák dveří mikrovlnné trouby Whirlpool | 26 Kč
€ 1.00 |
||
| 1410 WHR35052 |
C00334680
482000013362 |
Protector staem protect. plate | Na dotaz | Zadat poptávku | |
| 1430 WHR35052 |
C00469480
482000020819 |
Door frame outer SW | Na dotaz | Zadat poptávku | |
| 2450 WHR35052 |
C00331928
482000004534 |
rost grilovaci | 577 Kč
€ 22.80 |
||
| 2451 WHR35052 |
C00331927
482000004533 |
rošt grilovací | 921 Kč
€ 36.40 |
||
| 2460 WHR35052 |
C00322871
480131000084 |
Crisp talíř do mikrovlnky WPro AVM 290 | 639 Kč
€ 25.20 |
||
| 2550 WHR35052 |
C00333013
481941879728 |
Skleněný otočný talíř; průměr 32,5 cm | Na dotaz | Zadat poptávku | |
| 2640 WHR35052 |
C00332723
481253578069 |
kriz unaseci | 596 Kč
€ 23.50 |
||
| 2641 WHR35052 |
C00319887
480120100163 |
Unašeč talíře středový | 748 Kč
€ 29.50 |
||
| 3010 WHR35052 |
C00385724
482000013368 |
Control panel BL | Na dotaz | Zadat poptávku | |
| 3011 WHR35052 |
C00469481
482000020820 |
Control panel assy SW | Na dotaz | Zadat poptávku | |
| 3310 WHR35052 |
C00334683
482000013376 |
Knoflík | 541 Kč
€ 21.40 |
||
| 3500 WHR35052 |
C00469482
482000020821 |
Display board UIB + ACU PCBA assy | Na dotaz | Zadat poptávku | |
| 3560 WHR35052 |
C00334685
482000013378 |
Lens | Na dotaz | Zadat poptávku | |
| 4040 WHR35052 |
C00469343
482000020516 |
Magnetron | 2 036 Kč
€ 80.40 |
||
| 4120 WHR35052 |
C00334686
482000013379 |
Transformer H.V. (oackage) | Na dotaz | Zadat poptávku | |
| 4200 WHR35052 |
C00313217
481212158161 |
Kondenzátor VN 1,15uF | 471 Kč
€ 18.60 |
||
| 4210 WHR35052 |
C00316062
481212208003 |
Filtr odrušovací | 1 456 Kč
€ 57.50 |
||
| 4220 WHR35052 |
C00313149
481067848981 |
Motorek otočného talíře | 855 Kč
€ 33.80 |
||
| 4260 WHR35052 |
C00311368
482000006101 |
Dioda vysokonapěťová 12kV HRG101 | 117 Kč
€ 4.60 |
||
| 4430 WHR35052 |
C00334687
482000013380 |
Propeller motor + wheel | Na dotaz | Zadat poptávku | |
| 4431 WHR35052 |
C00334688
482000013381 |
Fan convection assy | Na dotaz | Zadat poptávku | |
| 4510 WHR35052 |
C00320572
480120100207 |
topeni | 803 Kč
€ 31.70 |
||
| 4900 WHR35052 |
C00467527
482000013382 |
Connect.cable | Na dotaz | Zadat poptávku | |
| 5540 WHR35052 |
C00318770
480120101956 |
Thermostat cavity 165°C. | Na dotaz | Zadat poptávku | |
| 5541 WHR35052 |
C00335126
482000019345 |
Thermostat FC | Na dotaz | Zadat poptávku | |
| 5542 WHR35052 |
C00318612
482000010150 |
Termostat (130 °C) pro mikrovlnné trouby Whirlpool | 90 Kč
€ 3.60 |
||
| 5620 WHR35052 |
C00334689
482000013383 |
Pojistka | 61 Kč
€ 2.40 |
||
| 5621 WHR35052 |
C00334690
482000013384 |
Fuse HV 800 mA | Na dotaz | Zadat poptávku | |
| 5711 WHR35052 |
C00334691
482000013385 |
klapka | 162 Kč
€ 6.40 |
||
| 6330 WHR35052 |
C00318419
480120101096 |
mikrospinac | 734 Kč
€ 29.00 |
||
| 6520 WHR35052 |
C00326860
481213488092 |
Žárovka halogenová 25W/230V | 766 Kč
€ 30.20 |
||
| 6521 WHR35052 |
C00319517
481246258089 |
Folie | 250 Kč
€ 9.90 |
||
| 6910 WHR35052 |
C00334692
482000013386 |
Čidlo hmotnosti mikrovlnné trouby Whirlpool, Bauknecht | 1 063 Kč
€ 42.00 |
||
| 6911 WHR35052 |
C00334693
482000013387 |
Button weight sensor | Na dotaz | Zadat poptávku | |
| 6912 WHR35052 |
C00334696
482000013390 |
Rubber silicon | Na dotaz | Zadat poptávku | |
| 6919 WHR35052 |
C00334695
482000013389 |
Sensor temper. FC | Na dotaz | Zadat poptávku | |
| 9500 WHR35052 |
C00320515
480120100101 |
Sponge for doorframe | Na dotaz | Zadat poptávku | |
| 9710 WHR35052 |
C00335129
482000019539 |
Krytka slídová mikrovlnné trouby - horní | 338 Kč
€ 13.30 |
||
| 9711 WHR35052 |
C00345221
482000019540 |
Krytka slídová mikrovlnné trouby - spodní | 89 Kč
€ 3.50 |
||
| 999 WHR35052 |
C00351860
488000351860 |
Safety Instructions WHP | Na dotaz | Zadat poptávku | |
