WHIRLPOOL PACW12CO
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | PACW12CO |
| Kód 12NC: | 853007679000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Klimatizace |
Potřebujete servis? Jsme tady pro Vás

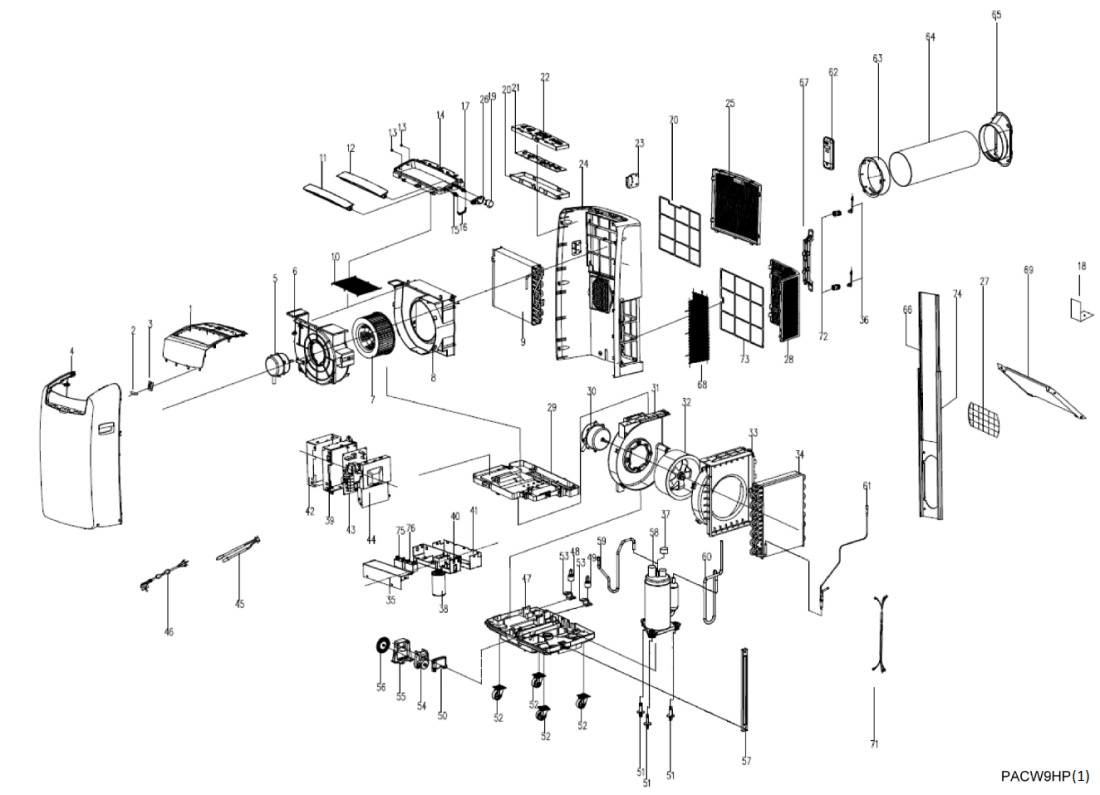

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 01 WHR11511 |
C00419793
482000091956 |
Panel | Na dotaz | Zadat poptávku | |
| 02 WHR11511 |
C00419702
482000091864 |
Ornament.strip | Na dotaz | Zadat poptávku | |
| 03 WHR11511 |
C00419703
482000091865 |
Receiver | Na dotaz | Zadat poptávku | |
| 04 WHR11511 |
C00419701
482000091863 |
Panel | Na dotaz | Zadat poptávku | |
| 05 WHR11511 |
C00419704
482000091866 |
Motor fan | Na dotaz | Zadat poptávku | |
| 06 WHR11511 |
C00419705
482000091867 |
Fan box | Na dotaz | Zadat poptávku | |
| 07 WHR11511 |
C00419706
482000091868 |
Fan | Na dotaz | Zadat poptávku | |
| 08 WHR11511 |
C00419707
482000091869 |
Fan box | Na dotaz | Zadat poptávku | |
| 09 WHR11511 |
C00419794
482000091957 |
Evaporator assy | Na dotaz | Zadat poptávku | |
| 10 WHR11511 |
C00419709
482000091871 |
Filtr klimatizace | Na dotaz | Zadat poptávku | |
| 11 WHR11511 |
C00419710
482000091872 |
Air guide | Na dotaz | Zadat poptávku | |
| 12 WHR11511 |
C00419711
482000091873 |
Air guide | Na dotaz | Zadat poptávku | |
| 13 WHR11511 |
C00385844
481252048018 |
Axis sheath | Na dotaz | Zadat poptávku | |
| 14 WHR11511 |
C00419712
482000091874 |
Air guide | Na dotaz | Zadat poptávku | |
| 15 WHR11511 |
C00419713
482000091875 |
osy | Na dotaz | Zadat poptávku | |
| 16 WHR11511 |
C00419714
482000091876 |
Vycentrování čepu | Na dotaz | Zadat poptávku | |
| 17 WHR11511 |
C00419715
482000091877 |
Bearing | Na dotaz | Zadat poptávku | |
| 18 WHR11511 |
C00407247
482000000920 |
Support plate | Na dotaz | Zadat poptávku | |
| 19 WHR11511 |
C00378270
482000010310 |
Step motor | Na dotaz | Zadat poptávku | |
| 20 WHR11511 |
C00419716
482000091878 |
Kryt desky displeje | Na dotaz | Zadat poptávku | |
| 21 WHR11511 |
C00419717
482000091879 |
Zobrazovací jednotka | Na dotaz | Zadat poptávku | |
| 22 WHR11511 |
C00419718
482000091880 |
Display board | Na dotaz | Zadat poptávku | |
| 23 WHR11511 |
C00419719
482000091881 |
Remote control plate | Na dotaz | Zadat poptávku | |
| 24 WHR11511 |
C00419720
482000091882 |
Rear panel | Na dotaz | Zadat poptávku | |
| 25 WHR11511 |
C00419721
482000091883 |
Filtr zadní omyvatelný | 1 097 Kč
€ 43.30 |
||
| 26 WHR11511 |
C00419722
482000091884 |
Plate mounting | Na dotaz | Zadat poptávku | |
| 27 WHR11511 |
C00419723
482000091885 |
Filter | Na dotaz | Zadat poptávku | |
| 28 WHR11511 |
C00419724
482000091886 |
Frame filter | Na dotaz | Zadat poptávku | |
| 29 WHR11511 |
C00419725
482000091887 |
Drain strip | Na dotaz | Zadat poptávku | |
| 30 WHR11511 |
C00419726
482000091888 |
Motor ventilátoru | 7 426 Kč
€ 293.20 |
||
| 31 WHR11511 |
C00419727
482000091889 |
Fan box | Na dotaz | Zadat poptávku | |
| 32 WHR11511 |
C00419728
482000091890 |
Vrtule ventilátoru | 2 152 Kč
€ 85.00 |
||
| 33 WHR11511 |
C00419729
482000091891 |
Fan box | Na dotaz | Zadat poptávku | |
| 34 WHR11511 |
C00419795
482000091958 |
Condenser assy | Na dotaz | Zadat poptávku | |
| 35 WHR11511 |
C00419731
482000091893 |
Plate | Na dotaz | Zadat poptávku | |
| 36 WHR11511 |
C00419732
482000091894 |
Cover rubber | Na dotaz | Zadat poptávku | |
| 37 WHR11511 |
C00419796
482000091959 |
Overload prot. | Na dotaz | Zadat poptávku | |
| 38 WHR11511 |
C00419797
482000091960 |
Capacitor | Na dotaz | Zadat poptávku | |
| 39 WHR11511 |
C00419733
482000091895 |
Elect.parts box | Na dotaz | Zadat poptávku | |
| 40 WHR11511 |
C00419734
482000091896 |
Elect.parts box | Na dotaz | Zadat poptávku | |
| 41 WHR11511 |
C00419735
482000091897 |
Elect.parts box | Na dotaz | Zadat poptávku | |
| 42 WHR11511 |
C00419736
482000091898 |
Elect.parts box | Na dotaz | Zadat poptávku | |
| 43 WHR11511 |
C00419737
482000091899 |
Control board indoor | Na dotaz | Zadat poptávku | |
| 44 WHR11511 |
C00419738
482000091900 |
Elect.parts box plate | Na dotaz | Zadat poptávku | |
| 45 WHR11511 |
C00407051
482000000625 |
Sensor | Na dotaz | Zadat poptávku | |
| 46 WHR11511 |
C00419739
482000091901 |
Mains cable | Na dotaz | Zadat poptávku | |
| 47 WHR11511 |
C00419740
482000091902 |
Podpůrné dno | Na dotaz | Zadat poptávku | |
| 48 WHR11511 |
C00419741
482000091903 |
Switch water position | Na dotaz | Zadat poptávku | |
| 49 WHR11511 |
C00419742
482000091904 |
Switch water position | Na dotaz | Zadat poptávku | |
| 50 WHR11511 |
C00419743
482000091905 |
Plate mounting | Na dotaz | Zadat poptávku | |
| 51 WHR11511 |
C00419744
482000091906 |
Bolt | Na dotaz | Zadat poptávku | |
| 52 WHR11511 |
C00395289
480150100578 |
Wheel small | Na dotaz | Zadat poptávku | |
| 53 WHR11511 |
C00419745
482000091907 |
Plate mounting | Na dotaz | Zadat poptávku | |
| 54 WHR11511 |
C00419746
482000091908 |
Cover motor | Na dotaz | Zadat poptávku | |
| 55 WHR11511 |
C00419747
482000091909 |
Support motor | Na dotaz | Zadat poptávku | |
| 56 WHR11511 |
C00419748
482000091910 |
Gear | Na dotaz | Zadat poptávku | |
| 57 WHR11511 |
C00419749
482000091911 |
Plate mounting | Na dotaz | Zadat poptávku | |
| 58 WHR11511 |
C00419798
482000091961 |
Compressor | Na dotaz | Zadat poptávku | |
| 59 WHR11511 |
C00419799
482000091962 |
Tube | Na dotaz | Zadat poptávku | |
| 60 WHR11511 |
C00419800
482000091963 |
Tube assy | Na dotaz | Zadat poptávku | |
| 61 WHR11511 |
C00419801
482000091964 |
Capillary tube assy | Na dotaz | Zadat poptávku | |
| 62 WHR11511 |
C00419754
482000091916 |
Ovladač dálkový | 2 306 Kč
€ 91.00 |
||
| 63 WHR11511 |
C00419755
482000091917 |
Příruba kruhová (spojovací kus) pro hadici k mobilní klimatizaci Whirlpool | 492 Kč
€ 19.40 |
||
| 64 WHR11511 |
C00419756
482000091918 |
Hadice pro odtah vzduchu mobilní klimatizace Whirlpool | 1 580 Kč
€ 62.40 |
||
| 65 WHR11511 |
C00419757
482000091919 |
Příruba kruh/ovál pro hadici k mobilní klimatizaci Whirlpool | 1 435 Kč
€ 56.70 |
||
| 66 WHR11511 |
C00419758
482000091920 |
Lišta klimatizace posuvná - krycí | 1 814 Kč
€ 71.60 |
||
| 67 WHR11511 |
C00419759
482000091921 |
Lišta klimatizace | 419 Kč
€ 16.50 |
||
| 68 WHR11511 |
C00419760
482000091922 |
Filter | Na dotaz | Zadat poptávku | |
| 69 WHR11511 |
C00419761
482000091923 |
Kryt | 879 Kč
€ 34.70 |
||
| 70 WHR11511 |
C00419762
482000091924 |
Filtr prachový | 746 Kč
€ 29.50 |
||
| 71 WHR11511 |
C00419763
482000091925 |
Wire | Na dotaz | Zadat poptávku | |
| 72 WHR11511 |
C00419764
482000091926 |
Uzávěr vypouštění kondenzátu mobilní klimatizace Whirlpool | 114 Kč
€ 4.50 |
||
| 73 WHR11511 |
C00419765
482000091927 |
Filtr | 882 Kč
€ 34.80 |
||
| 74 WHR11511 |
C00419766
482000091928 |
Lišta klimatizace s otvorem | 1 735 Kč
€ 68.50 |
||
| 75 WHR11511 |
C00409754
482000006138 |
Capacitor | Na dotaz | Zadat poptávku | |
| 76 WHR11511 |
C00419767
482000091929 |
Capacitor | Na dotaz | Zadat poptávku | |
| 999 WHR11511 |
C00541890 | NTC/PTC Chart WHP | Na dotaz | Zadat poptávku | |
| 999 WHR11511 |
C00541892 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
