IGNIS RBF 48/I DOUBLE DOOR NO FROST
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | RBF 48/I DOUBLE DOOR NO FROST |
| Kód 12NC: | 853995593010 |
| I.C. kód: | 853995593011 |
| Značka: | IGNIS |
| Typ produktu: | Volně stojící lednice s mrazákem |
| Další podobné modely: | 853995593010 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

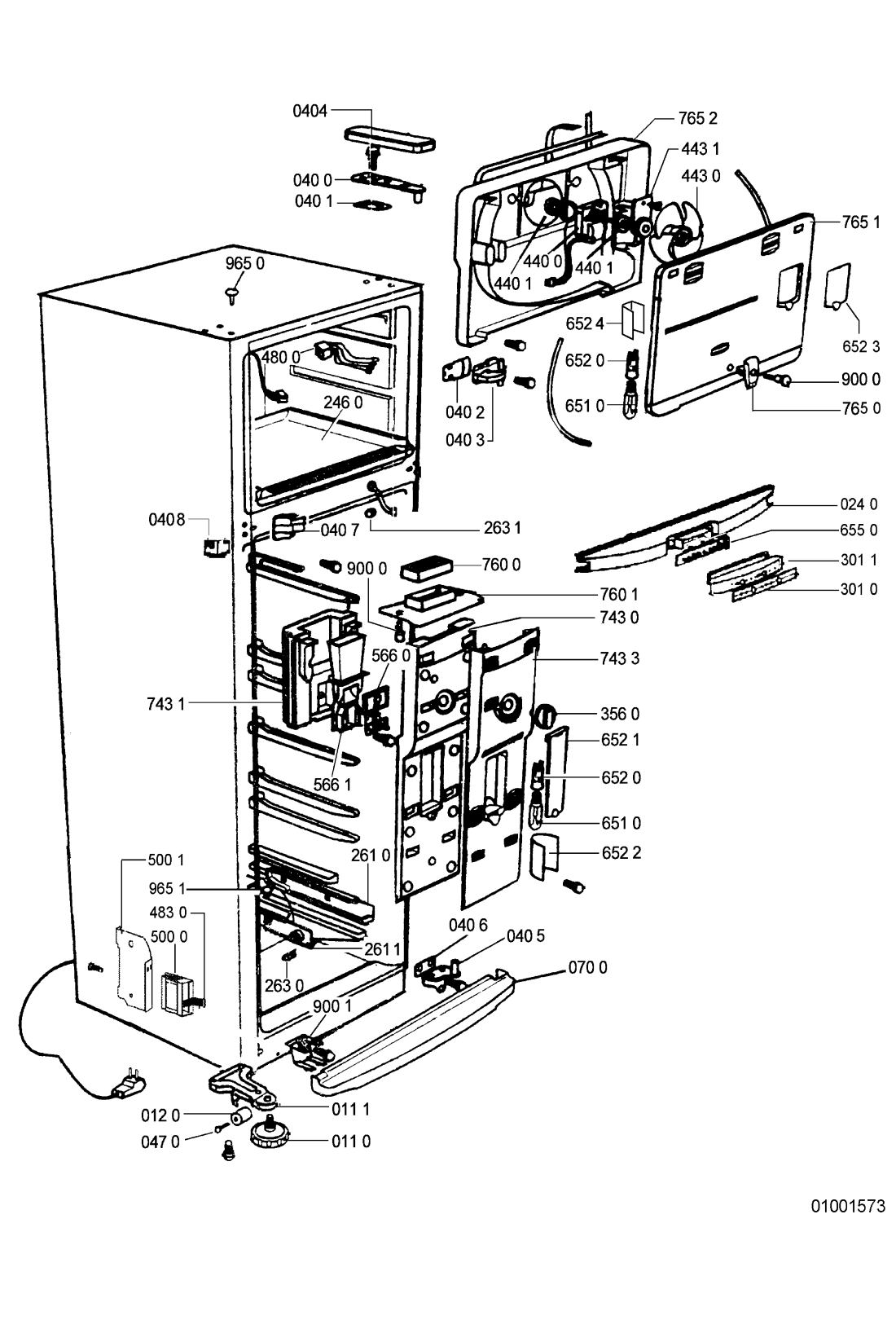

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 011 0 WHR72553 |
C00491914
481246218282 |
Foot WH | Na dotaz | Zadat poptávku | |
| 011 1 WHR72553 |
C00336238
481246218185 |
Small plate | Na dotaz | Zadat poptávku | |
| 012 0 WHR72553 |
C00332374
481252878071 |
Roller | Na dotaz | Zadat poptávku | |
| 024 0 WHR72553 |
C00402090
481240468058 |
Console white color | Na dotaz | Zadat poptávku | |
| 040 0 WHR72553 |
C00339759
481241719138 |
Hinge upper | Na dotaz | Zadat poptávku | |
| 040 1 WHR72553 |
C00336360
481241778021 |
Shim hinge | Na dotaz | Zadat poptávku | |
| 040 2 WHR72553 |
C00336361
481241778103 |
Shim Hinge | Na dotaz | Zadat poptávku | |
| 040 3 WHR72553 |
C00488942
481241718995 |
Hinge middle | Na dotaz | Zadat poptávku | |
| 040 4 WHR72553 |
C00342472
481246228054 |
Cover hinge | Na dotaz | Zadat poptávku | |
| 040 5 WHR72553 |
C00339800
481241718854 |
Hinge lower | Na dotaz | Zadat poptávku | |
| 040 6 WHR72553 |
C00336362
481252648092 |
Shim Hinge | Na dotaz | Zadat poptávku | |
| 040 7 WHR72553 |
C00488925
481241718853 |
Hinge left | Na dotaz | Zadat poptávku | |
| 040 8 WHR72553 |
C00488943
481241719016 |
Hinge middle | Na dotaz | Zadat poptávku | |
| 047 0 WHR72553 |
C00336455
481253548009 |
Shaft | Na dotaz | Zadat poptávku | |
| 070 0 WHR72553 |
C00583941
481246488012 |
PANEL. | Na dotaz | Zadat poptávku | |
| 101 0 WHR72553 |
C00583888
481244268967 |
Door ,freezer. | Na dotaz | Zadat poptávku | |
| 102 0 WHR72553 |
C00485190
481244229121 |
Evapor.door | Na dotaz | Zadat poptávku | |
| 102 1 WHR72553 |
C00587136
481244229282 |
Flap. | Na dotaz | Zadat poptávku | |
| 102 2 WHR72553 |
C00402911
481241828896 |
Front Crisper | Na dotaz | Zadat poptávku | |
| 104 0 WHR72553 |
C00583887
481244268966 |
Door ,ref.. | Na dotaz | Zadat poptávku | |
| 105 0 WHR72553 |
C00344080
481253288011 |
Bushing | Na dotaz | Zadat poptávku | |
| 105 1 WHR72553 |
C00336004
481253288012 |
zaslepka | 122 Kč
€ 4.80 |
||
| 105 2 WHR72553 |
C00344061
481246228181 |
Bushing white | Na dotaz | Zadat poptávku | |
| 105 3 WHR72553 |
C00498375
481246228179 |
Bushing right,white. | Na dotaz | Zadat poptávku | |
| 105 4 WHR72553 |
C00584409
481231018573 |
Door revers.Kit | Na dotaz | Zadat poptávku | |
| 111 0 WHR72553 |
C00405329
481249818663 |
Handle | Na dotaz | Zadat poptávku | |
| 111 1 WHR72553 |
C00404511
481245938082 |
Insert f.Handle white color | Na dotaz | Zadat poptávku | |
| 111 2 WHR72553 |
C00576246
481244028949 |
Nameplate.. | Na dotaz | Zadat poptávku | |
| 153 0 WHR72553 |
C00587112
481241879971 |
Door dairy freezer. | Na dotaz | Zadat poptávku | |
| 153 1 WHR72553 |
C00489004
481241828034 |
Door dairy | Na dotaz | Zadat poptávku | |
| 153 2 WHR72553 |
C00491895
481246078892 |
SPACER | Na dotaz | Zadat poptávku | |
| 154 0 WHR72553 |
C00491687
481241848491 |
Holder bottles | Na dotaz | Zadat poptávku | |
| 154 1 WHR72553 |
C00485820
481245838028 |
SHELF | Na dotaz | Zadat poptávku | |
| 154 2 WHR72553 |
C00587252
481246228569 |
Shelf mobile. | Na dotaz | Zadat poptávku | |
| 155 0 WHR72553 |
C00587093
481241828772 |
Holder eggs. | Na dotaz | Zadat poptávku | |
| 156 0 WHR72553 |
C00335335
481241828773 |
Tray icecube | Na dotaz | Zadat poptávku | |
| 156 1 WHR72553 |
C00587248
481246088296 |
Holder eggs. | Na dotaz | Zadat poptávku | |
| 156 2 WHR72553 |
C00491545
481240478299 |
SPACER | Na dotaz | Zadat poptávku | |
| 156 3 WHR72553 |
C00495592
481241728082 |
viko zasobniku na led | 203 Kč
€ 8.00 |
||
| 156 4 WHR72553 |
C00500821
481241828033 |
zasobnik na led | 564 Kč
€ 22.30 |
||
| 191 0 WHR72553 |
C00583951
481246818015 |
NAHRADENE 481246818275 | Na dotaz | Zadat poptávku | |
| 191 1 WHR72553 |
C00529774
481246818016 |
Magnetic seal ref. | Na dotaz | Zadat poptávku | |
| 242 0 WHR72553 |
C00342289
481241848739 |
Crisper | Na dotaz | Zadat poptávku | |
| 242 2 WHR72553 |
C00336788
481240448673 |
Roller vegetables drawer | Na dotaz | Zadat poptávku | |
| 242 3 WHR72553 |
C00587025
481240448943 |
Support. | Na dotaz | Zadat poptávku | |
| 244 0 WHR72553 |
C00485821
481245838032 |
Shelf | Na dotaz | Zadat poptávku | |
| 244 1 WHR72553 |
C00584549
481241848702 |
Drawer cold room. | Na dotaz | Zadat poptávku | |
| 244 2 WHR72553 |
C00495311
481245838031 |
SHELF | Na dotaz | Zadat poptávku | |
| 246 0 WHR72553 |
C00335342
481241828774 |
Tray freezer | Na dotaz | Zadat poptávku | |
| 246 1 WHR72553 |
C00583850
481241848489 |
Shelf ,freezer. | Na dotaz | Zadat poptávku | |
| 261 0 WHR72553 |
C00336930
481246818014 |
Rail right | Na dotaz | Zadat poptávku | |
| 261 1 WHR72553 |
C00336932
481246218183 |
Rail left | Na dotaz | Zadat poptávku | |
| 263 0 WHR72553 |
C00336264
481246218184 |
Slide | Na dotaz | Zadat poptávku | |
| 263 1 WHR72553 |
C00329054
481240448923 |
Support | Na dotaz | Zadat poptávku | |
| 301 0 WHR72553 |
C00583903
481245319587 |
Insert. | Na dotaz | Zadat poptávku | |
| 301 1 WHR72553 |
C00587211
481245228671 |
Console Display. | Na dotaz | Zadat poptávku | |
| 356 0 WHR72553 |
C00341922
481241458267 |
Knob thermostat | Na dotaz | Zadat poptávku | |
| 402 0 WHR72553 |
C00574711
481236038892 |
Compressor FGS 100 HA | Na dotaz | Zadat poptávku | |
| 402 1 WHR72553 |
C00318946
481241818319 |
Tray | Na dotaz | Zadat poptávku | |
| 402 2 WHR72553 |
C00331559
481246699005 |
Base compressor | Na dotaz | Zadat poptávku | |
| 440 0 WHR72553 |
C00341646
481236118394 |
Motor,fan220V/240V AC 300R | Na dotaz | Zadat poptávku | |
| 440 1 WHR72553 |
C00315086
481246638021 |
Damper fan | Na dotaz | Zadat poptávku | |
| 443 0 WHR72553 |
C00315305
481236118282 |
Fan | Na dotaz | Zadat poptávku | |
| 443 1 WHR72553 |
C00335783
481246048881 |
Support Ventilator | Na dotaz | Zadat poptávku | |
| 451 0 WHR72553 |
C00320266
481225948141 |
ELEMENT DEFROST | Na dotaz | Zadat poptávku | |
| 480 0 WHR72553 |
C00343501
481201978807 |
Connect.cable | Na dotaz | Zadat poptávku | |
| 483 0 WHR72553 |
C00343502
481201978819 |
Connect.cable | Na dotaz | Zadat poptávku | |
| 500 0 WHR72553 |
C00482533
481227158163 |
CONTROL BOARD | Na dotaz | Zadat poptávku | |
| 500 1 WHR72553 |
C00342539
481244028945 |
Cover Control board | Na dotaz | Zadat poptávku | |
| 566 0 WHR72553 |
C00319312
481228238041 |
Thermostat | Na dotaz | Zadat poptávku | |
| 566 1 WHR72553 |
C00339546
481246048885 |
Holder Thermostat | Na dotaz | Zadat poptávku | |
| 566 2 WHR72553 |
C00314686
481228238042 |
termostat | 1 877 Kč
€ 74.10 |
||
| 614 0 WHR72553 |
C00495590
481228028012 |
Relay + overload | Na dotaz | Zadat poptávku | |
| 651 0 WHR72553 |
C00341807
481213428061 |
Lamp220V | Na dotaz | Zadat poptávku | |
| 652 0 WHR72553 |
C00339579
481225528011 |
Holder lamp | Na dotaz | Zadat poptávku | |
| 652 1 WHR72553 |
C00342514
481246098006 |
Cover f. lamp | Na dotaz | Zadat poptávku | |
| 652 2 WHR72553 |
C00342198
481246228057 |
Deflector | Na dotaz | Zadat poptávku | |
| 652 3 WHR72553 |
C00342515
481246228676 |
Cover f. lamp | Na dotaz | Zadat poptávku | |
| 652 4 WHR72553 |
C00342197
481246228056 |
Deflector | Na dotaz | Zadat poptávku | |
| 655 0 WHR72553 |
C00491804
481245228077 |
Front panel | Na dotaz | Zadat poptávku | |
| 691 0 WHR72553 |
C00336525
481228268021 |
Sensor kit | Na dotaz | Zadat poptávku | |
| 740 0 WHR72553 |
C00332238
481251148336 |
výměník | 2 213 Kč
€ 87.40 |
||
| 740 1 WHR72553 |
C00330489
481246228394 |
Holder Condenser | Na dotaz | Zadat poptávku | |
| 740 2 WHR72553 |
C00343291
481240418112 |
Clip Condenserr | Na dotaz | Zadat poptávku | |
| 743 0 WHR72553 |
C00498501
481248028035 |
difuzor | 214 Kč
€ 8.40 |
||
| 743 1 WHR72553 |
C00335877
481246048884 |
Support | Na dotaz | Zadat poptávku | |
| 743 3 WHR72553 |
C00485134
481244078918 |
Cover | Na dotaz | Zadat poptávku | |
| 745 0 WHR72553 |
C00341099
481251138149 |
Evaporator | Na dotaz | Zadat poptávku | |
| 745 1 WHR72553 |
C00339197
481244228963 |
Housing Evaporator | Na dotaz | Zadat poptávku | |
| 745 3 WHR72553 |
C00335834
481253598061 |
Support Evaporator | Na dotaz | Zadat poptávku | |
| 760 0 WHR72553 |
C00344625
481249038001 |
Air clean filt. | Na dotaz | Zadat poptávku | |
| 760 1 WHR72553 |
C00319191
481246048883 |
Support Air clean filt. | Na dotaz | Zadat poptávku | |
| 764 0 WHR72553 |
C00311590
481952648527 |
Dryer DRS15 With 3 ways valve | Na dotaz | Zadat poptávku | |
| 765 0 WHR72553 |
C00343377
481246048882 |
Clamp Cover | Na dotaz | Zadat poptávku | |
| 765 1 WHR72553 |
C00574484
481244079145 |
Cover Evaporator. | Na dotaz | Zadat poptávku | |
| 765 2 WHR72553 |
C00342370
481244069031 |
Cover rear | Na dotaz | Zadat poptávku | |
| 900 0 WHR72553 |
C00332711
481253538083 |
Pin | Na dotaz | Zadat poptávku | |
| 900 1 WHR72553 |
C00343300
481253578042 |
Clip | Na dotaz | Zadat poptávku | |
| 965 0 WHR72553 |
C00342336
481244229065 |
Cover white | Na dotaz | Zadat poptávku | |
| 965 1 WHR72553 |
C00330243
481246048886 |
Cover | Na dotaz | Zadat poptávku | |
| 999 WHR72553 |
C00695113 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
