WHIRLPOOL S20ERWW1VA/G
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | S20ERWW1VA/G |
| Kód 12NC: | 858617115000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící lednice s mrazákem |
| Další podobné modely: | Q0905360000, 858617115001, Q0905360001 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

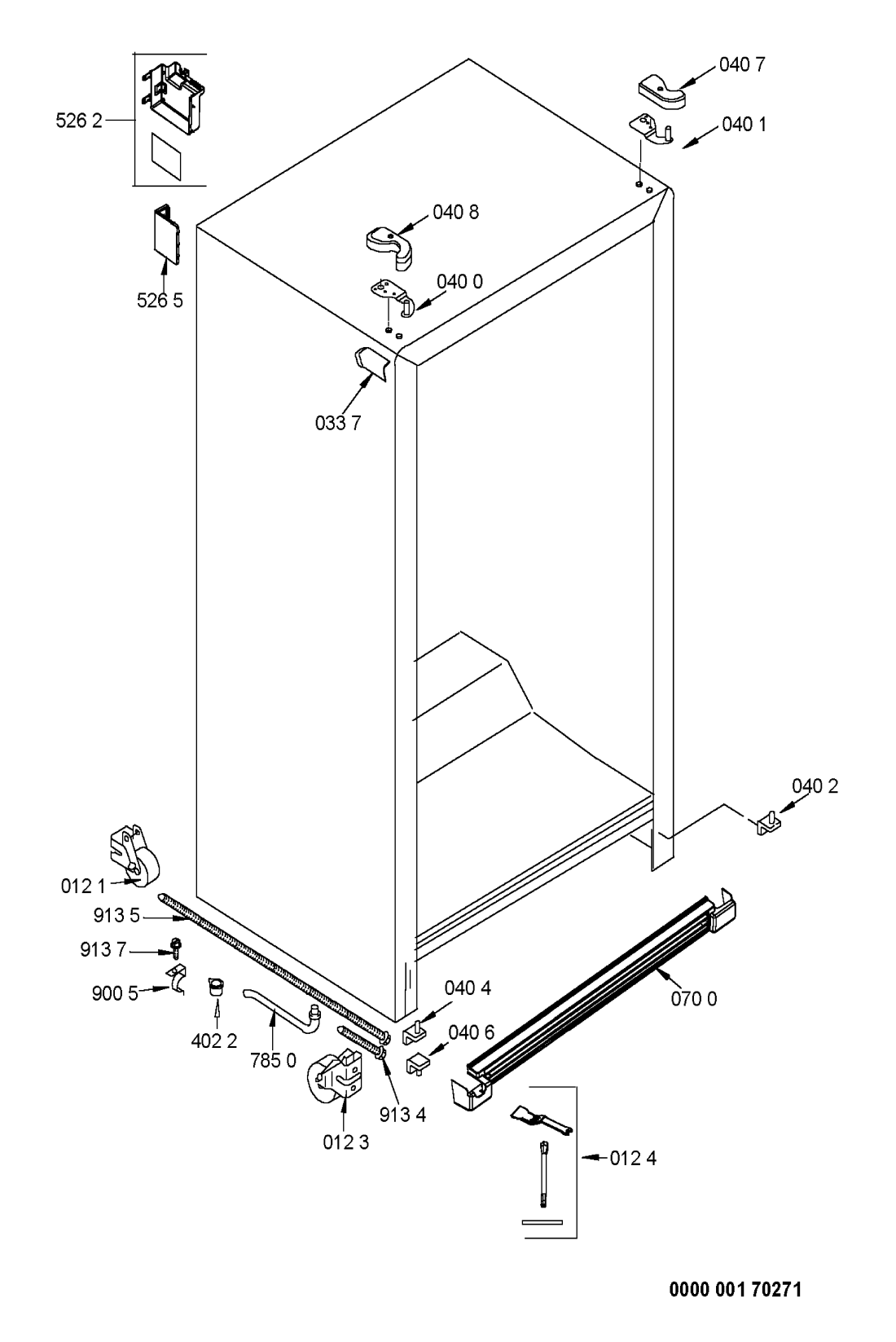

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 012 1 WHR02214 |
C00332372 | Roller complete | Na dotaz | Zadat poptávku | |
| 012 3 WHR02214 |
C00332371
481252878059 |
Roller front | Na dotaz | Zadat poptávku | |
| 012 4 WHR02214 |
C00328470
481231068021 |
Key Wheel kit; Wheel kit | Na dotaz | Zadat poptávku | |
| 033 7 WHR02214 |
C00330232
481245948187 |
CoverSxS corner white | Na dotaz | Zadat poptávku | |
| 040 0 WHR02214 |
C00315504
481241719245 |
HINGE,UPPER | 413 Kč
€ 16.30 |
||
| 040 1 WHR02214 |
C00314344
481241719246 |
Hinge upper right | Na dotaz | Zadat poptávku | |
| 040 2 WHR02214 |
C00311208
481241719261 |
Hinge lower right | Na dotaz | Zadat poptávku | |
| 040 4 WHR02214 |
C00313119
481241719262 |
zaves | 1 387 Kč
€ 54.80 |
||
| 040 6 WHR02214 |
C00316868
481241719102 |
noha | 416 Kč
€ 16.40 |
||
| 040 7 WHR02214 |
C00329798
481241778087 |
Cover,hinge | Na dotaz | Zadat poptávku | |
| 040 8 WHR02214 |
C00329797
481241778086 |
Cover hinge | Na dotaz | Zadat poptávku | |
| 047 0 WHR02214 |
C00311203
481902182178 |
Bushing door cooling | Na dotaz | Zadat poptávku | |
| 047 1 WHR02214 |
C00311211
481253248035 |
Pouzdro dveří chladničky | 616 Kč
€ 24.30 |
||
| 047 2 WHR02214 |
C00314085 | Cover door bushing fridge | Na dotaz | Zadat poptávku | |
| 047 4 WHR02214 |
C00330512 | Stopper door freezer | Na dotaz | Zadat poptávku | |
| 070 0 WHR02214 |
C00317253
481244089012 |
Plinth | Na dotaz | Zadat poptávku | |
| 084 3 WHR02214 |
C00313465
481240418386 |
guma k motorku vent. | 219 Kč
€ 8.60 |
||
| 101 0 WHR02214 |
C00329687 | Door freezer | Na dotaz | Zadat poptávku | |
| 104 0 WHR02214 |
C00320780
481241619765 |
Door refriger. | Na dotaz | Zadat poptávku | |
| 105 4 WHR02214 |
C00329162
481240468029 |
Bracket | Na dotaz | Zadat poptávku | |
| 111 0 WHR02214 |
C00330710
481246268922 |
Door handle | Na dotaz | Zadat poptávku | |
| 111 2 WHR02214 |
C00330539
481246228719 |
Holder | Na dotaz | Zadat poptávku | |
| 111 7 WHR02214 |
C00311716 | Nameplate WHIRLPOOL | Na dotaz | Zadat poptávku | |
| 152 2 WHR02214 |
C00311412
481241828366 |
Door,dairy | Na dotaz | Zadat poptávku | |
| 153 0 WHR02214 |
C00314699
481241828371 |
Flap door dairy printed | Na dotaz | Zadat poptávku | |
| 153 3 WHR02214 |
C00312504
481241828372 |
Bottle shelf | Na dotaz | Zadat poptávku | |
| 154 0 WHR02214 |
C00312397
481241828375 |
police lahvi S20/25B | 616 Kč
€ 24.30 |
||
| 154 3 WHR02214 |
C00315875
481246228424 |
Stopper balcony | Na dotaz | Zadat poptávku | |
| 154 9 WHR02214 |
C00312678
481241828377 |
Door,dairy | Na dotaz | Zadat poptávku | |
| 155 0 WHR02214 |
C00317014
481241828844 |
drzak vajec | 571 Kč
€ 22.50 |
||
| 191 0 WHR02214 |
C00330997
481246688647 |
Těsnění magnetické chladničky | 2 441 Kč
€ 96.40 |
||
| 191 1 WHR02214 |
C00330998
481246688648 |
Těsnění magnetické-mraznička | 2 273 Kč
€ 89.70 |
||
| 201 7 WHR02214 |
C00313555 | Gasket support fan | Na dotaz | Zadat poptávku | |
| 233 2 WHR02214 |
C00319189
481240448697 |
Support grid | Na dotaz | Zadat poptávku | |
| 241 0 WHR02214 |
C00319087
481245819113 |
Koš mrazničky drátěný | 1 268 Kč
€ 50.10 |
||
| 241 1 WHR02214 |
C00319085
481245819112 |
Koš mrazničky drátěný - spodní | 920 Kč
€ 36.30 |
||
| 241 3 WHR02214 |
C00317211
481244069202 |
Insertbasket | Na dotaz | Zadat poptávku | |
| 242 0 WHR02214 |
C00311089
481241828365 |
zasuvka spodni S20 | 2 771 Kč
€ 109.40 |
||
| 242 3 WHR02214 |
C00313020
481241828364 |
Zásuvka prostřední S20 | 2 813 Kč
€ 111.10 |
||
| 245 5 WHR02214 |
C00330134
481245838104 |
Grid upper | Na dotaz | Zadat poptávku | |
| 245 6 WHR02214 |
C00330135
481245838105 |
Grid lower | Na dotaz | Zadat poptávku | |
| 245 8 WHR02214 |
C00330056
481245819214 |
Basket | Na dotaz | Zadat poptávku | |
| 249 1 WHR02214 |
C00315849
481246049283 |
Trim basket | Na dotaz | Zadat poptávku | |
| 249 2 WHR02214 |
C00319213
481246049284 |
Trim | Na dotaz | Zadat poptávku | |
| 249 3 WHR02214 |
C00312658
481246049302 |
lista kose | 549 Kč
€ 21.70 |
||
| 249 4 WHR02214 |
C00311228 | Trim glass plate | Na dotaz | Zadat poptávku | |
| 249 9 WHR02214 |
C00315418
481246049301 |
lista | Na dotaz | Zadat poptávku | |
| 251 1 WHR02214 |
C00315642
481244098282 |
Kryt žárovky | 259 Kč
€ 10.20 |
||
| 251 5 WHR02214 |
C00330248
481246049289 |
Trim | Na dotaz | Zadat poptávku | |
| 251 8 WHR02214 |
C00312341
481238028028 |
kryt světla | 1 138 Kč
€ 44.90 |
||
| 251 9 WHR02214 |
C00314009 | Cover f. lamp freezer | Na dotaz | Zadat poptávku | |
| 252 0 WHR02214 |
C00317239 | CONTROL BOX ASSY | Na dotaz | Zadat poptávku | |
| 255 1 WHR02214 |
C00311376
481245088245 |
Rošt skleněný | Na dotaz | Zadat poptávku | |
| 255 4 WHR02214 |
C00311227
481245088095 |
sklo police | 963 Kč
€ 38.00 |
||
| 255 5 WHR02214 |
C00312268
481245088096 |
Glass shelf fridge central | Na dotaz | Zadat poptávku | |
| 255 7 WHR02214 |
C00311212
488000311212 |
Frame; glassplate | Na dotaz | Zadat poptávku | |
| 255 8 WHR02214 |
C00311040
481241828361 |
Rám krycí desky | 1 836 Kč
€ 72.50 |
||
| 256 0 WHR02214 |
C00315420 | Slide air inlet | Na dotaz | Zadat poptávku | |
| 256 5 WHR02214 |
C00333145
481946698997 |
Rail ,air inletair inlet | Na dotaz | Zadat poptávku | |
| 261 0 WHR02214 |
C00312885
481246238139 |
lista vodici | 680 Kč
€ 26.80 |
||
| 261 1 WHR02214 |
C00313918
481246238138 |
Slide left | Na dotaz | Zadat poptávku | |
| 263 8 WHR02214 |
C00313216
481240448702 |
Kolík rámu chladničky pravý | 315 Kč
€ 12.40 |
||
| 263 9 WHR02214 |
C00311512
481240448701 |
Kolík | 289 Kč
€ 11.40 |
||
| 324 6 WHR02214 |
C00317273
481244229284 |
Air diffuser | Na dotaz | Zadat poptávku | |
| 402 0 WHR02214 |
C00314677
481236038812 |
Compressor EGY90HLC CP | Na dotaz | Zadat poptávku | |
| 402 1 WHR02214 |
C00312635
481241828378 |
miska odkapni | 916 Kč
€ 36.20 |
||
| 402 2 WHR02214 |
C00317288
488000317288 |
Valve flap | Na dotaz | Zadat poptávku | |
| 402 4 WHR02214 |
C00328327 | Clip compressor | Na dotaz | Zadat poptávku | |
| 420 0 WHR02214 |
C00326756
481212028043 |
Capacitor | Na dotaz | Zadat poptávku | |
| 420 4 WHR02214 |
C00331039
481244229019 |
Insulator | Na dotaz | Zadat poptávku | |
| 440 3 WHR02214 |
C00311246
481244528021 |
Air diffuser - damper sub 481236138103 | Na dotaz | Zadat poptávku | |
| 440 4 WHR02214 |
C00311664
481246238141 |
kryt | 339 Kč
€ 13.40 |
||
| 440 5 WHR02214 |
C00312554
481244528036 |
AIR DIFFUSER | 785 Kč
€ 31.00 |
||
| 440 6 WHR02214 |
C00311792
481946238778 |
Slide | Na dotaz | Zadat poptávku | |
| 440 7 WHR02214 |
C00331402 | Insulator condenser | Na dotaz | Zadat poptávku | |
| 440 8 WHR02214 |
C00314101 | Flap deoderiser | Na dotaz | Zadat poptávku | |
| 441 0 WHR02214 |
C00311964
481202858339 |
Motor | Na dotaz | Zadat poptávku | |
| 441 1 WHR02214 |
C00320068 | Grommet compressor | Na dotaz | Zadat poptávku | |
| 441 2 WHR02214 |
C00317209
481244068962 |
Support right | Na dotaz | Zadat poptávku | |
| 442 0 WHR02214 |
C00320443
481236118434 |
Motor,fan sub 481236138118 | Na dotaz | Zadat poptávku | |
| 442 1 WHR02214 |
C00312306
481940478682 |
drzak | 191 Kč
€ 7.50 |
||
| 443 0 WHR02214 |
C00311633
481951548057 |
vrtule ventilatoru | Na dotaz | Zadat poptávku | |
| 443 1 WHR02214 |
C00311620
481902182120 |
Housing ventilator | Na dotaz | Zadat poptávku | |
| 451 0 WHR02214 |
C00311206 | ELEMENT DEFROST | Na dotaz | Zadat poptávku | |
| 451 1 WHR02214 |
C00328918 | Clamp defrost heater | Na dotaz | Zadat poptávku | |
| 491 0 WHR02214 |
C00313589
481229088087 |
Cover connection block | Na dotaz | Zadat poptávku | |
| 526 2 WHR02214 |
C00312948
481221778172 |
NAHRADA sub 481221778214 | Na dotaz | Zadat poptávku | |
| 526 5 WHR02214 |
C00316182
481244029368 |
Lid electronic box | Na dotaz | Zadat poptávku | |
| 561 2 WHR02214 |
C00319566
481229068294 |
Connect.block | Na dotaz | Zadat poptávku | |
| 562 0 WHR02214 |
C00311207
481232058132 |
Termostat - bimetal | 2 892 Kč
€ 114.20 |
||
| 614 0 WHR02214 |
C00316715
481228028039 |
PTC-Unit | Na dotaz | Zadat poptávku | |
| 620 4 WHR02214 |
C00314637
481927618157 |
Switch ,light sub 481227618538 | Na dotaz | Zadat poptávku | |
| 626 1 WHR02214 |
C00314097
481244079112 |
Deflektor | 175 Kč
€ 6.90 |
||
| 651 0 WHR02214 |
C00312051
481213418033 |
Lamp 40W 220V T-CLICK | Na dotaz | Zadat poptávku | |
| 691 4 WHR02214 |
C00315397
481240478553 |
Support NTC | Na dotaz | Zadat poptávku | |
| 691 7 WHR02214 |
C00311307
481231018846 |
Senzor teploty - sada | 1 663 Kč
€ 65.70 |
||
| 740 0 WHR02214 |
C00319590 | Condenser | Na dotaz | Zadat poptávku | |
| 743 1 WHR02214 |
C00314109
481244098121 |
Cover air diffuser | Na dotaz | Zadat poptávku | |
| 743 3 WHR02214 |
C00316023
481246688722 |
Gasket condenser fan frame | Na dotaz | Zadat poptávku | |
| 745 0 WHR02214 |
C00311856
481236038648 |
vyparnik | 3 097 Kč
€ 122.30 |
||
| 745 2 WHR02214 |
C00328130
481244029446 |
Cover evaporator | Na dotaz | Zadat poptávku | |
| 745 4 WHR02214 |
C00333182 | Clip earthing | Na dotaz | Zadat poptávku | |
| 745 6 WHR02214 |
C00328324 | Heat shield evaporator | Na dotaz | Zadat poptávku | |
| 746 1 WHR02214 |
C00314111
481244098225 |
Conveyor damper/icemaker | Na dotaz | Zadat poptávku | |
| 746 2 WHR02214 |
C00328279
481244069203 |
Cover evaporator | Na dotaz | Zadat poptávku | |
| 746 3 WHR02214 |
C00328418
481244098062 |
Gasket air guide | Na dotaz | Zadat poptávku | |
| 746 4 WHR02214 |
C00328328 | Deflector | Na dotaz | Zadat poptávku | |
| 764 2 WHR02214 |
C00345712
481248028092 |
Dryer | Na dotaz | Zadat poptávku | |
| 785 0 WHR02214 |
C00314310
481253029348 |
Tube evaporator drain | Na dotaz | Zadat poptávku | |
| 900 5 WHR02214 |
C00318136
481949268544 |
Clip fix drain tube | Na dotaz | Zadat poptávku | |
| 900 7 WHR02214 |
C00328976 | Bracket heating | Na dotaz | Zadat poptávku | |
| 900 8 WHR02214 |
C00315132
481949269522 |
drzak rostu | Na dotaz | Zadat poptávku | |
| 913 4 WHR02214 |
C00332150
481250228013 |
Screw | Na dotaz | Zadat poptávku | |
| 913 5 WHR02214 |
C00332102
481250218667 |
Screw M4x15 | Na dotaz | Zadat poptávku | |
| 913 7 WHR02214 |
C00332085 | Screw clamp drain tube | Na dotaz | Zadat poptávku | |
| 999 WHR02214 |
C00362639 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR02214 |
C00362640 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR02214 |
C00362641 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
