WHIRLPOOL S25C FTT3 X
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | S25C FTT3 X |
| Kód 12NC: | 858618978020 |
| I.C. kód: | 858618978021 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící lednice s mrazákem |
| Další podobné modely: | 858618978020, 858618978022 |
Potřebujete servis? Jsme tady pro Vás

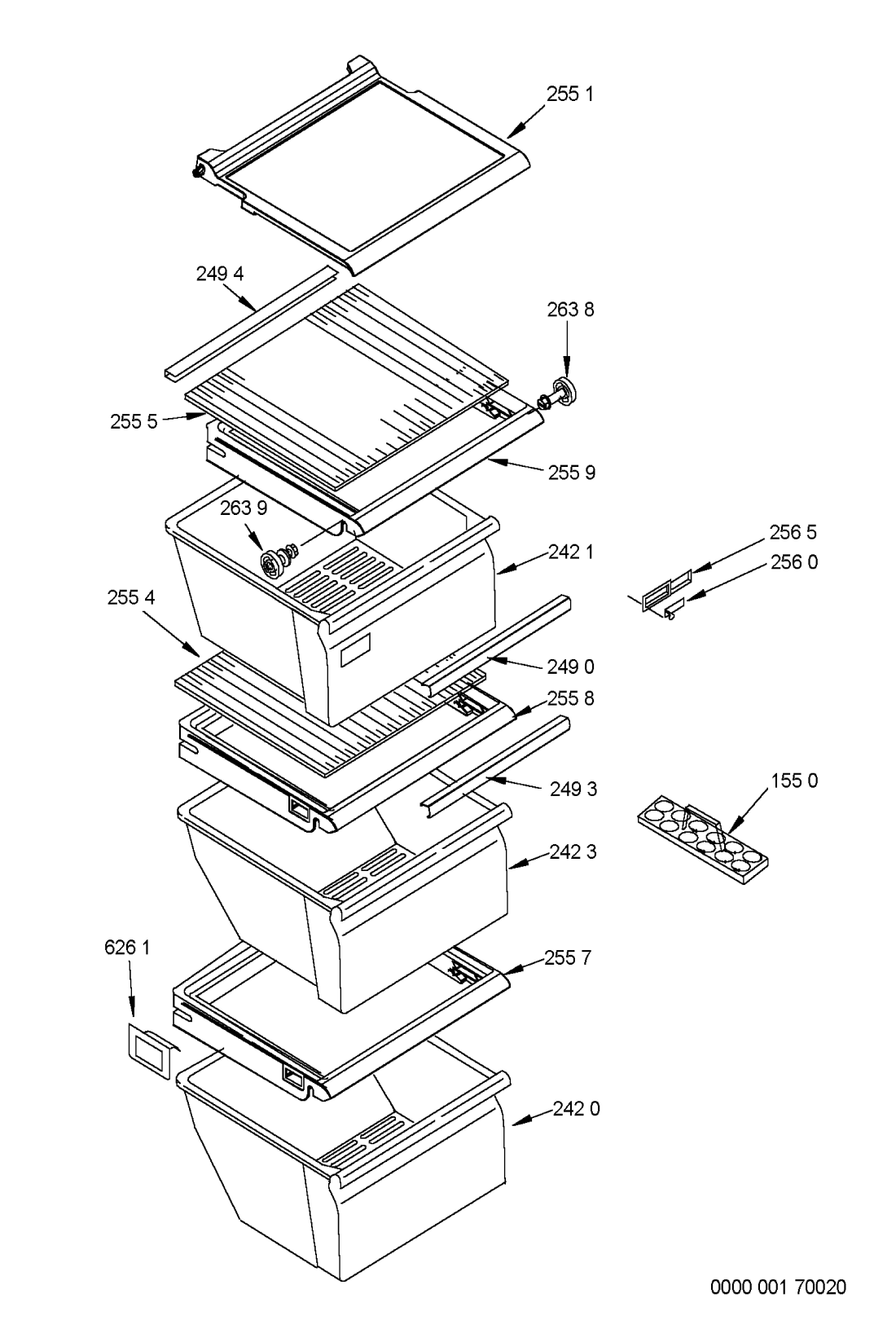

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 012 1 WHR77069 |
C00194900
481252878061 |
Kolečko | 374 Kč
€ 14.80 |
||
| 012 3 WHR77069 |
C00332371
481252878059 |
Roller front | Na dotaz | Zadat poptávku | |
| 012 4 WHR77069 |
C00328470
481231068021 |
Key Wheel kit; Wheel kit | Na dotaz | Zadat poptávku | |
| 033 7 WHR77069 |
C00605975
481244098224 |
Cover SxS Corner. | Na dotaz | Zadat poptávku | |
| 040 0 WHR77069 |
C00315504
481241719245 |
HINGE,UPPER | 413 Kč
€ 16.30 |
||
| 040 1 WHR77069 |
C00314344
481241719246 |
Hinge upper right | Na dotaz | Zadat poptávku | |
| 040 2 WHR77069 |
C00311208
481241719261 |
Hinge lower right | Na dotaz | Zadat poptávku | |
| 040 4 WHR77069 |
C00313119
481241719262 |
zaves | 1 387 Kč
€ 54.80 |
||
| 040 6 WHR77069 |
C00316868
481241719102 |
noha | 416 Kč
€ 16.40 |
||
| 040 7 WHR77069 |
C00605943
481241778133 |
Cover hinge. | Na dotaz | Zadat poptávku | |
| 040 8 WHR77069 |
C00605942
481241778132 |
Cover hinge | Na dotaz | Zadat poptávku | |
| 047 0 WHR77069 |
C00311203
481902182178 |
Bushing door cooling | Na dotaz | Zadat poptávku | |
| 047 1 WHR77069 |
C00311211
481253248035 |
Pouzdro dveří chladničky | 616 Kč
€ 24.30 |
||
| 047 2 WHR77069 |
C00256650
481244029448 |
Kryt | 456 Kč
€ 18.00 |
||
| 047 4 WHR77069 |
C00256649
481246228564 |
Stopper | Na dotaz | Zadat poptávku | |
| 070 0 WHR77069 |
C00459573
481244089118 |
Plinth | Na dotaz | Zadat poptávku | |
| 084 3 WHR77069 |
C00313465
481240418386 |
guma k motorku vent. | 219 Kč
€ 8.60 |
||
| 101 0 WHR77069 |
C00458457
481241619783 |
Door freezer | Na dotaz | Zadat poptávku | |
| 104 0 WHR77069 |
C00458456
481241619782 |
Door refriger. | Na dotaz | Zadat poptávku | |
| 105 4 WHR77069 |
C00329162
481240468029 |
Bracket | Na dotaz | Zadat poptávku | |
| 111 0 WHR77069 |
C00487800
481249858207 |
Handle door | Na dotaz | Zadat poptávku | |
| 111 2 WHR77069 |
C00486071
481246279889 |
Stopper handle door bottom | Na dotaz | Zadat poptávku | |
| 111 3 WHR77069 |
C00606377
481246279888 |
Stopper handle door top. | Na dotaz | Zadat poptávku | |
| 111 4 WHR77069 |
C00315877
481246228426 |
Support door handle | Na dotaz | Zadat poptávku | |
| 111 5 WHR77069 |
C00606371
481246228596 |
Support. | Na dotaz | Zadat poptávku | |
| 111 7 WHR77069 |
C00480209
481245918218 |
logo Whirlpool | 429 Kč
€ 16.90 |
||
| 152 2 WHR77069 |
C00605950
481241828685 |
Door dairy. | Na dotaz | Zadat poptávku | |
| 153 0 WHR77069 |
C00527865
481241828686 |
Flap f. Dairy Door | Na dotaz | Zadat poptávku | |
| 153 3 WHR77069 |
C00605951
481241828687 |
Door dairy. | Na dotaz | Zadat poptávku | |
| 154 0 WHR77069 |
C00489044
481241828688 |
Bottle shelf | Na dotaz | Zadat poptávku | |
| 154 1 WHR77069 |
C00329916
481241828374 |
Separator | Na dotaz | Zadat poptávku | |
| 154 2 WHR77069 |
C00311906
481240478552 |
Bushing door dairy sub 480131100918 | Na dotaz | Zadat poptávku | |
| 154 3 WHR77069 |
C00195180
481246228478 |
Kolík | 375 Kč
€ 14.80 |
||
| 154 4 WHR77069 |
C00311414
481241828373 |
uz nebude !!!!!! | Na dotaz | Zadat poptávku | |
| 154 6 WHR77069 |
C00312867
481241828376 |
Holder bottles bottom | Na dotaz | Zadat poptávku | |
| 154 9 WHR77069 |
C00605952
481241828689 |
Bottle shelf. | Na dotaz | Zadat poptávku | |
| 155 0 WHR77069 |
C00333009
481941879054 |
drzak vajec vrch. | 530 Kč
€ 20.90 |
||
| 191 0 WHR77069 |
C00319913
481246688676 |
Magnetic sealcooling | Na dotaz | Zadat poptávku | |
| 191 1 WHR77069 |
C00331006
481246688677 |
Magnetic sealfreezing | Na dotaz | Zadat poptávku | |
| 201 7 WHR77069 |
C00195206
481946669949 |
Gasket | Na dotaz | Zadat poptávku | |
| 233 2 WHR77069 |
C00319189
481240448697 |
Support grid | Na dotaz | Zadat poptávku | |
| 241 0 WHR77069 |
C00330049
481245819139 |
Koš mrazničky drátěný | 826 Kč
€ 32.60 |
||
| 241 1 WHR77069 |
C00330054
481245819177 |
Koš mrazničky drátěný - spodní | 1 236 Kč
€ 48.80 |
||
| 241 3 WHR77069 |
C00317211
481244069202 |
Insertbasket | Na dotaz | Zadat poptávku | |
| 241 5 WHR77069 |
C00490072
481246068558 |
Insert basket | Na dotaz | Zadat poptávku | |
| 241 8 WHR77069 |
C00330048
481245819138 |
Koš mrazničky drátěný | 1 023 Kč
€ 40.40 |
||
| 242 0 WHR77069 |
C00312012
481241848585 |
Drawer bottom | Na dotaz | Zadat poptávku | |
| 242 1 WHR77069 |
C00316277
481241848583 |
Koš | 2 158 Kč
€ 85.20 |
||
| 242 3 WHR77069 |
C00312570
481241848584 |
zasuvka stredni S25 | 2 789 Kč
€ 110.10 |
||
| 245 5 WHR77069 |
C00606329
481245828022 |
Grid bottom. | Na dotaz | Zadat poptávku | |
| 245 6 WHR77069 |
C00606330
481245828023 |
Grid upper. | Na dotaz | Zadat poptávku | |
| 245 8 WHR77069 |
C00490010
481245819245 |
Basket | Na dotaz | Zadat poptávku | |
| 249 0 WHR77069 |
C00606348
481246049506 |
Trim. | Na dotaz | Zadat poptávku | |
| 249 1 WHR77069 |
C00315849
481246049283 |
Trim basket | Na dotaz | Zadat poptávku | |
| 249 2 WHR77069 |
C00319213
481246049284 |
Trim | Na dotaz | Zadat poptávku | |
| 249 3 WHR77069 |
C00606349
481246049507 |
Profile. | Na dotaz | Zadat poptávku | |
| 249 4 WHR77069 |
C00195476
481246049282 |
Krycí lišta skleněné police chladničky - zadní | 540 Kč
€ 21.30 |
||
| 249 9 WHR77069 |
C00606350
481246049508 |
Profile. | Na dotaz | Zadat poptávku | |
| 251 1 WHR77069 |
C00315642
481244098282 |
Kryt žárovky | 259 Kč
€ 10.20 |
||
| 251 5 WHR77069 |
C00330248
481246049289 |
Trim | Na dotaz | Zadat poptávku | |
| 251 8 WHR77069 |
C00312341
481238028028 |
kryt světla | 1 138 Kč
€ 44.90 |
||
| 251 9 WHR77069 |
C00195349
481244098125 |
Kryt světla | 641 Kč
€ 25.30 |
||
| 252 0 WHR77069 |
C00498003
481244079132 |
RIDICI MODUL | Na dotaz | Zadat poptávku | |
| 255 1 WHR77069 |
C00317780
481245088273 |
rost skleneny | 1 003 Kč
€ 39.60 |
||
| 255 4 WHR77069 |
C00312738
481245088109 |
sklo police | Na dotaz | Zadat poptávku | |
| 255 5 WHR77069 |
C00317347
481245088111 |
Glass shelftop | Na dotaz | Zadat poptávku | |
| 255 7 WHR77069 |
C00528331
481245088256 |
Frame Glass shelf | Na dotaz | Zadat poptávku | |
| 255 8 WHR77069 |
C00528330
481245088255 |
Frame Glass shelf | Na dotaz | Zadat poptávku | |
| 255 9 WHR77069 |
C00528332
481245088257 |
Frame Glass shelf | Na dotaz | Zadat poptávku | |
| 256 0 WHR77069 |
C00195486
481246058384 |
drzak | 441 Kč
€ 17.40 |
||
| 256 5 WHR77069 |
C00333145
481946698997 |
Rail ,air inletair inlet | Na dotaz | Zadat poptávku | |
| 261 0 WHR77069 |
C00312885
481246238139 |
lista vodici | 680 Kč
€ 26.80 |
||
| 261 1 WHR77069 |
C00313918
481246238138 |
Slide left | Na dotaz | Zadat poptávku | |
| 261 2 WHR77069 |
C00315901
481246238153 |
Vodící lišta koše mrazáku americké chladničky - levá | 616 Kč
€ 24.30 |
||
| 261 3 WHR77069 |
C00314495
481246238154 |
Lišta pravá | Na dotaz | Zadat poptávku | |
| 263 8 WHR77069 |
C00313216
481240448702 |
Kolík rámu chladničky pravý | 315 Kč
€ 12.40 |
||
| 263 9 WHR77069 |
C00311512
481240448701 |
Kolík | 289 Kč
€ 11.40 |
||
| 324 6 WHR77069 |
C00317516
481244229299 |
Air diffuser | Na dotaz | Zadat poptávku | |
| 402 0 WHR77069 |
C00328666
481236068644 |
CompressorEGU100HLC C | Na dotaz | Zadat poptávku | |
| 402 1 WHR77069 |
C00329918
481241828424 |
vanicka odkapu | 752 Kč
€ 29.70 |
||
| 402 2 WHR77069 |
C00195454
481936048014 |
VENTIL | Na dotaz | Zadat poptávku | |
| 402 4 WHR77069 |
C00195359
481244079129 |
Cup,thaw water | Na dotaz | Zadat poptávku | |
| 420 0 WHR77069 |
C00326756
481212028043 |
Capacitor | Na dotaz | Zadat poptávku | |
| 420 4 WHR77069 |
C00331039
481244229019 |
Insulator | Na dotaz | Zadat poptávku | |
| 440 3 WHR77069 |
C00311246
481244528021 |
Air diffuser - damper sub 481236138103 | Na dotaz | Zadat poptávku | |
| 440 4 WHR77069 |
C00311664
481246238141 |
kryt | 339 Kč
€ 13.40 |
||
| 440 5 WHR77069 |
C00312554
481244528036 |
AIR DIFFUSER | 785 Kč
€ 31.00 |
||
| 440 6 WHR77069 |
C00311792
481946238778 |
Slide | Na dotaz | Zadat poptávku | |
| 440 7 WHR77069 |
C00331409
481245298253 |
Insulator | Na dotaz | Zadat poptávku | |
| 440 8 WHR77069 |
C00195446
481244079136 |
FLAP | 684 Kč
€ 27.00 |
||
| 441 0 WHR77069 |
C00326714
481202858342 |
motor ventilatoru | 3 055 Kč
€ 120.60 |
||
| 441 1 WHR77069 |
C00195360
481946248418 |
PRYŽ TLUMIČE XB800AENF | Na dotaz | Zadat poptávku | |
| 441 2 WHR77069 |
C00317209
481244068962 |
Support right | Na dotaz | Zadat poptávku | |
| 442 0 WHR77069 |
C00320443
481236118434 |
Motor,fan sub 481236138118 | Na dotaz | Zadat poptávku | |
| 442 1 WHR77069 |
C00312306
481940478682 |
drzak | 191 Kč
€ 7.50 |
||
| 443 0 WHR77069 |
C00311633
481951548057 |
vrtule ventilatoru | Na dotaz | Zadat poptávku | |
| 443 1 WHR77069 |
C00311620
481902182120 |
Housing ventilator | Na dotaz | Zadat poptávku | |
| 451 0 WHR77069 |
C00195385
481902188177 |
topeni | 3 018 Kč
€ 119.10 |
||
| 451 1 WHR77069 |
C00256947
481240118807 |
drzak topeni | Na dotaz | Zadat poptávku | |
| 491 0 WHR77069 |
C00313589
481229088087 |
Cover connection block | Na dotaz | Zadat poptávku | |
| 526 2 WHR77069 |
C00312948
481221778172 |
NAHRADA sub 481221778214 | Na dotaz | Zadat poptávku | |
| 526 5 WHR77069 |
C00316182
481244029368 |
Lid electronic box | Na dotaz | Zadat poptávku | |
| 561 2 WHR77069 |
C00319566
481229068294 |
Connect.block | Na dotaz | Zadat poptávku | |
| 562 0 WHR77069 |
C00311207
481232058132 |
Termostat - bimetal | 2 892 Kč
€ 114.20 |
||
| 614 0 WHR77069 |
C00345104
481228028041 |
PTC-Unit | Na dotaz | Zadat poptávku | |
| 620 4 WHR77069 |
C00314637
481927618157 |
Switch ,light sub 481227618538 | Na dotaz | Zadat poptávku | |
| 626 1 WHR77069 |
C00314097
481244079112 |
Deflektor | 175 Kč
€ 6.90 |
||
| 651 0 WHR77069 |
C00312051
481213418033 |
Lamp 40W 220V T-CLICK | Na dotaz | Zadat poptávku | |
| 691 4 WHR77069 |
C00315397
481240478553 |
Support NTC | Na dotaz | Zadat poptávku | |
| 691 7 WHR77069 |
C00311307
481231018846 |
Senzor teploty - sada | 1 663 Kč
€ 65.70 |
||
| 740 0 WHR77069 |
C00269659
481251138215 |
KONDENZÁTOR | Na dotaz | Zadat poptávku | |
| 743 1 WHR77069 |
C00328329
481244079139 |
Cover | Na dotaz | Zadat poptávku | |
| 743 3 WHR77069 |
C00316023
481246688722 |
Gasket condenser fan frame | Na dotaz | Zadat poptávku | |
| 745 0 WHR77069 |
C00311856
481236038648 |
vyparnik | 3 097 Kč
€ 122.30 |
||
| 745 2 WHR77069 |
C00328130
481244029446 |
Cover evaporator | Na dotaz | Zadat poptávku | |
| 745 4 WHR77069 |
C00195375
481949268684 |
spona | 121 Kč
€ 4.80 |
||
| 745 6 WHR77069 |
C00195396
481244079113 |
Heat shield | Na dotaz | Zadat poptávku | |
| 746 1 WHR77069 |
C00331016
481244098226 |
Conveyor | Na dotaz | Zadat poptávku | |
| 746 2 WHR77069 |
C00328279
481244069203 |
Cover evaporator | Na dotaz | Zadat poptávku | |
| 746 3 WHR77069 |
C00328418
481244098062 |
Gasket air guide | Na dotaz | Zadat poptávku | |
| 746 4 WHR77069 |
C00263718
481244079131 |
DEFLEKTOR (MSZ8...) | Na dotaz | Zadat poptávku | |
| 764 2 WHR77069 |
C00345712
481248028092 |
Dryer | Na dotaz | Zadat poptávku | |
| 785 0 WHR77069 |
C00314310
481253029348 |
Tube evaporator drain | Na dotaz | Zadat poptávku | |
| 900 5 WHR77069 |
C00318136
481949268544 |
Clip fix drain tube | Na dotaz | Zadat poptávku | |
| 900 7 WHR77069 |
C00195401
481240418483 |
BRAKET XB800AENF | Na dotaz | Zadat poptávku | |
| 900 8 WHR77069 |
C00315132
481949269522 |
drzak rostu | Na dotaz | Zadat poptávku | |
| 913 4 WHR77069 |
C00332094
481250218622 |
Screw | Na dotaz | Zadat poptávku | |
| 913 5 WHR77069 |
C00332102
481250218667 |
Screw M4x15 | Na dotaz | Zadat poptávku | |
| 913 7 WHR77069 |
C00195474
481250218578 |
Screw | Na dotaz | Zadat poptávku | |
| 999 WHR77069 |
C00703599 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
