BAUKNECHT SMK 4530 WS
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | SMK 4530 WS |
| Kód 12NC: | 857436122020 |
| Značka: | BAUKNECHT |
| Typ produktu: | Volně stojící sporáky a trouby |
Potřebujete servis? Jsme tady pro Vás

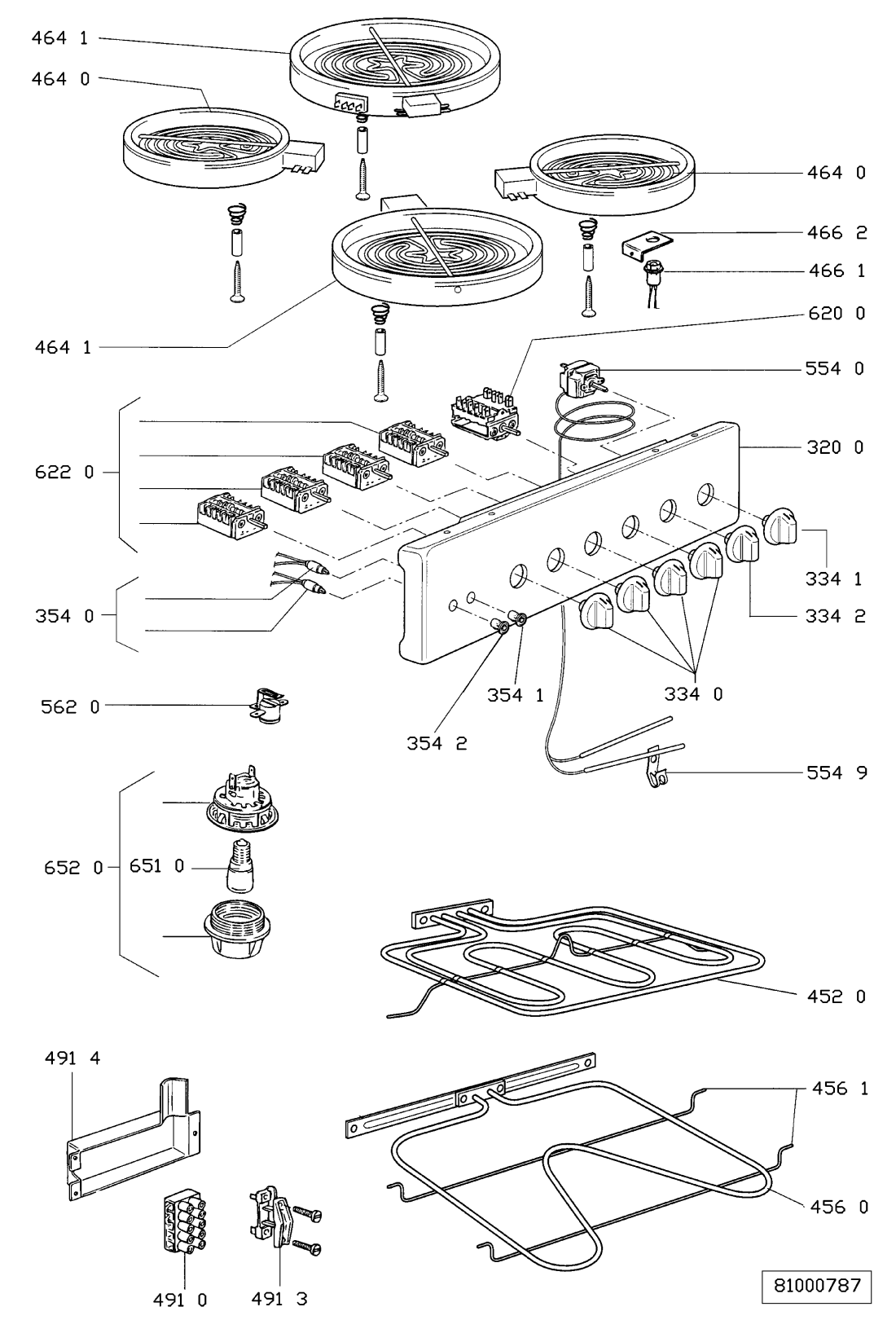

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 011 0 WHR102969 |
C00492567
481950018145 |
Foot | Na dotaz | Zadat poptávku | |
| 022 0 WHR102969 |
C00499157
481944059772 |
Panel side right | Na dotaz | Zadat poptávku | |
| 022 1 WHR102969 |
C00499158
481944059774 |
Panel side left | Na dotaz | Zadat poptávku | |
| 022 9 WHR102969 |
C00597179
481941719361 |
Pin hob. | Na dotaz | Zadat poptávku | |
| 031 0 WHR102969 |
C00597192
481944059858 |
Sklo varné desky | Na dotaz | Zadat poptávku | |
| 041 0 WHR102969 |
C00499101
481941719353 |
HINGE | Na dotaz | Zadat poptávku | |
| 041 1 WHR102969 |
C00499102
481941719354 |
HINGE | Na dotaz | Zadat poptávku | |
| 045 0 WHR102969 |
C00339880
481941719352 |
HINGE | Na dotaz | Zadat poptávku | |
| 051 0 WHR102969 |
C00490674
481944059816 |
Plinth | Na dotaz | Zadat poptávku | |
| 053 0 WHR102969 |
C00499250
481945349622 |
Front panel | Na dotaz | Zadat poptávku | |
| 110 0 WHR102969 |
C00499892
481949858481 |
Handle door | Na dotaz | Zadat poptávku | |
| 110 3 WHR102969 |
C00596774
481946669982 |
Gasket. | Na dotaz | Zadat poptávku | |
| 121 0 WHR102969 |
C00596696
481944059817 |
Door,inner. | Na dotaz | Zadat poptávku | |
| 121 4 WHR102969 |
C00336756
481950218474 |
SCREW | Na dotaz | Zadat poptávku | |
| 121 5 WHR102969 |
C00596775
481946669986 |
Gasket border. | Na dotaz | Zadat poptávku | |
| 141 0 WHR102969 |
C00596720
481945058137 |
Door glass cristal oven. | Na dotaz | Zadat poptávku | |
| 141 1 WHR102969 |
C00337465
481946078082 |
TRIM,DOOR | Na dotaz | Zadat poptávku | |
| 142 0 WHR102969 |
C00338930
481945069701 |
INNER GLASS | Na dotaz | Zadat poptávku | |
| 142 1 WHR102969 |
C00336755
481950218392 |
Screw | Na dotaz | Zadat poptávku | |
| 142 2 WHR102969 |
C00338072
481950518303 |
Nut | Na dotaz | Zadat poptávku | |
| 142 3 WHR102969 |
C00556211
481946669985 |
SEAL,GLASS INNER DOOR.. | Na dotaz | Zadat poptávku | |
| 142 4 WHR102969 |
C00337256
481953258272 |
Washer | Na dotaz | Zadat poptávku | |
| 142 5 WHR102969 |
C00337257
481953258271 |
Washer | Na dotaz | Zadat poptávku | |
| 191 0 WHR102969 |
C00340467
481946669984 |
Gasket door | Na dotaz | Zadat poptávku | |
| 242 0 WHR102969 |
C00499128
481941879661 |
DRAWER | Na dotaz | Zadat poptávku | |
| 242 1 WHR102969 |
C00336358
481946698877 |
SHOCK ABSORBER | Na dotaz | Zadat poptávku | |
| 242 2 WHR102969 |
C00336960
481946238718 |
RAIL | Na dotaz | Zadat poptávku | |
| 245 0 WHR102969 |
C00499261
481945819325 |
ROST | Na dotaz | Zadat poptávku | |
| 246 0 WHR102969 |
C00490616
481941838342 |
Baking tray | Na dotaz | Zadat poptávku | |
| 247 0 WHR102969 |
C00596692
481941838341 |
FAT PAN. | Na dotaz | Zadat poptávku | |
| 248 3 WHR102969 |
C00582377
481946248406 |
Cover. | Na dotaz | Zadat poptávku | |
| 256 0 WHR102969 |
C00596776
481946689146 |
Knob protection. | Na dotaz | Zadat poptávku | |
| 256 1 WHR102969 |
C00596777
481946698939 |
Spacer. | Na dotaz | Zadat poptávku | |
| 320 0 WHR102969 |
C00596737
481945358618 |
Control panel. | Na dotaz | Zadat poptávku | |
| 334 0 WHR102969 |
C00596686
481941258574 |
Knob switch. | Na dotaz | Zadat poptávku | |
| 334 1 WHR102969 |
C00596687
481941258585 |
Knob Thermostat. | Na dotaz | Zadat poptávku | |
| 334 2 WHR102969 |
C00596689
481941258587 |
Knob switch oven. | Na dotaz | Zadat poptávku | |
| 354 0 WHR102969 |
C00341471
481913448465 |
pILOT LAMP L= 230 MML= 230 mm | Na dotaz | Zadat poptávku | |
| 354 0 WHR102969 |
C00341470
481913448464 |
Pilot lamp L= 600 mm | Na dotaz | Zadat poptávku | |
| 354 1 WHR102969 |
C00556193
481946279853 |
Lens ,red.. | Na dotaz | Zadat poptávku | |
| 354 2 WHR102969 |
C00341779
481946279854 |
Lens orange | Na dotaz | Zadat poptávku | |
| 452 0 WHR102969 |
C00316357
481925928758 |
Heating element top + grill | Na dotaz | Zadat poptávku | |
| 456 0 WHR102969 |
C00319652
481925928757 |
Heating element lower | Na dotaz | Zadat poptávku | |
| 456 1 WHR102969 |
C00335920
481940478722 |
SUPPORT | Na dotaz | Zadat poptávku | |
| 464 0 WHR102969 |
C00500380
481925998357 |
Cooking plate Quickstar 145mm 1200W | Na dotaz | Zadat poptávku | |
| 464 1 WHR102969 |
C00599372
481925998433 |
Cooking plate Quickstar d 180 1700W. | Na dotaz | Zadat poptávku | |
| 466 1 WHR102969 |
C00597100
481913448438 |
Residual indic.. | Na dotaz | Zadat poptávku | |
| 466 2 WHR102969 |
C00755853
481913448482 |
Support | Na dotaz | Zadat poptávku | |
| 491 0 WHR102969 |
C00494898
481985023182 |
Connectionblock | Na dotaz | Zadat poptávku | |
| 491 3 WHR102969 |
C00335992
481940118715 |
Strain relief | Na dotaz | Zadat poptávku | |
| 491 4 WHR102969 |
C00343033
481946698882 |
Cover | Na dotaz | Zadat poptávku | |
| 554 0 WHR102969 |
C00335484
481927128855 |
termostat | 2 187 Kč
€ 86.30 |
||
| 554 9 WHR102969 |
C00582291
481940118719 |
Clamp thermostat bulb. | Na dotaz | Zadat poptávku | |
| 562 0 WHR102969 |
C00335671
481928248262 |
Switch,thermal cut-off-thermostat | Na dotaz | Zadat poptávku | |
| 620 0 WHR102969 |
C00335698
481927618266 |
spínač | 680 Kč
€ 26.80 |
||
| 622 0 WHR102969 |
C00498855
481927618267 |
ENERGY REGULAT. | Na dotaz | Zadat poptávku | |
| 651 0 WHR102969 |
C00311277
481913488135 |
BULB LED E14 T25 - 15W - 220V | Na dotaz | Zadat poptávku | |
| 652 0 WHR102969 |
C00339576
481931038923 |
Holder lamp cpl. | Na dotaz | Zadat poptávku | |
