BAUKNECHT SMZ 4684 FH SMZ 4684 FH/WS
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | SMZ 4684 FH SMZ 4684 FH/WS |
| Kód 12NC: | 857434320020 |
| Značka: | BAUKNECHT |
| Typ produktu: |
Potřebujete servis? Jsme tady pro Vás

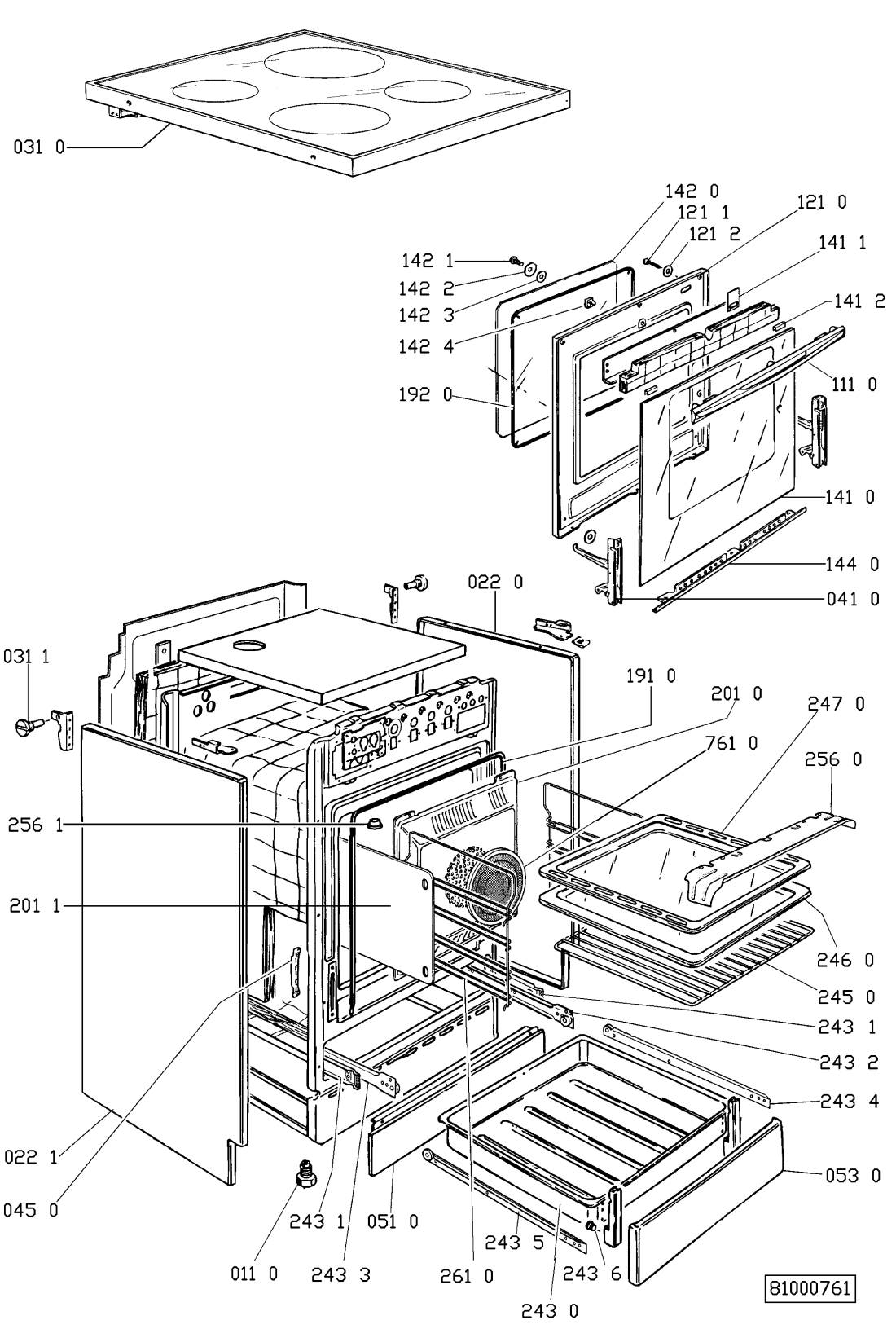

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 011 0 WHR113902 |
C00492567
481950018145 |
Foot | Na dotaz | Zadat poptávku | |
| 022 0 WHR113902 |
C00499157
481944059772 |
Panel side right | Na dotaz | Zadat poptávku | |
| 022 1 WHR113902 |
C00499158
481944059774 |
Panel side left | Na dotaz | Zadat poptávku | |
| 031 0 WHR113902 |
C00755990
481944238995 |
Hob | Na dotaz | Zadat poptávku | |
| 031 1 WHR113902 |
C00597179
481941719361 |
Pin hob. | Na dotaz | Zadat poptávku | |
| 041 0 WHR113902 |
C00481200
481941719349 |
Hinge | Na dotaz | Zadat poptávku | |
| 045 0 WHR113902 |
C00481201
481941719351 |
Hinge ,female | Na dotaz | Zadat poptávku | |
| 051 0 WHR113902 |
C00597197
481944238259 |
Plinth cover. | Na dotaz | Zadat poptávku | |
| 053 0 WHR113902 |
C00597189
481944059773 |
Panel front ,Drawer. | Na dotaz | Zadat poptávku | |
| 111 0 WHR113902 |
C00499895
481949878156 |
Handle door | Na dotaz | Zadat poptávku | |
| 121 0 WHR113902 |
C00745030
481944238709 |
Door inner | Na dotaz | Zadat poptávku | |
| 121 1 WHR113902 |
C00532523
481990704164 |
Screw M 5x10 M 5x10 | Na dotaz | Zadat poptávku | |
| 121 2 WHR113902 |
C00745040
481953258275 |
Washer | Na dotaz | Zadat poptávku | |
| 141 0 WHR113902 |
C00755982
481945058211 |
Oven glass | Na dotaz | Zadat poptávku | |
| 141 1 WHR113902 |
C00747280
481946818246 |
Gasket | Na dotaz | Zadat poptávku | |
| 141 2 WHR113902 |
C00596774
481946669982 |
Gasket. | Na dotaz | Zadat poptávku | |
| 142 0 WHR113902 |
C00556082
481945069687 |
Inner glass.. | Na dotaz | Zadat poptávku | |
| 142 1 WHR113902 |
C00336755
481950218392 |
Screw | Na dotaz | Zadat poptávku | |
| 142 2 WHR113902 |
C00494772
481953258274 |
Washer | Na dotaz | Zadat poptávku | |
| 142 3 WHR113902 |
C00337257
481953258271 |
Washer | Na dotaz | Zadat poptávku | |
| 142 4 WHR113902 |
C00338072
481950518303 |
Nut | Na dotaz | Zadat poptávku | |
| 144 0 WHR113902 |
C00598894
481946089182 |
Trim lower. | Na dotaz | Zadat poptávku | |
| 191 0 WHR113902 |
C00481208
481946669979 |
Gasket oven | Na dotaz | Zadat poptávku | |
| 192 0 WHR113902 |
C00556210
481946669981 |
Gasket door.. | Na dotaz | Zadat poptávku | |
| 201 0 WHR113902 |
C00492373
481944059783 |
Panel rear | Na dotaz | Zadat poptávku | |
| 201 1 WHR113902 |
C00597190
481944059778 |
Side panel catalytic. | Na dotaz | Zadat poptávku | |
| 243 0 WHR113902 |
C00597181
481941838343 |
Drawer. | Na dotaz | Zadat poptávku | |
| 243 1 WHR113902 |
C00597157
481940479307 |
Support. | Na dotaz | Zadat poptávku | |
| 243 2 WHR113902 |
C00597240
481946238857 |
Rail. | Na dotaz | Zadat poptávku | |
| 243 3 WHR113902 |
C00597241
481946238858 |
Rail. | Na dotaz | Zadat poptávku | |
| 243 4 WHR113902 |
C00597242
481946238859 |
Rail right. | Na dotaz | Zadat poptávku | |
| 243 5 WHR113902 |
C00597244
481946238861 |
Rail left. | Na dotaz | Zadat poptávku | |
| 243 6 WHR113902 |
C00336358
481946698877 |
SHOCK ABSORBER | Na dotaz | Zadat poptávku | |
| 245 0 WHR113902 |
C00496490
481990704917 |
Grid | Na dotaz | Zadat poptávku | |
| 246 0 WHR113902 |
C00597182
481941838383 |
Baking tray | Na dotaz | Zadat poptávku | |
| 247 0 WHR113902 |
C00490617
481941838344 |
Fat pan | Na dotaz | Zadat poptávku | |
| 256 0 WHR113902 |
C00486830
481946689391 |
Knob protection | Na dotaz | Zadat poptávku | |
| 256 1 WHR113902 |
C00597256
481946698889 |
Spacer. | Na dotaz | Zadat poptávku | |
| 261 0 WHR113902 |
C00597233
481945858728 |
Inset grid. | Na dotaz | Zadat poptávku | |
| 320 0 WHR113902 |
C00755989
481945358765 |
Control panel | Na dotaz | Zadat poptávku | |
| 334 0 WHR113902 |
C00596686
481941258574 |
Knob switch. | Na dotaz | Zadat poptávku | |
| 334 1 WHR113902 |
C00596687
481941258585 |
Knob Thermostat. | Na dotaz | Zadat poptávku | |
| 334 2 WHR113902 |
C00755957
481941359056 |
Knob elec.oven | Na dotaz | Zadat poptávku | |
| 334 3 WHR113902 |
C00755959
481941359057 |
Knob timer | Na dotaz | Zadat poptávku | |
| 354 0 WHR113902 |
C00481287
481913448485 |
Pilot lamp L= 750 mm | Na dotaz | Zadat poptávku | |
| 354 1 WHR113902 |
C00341471
481913448465 |
pILOT LAMP L= 230 MML= 230 mm | Na dotaz | Zadat poptávku | |
| 354 2 WHR113902 |
C00341776
481938118201 |
Lens red | Na dotaz | Zadat poptávku | |
| 354 3 WHR113902 |
C00341779
481946279854 |
Lens orange | Na dotaz | Zadat poptávku | |
| 360 0 WHR113902 |
C00599490
481990704997 |
Timer. | Na dotaz | Zadat poptávku | |
| 440 0 WHR113902 |
C00373292
481963118346 |
Motor fan complete | Na dotaz | Zadat poptávku | |
| 451 0 WHR113902 |
C00375163
481925928759 |
Heating element forced air | Na dotaz | Zadat poptávku | |
| 452 0 WHR113902 |
C00597110
481925928891 |
Heating element + grill upper. | Na dotaz | Zadat poptávku | |
| 454 0 WHR113902 |
C00481291
481925928812 |
OHRIEVACIE TELESO | Na dotaz | Zadat poptávku | |
| 461 0 WHR113902 |
C00598824
481925998559 |
Cooking plate d.145 1000 W. | Na dotaz | Zadat poptávku | |
| 461 1 WHR113902 |
C00599373
481925998561 |
Cooking plate dia 220 - 2000W. | Na dotaz | Zadat poptávku | |
| 461 5 WHR113902 |
C00598825
481925998562 |
Cooking plate d=145 1500 W. | Na dotaz | Zadat poptávku | |
| 461 6 WHR113902 |
C00555753
481925998563 |
Cooking plate d=180 2.. | Na dotaz | Zadat poptávku | |
| 491 0 WHR113902 |
C00494898
481985023182 |
Connectionblock | Na dotaz | Zadat poptávku | |
| 491 1 WHR113902 |
C00343033
481946698882 |
Cover | Na dotaz | Zadat poptávku | |
| 554 0 WHR113902 |
C00335484
481927128855 |
termostat | 2 187 Kč
€ 86.30 |
||
| 554 1 WHR113902 |
C00343269
481949248166 |
Clip Thermostat | Na dotaz | Zadat poptávku | |
| 562 0 WHR113902 |
C00335671
481928248262 |
Switch,thermal cut-off-thermostat | Na dotaz | Zadat poptávku | |
| 620 0 WHR113902 |
C00495790
481927328438 |
Selector,switch oven | Na dotaz | Zadat poptávku | |
| 622 0 WHR113902 |
C00498855
481927618267 |
ENERGY REGULAT. | Na dotaz | Zadat poptávku | |
| 651 0 WHR113902 |
C00311277
481913488135 |
BULB LED E14 T25 - 15W - 220V | Na dotaz | Zadat poptávku | |
| 652 0 WHR113902 |
C00339576
481931038923 |
Holder lamp cpl. | Na dotaz | Zadat poptávku | |
| 761 0 WHR113902 |
C00597099
481912118212 |
filtr tukovy | Na dotaz | Zadat poptávku | |
| 794 2 WHR113902 |
C00755991
481953058077 |
Ring | Na dotaz | Zadat poptávku | |
| 794 4 WHR113902 |
C00755992
481953058074 |
Ring | Na dotaz | Zadat poptávku | |
| 794 5 WHR113902 |
C00755993
481953058075 |
Ring | Na dotaz | Zadat poptávku | |
| 794 6 WHR113902 |
C00755994
481953058078 |
Ring | Na dotaz | Zadat poptávku | |
| 794 7 WHR113902 |
C00755995
481953058076 |
Ring | Na dotaz | Zadat poptávku | |
| 794 8 WHR113902 |
C00755996
481953058079 |
Ring | Na dotaz | Zadat poptávku | |
| 901 0 WHR113902 |
C00335992
481940118715 |
Strain relief | Na dotaz | Zadat poptávku | |
| 904 0 WHR113902 |
C00755997
481946818292 |
Gasket | Na dotaz | Zadat poptávku | |
| 904 1 WHR113902 |
C00755998
481946818293 |
Gasket | Na dotaz | Zadat poptávku | |
| 904 2 WHR113902 |
C00486845
481946818294 |
Gasket | Na dotaz | Zadat poptávku | |
| 993 0 WHR113902 |
C00532049
481946689419 |
Protector glass top | Na dotaz | Zadat poptávku | |
